Page 1: Remote Reset

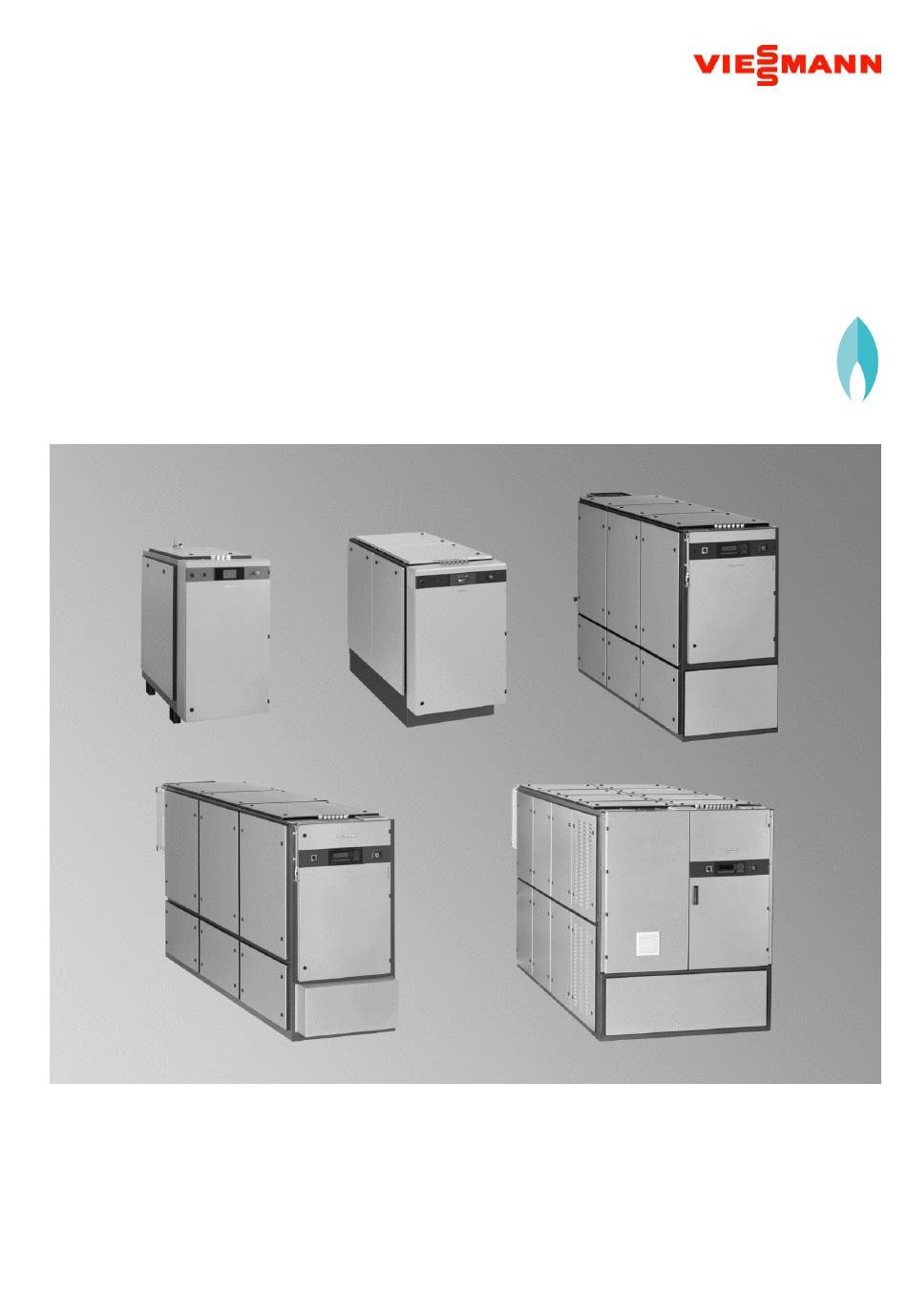

Installation and operating instructions for contractors Remote reset CHP unit accessory for VITOBLOC 200 EM-6/15 to EM-530/660 5838316 GB 07/2019... -
Page 2: Table Of Contents
Table of contents Safety instructions ................... 3 Function description ................4 Version ...................... 5 Installation ....................6 Operation ....................8 General design and operating information ..............8 Step by step remote acknowledgement via VITODATA ........... 10 Commissioning ..................13 Maintenance ................... 13 Disposal .................... -
Page 3: Safety Instructions
Safety instructions Safety instructions General These operating instructions contain basic information that must be observed when installing and operating the communication module. They must therefore be read by the installer and relevant qualified technician(s) prior to installation and commissioning. They must always be available at the system. Identification Failure to observe the safety instructions identified with this hazard of safety instructions... -
Page 4: Function Description
Function description Function description General The Vitobloc 200 CHP units can be unidirectionally remotely monitored by means of TeleControl LAN. Status information and fault messages can be displayed. In order to acknowledge faults remotely, a bidirectional connection is required, which is also available as a retrofit solution for modules that have already been delivered. -
Page 5: Version
Version Version Standard delivery 1. Remote reset retrofit kit for EM-6/15 to EM-20/39 with BBS 3000 Part no. 7727449 Article no. Object short text Quantity 7870515 Remote reset EM-6 to 20 enclosure 1 pce 7870516 BBS 3000 display R1 with reset function... -
Page 6: Installation
Installation Installation Wall mounting The enclosure of the retrofit kit is designed for wall mounting. The wall brackets must be mounted on the enclosure for this. For this purpose, expansion plugs are used, so that the mounting plate does not need to be removed. - Page 7 Installation Positioning the The cables are inserted from below in such a way that a minimum height must be control panel observed. Install the control panel in a suitable place. Ensure that the installation does not cause any hazards (suitable working height, no impact point in the passage area, suitable ambient conditions).
-
Page 8: Operation
Operation Operation General design and operating information Ensuring the safety The operator must ensure that people are not endangered and that no other of the system hazards arise during the remote acknowledgement of faults. The operator must make a note in the local and operational risk assessment and, if necessary, take measures to reduce possible hazards (operator obligation according to the German Operational Safety Ordinance (BetrSichV)). - Page 9 (TeleControl LAN) in order to be able to assess the condition of the CHP unit. Remote acknowledgement may only be carried out by internal Viessmann personnel for systems that are maintained by means of service contract 300.
-
Page 10: Step By Step Remote Acknowledgement Via Vitodata
Operation Step by step remote acknowledgement via VITODATA Login 1. Log in to https://vitodata300.viessmann.com 2. Select the relevant system ---> (in the example: Testgerät – Landsberg Vi KWK) Selection CHP unit accessory • Operating and installation instructions • Remote reset • VITOBLOC 200... - Page 11 Operation 3. Select VC 300 LAN3 4. "Operation" menu 5. Select the digital output VITOBLOC 200 CHP unit accessory • Operating and installation instructions • Remote reset...
- Page 12 Operation 6. Click on the pen icon 7. Select drop-down menu "Reset on/off" The acknowledgement takes place when the relay changes from the open to the closed state. This means that the relay must be opened again after each acknowledgement procedure before another acknowledgement is possible. After a successful acknowledgement, the CHP unit is switched to automatic mode if no further faults are pending CHP unit accessory •...
-
Page 13: Commissioning
Commissioning Commissioning The remote reset module is commissioned as part of the general commissioning of the CHP system or, in the case of retrofitting, by the CHP unit manufacturer's technical service personnel or authorised contractors. Maintenance This accessory is maintenance-free. Disposal Dispose of this product and its components in an environmentally responsible manner, compliant with EU Directive 2012/96/EC. -
Page 14: Appendix
Appendix Appendix Remote reset BBS 3000 wiring diagram CHP unit accessory • Operating and installation instructions • Remote reset • VITOBLOC 200... - Page 15 Remote reset BBS 3000 wiring diagram VITOBLOC 200 CHP unit accessory • Operating and installation instructions • Remote reset...
- Page 16 Remote reset BBS 3000 wiring diagram CHP unit accessory • Operating and installation instructions • Remote reset • VITOBLOC 200...
- Page 17 Remote reset BBS 3000 wiring diagram VITOBLOC 200 CHP unit accessory • Operating and installation instructions • Remote reset...
-
Page 18: Remote Reset Bms 2007 Wiring Diagram
Remote reset BMS 2007 wiring diagram Remote reset BMS 2007 wiring diagram CHP unit accessory • Operating and installation instructions • Remote reset • VITOBLOC 200... - Page 19 Remote reset BMS 2007 wiring diagram VITOBLOC 200 CHP unit accessory • Operating and installation instructions • Remote reset...
-
Page 20: Chp Unit Accessory • Operating And Installation Instructions • Remote Reset • Vitobloc
Remote reset BMS 2007 wiring diagram CHP unit accessory • Operating and installation instructions • Remote reset • VITOBLOC 200... - Page 21 Remote reset BMS 2007 wiring diagram VITOBLOC 200 CHP unit accessory • Operating and installation instructions • Remote reset...
- Page 22 Remote reset BMS 2007 wiring diagram CHP unit accessory • Operating and installation instructions • Remote reset • VITOBLOC 200...
- Page 23 Notes VITOBLOC 200 CHP unit accessory • Operating and installation instructions • Remote reset...
- Page 24 Viessmann Werke GmbH & Co KG D-35107 Allendorf Tel.: +49 (0)6452 70-0 Fax: +49 (0)6452 70-2780 www.viessmann.de...
