Wiring

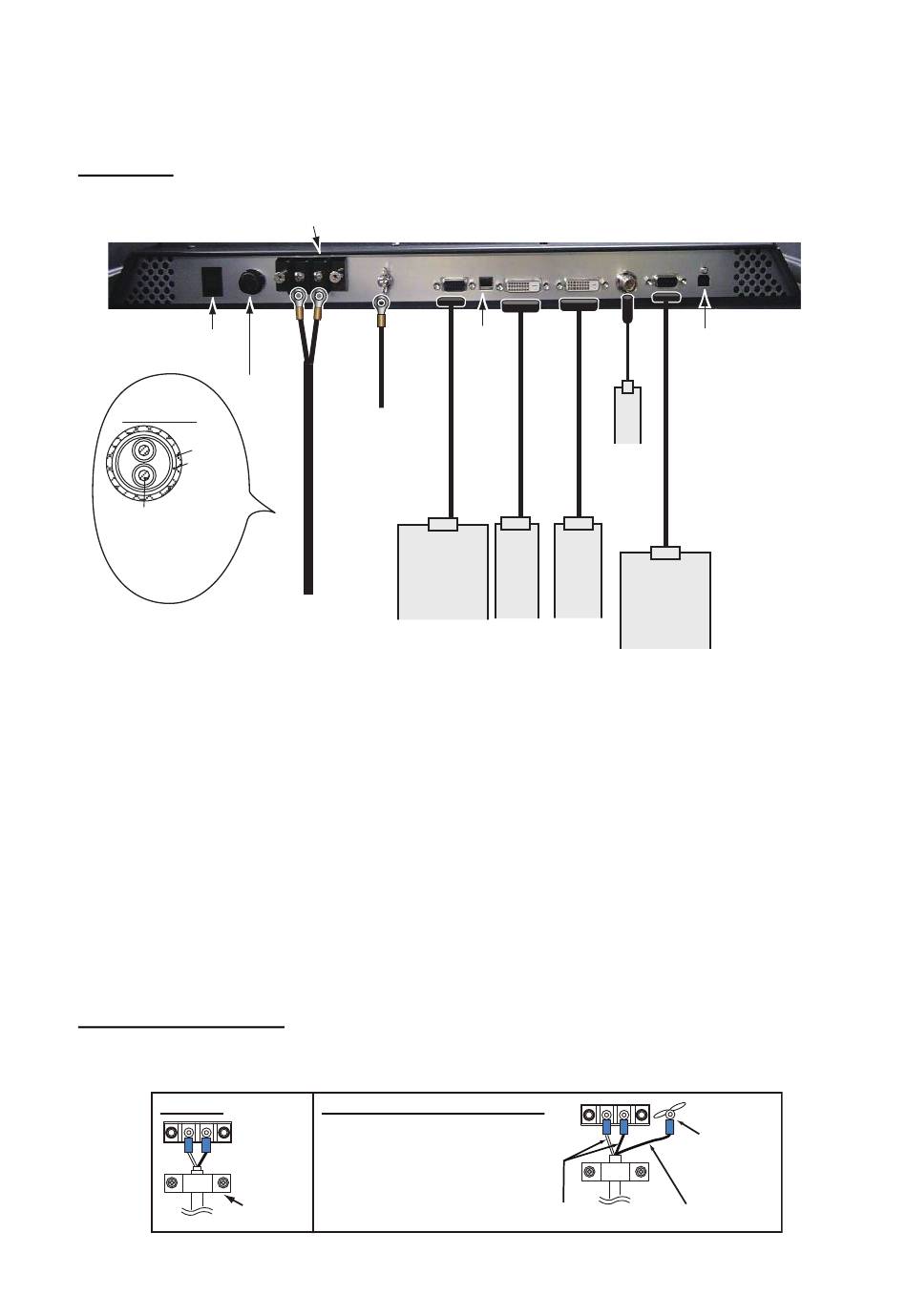

Refer to the figure below and the interconnection diagram at the back of this manual to connect
cables.
Connector
Attach the Terminal Board Gear Cover
again after connecting cables.
Power
switch
Fuse
DPYC-1.5
Armor
Sheath
Conductor
2
S = 1.5 mm
φ = 1.56 mm
φ =
11.7 mm
*1: Attach a crimp-on lug (inner dia. 4) for monitor unit side. Make the length of the ground wire
as short as possible.
*2: Slide switch
• ON (upward): Allow digital signal from external equipment to control on/off of the monitor unit.
• OFF (downward): Set to OFF for analog RGB signal.
Note: Turn the slide switch off when you connect equipment to both the DVI and RGB ports.
*3: BRILL CTRL port
No use. Do not remove the sticker from the connector.
*4: DVI-D/D S-LINK 10M
This is not available for UXGA signal.
How to fix power cable
Fix the power cable with the cable clamp to prevent it from loosening.
MU-231
The bottom of the rear of the monitor unit
IV-8 sq IV-8 sq IV-8 sq
1 1 1
(local supply) * (local supply) * (local supply) *
To ground
terminal on hull
RGB signal RGB signal RGB signal
3COX-2P-6C 3COX-2P-6C 3COX-2P-6C
5 m/10 m (option) 5 m/10 m (option) 5 m/10 m (option)
DPYC-1.5 DPYC-1.5 DPYC-1.5
(or equivalent) (or equivalent) (or equivalent)
FSV-84/84L FSV-84/84L
FSV-30/S-BB FSV-30/S-BB
FSV-24/S-BB FSV-24/S-BB
FCV-30 FCV-30
100-230 VAC
FCV-1200L/M FCV-1200L/M
Replace MU-231CE with MU-231
Cut the connector of the power
cable (15-565, supplied on the
MU-231CE). Attach a crimp-on
lug (supplied on the MU-231)
to each cable core then
connect the cables as in the
Cable
figure at right.
clamp
Slide Slide Slide
Composite Composite Composite
2 2 2
switch * switch * switch *
signal cable signal cable signal cable
CCD camera CCD camera CCD camera
DVD recorder DVD recorder DVD recorder
Digital signal Digital signal Digital signal
DVI-D/D S-LINK DVI-D/D S-LINK DVI-D/D S-LINK
5 m (standard)/ 5 m (standard)/ 5 m (standard)/
4 4 4
10 m * 10 m * 10 m * (option) (option) (option)
FAR-28x7 FAR-28x7
FEA-2807 FEA-2807
FEA-2807, FCR-28x7 FEA-2807, FCR-28x7
FCR-28x7 FCR-28x7
MFDBB MFDBB
FMD-3300 FMD-3300
FMD-3300, FCR-28x9 FMD-3300, FCR-28x9
FCR-28x9 FCR-28x9
FAR-33x0 FAR-33x0
Length: 50 mm
11
1. MOUNTING, WIRING
3 3 3
BRILL CTRL port * BRILL CTRL port * BRILL CTRL port *
RS-232C cable RS-232C cable RS-232C cable
(Max. 10 m) (Max. 10 m) (Max. 10 m)
or or or
RS-485 cable RS-485 cable RS-485 cable
(Max. 10 m) (Max. 10 m) (Max. 10 m)
(with RS-232C) (with RS-232C)
or or
FAR-33x0 FAR-33x0
(with RS-485) (with RS-485)
Local supply
Length: 70 mm
