MULTI-PURPOSE LCD DISPLAY
MU-155C

Advertisement

Table of Contents
loading

Related Manuals for Furuno LCD DISPLAY MU-155C

Summary of Contents for Furuno LCD DISPLAY MU-155C

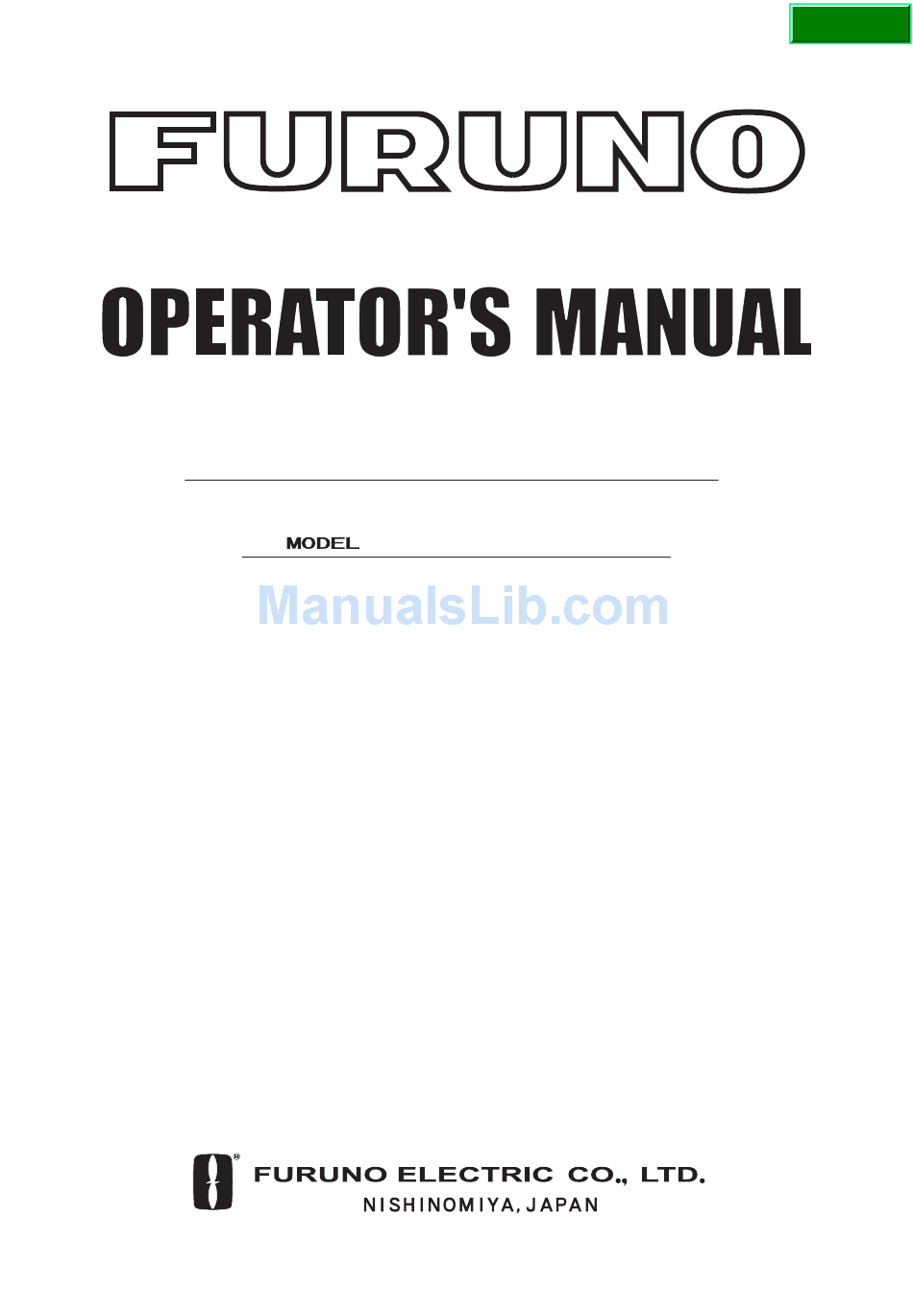

  • Page 1 Back MULTI-PURPOSE LCD DISPLAY MU-155C...
  • Page 2 Pub. No. OME-20300 ( ( YOSH YOSH ) ) MU-155C MU-155C The paper used in this manual is elemental chlorine free. FURUNO Authorized Distributor/Dealer FURUNO Authorized Distributor/Dealer FIRST EDITION : FIRST EDITION : JUN. JUN. 2004 2004 : : OCT.
  • Page 3 Immediately turn off the power at the switchboard if the equipment is emitting smoke or fire. Continued use of the equipment can cause fire or electrical shock. Contact a FURUNO agent for service. Do not place any object near the exhaust or intake vent.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS FOREWORD ... iii SYSTEM CONFIGURATION... iv EQUIPMENT LISTS ... v 1. MOUNTING ... 1 1.1 Display Unit... 1 1.2 Remote Controller ... 4 2. WIRING ... 5 3. ADJUSTMENTS ... 7 3.1 RGB/DVI Setting ... 7 3.2 VIDEO Setting... 9 3.3 Menu Window Setting ...

  • Page 5: Foreword

    A Word to the Owner of the MU-155C FURUNO Electric Company thanks you for purchasing the MU-155C 15” Multi-Purpose LCD Display. We are confident you will discover why the FURUNO name has become synonymous with quality and reliability. For over 50 years FURUNO Electric Company has enjoyed an enviable reputation for quality and reliability throughout the world.

  • Page 6: System Configuration

    SYSTEM CONFIGURATION 12-24 VDC Equipment FR-1500 MK3 series FCV-1200L/1200LM* GD/GP-280/380/680 CH-250 CH-270 CSH-5L/8L FSV-24/24S/30/30S FR-21X5 series FAR-21X7 series FEA-2107 MODEL 1833C series MODEL 1833C-BB series The TFT LCD is constructed using the latest LCD techniques, and displays 99.99% of its pixels. The remaining 0.01% of the pixels may drop out or blink, how- ever this is not an indication of malfunc- tion.

  • Page 7: Equipment Lists

    EQUIPMENT LISTS Standard supply Name Display Unit MU-155C Remote Controller RMC-200 Spare Parts* SP19-00201 Installation Materials* CP19-00200 Accessories* FP19-00801 Option Name Type Hanger FP19-00900 3COX-2P-6C Cable Assy DVI-D/D SINGLELINK5M Remote RMC-200 Controller * = See packing list at the end of this manual. Type Code No.

  • Page 8: Mounting

    1. MOUNTING Refer to the outline drawing at the end of this manual for mounting dimensions. Note: A grass plate covers the LCD. For this reason, handle the unit carefully. 1.1 Display Unit The display unit may be mounted on a desktop (optional hanger required) or flush mounted in a panel.

  • Page 9: Flush Mounting

    Flush mounting See the outline drawing at the end of this manual for mounting dimensions. 1. Remove the hard cover from the unit. 2. Using the paper template supplied in the installation materials, make a cutout in the mounting location. 3.

  • Page 10: Desktop Mounting

    Desktop mounting The display unit can be mounted on a desktop, using the optional hanger, Type: FP19-00900, Code No.: 001-410-540. Name Hanger Knob bolt Self-tapping screw 1. Fasten the hanger to the mounting location with four self-tapping screws (supplied). Note: Do not mount the unit where the exhaust or intake vent may be obstructed. 2.

  • Page 11: Remote Controller

    1.2 Remote Controller Write the device name (ex. “FCV-1200L”) for each “signal” key on the sticker supplied with the remote controller. Attach the sticker to the remote controller, at the location shown below. RGB1 VIDEO1 PIP1 RGB2 VIDEO2 VIDEO3 PIP2 PIP3 BRILL MENU...

  • Page 12: Wiring

    2. WIRING Connect external equipment to the MU-155C by referring to the drawings below, the table on the next page and the interconnection diagram at the back of this manual. 12-24VDC 12-24 VDC MJ-A3SPF0017-050Z (Supplied) Ground terminal FAR-21X7 series FEA-2107 DVI-D DVI-D/D SINGLELINK5M (Option)
  • Page 13 Port, cable and connectable equipment Port Name Name 12-24 Power MJ-A3SPF0017- cable DVI-D Cable SINGLELINK5M 3COX-2P-6C RGB1 Analog Cable 3COX-2P-6C RGB2 Prepare the following cable locally. ▪ Connector type: RCA (metal), both ends VIDEO1 ▪ Cable length: shorter than 10 m ▪...

  • Page 14: Adjustments

    3. ADJUSTMENTS Adjust the MU-155C according to the equipment connected. Note that you can adjust the display currently selected, at the DISP selection window. (See section 4.3.) Note: The example screens shown in this manual may not match the screens you see on your display.
  • Page 15 Menu item H_SIZE*** Adjusts the image size horizontally. V_SIZE*** Adjusts the image size vertically. PHASE Adjusts the characters and graphic lines. CONTRAST Increases or decrease contrast level. H_POSITION Moves the image position horizontally. V_POSITION Moves the image position vertically. R_LEVEL Adjusts red color level.

  • Page 16: Video Setting

    3.2 VIDEO Setting VIDEO1, VIDEO2 and VIDEO3 screens; that is, the picture-in-picture windows can be adjusted as below. 1. Press the [MENU] key to show the main menu. 2. Press [◄] or [►] to select VIDEO1, VIDEO2 or VIDEO3 as appropriate. RGB1 RGB2 PIP_SIZE...

  • Page 17: Menu Window Setting

    3.3 Menu Window Setting 3.3.1 Adjusting the menu window The menu window can be moved and translucentized on the OSD (On Screen Display) menu. 1. Press the [MENU] key to show the main menu. 2. Press the [◄] or [►] key to select OSD. RGB1 RGB2 H_POSITION...

  • Page 18: Changing The Signal Name

    3.3.2 Changing the signal name You can change the signal name which is shown on the DISP or PIP window, described in the next chapter. It is useful to use the name of the device connected (ex. “FCV-1200L”). For detailed information about these windows, see Chapter 4. 1.

  • Page 19: Remote Controller Setting

    3.4 Remote Controller Setting A remote controller can be set to be operative with a specific display unit, in the case of multiple MU-155C display units. Set the remote controller mode desired on the SYSTEM menu as follows; 1. Press the [MENU] key to show the main menu. 2.

  • Page 20: Operation

    4. OPERATION 4.1 Controls Display unit MENU key Shows the main menu. Arrow keys Selects menu item. Power key: Press the power key ( ) to turn the power on or off. LED: The LED changes color according to signal status as below. Green: The selected signal to be displayed is input correctly from the external device.
  • Page 21 Remote controller Key name RGB1* Shows the RGB1 signal. RGB2* Shows the RGB2 signal. Shows the DVI signal. VIDEO1** Shows the VIDEO1 signal on the entire screen. VIDEO2** Shows the VIDEO2 signal on the entire screen. VIDEO3** Shows the VIDEO3 signal on the entire screen. PIP1*** Shows the VIDEO1 signal in the picture-in-picture window.

  • Page 22: Adjusting Display Brilliance

    4.2 Adjusting Display Brilliance The display brilliance can be adjusted as follows. 1. Press the [BRILL] key on the display unit to show the BRILL adjustment window. BRILL 50 BRILL window 2. Press the [◄] or [►] key to adjust the brilliance. (Setting range: 1 to 50) You can also adjust brilliance by pressing the [BRILL] key.

  • Page 23: Choosing Source For Main Picture

    4.3 Choosing Source for Main Picture Choose the signal to display on the entire screen as follows: 1. Press the [DISP] key to show the DISP selection window. Signal names can be changed. For detail, see “3.3.2 Changing the signal name”. 2.

  • Page 24: Choosing Source For Picture-In-Picture

    4.4 Choosing Source for Picture-in-Picture Choose the source for the picture-in-picture window as follows: Note: The size of the picture-in-picture window can be adjusted on the VIDEO1, 2 and 3 menus. For details, see section 3.2. 1. With the RGB1, RGB2 or DVI display shown, press the [PIP] key. The PIP selection window appears.

  • Page 25: Maintenance, Troubleshooting

    5. MAINTENANCE, TROUBLESHOOTING 5.1 Maintenance Routine maintenance Regular maintenance is important for good performance. Check the following on a regular basis to keep the equipment in good operating condition. Check that the connectors at the rear of the display unit are tightly fastened. Check the ground wire and ground terminal for rust.

  • Page 26: Troubleshooting

    Fuse replacement The fuse in the power cable protects the equipment from internal fault and overcurrent. If the fuse blows, find the cause before replacing it. If the fuse blows again after replacement, request service. WARNING Use the proper fuse. Use of a wrong fuse can cause fire or damage to the equipment.

  • Page 27: Clearing The Memory

    5.3 Clearing the Memory You may want to clear the memory to start afresh with default settings. You can do this as follows: 1. Press the [MENU] key to show the main menu. 2. Press the [►] keys to open the SYSTEM menu. 3.

  • Page 28: Specifications

    SPECIFICATIONS OF MULTI-PURPOSE LCD DISPLAY GENERAL Display Brightness Resolution Viewing angle Input signal RGB ports DVI port VIDEO ports POWER SUPPLY ENVIRONMENTAL CONDITION Ambient temperature Display unit Remote controller Relative humidity Waterproofing Display unit Remote controller Vibration (IEC 60945 ed.4) COATING COLOR MU-155C 15-inch XGA color TFT-LCD, 304 x 228 mm...
  • Page 29 This page is intentionally left blank.
  • Page 32 付属品表 ACCESSORIES 番 号 名  称 NAME ﾊﾟﾈﾙｶﾊﾞｰ(15) COSMETIC CAP +ﾄﾗｽﾀｯﾋﾟﾝﾈｼﾞ 1ｼｭ SELF-TAPPING SCREW 型式/ｺｰﾄﾞ番号が２段の場合、下段より上段に代わる過渡期品であり、どちらかが入っています。 なお、品質は変わりません。 TWO TYPES AND CODES MAY BE LISTED FOR AN ITEM. THE LOWER PRODUCT MAY BE SHIPPED IN PLACE OF THE UPPER PRODUCT. QUALITY IS THE SAME. （略図の寸法は、参考値です。 DIMENSIONS IN DRAWING FOR REFERENCE ONLY.）...
