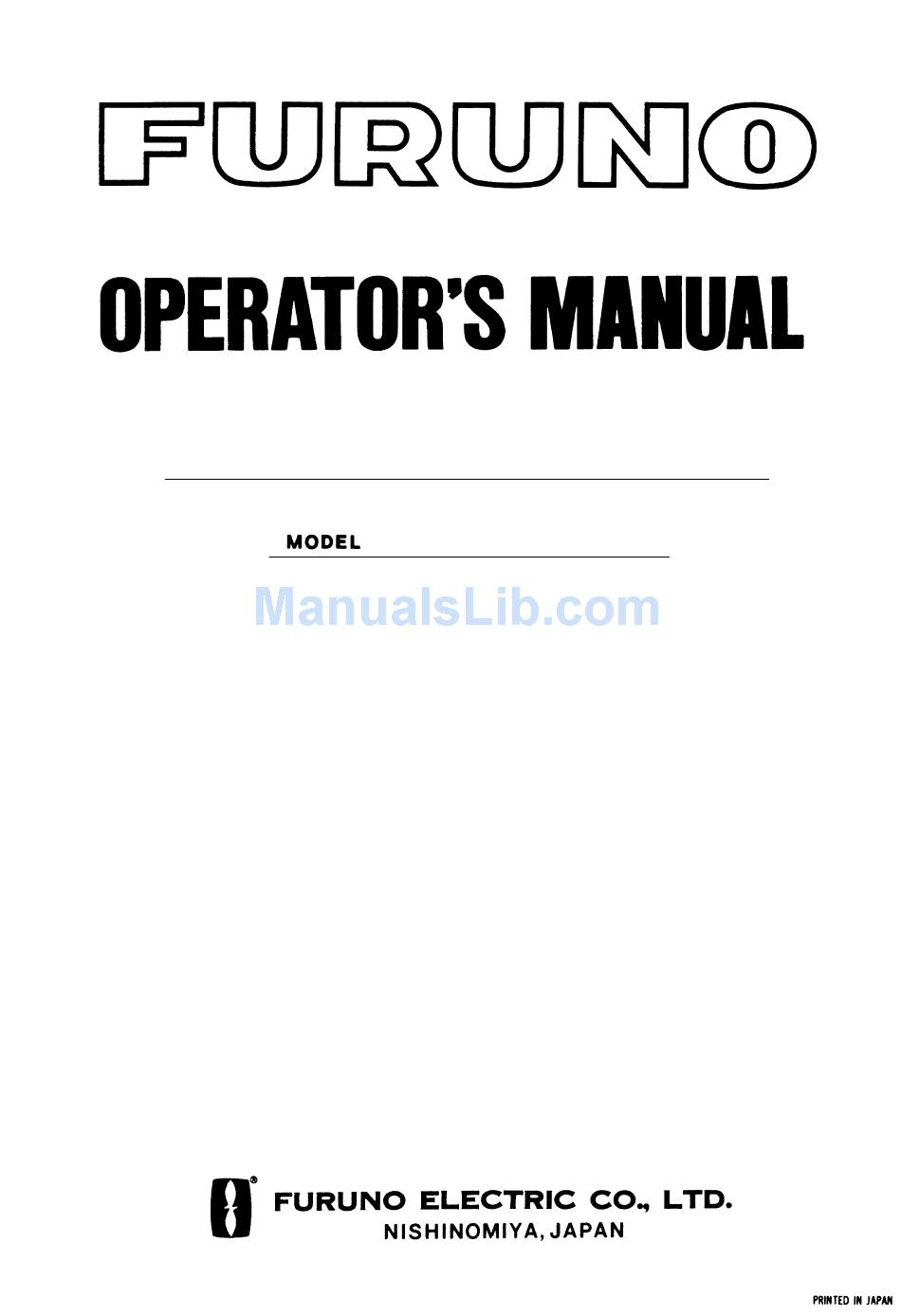

- Page 1 MULTI-PURPOSE LCD DISPLAY MU-200C...
- Page 2 9 - 5 2 , A s h i h a r a - c h o , N i s h i n o m i y a , J a p a n T e l e p h o n e : 0 7 9 8 - 6 5 - 2111 T e l e f a x : 0 7 9 8 - 6 5 - 4 2 0 0...
- Page 3 Immediately turn off the power at the switchboard if the equipment is emitting smoke or fire. Continued use of the equipment can cause fire or electrical shock. Contact a FURUNO agent for service. CAUTION A warning label is attached to the equipment.
-
Page 4: Table Of Contents
TABLE OF CONTENTS FOREWORD... iii SYSTEM CONFIGURATION ... iv EQUIPMENT LISTS ... v 1 INSTALLATION ... 1 1.1 Installing the Display Unit ...1 2 WIRING ... 4 2.1 Wiring External Equipment ...4 3 ADJUSTMENTS ... 7 3.1 Picture Adjustment...7 3.2 RGB Adjustment ...9 3.3 Brilliance...9 4 OPERATION ... -
Page 5: Foreword
A Word to the Owner of the MU-200C FURUNO Electric Company thanks you for purchasing the MU-200C 20.1” Multi-Purpose LCD Display. We are confident you will discover why the FURUNO name has become synonymous with quality and reliability. For over 50 years FURUNO Electric Company has enjoyed an enviable reputation for quality and reliability throughout the world. -
Page 6: System Configuration
SYSTEM CONFIGURATION Equipment FR-2105B Series FCV-1200 Series FCV-1500 Series FSV-24 GD/GP-280/380/680 *=Display should not be viewed with polarized sunglasses. Connectable equipment MU-200C Display Unit Type Landscape Portrait* Yes (Modification required) Yes (Modification required) -
Page 7: Equipment Lists
EQUIPMENT LISTS Standard supply Name Display Unit MU-200C Spare Parts SP10-02803 Installation Materials CP10-05001 Accessories FP10-02501 Optional equipment Name Hood (Landscape) FP10-02612 Hood (Portrait) FP10-02613 Type Code No. − 001-414-950 001-414-550 001-414-490 Type Code No. 001-414-770 001-414-790 Remarks See list at end of manual 1 set 1 set 1 set... - Page 8 This page is intentionally left blank.
-
Page 9: Installation
1 INSTALLATION Refer to the outline drawing at the end of the manual for mounting dimensions. Note: The LCD is made of glass. Handle it with care. 1.1 Installing the Display Unit The display unit is designed to be flush mounted in a console. When selecting a mounting location, keep in mind the following points: Locate the unit out of direct sunlight. - Page 10 Mounting dimensions for landscape orientation Mounting dimensions for portrait orientation Mounting dimensions 4. Reattach the cover. 5. For the portrait model only, attach the FURUNO logo seal (supplied) at the top left corner. (Remove the logo seal at the bottom left corner.)
- Page 11 1.1.1 Hood (option) A hood (portrait or landscape) is optionally available. Attach it to the display unit with Velcro tape as shown below. 1. Attach nine sets of Velcro tape to the display unit at the locations shown below, in as straight as possible.
-
Page 12: Wiring
2 WIRING 2.1 Wiring External Equipment Connect external equipment to the MU-200C by referring to the drawings in this section. A cable with connector at both ends is provided to connect equipment. For details, see the interconnection diagram on page S-1. General-purpose monitor To use the MU-200C as a general-purpose monitor, connect equipment with a mini D-SUB 15P connector. - Page 13 Connecting FCV-1200 series Using the cables designated below (or equivalent) to connect the FCV-1200 series makes the interface unit of the FCV-1200 series unnecessary. The mini D-SUB 15 P connector cannot be used to connect the FCV-1200 series. 100 - 240 VAC Ground Terminal Display unit, rear view, wiring using specialty cables...
- Page 14 Cable 06S4078 is of waterproof construction, however, the MU-200C is not waterproof (specification IPX0). Therefore, remove rubber cover and fixing metal from the display side of the cable. Remove fixing metal. Remove rubber cover. D-SUB connector...
-
Page 15: Adjustments
3 ADJUSTMENTS Controls for adjustment of the picture are provided on the rear of the display unit. Open the small cover to access the controls. Controls for adjustment of picture (remove cover to access) 3.1 Picture Adjustment Contrast and picture are adjusted with [S1]: Opens OSD (On Screen character Display) menu;... - Page 16 OSD menu BRIGHTNESS [S1] CONTRAST >> These items are for reference only; they cannot be adjusted. Description of OSD menu Item Brightness Contrast Color Gamma A. G. C. (Auto Gain Control) H. Position V. Position Size Focus Auto Adjust OSD Position Language All Reset Information...
-
Page 17: Rgb Adjustment
3.2 RGB Adjustment Color may be adjusted with the following potentiometers on the rear panel. Turn the potentiometer clockwise to increase color. Model FCV-1200 Series FSV-24, GD/GP-280/380/680, FCV-1500 Series, FR-2105B Series R1: Red R2: Green R3: Blue 3.3 Brilliance Brilliance of the display unit can be adjusted from the control unit of the FCV-1200 series by setting jumper block J17 as below. -
Page 18: Operation
MU-200C. BRILLIANCE control: Adjusts display brilliance. In some instances brilliance is controlled from the equipment connected (for example, FCV-1200 series). LED: Shows display status: Green: Display on Red: FURUNO BRILLIANCE Control POWER Switch Display unit Power save... -
Page 19: Maintenance, Troubleshooting
5 MAINTENANCE, TROUBLESHOOTING 5.1 Maintenance Routine maintenance Regular maintenance is important for good performance. Check the following on a regular basis to keep the equipment in good operating condition. Check that the connectors at the rear of the display unit are tightly fastened. Check the ground wire and ground terminal for rust. -
Page 20: Troubleshooting
5.2 Troubleshooting The table below provides troubleshooting procedures to use when no picture appears. If you cannot restore the picture, do not attempt to check inside the equipment – there are no user serviceable parts inside. Refer any work to a qualified technician. Reason for no picture Ship’s mains voltage is too high. -
Page 21: Appendix
APPENDIX Parts Location Board 10P6879 Note: LCD assy. manufactured by NEC (Nippon Electronics Corporation). Display unit, rear cover removed, LCD assembly Display unit, rear cover removed AP-1 CONE Board 10P6877 POWER Assy. VRB Board 10P6878 LCD I/F Board Inverter for Backlight... -
Page 22: Parts List
This equipment contains complex modules in which fault diagnosis and repair down to component level are not practical (IMO A.694(17)/8.3.1. Only some discrete components are used. FURUNO Electric Co. Ltd. believes identifying these components is of no value for shipborne maintenance; therefore, they are not listed in this manual. Major modules can be located on the parts location photo on page AP-1. -
Page 23: Interconnection Diagram
Interconnection Diagram CONE Board 10P6877 For control section; video, control signal Video signal Operation section; control signal For navigator AC input AC input MXB- 1206-35 Brillliance adj. AC power, switch AC power input PWR SW JW_S21RKK Board Brilliance adj. Video signal LCD power Display control signal Power for... -
Page 24: Modification For Switching From Landscape To Portrait Orientation
Modification for Switching from Landscape to Portrait Orientation To use the MU-200C with the FCV-1200 series, it is necessary to turn the LCD assembly 180°. 1. Place the display unit on a workbench with the LCD side down. 2. Unfasten ten screws, four sets of connector spacers, and two nuts of waterproofing connectors to remove the cover near the power section and connectors. - Page 25 3. Unfasten 14 screws to detach the rear cover. Display unit, rear view 4. Release the cables from the clamps marked with the arrows in the figure below. J10 J11 * Do not release the cable from the clamp near the power assy. chassis. Power section/CONE board assembly 10P6877 AP-5...
- Page 26 5. Unfasten the four screws marked with the arrows in the figure below. Slide the CONE board assy. (10P6877) in the direction of the largest white arrow in the figure below to dismount it. Power section/CONE board assy. (10P6877) 6. Disconnect the connectors marked with arrows, four power switch tab terminals and cable from CK clamp.
- Page 27 7. Unfasten eight screws marked with arrows in the figure below. POWER Chassis Do not loosen screws marked in red. Doing so will allow dust to enter between the LCD and filter. AP-7...
- Page 28 8. Turn the LCD assembly 180°. 9. Turn the power chassis 180°. LCD assembly 10. Fasten the LCD assy. with the eight screws removed at step 7. 11. Fix the CONE Board (10P6877) with the four screws removed at step 5. (Torque: 0.78 ±0.08 Nm;...
- Page 29 12. Connect all connectors on the CONE Board (10P6877). Pass cable from J8,J9 through clamp. Pass cable from J6 through clamp. Pass cable from J7 through clamp. 13. Fix the cable marked with a white arrow in the figure below with the clamp. Connect the power connector (marked with gray arrow) to J1 on the pcb 10P3879: 1, Brown;...
- Page 30 18. Fasten two waterproofing nuts. (Torque: 0.76 ±0.02 Nm; 7.8 ±0.2 kgm) 19. Fasten the remaining four screws for the cover near the power section/connectors. (Torque: 0.78 ±0.08 Nm; 8 ±0.8 kgm) 20. Attach FURUNO logo seal to top left corner of the display unit. AP-10...
-
Page 31: Specifications
SPECIFICATIONS OF MULTI-PURPOSE LCD DISPLAY 1. GENERAL Display 20.1 inch color LCD, 399.4 x 319.5 mm Brightness 200 cd/m Resolution VGA (640 x 480), SXGA (1280 x 1024) Viewing Angle 160° (left/right 80°, up/down 80°) Input Signal RGB: 0.7 Vp-p to 3.0 Vp-p, Synchronization: TTL level 2. -
Page 32: Packing List
ＰＡＣＫＩＮＧ ＬＩＳＴ MU-200C MU-200C MU-200C MU-200C N A M E ユニット ユニット ユニット ユニット UNIT UNIT UNIT UNIT 20.1型ｶﾗｰLCD表示器 MULTI-PURPOSE LCD DISPLAY 予備品 予備品 予備品 予備品 SPARE PARTS SPARE PARTS SPARE PARTS SPARE PARTS ﾋｭｰｽﾞ FUSE 付属品 付属品 ACCESSORIES ACCESSORIES 付属品...
