Summary of Contents for Kontron CPS3105

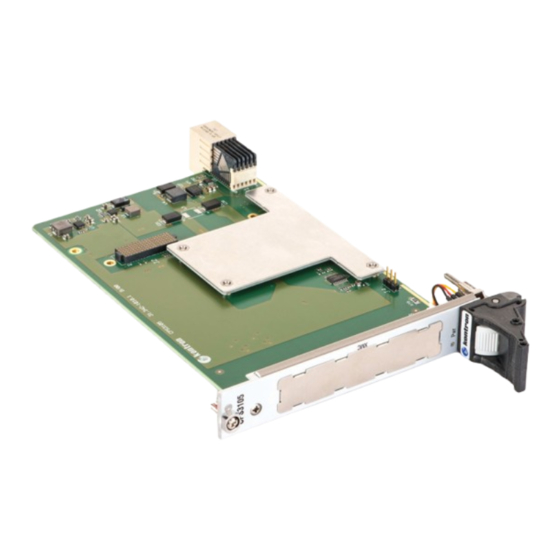

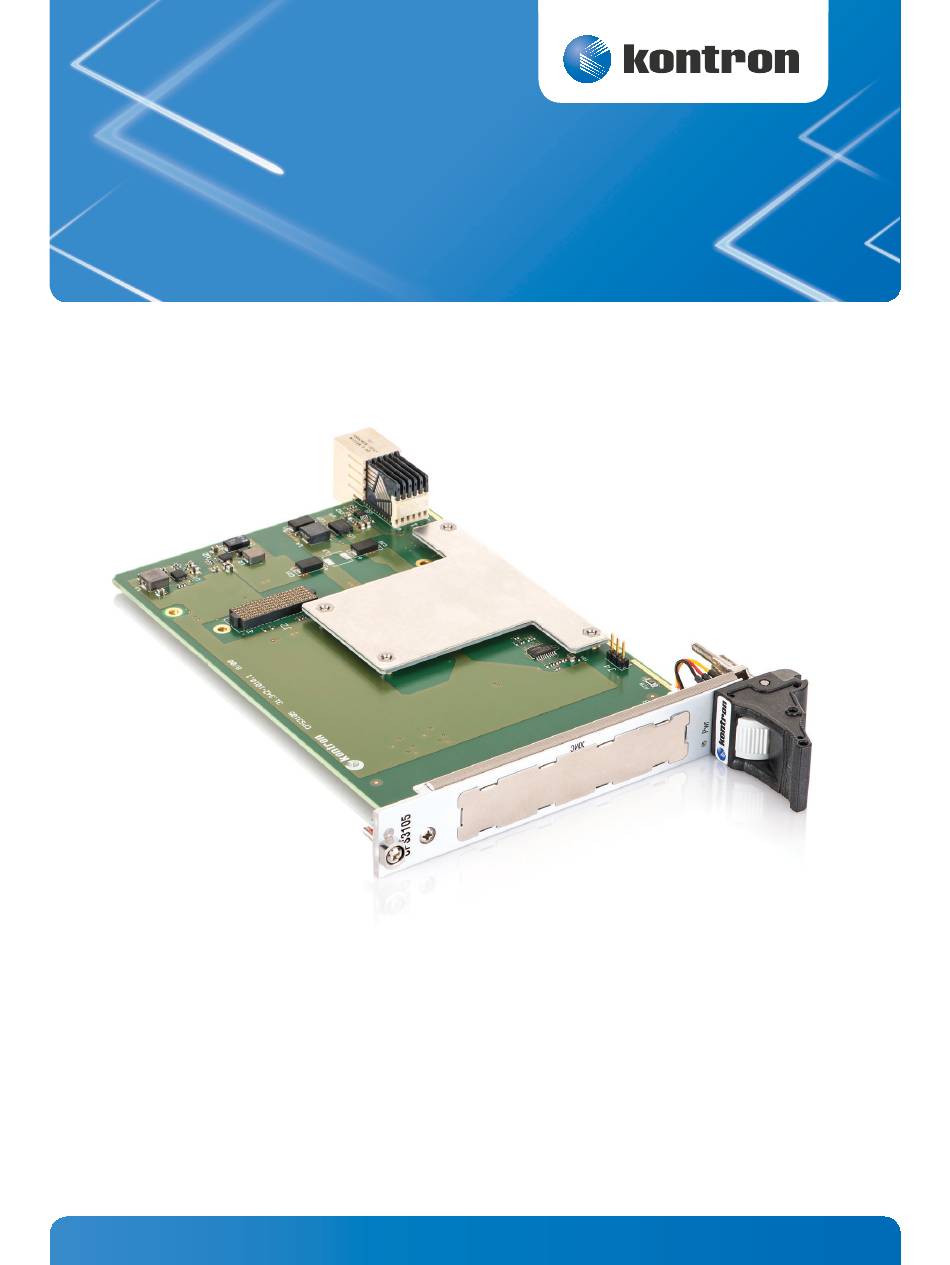

- Page 1 » User Guide « CPS3105 Doc. ID: 1055-0548, Rev. 1.0 Date: July 3, 2013 The pulse of innovation...
-
Page 2: Revision History
Disclaimer Copyright © 2013 Kontron AG. All rights reserved. All data is for information purposes only and not guaranteed for legal purposes. Information has been carefully checked and is believed to be accurate; however, no responsibility is assumed for inaccuracies. Kontron and the Kontron logo and all other trademarks or registered trademarks are the property of their respective owners and are recognized. -
Page 3: Table Of Contents
User Guide CPS3105 Contents Revision History ......................2 Imprint ........................2 Disclaimer ........................2 Contents ........................3 Tables ........................4 Warranty ........................5 Proprietary Note ......................5 Trademarks ........................ 5 Environmental Protection Statement ................5 Introduction ..................6 Board Overview ................... 6 Board Diagrams ................... -
Page 4: Tables
Power Status LED ....................10 Compatibility Identification Block acc. to ANSI/VITA 42.3 ........... 10 XMC Module Current .................... 10 Figures CPS3105 Functional Block Diagram ................ 7 4 HP CPS3105 Front Panel ..................8 4 HP CPS3105 Board Layout (Top View) ..............8 www.kontron.com... -
Page 5: Warranty
Warranty This Kontron product is warranted against defects in material and workmanship for the warranty period from the date of shipment. During the warranty period, Kontron will at its discretion decide to repair or replace defective products. Within the warranty period, the repair of products is free of charge as long as warranty conditions are observed. -
Page 6: Introduction
I/O capability using a wide range of XMCs available on the market. The CPS3105 is equipped with a dedicat- ed PCI Express switch between the onboard XMC connector and the CPCI-S.0 system connector provid- ing two advantages. -
Page 7: Front Panel
Figure 2: 4 HP CPS3105 Front Panel Power Status LED CPS3105 Pwr (green): Power Status of the CPS3105 1.2.3 Board Layout Figure 3: 4 HP CPS3105 Board Layout (Top View) Heat Sink PEX 8712 PCI Express Switch Pwr LED www.kontron.com... -
Page 8: Technical Specification
XMC module by spitting down the x4 PCI Express 3.0 interface to a x8 PCI Express 2.1/1.0 interface XMC connector, J2 (P15), for connecting an XMC module to the CPS3105 CompactPCI Serial CompactPCI Ser ial interface on connector P1: »... -
Page 9: Related Publications
5 (s) recovery time Note: Customers desiring to perform further environmental testing of the CPS3105 must contact Kontron for assistance prior to performing any such testing. Boards without conformal coating must not be exposed to a change of temperature which can lead to condensation, as it may cause irreversible damage especially when the board is powered up again. -
Page 10: Functional Description
Power of f Power on 2.1.2 XMC Inter face The CPS3105 uses one x8 PCI Express 2.1 interface operating at 5.0 GT/s and compliant with the ANSI/ VITA 42.0 and ANSI/VITA 42.3 specifications. Table 6: Compatibility Identification Block acc. to ANSI/VITA 42.3 Standard XMC.3... -
Page 11: Installation
3 . 2 G e n e r a l I n s t r u c t i o n s o n U s a g e In order to maintain Kontron’s product warranty, this product must not be altered or modified in any way. -
Page 12: Board Installation
3 . 3 B o a r d I n s t a l l a t i o n The CPS3105 is designed for use in a peripheral slot with support for one PCI Express interface (recom- mended configuration for maximum bandwith: x4 PCI Express 3.0). - Page 13 User Guide CPS3105 CORPORATE OFFICES Europe, Middle East & Africa North America Asia Pacific Oskar-von-Miller-Str. 1 14118 Stowe Drive 17 Building,Block #1, ABP. 85386 Eching / Munich Poway, CA 92064-7147 188 Southern West 4th Ring Road Germany Beijing 100070, P.R.China Tel.: + 49 (0) 8165 / 77 777...
