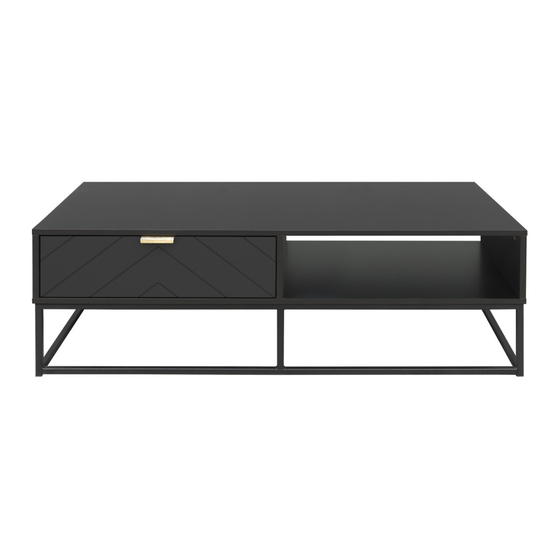

Inca Coffee Table
Assembly Instructions
Thank you for your purchase. Please follow the instructions for correct assembly.
While we took great effort to ensure these assembly instructions were correct at
the time of printing, sometimes updates are required post production. For the
most up to date versions please refer to the product page on our website.
mocka.com.au/mocka.co.nz
A
B
C
screw
bolt
dowel
x16
x6
x14
I
J
K
slide
screw
Allen
rail x2
Key
x8
x1
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
D
E
F
screw
slide
locking
x20
rail x2
nut x14
N
L
M
bolt
handle
small
screw
x8
x2
x12

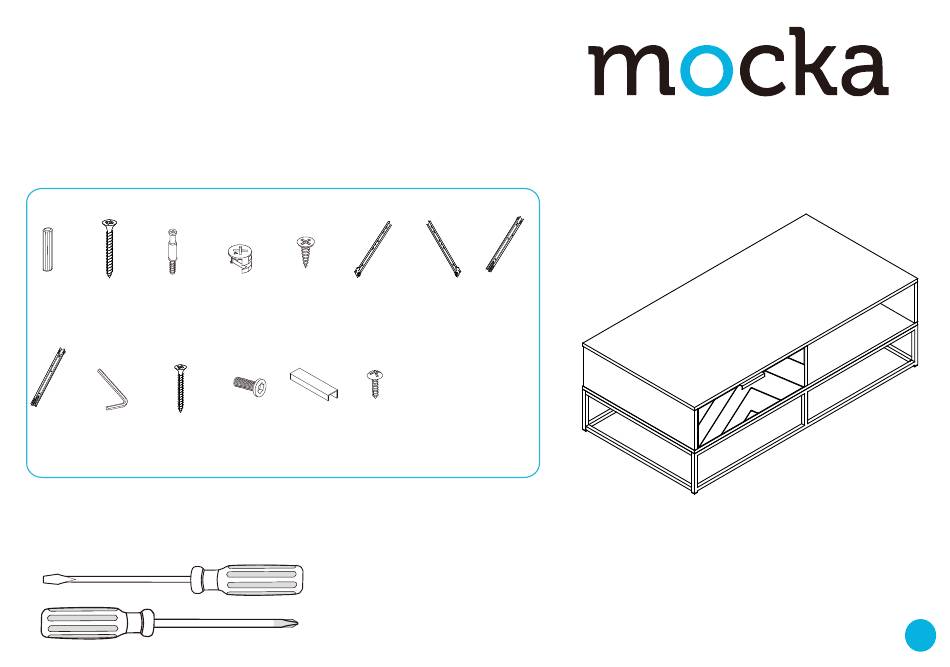

Hardware Supplied
Phillips & Flathead screwdrivers
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
G
H
slide
slide
rail x2
rail x2
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Mocka Inca Coffee Table
Summary of Contents for Mocka Inca Coffee Table
- Page 1 Phillips & Flathead screwdrivers For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 2 Insert 6x bolts (C) into panel [1] and tighten with a screwdriver. Attach 1x slide rail (F) and 1x slide rail (G) to panel [3] as shown and secure with 8x screws (E). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 3 Attach panels [3] to panel [13] with 4x dowels (A). Attach panels [3] and [4] to panel [1] with 6x dowels (A) and secure with 6x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 4 Attach panels [5] to panels [6] and [7] with 8x bolt (L). Attach panel [2] to the unit with 6x dowels (A) and secure with 6x screws (B). Tighten with a screwdriver. Tighten with an Allen Key (J). mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 5 Drawers x2 Insert 8x bolts (C) into panels [8]. Tighten with a screwdriver. Attach panels [5] and [7] to panel [2] with 12x small screw (N). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 6 3 10 Attach panels [9], [10] and [11] as shown using 8x screws (K). Slide panel [12] along the grooves between the side panels [9] and [10]. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 7 Attach slide rail (I) and slide rail (H) to the underside of the side panels Tighten with a screwdriver. as shown. Secure with 8x screws (E) and tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 8 Attach 2x handles (M) to panels [8] and secure with 4x as shown. Ensure the drawers slide easily along the rails. Once screws (E). Tighten with a screwdriver. assembled lift furniture into place, do not drag. You’re done, enjoy! mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
