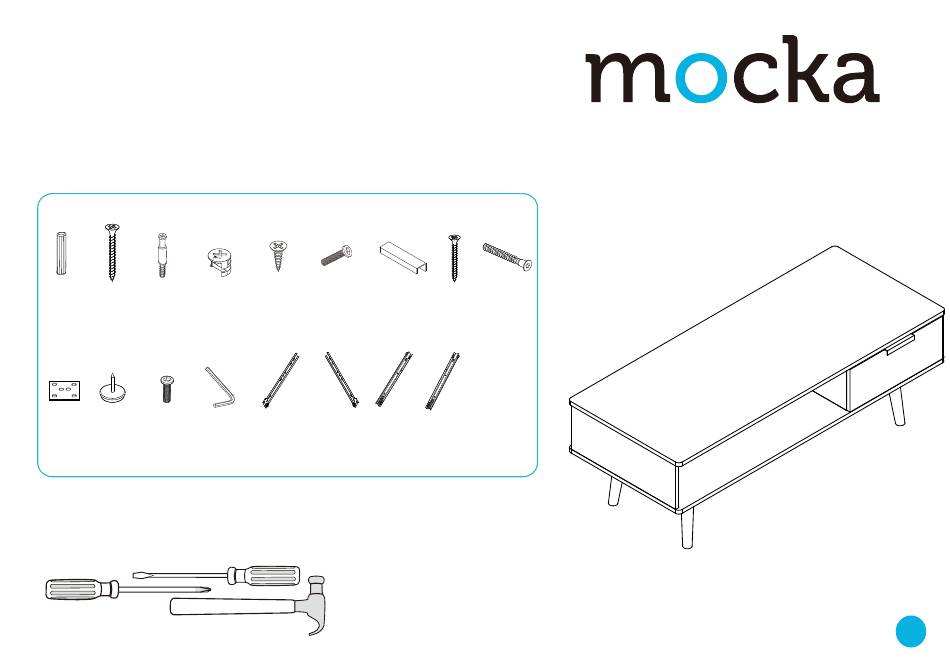

Denham Coffee Table
Assembly Instructions
Thank you for your purchase. Please follow the instructions for correct assembly.
While we took great effort to ensure these assembly instructions were correct at
the time of printing, sometimes updates are required post production. For the
most up to date versions please refer to the product page on our website.
mocka.com.au/mocka.co.nz
A
B
C
D
dowel
screw
bolt
locking
x12
x8
x12
nut x12
J
K
L
M
bracket
plastic
bolt
Allen
x4
glide
Key
x4
x16
x1
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
E
F
G
bolt
screw
handle
x12
x4
x1
N
O
P
slide
slide
slide
rail x1
rail x1
rail x1
Hardware Supplied
Phillips & Flathead screwdrivers
and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
H
I
screw
bolt
x4
x8
Q
slide
rail x1
1
Advertisement
Related Manuals for Mocka Denham Coffee Table
Summary of Contents for Mocka Denham Coffee Table
- Page 1 Phillips & Flathead screwdrivers and hammer required For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
-
Page 2: Panel Layout
Denham Coffee Table Assembly Instructions Panel layout Insert 8x bolts (C) into panel [1] and Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558... - Page 3 Attach panels [3], [4] and [6] to panel [1] with 6x dowels (A) and secure with and [6] as shown and secure with 6x screws (E). Tighten 6x locking nuts (D). Tighten with a screwdriver. with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 4 Attach panels [5] to panel [1] secure with 2x locking nuts (D). Attach panel [2] to panels [3], [4], [5] and [6] with 6x dowels (A) and secure with Tighten with a screwdriver. 8x screws (B). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 5 Allen key (M). Attach legs [40] to panel [2] using 16x bolt (L) as shown. Tighten with an Allen key (M). Attach 4x plastic glide (K) to the ends of the legs. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 6 Insert 4x bolts (C) into panel [34] and Tighten with a screwdriver. Attach panels [30] and [31] to panel [32] as shown using 4x screws (H). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 7 Slide panel [33] down along the grooves between the panels [30] Attach panels [34] to panels [30] and [31] secure with 4x locking nuts (D). and [31] to form the back of the unit as shown. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 8 Attach slide rail (Q) and slide rail (P) to the underside of the side Attach 1x handle (G) to panel [34] secure with 2x screws (E).Tighten with panels as shown. Secure with 4x screws (E) and tighten with a a screwdriver. screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 9 Denham Coffee Table Assembly Instructions Insert the assembled drawers into the corresponding compartments You’re done, enjoy! as shown. Ensure the drawers slide easily along the rails. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
