Sadie Coffee Table
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.

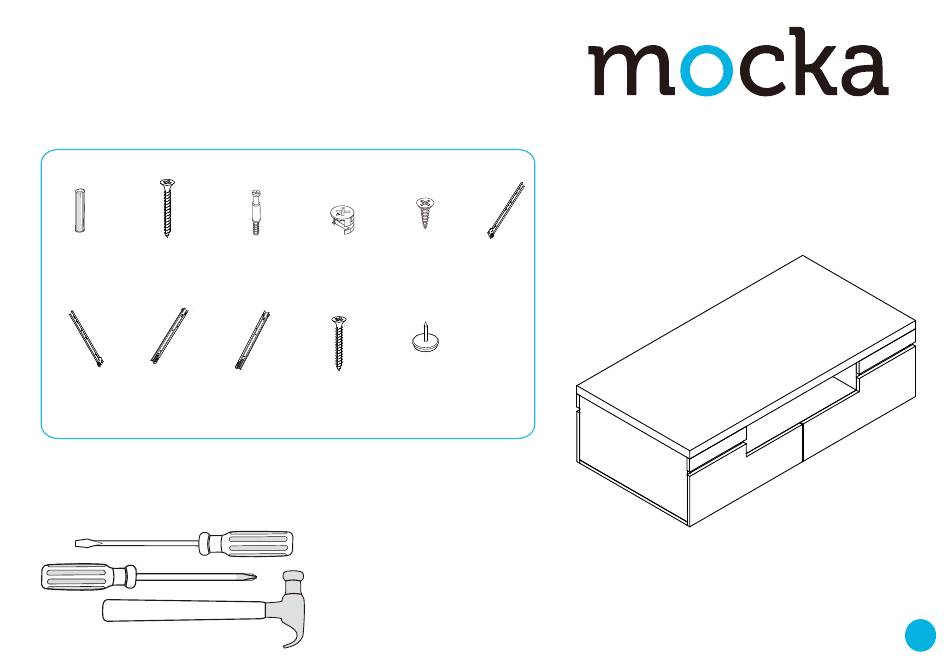

A
B
screw
dowel
x15
x28
G
H
slide
slide
rail x4
rail x4
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
C
D
bolt
locking
x61
nut x61
I
J
slide
screw
plastic
rail x4
x16
glide x10
Hardware Supplied
Phillips & Flathead screwdrivers
and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
E
F
screw
slide
x32
rail x4
K
1
Advertisement
Subscribe to Our Youtube Channel

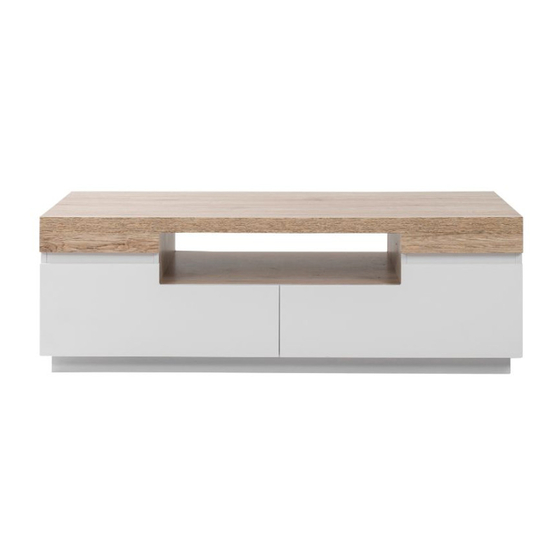

Related Manuals for Mocka Sadie Coffee Table
Summary of Contents for Mocka Sadie Coffee Table
- Page 1 Phillips & Flathead screwdrivers and hammer required For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 2 Attach 2x slide rails (F) and 2x slide rails (G) to panel [4] and 2x slide rails (G) to panels [3] with 8x screws (E). with 8x screws (E). Tighten with a screwdriver. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 3 Sadie Coffee Table Assembly Instructions Insert 3x bolts (C) into panel [5]. Tighten with Insert 4x bolts (C) into panels [6]. Tighten with a screwdriver. a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 4 Attach panel [4] to panel [5] with 3x locking nuts (D) and 2x dowels (A). Attach panel [5] to panels [6] with 6x screws (B) and 4x dowels (A). Tighten with a screwdriver. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 5 Attach panels [7] to panels [6] with 4x locking nuts (D) Attach panels [3] to panels [7] with 4x locking nuts (D) and 4x dowels (A). and 4x dowels (A). Tighten with a screwdriver. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 6 Insert 20x bolts (C) and 8x dowels (A) into panel [5]. Tighten with Attach panels [8] to panel [1] and secure with 8x locking nuts (D). a screwdriver. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 7 Assembly Instructions Attach panels [3] and [6] to panel [1], secure with 12x locking nuts (D). Insert 10x bolts (C) into panel [2]. Tighten with a screwdriver. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 8 Insert 4x bolts (C) into panels [9]. Attach panels [9] and [10] together with and 6x dowels (A). Tighten with a screwdriver. 4x locking nuts (D). Tighten with a screwdriver. Attach 10x plastic glide (K) to panels [9] and [10] with a hammer. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 9 Attach panels [9] and [10] to panel [2] with 10x locking nuts (D). Insert 16x bolts (C) into panels [11] and [12]. Tighten with a screwdriver. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 10 Attach panels [13] and [14] to panels [11] and [12], secure Slide panels [15] down along the grooves between the panels [13] with 16x locking nuts (D). Tighten with a screwdriver. and [14] as shown. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 11 Attach slide rail (I) and slide rail (H) to the underside of the side panels as shown. Secure with 16x screws (E) and tighten with a screwdriver. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 12 Insert the assembled drawers into the corresponding compartments as Once assembled lift furniture into place, do not drag. You’re done, enjoy! shown. Ensure the drawers slide easily along the rails. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
