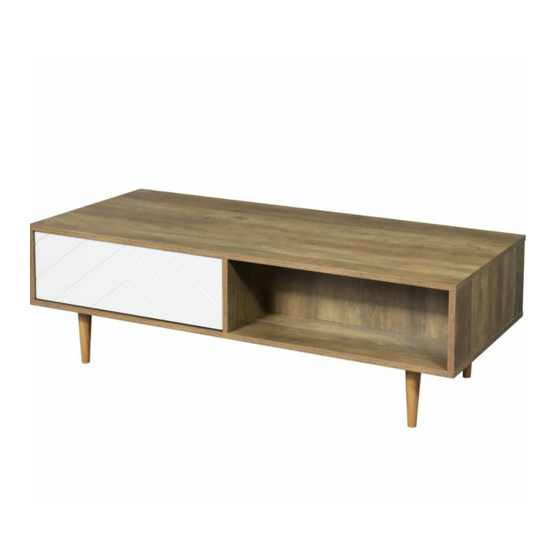

Alps Coffee Table
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.
A
B
C
bolt
dowel
screw
locking
x6
x14
x20
nut x14
J
K
L
screw
felt
Allen
x16
pad
key
x4
x1
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
E
D
F
G
screw
slide
slide
x22
rail x2
rail x2
M
N
O
cover
seal
bracket
x2
x2
x2
Hardware Supplied
Phillips & Flathead screwdrivers
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
H
I
slide
slide
rail x2
rail x2
P
Q
bolt
bracket
x16
x4
1
Advertisement
Related Manuals for Mocka Alps Coffee Table
Summary of Contents for Mocka Alps Coffee Table
- Page 1 Phillips & Flathead screwdrivers For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 2 Insert 6x bolts (C) into panel [1] and tighten with a screwdriver. Attach 1x slide rails (F) to panels [3] as shown and secure with 2x screws (E). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 3 Attach panels [3] and [4] panel [12] with 4x dowels (A) as shown. small screws (E). Flip panel [4] over, attach 1x slide rail (G) and secure with 2x small screws (E). And tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 4 Attach 2x brackets (M) to panel [2] and secure with 4x screws (E). Attach panels [3] and [4] panel [12] with 4x dowels (A) as shown. Tighten with a screwdriver. Place 2x covers (N) over the brackets (M) as shown. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 5 Attach legs [6] to panel [2] using 16x bolts (Q). Tighten with an Allen key (K). Attach 4x felt pads (L) to the ends of the legs [6]. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 6 Insert 4x bolts (C) into panel [7]. Attach 1x seal (O) to panel [7] secure with 6x locking nuts (D). Tighten with a screwdriver. and secure with 1x screw (E). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 7 Attach panel [8] and panel [9] to panel [7] secure with Slide panel [10] along the grooves between the side panels [8] and [9]. 4x locking nuts (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 8 Attach slide rail (I) and slide rail (H) to the underside of the side panels Attach panels [8], [9] and [11] as shown using 4x screws (J). as shown. Secure with 4x screws (E) and tighten with a screwdriver. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 9 (N) until it catches on the seal (O). Once assembled lift furniture into place, do not drag. Ensure unit is balanced and steady before use. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
