H-System – Isolated Barriers and Termination Boards
Product Specifications
2.3.3 Accessories

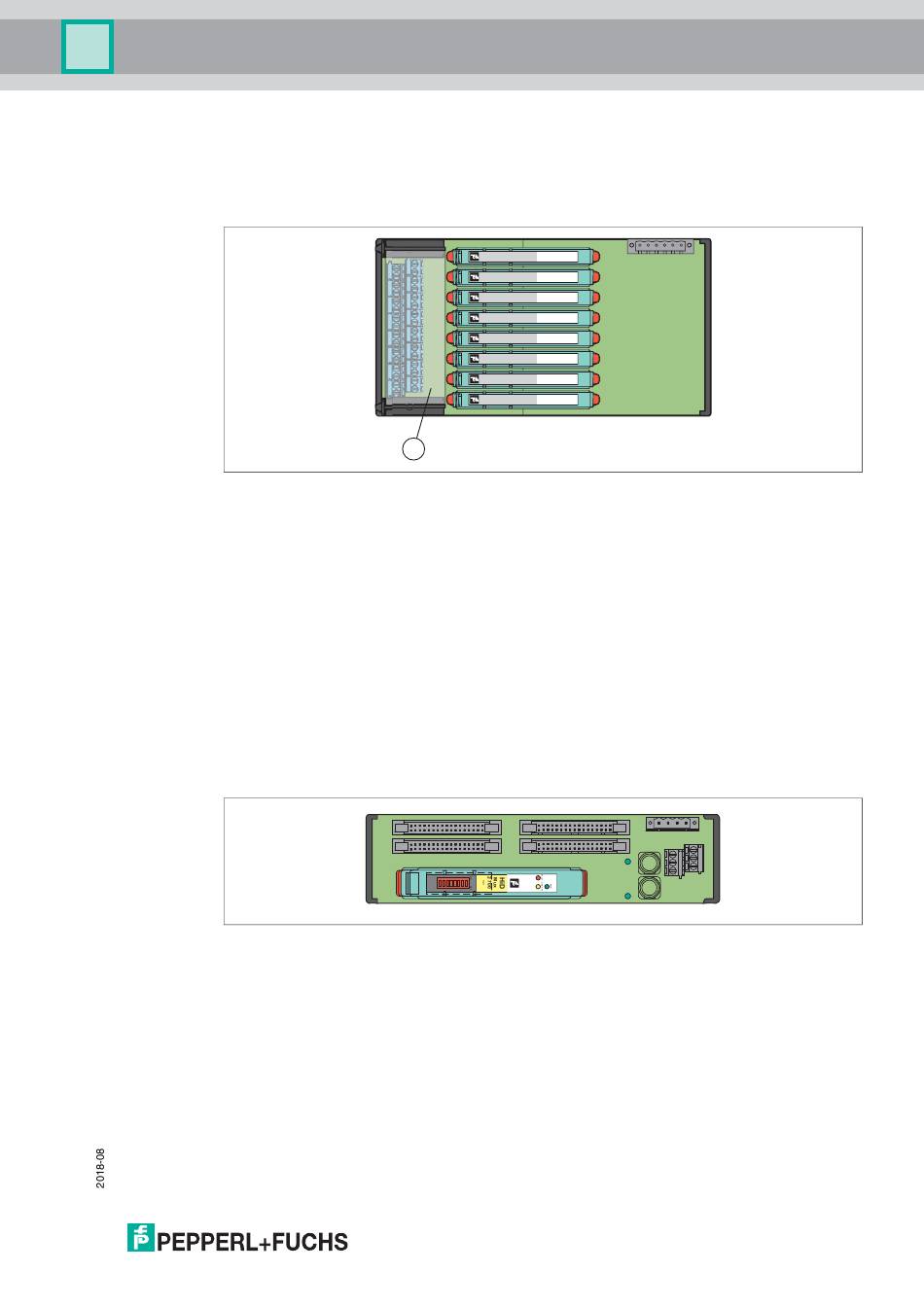

Label Carriers for Termination Boards
The termination boards can be fitted with a label carrier for individual identification.
Figure 2.18
1 Label carrier HiALC-HiCT*-SET-*** for HiC termination boards
1 Label carrier HiALC-HiDT*-SET-*** for HiD-termination boards
HART Communication Board
The HART Communication Board is connected to HART-compatible H-
System termination boards. It has one slot to mount a 32-channel HiD Mux2700-type
HART multiplexer master.
Preconfigured HART connection cables enable easy connection between the H-
System termination boards and the HART Communication Board.
The device offers a redundant fused power supply with an LED indicator. The
RS 485 terminals have a redundant configuration and enable simple bridging to the next
bus node.
Figure 2.19
1
Label carrier for termination boards
HART Communication Board HiATB01-HART-4x8
