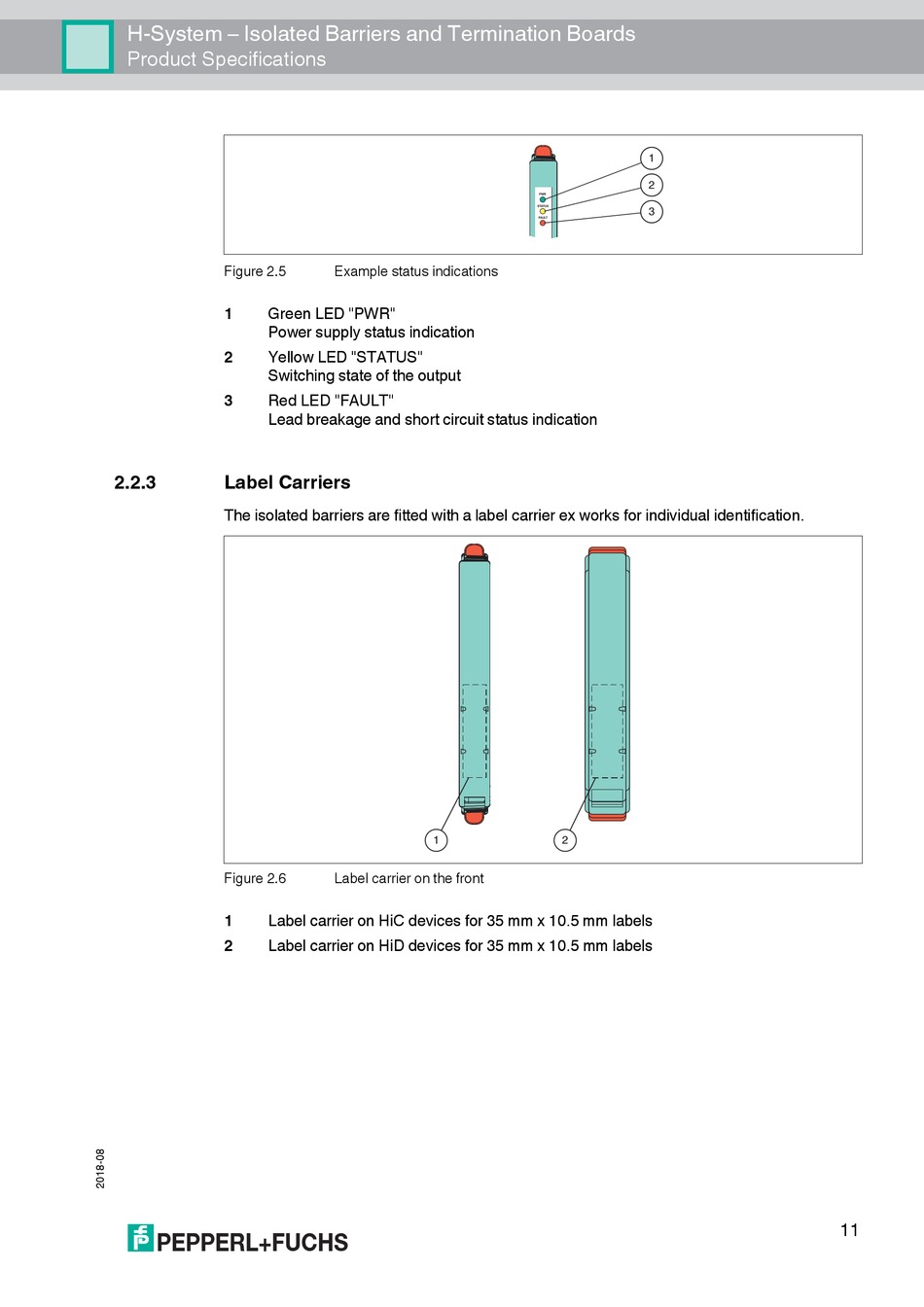

H-System – Isolated Barriers and Termination Boards
Product Specifications
Figure 2.5
1
Green LED "PWR"
Power supply status indication
2
Yellow LED "STATUS"
Switching state of the output
3
Red LED "FAULT"
Lead breakage and short circuit status indication
2.2.3
Label Carriers
The isolated barriers are fitted with a label carrier ex works for individual identification.
Figure 2.6
1
Label carrier on HiC devices for 35 mm x 10.5 mm labels
2
Label carrier on HiD devices for 35 mm x 10.5 mm labels
Example status indications
1
Label carrier on the front
1
2
PWR
STATUS
3
FAULT
2
11
