Follow this procedure for wiring the DC power connector:
Place the -48V wire into the first position on the left. Fasten the retaining screw (just
1.
above the opening) to secure the wire into place.
Connect the return wire to the middle position. Fasten the retaining screw to secure
2.
the wire into place.
Connect the ground wire to the last position (on the right). Fasten the retaining screw
3.
to secure the wire into place.
NOTE:
Place the plug component into the bottom cover of the cable housing. See
4.
Bottom
Pass the tip of the tie wrap down through one of the openings at the bottom cover of
5.
the housing. Run it underneath, then pass the tie wrap up through the second opening.
Fasten the tie wrap to itself and snugly over the wire, securing it into place. See
for what the end result should look like.
Close the housing by lining up the tabs on the top cover with the bottom cover. Gently
6.
push the two halves together until they click into place
Memotec

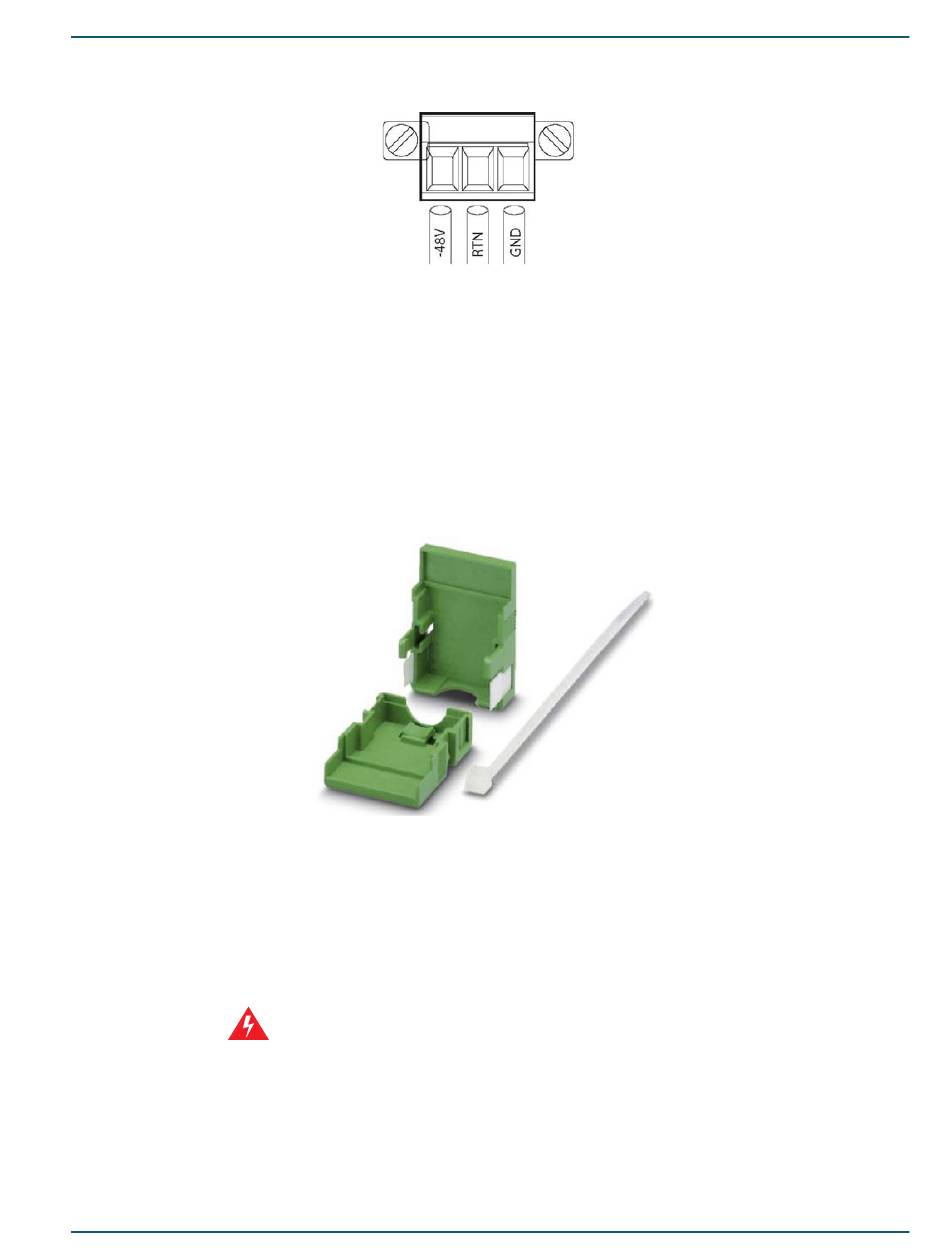

Figure 3-4: Wiring the DC connector
Be sure to connect the RTN to GND on the user side.
Top
Figure 3-5: Power Cords for SDM-8400 UAC Unit
Warning:
. Do not remove the cover of the SDM-8400. The SDM-8400 unit
contains no user-serviceable parts. Only a qualified technician approved by
Memotec is authorized to open the unit.
