3.2

Installing the Unit in a Rack

A rackmount kit is provided with the SDM-8400 product package for optional rackmount
installation of the SDM-8400 chassis (Part number KT-0020779).
Alternate bracket
location for front
mounting
Holes for 2 small
Phillips screws
2 small
Holes for 2
Phillips
mounting
screws
screws

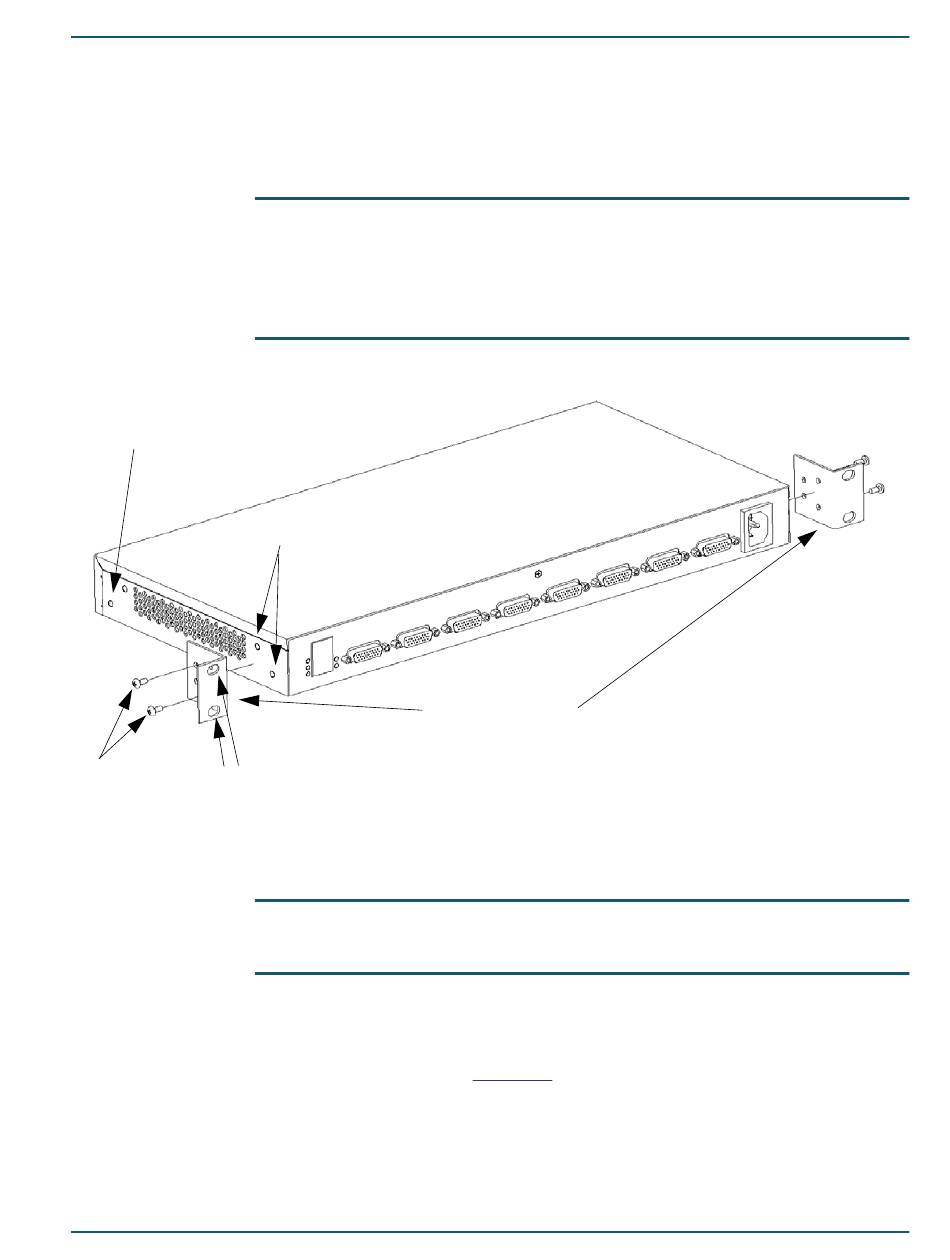

Figure 3-1: Location of Rackmount Brackets on the SDM-8400 Chassis (AC power version shown)
To install the SDM-8400 in a rack:
1.
Memotec
The SDM-8400 is 1U height without the rubber feet on the bottom of the
NOTE:
chassis. If the space in your rack requires a 1U height, you can remove the
rubber feet before installing the unit in the rack. To remove a rubber foot,
first pry up the central stem using a small flat-head screwdriver, then extract
the rubber foot.
Rackmount brackets
For easy installation of the SDM-8400 in a rack, carry out the following pro-
NOTE:
cedure before you connect any cables to the unit.
Screw one rackmount bracket to the left side of the SDM-8400 chassis when viewed
from the rear, as shown in
• Use 2 of the small Phillips screws provided for the brackets, and 2 of the washers.
Figure 3-1.
Hardware Installation
3-3
