Value Added Phone ST 30
- Operation
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST 30 and is the answer not in the manual?

Questions and answers

Related Manuals for AGFEO ST 30

Summary of Contents for AGFEO ST 30

  • Page 1 Value Added Phone ST 30 - Operation...
  • Page 2 - Do not connect or unplug the cord of the ST 30 during a storm. - Lay the cord of the ST 30 so that no one can step on it or trip over it. - Make sure no liquid gets inside the telephone, otherwise it may short-circuit.

  • Page 3: Table Of Contents

    Contents Value Added Phone ST 30 ......5 Intercom Function ........44 Installing and Cleaning the ST 30, Call Hold ..........46 Inserting the Label Strip ......6 Malicious Call Identification ..... 46 Commissioning .......... 7 Conferencing .......... 47 Headset ............. 8 Least Cost Routing (LCR) ......
  • Page 4 Line Identification ........65 Divert From - Diverting Calls from Other Telephones ..........66 Divert To - Diverting Calls to Another Telephone ..........67 Call Charges ..........71 Viewing Your Own Call Charges ....74 Redial ............75 Alarm Call - Recurring Appointment ..76 Storing and Dialling Speed Dial Numbers .

  • Page 5: Value Added Phone St 30

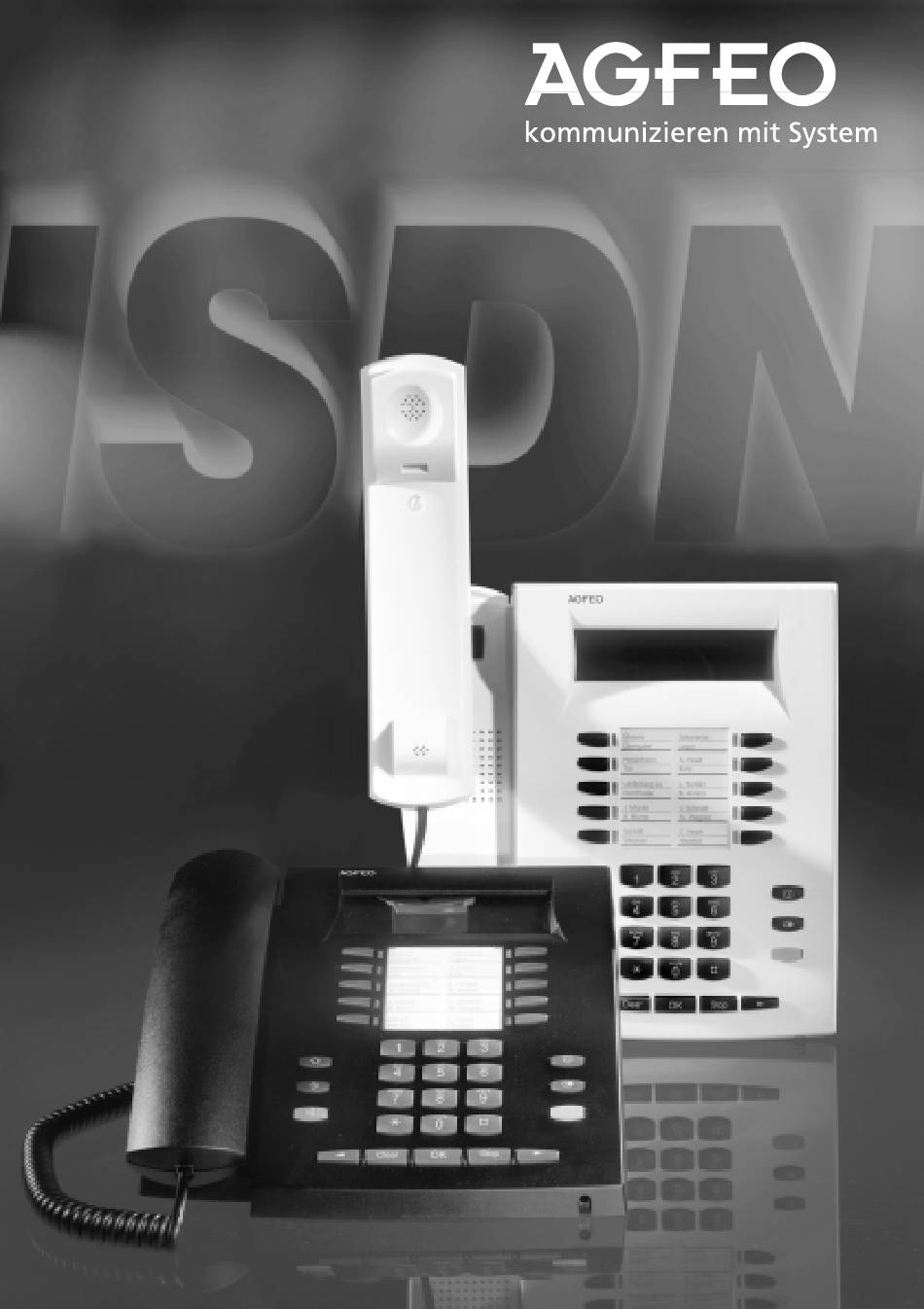

    Value Added Phone ST 30 Four-line display 10 function keys and LEDs Loudspeaker underneath handset Label strip Microphone Dial keypad - Dial phone Clear key - Clear an entry. numbers and input data. OK key - Confirm inputs. Star and Hash keys Stop key - Cut a connection or cancel an action.

  • Page 6: Installing And Cleaning The St 30, Inserting The Label Strip

    Installing and Cleaning the ST 30, Inserting the Label Strip Location ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ Install your ST 30 at a suitable location. manufacture and care of furniture may When installing, please note the following deform the telephone’s plastic feet, points: possibly resulting in unpleasant marks.

  • Page 7: Commissioning

    11 and 12. Select the internal phone number you <> Select want, e.g. >11< Press ”OK” to log the ST 30 on under ST 30 Digital the selected internal number. Logon The display goes out briefly, then the display shown here appears.

  • Page 8: Headset

    Headset The ST 30 value added phone has a separate connection (a Western socket) for a headset. Recommended headsets (available from specialist retailers) Vendor Model Vendor’s order number Plantronics Supra Monaural Polaris Model P51 * 32190-04 Tristar Model P81 *...
  • Page 9 Programming the ”Headset” function key ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ the customisable function keys on your If you want to use a headset on the appliance as the ”Headset” key. telephone, you will need to program one of ”set 31”: Start programming. Press the function keys whose functions Select function you want to change (pressing the Shift <...

  • Page 10: Telephone Display

    Telephone Display The default display of the value added phone ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ Default condition - Open Listening/Handsfree is inactive. The - The receiver is on-hook. loudspeaker key is not illuminated. - Your telephone is not being called. 01.January 1999 11:52 xiXI-- ~}{|≈¬...

  • Page 11: Programming With The Telephone

    Programming with the Telephone You can program your value added phone Anything you have not yet confirmed by when it is in the default condition (receiver pressing $ is not stored. on-hook, Open Listening/Handsfree inactive) or in call condition. The programming is The menu guidance allows you to make key aborted as soon as you pick up the receiver, settings on your telephone and on the...
  • Page 12 Selecting a menu by code digits ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ You can activate any main menu or submenu directly by way of code digits. The menu tree at the back of this manual presents an overview of the codes. Start programming mode. Programming menu Example: ”Do-Not-Disturb”...

  • Page 13: Telephone Settings

    Telephone Settings Main ”Phone setup” menu Phone setup < Phone setup OK Ringer volume > Ring tone > Display contrast > Automatic mike > Loudspeaker volume > Headset volume > Phone code > Charge display > Status display > Language >...

  • Page 14: Loudspeaker Volume

    Automatically activating the handsfree microphone ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ The microphone switches on automatically when you receive an intercom voice message. Select the ”Automatic mike” Automatic mike submenu or press OK Switch off " Adjust the microphone. Select 2 (on) or > Switch on 1 (off).

  • Page 15: Charge Display

    Charge display ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ Select the ”Charge display” Charge display submenu or press OK Switch off " Set the charge display. Select 1 (off) > Switch on or 2 (on). End programming. Status display ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ Select the ”Status display” Status display submenu or press OK Switch off Status display variant 1...
  • Page 16 Switching language ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ Select the ”Language” submenu or Language press German OK Englisch Select the display language. > German End programming. Activating/deactivating the call list ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ Select the ”Call list” submenu or Call list press < With name only OK Switch off "...
  • Page 17 Entering user names ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ Select the ”Enter name ...” Enter name 11 submenu. Your primary internal phone number is displayed. OK Store " Key in the name, with a maximum of 11 characters, by way of the keypad (see below). End programming.

  • Page 18: Function Keys - Customisable Functions (Overview)

    Function Keys - Customisable Functions (Overview) Function LED Explanation Reject Reject current call. Caller hears busy tone. Reject Call Deactivate Call Waiting tone. Caller hears busy tone. Waiting Special function keys programmable: - Reject Call Waiting function for calls on 1st internal phone number - Reject Call Waiting function for calls on 2nd internal phone number - Reject Call Waiting function for calls on 1st and 2nd internal phone number Do-Not-...
  • Page 19 Function LED Explanation MCID Malicious Call Identification. Malicious calls identified by the ISDN exchange. Remote Postdial a stored DTMF tone sequence ( ), e.g. to remotely scan Scanning an answering machine. Headset To operate a headset. Call Pick-Up Pick up external calls. Special function keys programmable: Pick up internal calls and external calls from pre-set internal users.
  • Page 20 Function LED Explanation Relay Operate the relays. Special function keys programmable: Relay key for relay number. Reserve Reserve an outside line (B-channel) if all lines are busy. Inquiry Initiate a consultation (inquiry), connect, broker. Telephone Lock the value added phone, activate an emergency call/direct call. Lock Appointment Activate or deactivate the entered appointment time.
  • Page 21 LED indicators for first-level function keys ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ Program the functions you use most Internal key with programmed external frequently on the 10 function keys of the phone number of an internal user: first level. - LED flashing slowly - An answering If you program the functions marked with machine is assigned to the Internal key.
  • Page 22 Changing a function key assignment ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ ”set 31”: Start programming. Press the function key whose functions Select function you want to change (pressing the Shift < Divert from key beforehand to change to the se- OK Divert to cond level if necessary). The current >...
  • Page 23 ”Do-Not-Disturb” function key Do-Not-Disturb < Secondary number " Enter the internal phone number to OK Prim. and sec. no. which the Do-Not-Disturb facility is to > Primary number apply. Do-Not-Disturb " Enter whether the Do-Not-Disturb < ext. off int. on facility is to apply to external and/or OK ext.
  • Page 24 ”Intercom” function key Intercom -- -- -- -- -- " Enter the internal phone numbers if you Enter internal numbers always want to talk through to the OK Store same value added phones with the Intercom function. If you do not define any internal numbers, dial the numbers after pressing the key.
  • Page 25 ”Line key” and ”MSN/External” Line key function keys (Example shows Line key) External 23456781 Using the arrow keys select: OK Store External 23456781 - external number of your system oder or Line key Office -name of an external phone Office number for which the key is to be programmed or OK Store...
  • Page 26 ”Relay” function key Relay key for internal number __ " Enter the internal phone number of the relay you want to operate with the key. OK Store End programming. Note ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ The ”Relay” function key has a general key you must then select the internal function if you do not enter an internal number of the relay.

  • Page 27: Making Calls

    Making Calls Making calls - ”Automatic” line seizure variant ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ Lift the receiver. The display shows the Please dial time at the right. 11:52 To call an internal number: %" Press the ”Internal” key and dial the Call to 13 internal number, e.g.
  • Page 28 Line seizure with MSN/External key ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ Press the MSN/External key. External Office Select an external phone number or the user’s name. The call charges are billed <> Scroll under the selected number. " When the desired number is displayed, Office enter the subscriber’s number.
  • Page 29 Reserving an outside line ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ A" When trying to dial an external number B-channels busy you hear the busy tone. The message OK Reserve shown here appears on the display. No outside line (B-channel) is free.. Press to reserve an outside line. Reservation confirmed Replace the receiver.
  • Page 30 Note ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ Barred range - If the telephone system’s Hand free - Instead of lifting the receiver, barred range is programmed for your tel- you can also press the "loudspeaker" key ephone, you cannot dial the external phone = in all cases. You are then telephoning in numbers that lie within the barred range.

  • Page 31: Answering Calls

    Answering Calls A call comes in for you ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ Internal call: Example from Keller The display identifies the caller while the for Haupt phone is ringing. Lift the receiver. The name or extension Keller number, Phone 13 for example, is 11:52 displayed.
  • Page 32 You have a call waiting ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ You are on an internal or external call. Through the receiver you hear the external Call Waiting tones. The display MAIER shows the number or name of the se- calling Office cond caller and the number or user name the caller has dialled.

  • Page 33: Call Transfer

    Call Transfer Internal call transfer with and without announcement ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ You are on an external call and want to MAIER transfer the call to an internal user. 11:52 To select the internal user: /" Press the Internal key and dial the Call to 13 internal number, e.g.

  • Page 34: Transferring An Outside Line

    You are talking to the new external 87654321 party. The subscriber on hold cannot MAIER listen-in. Press the ”Call Transfer” key (must Transfer call be programmed) to transfer the call. Please hang up Replace the receiver. Transferring an Outside Line An internal user calls you.

  • Page 35: Forwarding A Call While The Phone Is Ringing

    Forwarding a Call while the Phone is Ringing You can forward a call to an internal user or To be able to forward calls to an external external subscriber while the phone is subscriber the ISDN ”Call Deflection” ringing. Then you do not have to answer feature must be available on your exchange the call.

  • Page 36: Call Waiting/Return Call

    Call Waiting/Return Call Initiating Call Waiting/Return Call ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ You have called user 13, for example, Phone 13 and he or she is busy. busy You want to indicate a call waiting and 11 13 15 request a return call. Press .

  • Page 37: Reject Call Waiting

    Second Call Busy Programming and controlling Reject Call Waiting ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ Start the function by pressing Reject Call Waiting the ”Reject Call Waiting” key or < Secondary number The display shown here OK Prim. and sec. no. !14. appears if primary and secondary >...

  • Page 38: Call Pick-Up

    Call Pick-Up Picking up an external call without using a function key ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ Another phone is ringing. On the 17.May 1999 11:52 display the x flashes and the internal extension being called, e.g. 13, is displayed. You want to pick up the incoming external call.

  • Page 39: Call List

    Call List Logging into a call list ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ You call internal user 13, for example, Call to but no one answers. Anton You want to log into the extension’s call 11 13 list. Press Call list Replace the receiver. You have logged 11 13 yourself into the call list.

  • Page 40: Do-Not-Disturb - Disabling The Ringer

    Do-Not-Disturb - Disabling the Ringer Programming and controlling Do-Not-Disturb ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ Start the function by pressing ”set” and Do-Not-Disturb the ”Do-Not-Disturb” key or < Secondary number The display shown here appears if OK Prim. and sec. nb. primary and secondary internal phone >...

  • Page 41: Switching Call Variant

    Switching Call Variant Activating/deactivating call variant 2 (Night) / 3 (CF) ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ Press ”set” and the ”Call variant 2” CVA 2 Night service key ( ) or the ”Call variant 3” < External all key ( ). Example shows call vari- OK Office ant 2.

  • Page 42: Announcement

    Announcement The receiver is on-hook. Press the Announcement ”Announcement” key. Please speak The acknowledgement tone sounds. You can make your announcement in handsfree mode user the receiver. After making your announcement, press the ”Loudspeaker” key if in handsfree mode or replace the receiver. Autodial Programming an autodial number ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢...

  • Page 43: Busy On Busy

    Busy on Busy Programming and controlling Busy on Busy ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ Start the function by pressing ”set” and Busy on Busy the ”Busy on Busy” key or !1#. < Private OK 23456781 Select the external phone number or > Office name of an external subscriber. Busy on Busy Confirm your selection.

  • Page 44: Intercom Function

    Intercom Function Intercom voice message to value added phones ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ The receiver is on-hook. Press the Intercom ”Intercom” key. If no users are 13 15 -- -- defined, enter the internal numbers of the value added phones you want to reach.
  • Page 45 When you hear an intercom voice message through your phone ¢¢¢¢¢¢¢¢¢ You hear the acknowledgement tone Intercom from 13 and then an intercom voice message. for phone 11 11 13 15 17 If you want to speak to the caller: Press the ”Loudspeaker”...

  • Page 46: Call Hold

    Call Hold 98765432 You are on an external call (multiple 11:52 subscriber system). Please dial Press the ”ISDN Hold” key. You hear the external dial tone. 11:52 " Dial the number of the external Call to 0234567899 subscriber you want to consult. 0234567899 The caller on hold cannot listen-in.

  • Page 47: Conferencing

    Conferencing Three-party conference, internal ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ You are on an internal call. Phone 13 11:52 Call the internal user you want to 11 13 include in the conference, e.g. 17. %" Press the ”Internal” key and dial Call to 17 the internal number, e.g. 17, Shipping Shipping department.

  • Page 48: Least Cost Routing (Lcr)

    ISDN three-party conference ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ You are on an external call (multiple 98765432 subscriber system) and want to talk to 11:52 another external subscriber at the same time. Press the ”ISDN Hold” key. You hear Please dial the external dial tone. 11:52 "...

  • Page 49: Brokering

    & 2nd line of display: Number or name of line. Held call External 2 cl.: New incoming call cl.: AGFEO 1 Active call 11 13 The active call is automatically displayed 03012345678 again after approximately 10 seconds. A: AGFEO 2...

  • Page 50: Storing A Memory Number

    Storing a Memory Number Storing a memory number/name ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ The receiver is on-hook. You want to MAIER store the name and number shown on 03098765432 the display. Press ! . The name and number are Features stored in the memory. N0.

  • Page 51: Call By Call

    Resume the call, e.g. on extension 13. You can conduct your call as usual. Notes ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ - using an ST 30, press a slowly blinking To resume the external call: line key to get a parked call (see page 25), - using system phones ST 20, ST 25 please - using analog phones, please dial S22 .

  • Page 52: Room Monitoring

    Room Monitoring Setting up room monitoring ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ Call up the "Room monitoring" Room monitoring submenu. OK Switch off " ”1”: Switch off room monitoring > Switch on ”2”: Switch on room monitoring Select whether an acoustic warning is to Acoustic warning be delivered before activating room monitoring.

  • Page 53: Operating Relays

    Operating Relays Activating/deactivating a relay ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ Press the ”Relay” key. Relay __ " Enter the internal phone number of the relay, e.g. 31. The relay is activated or Relay 31 deactivated immediately. If the relay is a pulse relay, the second line of the display remains unchanged.

  • Page 54: Inquiry

    Inquiry Inquiry (consultation) by phone ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ You are on an internal or external call. 03012345678 Example shows external call, number 11:52 03012345678. %" Internal inquiry Call to 13 Press the Internal key and dial the 03012345678 internal number, e.g. 13. 11 13 External inquiry %"...

  • Page 55: Return Call

    Return Call Requesting a return call ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ You call an external subscriber and hear Subscriber busy the busy tone. OK Request return call Press to request a return call. Automatic return call Replace the receiver. Return call ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ As soon as the called user is free your 05198765432 phone rings and your display indicates Automatic return call...

  • Page 56: Viewing Status Messages

    Viewing Status Messages As soon as you have activated a function on individual functions one after another on your ST 30 a symbol indicates the fact on the display. the display. You can view the status of the Scrolling through displays ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢...

  • Page 57: Storing Numbers In The Phonebook

    Storing Numbers in the Phonebook Call up the ”Central numbers” main Central numbers menu. < Autodial OK Add entry The phonebook is provided as an > Edit entry alphabetically or numerically sorted > Clear entry register. > Emergency numbers You can use the Shift key "-Taste >...
  • Page 58 Select the name using the arrow keys Edit entry 118 and confirm. 03098765432_ Confirm the number with Enter number OK Store " simply overwrite an old number with a new one or press to clear character- by-character or press to clear the entire input.
  • Page 59 Entering an emergency number ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ Select the "Emergency numbers" Select emergency number submenu and confirm. * or # " Select an emergency number key, Emergency number 1 e.g. Enter number " Enter the emergency number. OK Store Store your input. - Enter more emergency numbers End programming.

  • Page 60: Dialling Phonebook Numbers

    A. The first entry beginning with the entered letter is Select entry A __ displayed. < Ziegler Gertrud OK AGFEO Use the arrow keys to scroll to the name > Anton you are looking for. Lift the receiver or press the ”Loudspeaker”...
  • Page 61 Redialling a phonebook entry ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ Open the phonebook. You are in the Select entry ___ last register used (numerical or A ... Z alphabetical). Use the Shift key to change register as <> Scroll necessary. Press the ”Redial” key. Select entry ___ The last entry dialled - or merely Olli displayed - in this register is redisplayed.

  • Page 62: Telephone Lock - Emergency Call / Direct Call (Baby Call)

    Telephone Lock - Emergency Call / Direct Call (Baby Call) Locking/unlocking the telephone ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ The receiver is on-hook. Press the ”Te- 17.May 1999 11:52 lephone Lock” key to lock or unlock the telephone. If the display prompts you for the phone code when you try to unlock, enter the code number.

  • Page 63: Appointment Call - One-Off Appointment

    Appointment Call - One-off Appointment Programming and controlling an appointment call ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ Start the function by pressing ”set” and Appointment time ? the ”Appointment” key or __:__ „$ Key in the 4-digit time and confirm. OK Store Clear any existing entry by pressing simply overwrite it.

  • Page 64: Activating/Deactivating Timers

    Activating/Deactivating Timers Press the ”Timer” key to control the Timer 3 programmed timer in the system. Timer off, Function off OK Timer on „ ”1”: Activate/deactivate timer. The > Function on timer function is switched at the programmed times. ”2”: Activate or deactivate timer function immediately regardless of programmed times.

  • Page 65: Operating Door Phone Unit And Door Opener

    Operating Door Phone Unit and Door Opener The receiver is on-hook. Your hear the Door 1 Bell 2 door bell on your telephone. Lift the receiver. You are connected to Door intercom the door intercom and can talk to the visitor.

  • Page 66: Divert From - Diverting Calls From Other Telephones

    Activating/deactivating Calling Line Identification Presentation (CLIP) ¢¢¢¢ Call up the „Number->CLIP“ submenu. Number->CLIP „ ”1”: Switch off CLIP OK Switch off ”2”: Switch on CLIP > Switch on End programming. Activating/deactivating Connected Line Identification (COLP) ¢¢¢¢¢¢¢¢¢¢¢¢¢ Call up the „Number->COLP“ submenu. Number->COLP „...

  • Page 67: Divert To - Diverting Calls To Another Telephone

    Divert To - Diverting Calls to Another Telephone Diversion by the system Programming and controlling Divert To ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ Start the function by pressing ”set” and Divert to the ”Divert to” key or Destination __ „ Enter the internal phone number whose Divert 13 to calls you want to divert to another internal or external user, e.g.
  • Page 68 Programming and controlling Divert To ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ Start the function by pressing the 13 All calls to ”Divert to” key. The current status of Phone 14 a programmed diversion is displayed. OK Switch Select the next diversion as necessary. Switch the selected diversion (on/off). Activate/deactivate the diversion of the second internal number or another diversion as necessary.
  • Page 69 Diversion by ISDN Exchange (Call Forwarding) ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ Start programming the destination for ISDN CF Position 1 Call Forwarding by pressing ”set” and No entry the ”ISDN Call Forwarding” key or OK Store Select a blank entry to program the Call Forwarding or overwrite an existing entry as appropriate.
  • Page 70 Programming Call Forwarding ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ Press the ”ISDN Call Forwarding” key. 23456781 Busy The display indicates for which external 87654321 phone number in your system call <> Scroll forwarding is active (on) or inactive (off), OK Store to which phone number, and the forwarding variant.

  • Page 71: Call Charges

    Call charges Call up the „Call-charges“ main Charges menu menu. < Stop recording OK Own charges > All charges Print charges Start recording Call charges - Displaying the last connection/total ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ Select the „Own charges“ ( Last call The call charges for your last call are 0,12DM displayed.
  • Page 72 Scroll, for example to charges recorded ext. 23456782 under an external phone number (the 7,20DM external number or name is displayed), <> Scroll Charges of a S0 line Charges of line S01 223,00DM <> Scroll or all charges (all records) All records 380,44DM - Continue in the Charges menu or...
  • Page 73 Starting charge recording ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ Select the „Start recording“ Start recording submenu ( ). If the display prompts Select internal number you for the phone code, enter it in 4-digit format. <> Scroll „ Enter the internal phone number of the Start recording int.no.

  • Page 74: Viewing Your Own Call Charges

    Viewing Your Own Call Charges On your value added phone you can view end of call” feature from your network your own call charges provided you have provider. ordered the ”advice of charge during and at Viewing call charges during a call ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ You are on an external call.

  • Page 75: Redial

    Redial ”Redial” key. The last dialled external 98765432 phone number is displayed. Press the ”Redial” key or use the arrow keys AGFEO to select one of the last five external 0306179300 numbers dialled. Lift the receiver. The displayed external number is dialled.

  • Page 76: Alarm Call - Recurring Appointment

    Alarm Call - Recurring Appointment Storing an alarm call ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ Press ”set” and the ”Alarm Call” key Alarm call time ? or set to start alarm call __:__ programming. OK Store „$ Key in the 4-digit time and confirm. Alarm call 08:50 Clear any existing entry by pressing simply overwrite it.

  • Page 77: Storing And Dialling Speed Dial Numbers

    Locate the phone number you want Select entry from the phonebook (see ”Phonebook - < Ziegler Gertrud Dialling a number”). OK AGFEO > Anton Confirm your selection. End programming. Storing a phone number on a ”private speed dial“ key ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢...

  • Page 78: Protecting The Functions Of The Telecommunications System Against Unauthorised Use (Code Numbers)

    Protecting the Functions of the Telecommunications Sy- stem against Unauthorised Use (Code Numbers) Call up the „Codes“ submenu Codes < Switchbox code OK Setup code > Charge code Setup code ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ Select the „setup code“ submenu Setup code ) to protect access to the !9*1 system setup.

  • Page 79: Service / Test

    - Continue in the Codes menu or end programming. Service / Test Select the „Service/Test“ If the Service/Test display prompts you for the setup code < ST 30 digital when you press 9, enter it in 4-digit OK Version number format. > Country variant Service number...
  • Page 80 Please wait programming is aborted. The system is reset to its default condition. - Continue in the Service/Test menu or end programming. ST 30 digital ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ For instructions on operation see ”Registering the internal number of the telephone” under ”Commissioning”.

  • Page 81: Remote Setup/Remote Configuration

    Remote Setup/Remote Configuration Enabling remote servicing ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ Select the ”Remote service” main Remote service number menu. Enter number " Enter the remote servicing number OK Store (programming access phone number). Confirm with Remote service 030123456789 " Choose whether remote servicing is to OK Without phonebook be enabled.

  • Page 82: Menu Tree

    Menu Tree Leistungsmerkmale < Busy on Busy - Night service on/off OK Call Variant - Internal/external, on/off > Do-Not-Disturb - On/off Telephone lock - On/off Second Call Busy - Time, date, on/off Enter appointment - Time, on/off Enter alarm time - Internal user/External subscriber, on/off Divert to - Internal user, on/off...
  • Page 83 Switchbox code - Enter OK Setup code - Enter > Charge code - Enter Switchbox code Service/Test < ST 30 digital - Display OK Version number - Display > Country variant - Enter number Service number - Reset System restart...
  • Page 84 ISDN connecting cable ST 30 - Terminal assignment ¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢¢ b1 5 4 a1 b2 6 3 a2 not used 7 2 not used 1 not used not used 8 Western plug 8/4 (RJ 45) to the telecommunications system´s internal ISDN bus...
