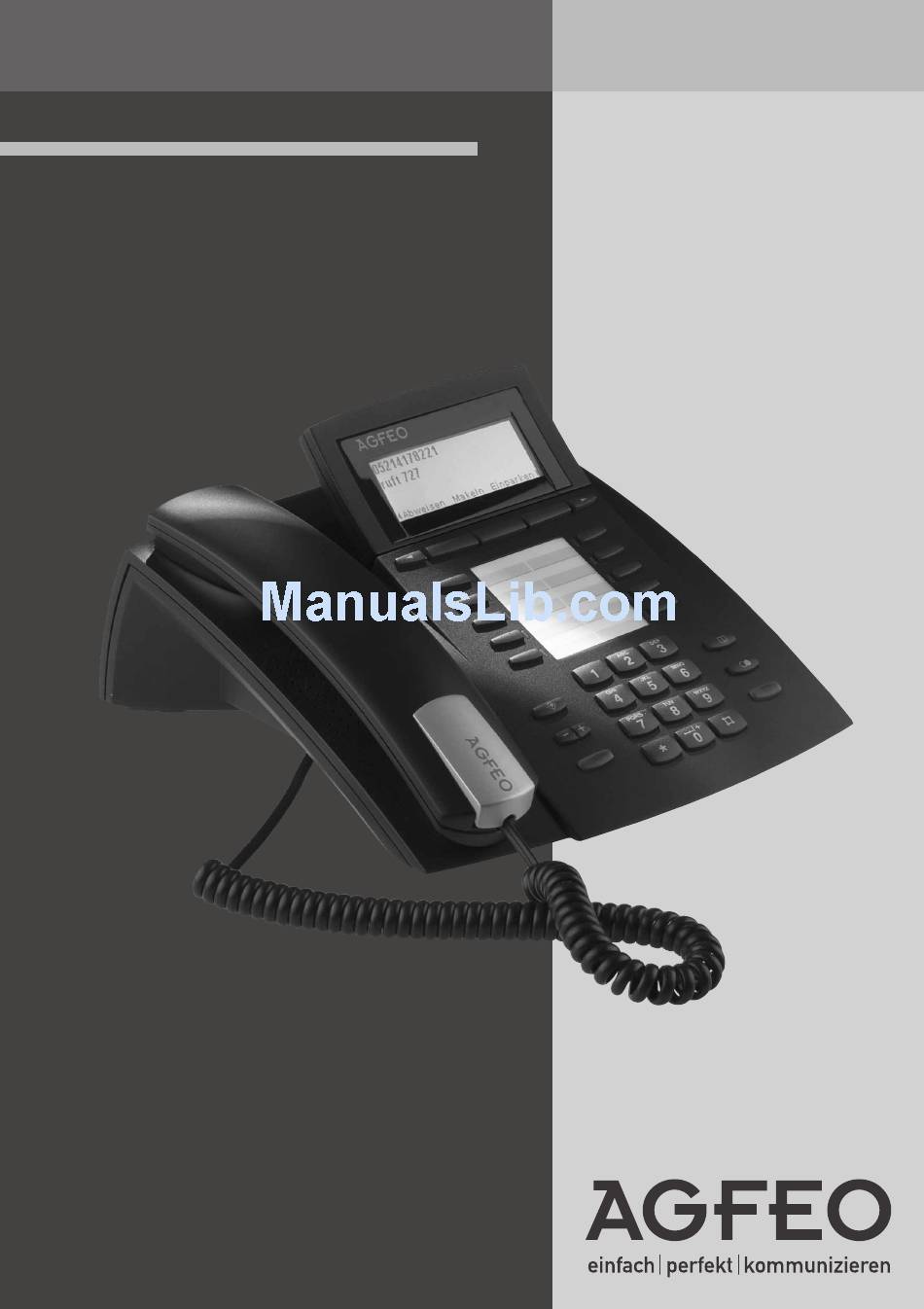

- Page 1 User Guide System Telephone System Telephone ST 40 S0 System Telephone ST 40 UP0...
-
Page 2: Stipulation For Use
Stipulation for use: The digital System Phone ST 40 S0 is for the connection to an internal S0-Bus of an AGFEO ISDN Telephone System. The ST 40 may be connected to the following AGFEO ISDN Telephone Systems: - AS281 All-In-One, AS 35, AS 35 All-In-One from Software 7.0 - AS 40 P (P400-1), AS 4000 (P400-1), AS 100 IT (P400 IT), AS 43, AS 45, AS 200 IT from Software 7.0... -
Page 3: Table Of Contents
System Telephone ST 40 Table of Contents Stipulation for use ..........................2 Safety Notes ............................2 Regarding this User Guide........................2 Underneath the ST 40 ..........................4 The connection of an Untangler ......................4 Display Position ............................. 5 ST 40 Registration ..........................5 Connect the ST 40 .......................... -
Page 4: Underneath The St 40
System Telephone ST 40 Underneath the ST 40 Module Shaft for optional A-Module 40 Modulslot 1 Modulslot 2 Connection for Headset Connection to S0-TK the PBX System Connection of Connection for op- Receiver tional Power Plug or Optional STE 40 The connection of an Untangler In the handset of the ST40 you will find a compartment for a cord untangler. -
Page 5: Display Position
To operate the ST 40 UP0, please insert the RJ 45 plug into the relevant socket which is connected to the UP0 port of your AGFEO ISDN Telephone System. Please note only one telephone can be connected to each UP0 port. -
Page 6: St 40 Buttons
System Telephone ST 40 ST 40 Buttons Softkeys Adjustable Graphic Display Loudspeaker 10 Function But- underneath tons and LED's handset Button Labelling Microphone Numeric Keypad Mail Button - Flashes on new entry in call log or missed calls. Stays lit for numbers already * and # Buttons viewed. -
Page 7: Display Of The St 40
System Telephone ST 40 Display of the ST 40 Display in WK26 Tu 11.Jul.06 11:59 Activated features standby: *${}%“S are shown here Internal and external S0 Status, Status of analogue trunk lines one box per S0. 12 14 16 Current function of soft key below. -
Page 8: Function Buttons - Freely Programmable Function Buttons (Overview)
System Telephone ST 40 Function Buttons - Freely programmable Function Buttons (overview) TAM activation To switch TAM module on or off of the ST 30 System Phone. To listen to messages recorded on the TAM. TAM info To record messages on the TAM TAM Memo Reject the ringing call. - Page 9 System Telephone ST 40 Function Buttons - Freely programmable Function Buttons (overview) Call Pick Up To Pick Up incoming calls. Special Function Button can be assigned to Pick Up internal and external calls from specific extensions. To withhold own number to be sent to a called party. Withhold To Dial Extensions.
-
Page 10: Led - Display For Freely Programmable Function Buttons
System Telephone ST 40 LED - Display for freely programmable function buttons LED on LED off LED flashes Answering Machine Stored messages No Messages New Messages Messages already listened to. Call Waiting activation enabled disabled Call Log Call Log entries No numbers in New Numbers in Call already viewed... - Page 11 System Telephone ST 40 LED - Display for freely programmable function buttons LED on LED off LED flashes LED flashes (slowly) (fast) The TAM is TAM Activation The TAM is deactivated activated Internal Button The extension The internal key is You are holding subscriber is allocated to an...
-
Page 12: Button Assignment
System Telephone ST 40 Button Assignment Announce Call Waiting On delivery of the Phone System all programmable function But- System Memory System Memory tons of the Phones have a default setting which are the same on all Tone Call Appointment System Telephones. -
Page 13: Call Waiting
System Telephone ST 40 Call Waiting 1. Possibility: You are on a call and Replace the Your telephone will Lift Receiver Conduct Call receiver to end the ring for you to hear the call waiting current call. answer the waiting tone call. -
Page 14: Display Call Log
System Telephone ST 40 Display Call Log The flashing mail button will indicate that there is one entry in the call log. With the receiver on hook press the mail button. The last missed call will be displayed giving telephone number, date and time. -
Page 15: Phonebook (Alphabetic Retrieval)
System Telephone ST 40 Phonebook (Vanity retrieval) Press Enter the desired letter,ie.A =2.The Select the next letter,ie.N Lift the receiver or press the Phonebook first entry with the selected initial =6.The first entry handsfree button, button letter is displayed. with “An ”is displayed. the displayed name will automatically be dialled. -
Page 16: Place Of Installation
System Telephone ST 40 Place of Installation Install ST 40 in an appropriate place. Please pay attention to the following during the installation: - Not in places,where the phone can be sprayed with water or chemicals. - Synthetic support at the base of the phone: Your apparatus was manufactured for normal conditions of use.Chemicals used in the production or care of furniture can cause changes to the synthetic support of the phone. -
Page 17: Dhsg Headset (Cordless Headset)
Connection of Headset The ST 40 has a seperate RJ 10 headset connection. Instead of connecting the cordless DHSG Headset AGFEO 9120 you may also use some of the following corded headsets: Manufacturer Model Order No. -
Page 18: Dshg Headset Operation
40 is idle. service mode. not want to continue with 004952144709950 Server will now be the update but want the [Updateserver AGFEO dialled and the phone to return to normal Bielefeld] update will start. operation, then press digit If required enter access 3 "Hauptprogramm"... - Page 19 System Telephone ST 40...
- Page 20 Ident no. 1101371 Subject to change without notice. No liability AGFEO GmbH & Co. KG can be accepted for errors contained in this Gaswerkstr. 8 document.
