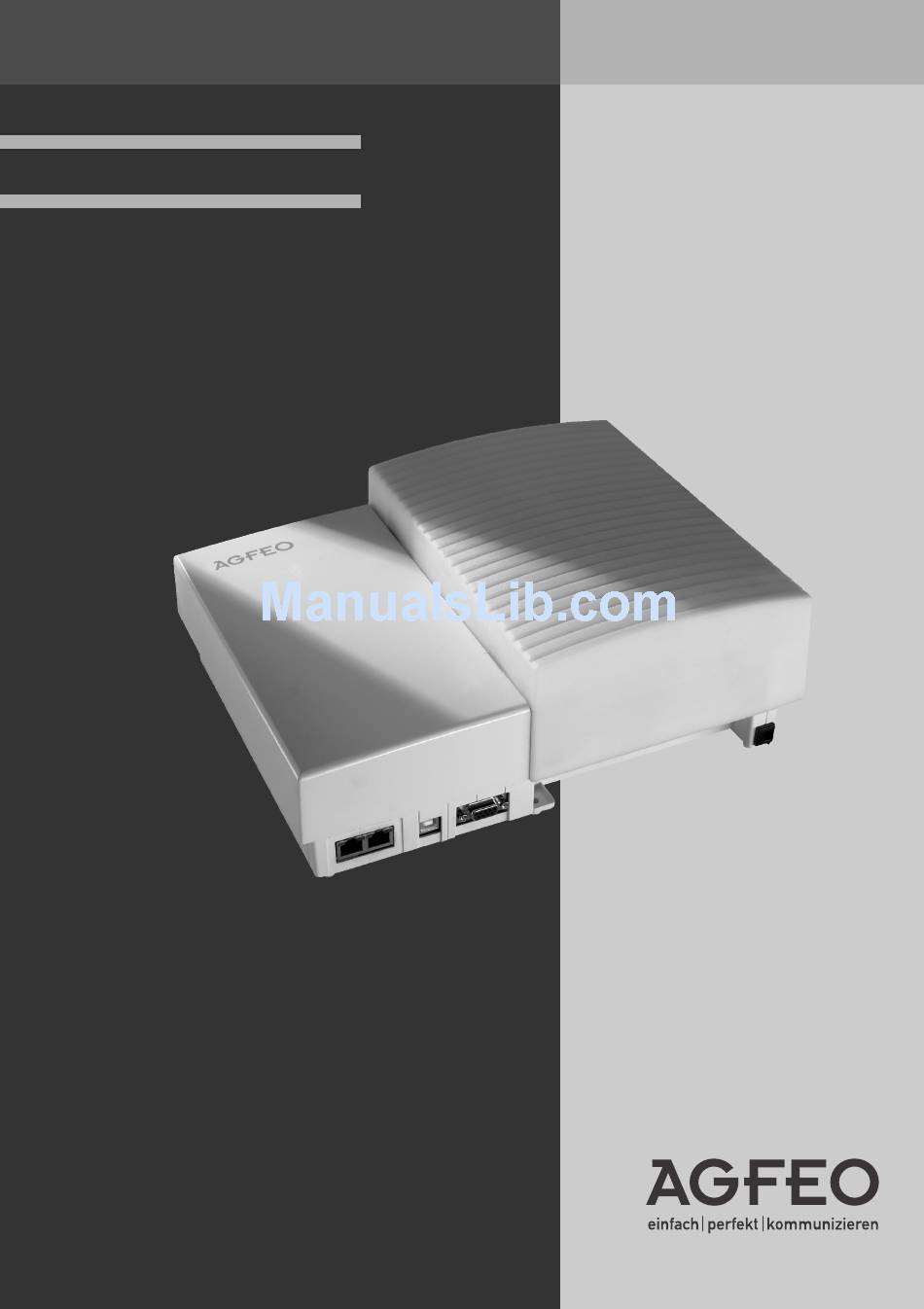

- Page 1 ISDN PBX System Installation manual AS 43, AS 45, AS 200 IT...
-
Page 2: Saftey Notes
The AS 43, AS 45 and AS 200 IT can be connected to Basic Rate ISDN lines (DSS1, Point to Point, System Access, or Point to Multi Point, Standard Access) and may also be connected to analogue exchange lines. -
Page 3: Table Of Contents
Check contents of delivery ......................4 Open Connection Cover ......................5 Closing Connection Cover ......................5 LEDs of the AS 43, AS 45 ......................7 Installing and replacing modules ....................8 Installation of AS 200 IT ......................8 The K-Module 524 ........................9 Switchable SO Connections ..................... -
Page 4: Check Contents Of Delivery
1 Instructions Pack 1 CD-ROM with TK-Suite and the AIS Konfigurator The operating instruction in PDF format can be found on our homepage www.agfeo.de Select Location Install the System in a dry room free of any hazardous materials. Avoid sites near Air Conditioners, Radiators, Equipment with excessive high radiation, direct sunlight, excessive dust and the danger of liquid spillages such as Water or Chemicals. -
Page 5: Open Connection Cover
AS 43, AS 45, AS 200 IT Open Connection Cover Please unplug the telephone system from the 230 Main Socket before opening the cover. 1. Insert a screwdriver in the opening of the 2. Open the lid in the direction of the cover and press the screwdriver in the arrow. - Page 6 AS 43, AS 45, AS 200 IT Wall mounting The system must be mounted on the wall so that the connectors are at the bottom of it. Use the mounting 1, 2, and 3 to fix the equipment to the wall.
-
Page 7: Leds Of The As 43, As 45
AS 43, AS 45, AS 200 IT LEDs of the AS 43, AS 45 LED 1 LED 2 LED 3 LED 4 Permanentely Lit Flashes LED 1 (red) System is operational System being initialised LED 2 (green) Data being transferred... -
Page 8: Installing And Replacing Modules
AS 43, AS 45, AS 200 IT Safety Notes Pay attention to the safety notes - before installing or removing a module, - before connecting or disconnecting a connecting lead 1. Remove the telephone system’s 230 V mains plug from the socket. -
Page 9: The K-Module 524
AS 43, AS 45, AS 200 IT The K-Module 524 Connections: EXT/INT 2 SO connections switchable internal / 100R external (external: PTP or PTMP EXT/INT internal: PTMP) 4 Analogue Extensions (POT’s) external S0 b2: white a2: yellow b1: brown 100R... -
Page 10: Switchable So Connections
AS 43, AS 45, AS 200 IT Switchable SO Connections External S0 Connections External S0-Connection You may connect the external SO Connection to a System Access (PTP) or Standard Access (PTPM) line. Please refer to External SO Connection (RJ45 Socket). - Page 11 You can connect up to 8 ISDN devices like on a PTMP connection on the internal SO Bus of the System. ISDN Apparatus: Digital AGFEO System Phones (max 2 digital phones per SO Bus) -ISDN -Telephones -ISDN -PC-Cards -ISDN –Fax machines Up to four ISDN devices without additional power may be connected.
- Page 12 AS 43, AS 45, AS 200 IT Installation and Termination of the S0 Bus It is important that the S0 Bus will be terminated with 100 Ohm resistors on the end of the line. Without termination the signals will be reflected on the line end and returned - similar to water when this hits an obstructions.
-
Page 13: Short And Extended Passive Bus Internal S0 Bus Configuration
AS 43, AS 45, AS 200 IT Short and Extended Passive Bus Internal S0 Bus configuration Some technical aspects should be observed on the installation of an ISDN Bus and may require different settings. The telephone system is sending impulses in a specific "frame". The telephone exchange is expecting an answer of these frames from the connected telephone and devices. -
Page 14: T-Module 508
AS 43, AS 45, AS 200 IT T-Module 508 The T Module 508 features 8 interfaces for analogue extensions. This module supports the CLIP function. You may connect any analogue apparatus to the system which has been approved for connection to the public switched telephone network. -
Page 15: S0-Module 540
AS 43, AS 45, AS 200 IT S0-Module 540 The S0 module features the following interfaces: external S0 EXT/INT 4 Switchable internal / external S0 interfaces b2: white a2: yellow 100R b1: brown external: ISDN basic access as a point-to-... -
Page 16: Up0-Module 508
AS 43, AS 45, AS 200 IT Up0-Module 508 The UP0-Module 508 can support of up to eight AGFEO Up0 System Telephones. Please note that in order to operate an Up0 Module it will be impe- rative that a system firmware from 7.5 is installed. -
Page 17: Al-Module 4504
AS 43, AS 45, AS 200 IT AL-Module 4504 You may connect up to 4 analogue exchange lines to this module. The module supports DTMF dialling and CLIP, however the latter would have to be enabled by your network operator and may be chargeable. Should your network operator support CLI, then this will be presented via the AL4504 module to the system. - Page 18 AS 43, AS 45, AS 200 IT Important Notes Remote programming and Remote Updating of the PABX and or AL Module 4504 will not be possible when using an analogue exchange line only. The AL-Module 4504 DOES NOT support meter pulses from the exchange. To avoid malfunction, please ensure that meter pulses are disabled from the relevant telephone provider.
-
Page 19: K-Module 544
AS 43, AS 45, AS 200 IT K-Module 544 The AGFEO K-Module 544, is for the Telephone Systems AS 43, AS 45 and AS 200 IT from firmware 7.1 and will support the following three communications sections. These are: Alarm Section:... -
Page 20: System Interconnection
AS 43, AS 45, AS 200 IT System Interconnection It is possible to interconnect 2 AS 45‘s or 2 AS 200 IT´s and therefore increase the maximum number of port to 80. Of these 48 ports may be used for System Phones or System DECT’s. The modules, with the exception of the LAN Module, may be inserted into any module slot of the interconnected telephone system. -
Page 21: Commissioning
AS 43, AS 45, AS 200 IT Connecting a printer for printing connection charges You can connect any printer to the telephone system’s RS 232C interface to print out connection records. For connection, you need a cable that corresponds to the pin assignments given below (maximum length 3 m). -
Page 22: Tecnical Data
- K-Module 544 Phone, 1 two wire Door Phone and 1 analogue two wire doorphone (e.g. AGFEO TFE 2/4), 2 switching Relays, 1 audio ouptut symmetrical for loudspeakers, switchable as pre-amp output (asymmetrical) for an external amplifier, 1 Audio Input for external MoH... - Page 23 AS 43, AS 45, AS 200 IT Tecnical Data - Connection 4 wire spring loaded connectors - Length max lenght of internal SO Connection dependent on the mode - Short passive Bus 130 m - Extended passive Bus 1000 m...
- Page 24 Ident no. 1101332 Subject to change without notice. No liability can be AGFEO GmbH & Co. KG accepted for errors contained in Gaswerkstr. 8 this document.
