Summary of Contents for AGFEO ST 21 UP0

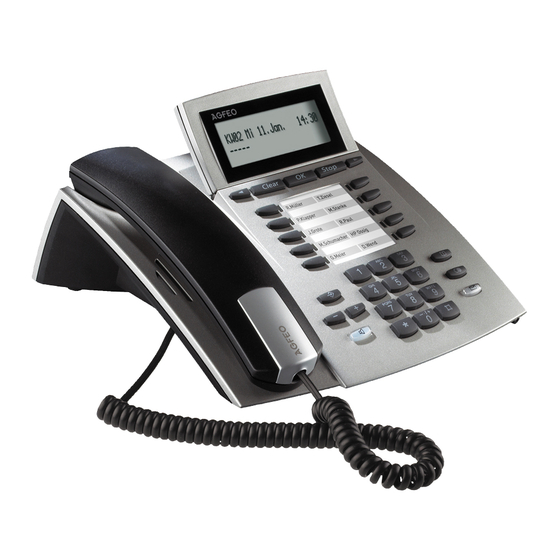

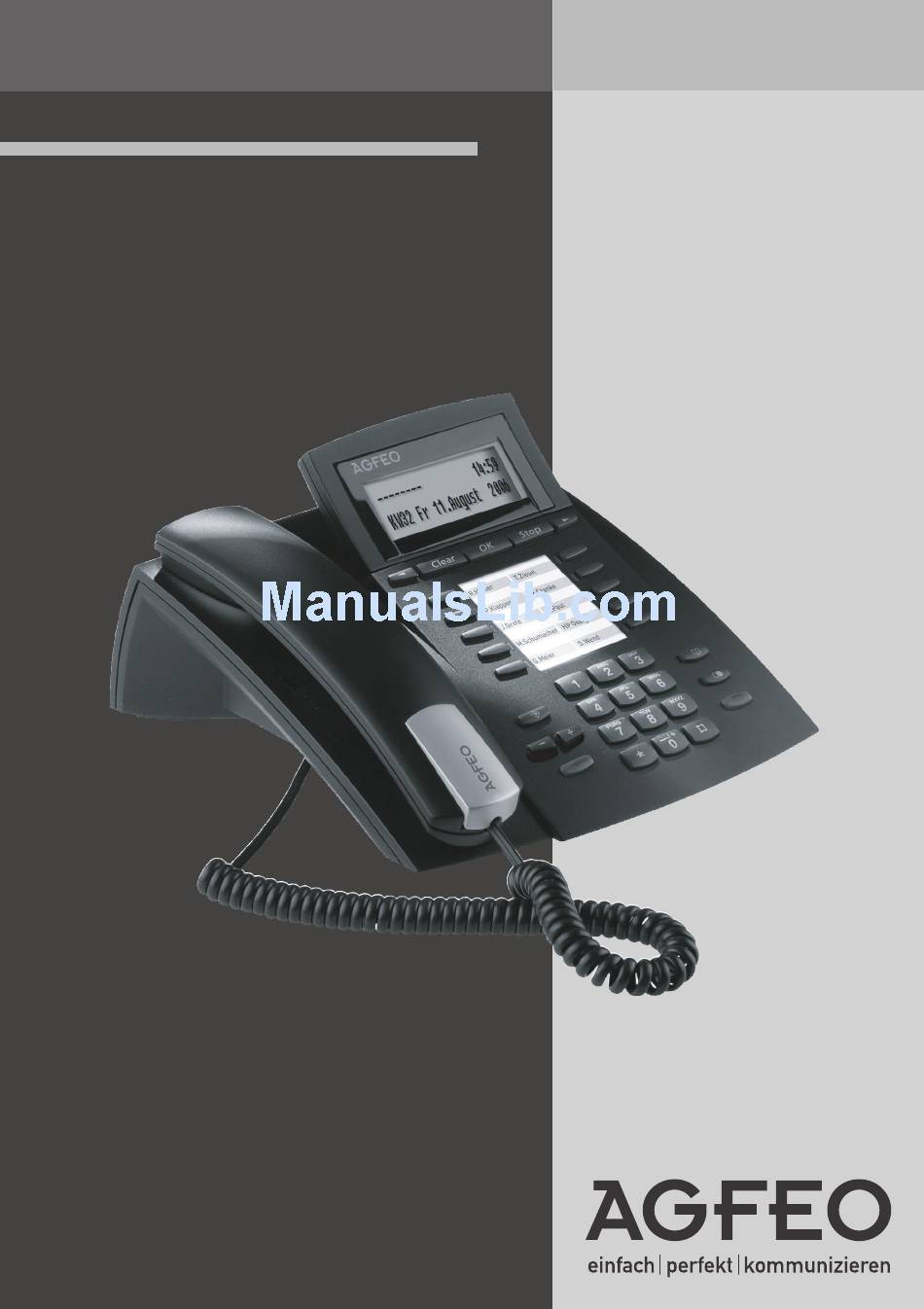

- Page 1 System Telephone User Guide System Telephone ST 21 S0 System Telephone ST 21 UP0...
-
Page 2: User Instructions
- AS 40 P (P400-1), AS 4000 (P400-1), AS 100 IT (P400 IT), AS 43, AS 45, AS 200 IT from Software 7.1 - all other AGFEO Telephone Systems with a Firmware below 7.1 will emulate the ST 21 as an ST 25 System Phone. -
Page 3: Table Of Contents
System Telephone ST 21 Table of Contents User Instructions ..........................2 Safety Notice: ............................2 About this User Guide ........................... 2 Table of Contents ........................... 3 View of Base ............................4 Untangler Connection ........................... 4 Display Angle ............................5 Registration ............................5 Connection ............................ -
Page 4: View Of Base
System Telephone ST 21 View of Base Modulslot 1 Modulslot 2 Headset Connection Line Cord S0-TK Connection Handset Connection for op- Connection tional Power Supply Untangler Connection The ST 21 handset offers a compartment for the connection of a cord untangler. As the optional untangler is fitted inside the handset it will not interfere in normal use or when the receiver is put back on hook. -
Page 5: Display Angle
- to release the plug, press the release latch on the plug and at the same time pull the cable out of the socket. (use a small screw driver if required) To operate the ST 21 UP0, please insert the RJ 45 plug into the ISDN telephone socket which is connected to the UP0 port of your AGFEO Telephone System. -
Page 6: Buttons
System Telephone ST 21 Buttons 2-Line Display Speaker (below Hand- 10 Function But- set) tons with LED's Function Button Label Insert Microphone Numeric Keypad Message Waiting LED - Flashes on new entry in the call log or missed call. Permanent lit for * and # Buttons numbers already viewed. -
Page 7: Status Display
System Telephone ST 21 Status Display Status display of internal Display of enabled X-i----- ${} %" 10:28 and external S0 Bus and features. and analogue lines WK19 TH 11.May 2006 Ringing extensions and extensions which are off hook will be displayed reversed. -
Page 8: Programmable Function Buttons (Overview)
System Telephone ST 21 Programmable Function Buttons (Overview) TAM activation To switch answering machine on or off (optional module) To listen to recorded messages. TAM info To record memo on the TAM TAM Memo Reject an incoming call. Caller will hear busy tone. Reject You can select if: Call Waiting... - Page 9 System Telephone ST 21 Programmable Function Buttons (Overview) Call Pick Up To Pick Up a call ringing on another extension. A Special Function Button may be assigned for this feature. To withhold own number being forwarded to the number called. Withhold To Dial Extensions.
-
Page 10: Led - Indication Associated To Function Buttons
System Telephone ST 21 LED - Indication Associated to Function Buttons LED on LED off LED flashes Answering Machine Stored messages No Messages New Messages Messages already listened to. Call Waiting activation enabled Call Log entries disabled Call Log already viewed No numbers in New Numbers in Call Call Log... - Page 11 System Telephone ST 21 LED - Indication Associated to Function Buttons LED on LED off LED flahes LED flashes (slow) (fast) TAM switched TAM Activation switched off Extension The button is Exclusiv Hold. Extension Button Busy or off allocated to an (DSS) hook answering...
-
Page 12: Button Assignment
System Telephone ST 21 Button Assignment In default all System Phone Buttons are pre-programmed with the Call Waiting Announce same functions. Appointment Tone Call Functions of each button can be changed to accommodate an Mute Call Filter individual application. Diversion to System Memory System Memory Internal... -
Page 13: Call Waiting
System Telephone ST 21 Call Waiting First Alternative: T Q P ª You are on a call and End Call Waiting Call will Lift Hand- Speak to Caller hear the call waiting ring tone. Second Alternative: Press the Button “Call Split or Brokers Call“ . The first call is put on hold and you are connected to the second caller. You now can toggle between the calls or transfer the call. -
Page 14: Display Call Log
System Telephone ST 21 Display Call Log The handset is on hook. The Message Waiting LED is flashing. There will be at least one new entry in the Call Log. The Message Waiting LED will flash until the new entries have been displayed, after which the LED will remain lit until you return the call to the displayed number or delete the entry. -
Page 15: Recent Numbers Redial
System Telephone ST 21 Phone Book (Vanity) Enter the first letter, ie. A=2. The Press Phone Select the next letter, ie M = 6. Pick up handset or press first entry with this letter will be The first entry with “Am“ will “Speaker Phone Button“. -
Page 16: Location
System Telephone ST 21 Location Select a suitable location for the ST 21 to be installed. Please observe the following points: - Do not use locations where the phone could be subjected to water or chemicals. - Rubber feet of the Phone: Your phone has been manufactured for general use. -
Page 17: Headset Connection
Headset Connection A headset connection can be found underneath the ST 21. (Suitable for RJ 45 or RJ 10 connectors) The following corded headsets may be used. Manufacturer Description Manufacturers Order No. AGFEO Headset 2100 6548839 Headset 2200 6548847 Plantronics... -
Page 18: Change Of Opertion In Emulation Mode
Change of Opertion in Emulation Mode The ST21 will be emulated as an ST25 for AGFEO telephone systems with an S0-Bus and firmware lower than 7.1, with the exception of the telephone systems AS 181, AS 2x and AS 2x from firmware 6.3. -
Page 19: Declaration Of Conformity
System Telephone ST 21 Declaration of Conformity... - Page 20 Ident no. 1101372 Subject to change without notice. No liability AGFEO GmbH & Co. KG can be accepted for errors contained in this Gaswerkstr. 8 document.
