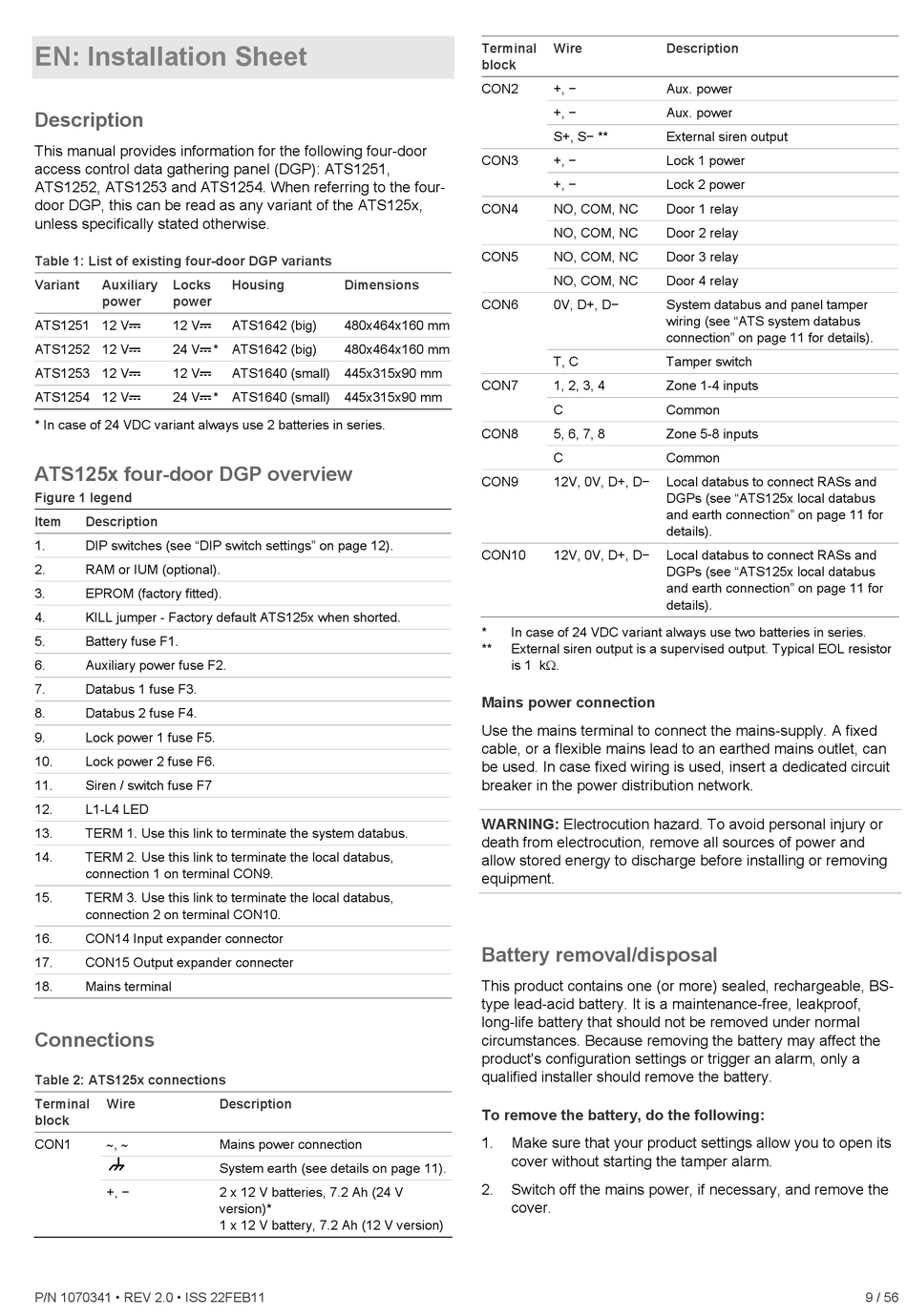

EN: Installation Sheet
Description
This manual provides information for the following four-door
access control data gathering panel (DGP): ATS1251,
ATS1252, ATS1253 and ATS1254. When referring to the four-
door DGP, this can be read as any variant of the ATS125x,
unless specifically stated otherwise.
Table 1: List of existing four-door DGP variants
Variant
Auxiliary
Locks
power
power
ATS1251 12 V
12 V
ATS1252 12 V
24 V * ATS1642 (big)
ATS1253 12 V
12 V
ATS1254 12 V
24 V * ATS1640 (small)
* In case of 24 VDC variant always use 2 batteries in series.
ATS125x four-door DGP overview
Figure 1 legend
Item
Description
1.
DIP switches (see "DIP switch settings" on page 12).
2.
RAM or IUM (optional).
3.
EPROM (factory fitted).
4.
KILL jumper - Factory default ATS125x when shorted.
5.
Battery fuse F1.
6.
Auxiliary power fuse F2.
7.
Databus 1 fuse F3.
8.
Databus 2 fuse F4.
9.
Lock power 1 fuse F5.
10.
Lock power 2 fuse F6.
11.
Siren / switch fuse F7
12.
L1-L4 LED
13.
TERM 1. Use this link to terminate the system databus.
14.
TERM 2. Use this link to terminate the local databus,
connection 1 on terminal CON9.
15.
TERM 3. Use this link to terminate the local databus,
connection 2 on terminal CON10.
16.
CON14 Input expander connector
17.
CON15 Output expander connecter
18.
Mains terminal
Connections
Table 2: ATS125x connections
Terminal
Wire
block
, 
CON1
+, −
P/N 1070341 • REV 2.0 • ISS 22FEB11
Housing
Dimensions
ATS1642 (big)
480x464x160 mm
480x464x160 mm
ATS1640 (small)
445x315x90 mm
445x315x90 mm
Description
Mains power connection
System earth (see details on page 11).
2 x 12 V batteries, 7.2 Ah (24 V
version)*
1 x 12 V battery, 7.2 Ah (12 V version)
Terminal
Wire
block
CON2
+, −
+, −
S+, S− **
CON3
+, −
+, −
CON4
NO, COM, NC
NO, COM, NC
CON5
NO, COM, NC
NO, COM, NC
CON6
0V, D+, D−
T, C
CON7
1, 2, 3, 4
C
CON8
5, 6, 7, 8
C
CON9
12V, 0V, D+, D−
CON10
12V, 0V, D+, D−
*
In case of 24 VDC variant always use two batteries in series.
**
External siren output is a supervised output. Typical EOL resistor
is 1 k.
Mains power connection
Use the mains terminal to connect the mains-supply. A fixed
cable, or a flexible mains lead to an earthed mains outlet, can
be used. In case fixed wiring is used, insert a dedicated circuit
breaker in the power distribution network.
WARNING:
Electrocution hazard. To avoid personal injury or
death from electrocution, remove all sources of power and
allow stored energy to discharge before installing or removing
equipment.

Battery removal/disposal

This product contains one (or more) sealed, rechargeable, BS-
type lead-acid battery. It is a maintenance-free, leakproof,
long-life battery that should not be removed under normal
circumstances. Because removing the battery may affect the
product's configuration settings or trigger an alarm, only a
qualified installer should remove the battery.
To remove the battery, do the following:
1.
Make sure that your product settings allow you to open its
cover without starting the tamper alarm.
2.
Switch off the mains power, if necessary, and remove the
cover.
Description
Aux. power
Aux. power
External siren output
Lock 1 power
Lock 2 power
Door 1 relay
Door 2 relay
Door 3 relay
Door 4 relay
System databus and panel tamper
wiring (see "ATS system databus
connection" on page 11 for details).
Tamper switch
Zone 1-4 inputs
Common
Zone 5-8 inputs
Common
Local databus to connect RASs and
DGPs (see "ATS125x local databus
and earth connection" on page 11 for
details).
Local databus to connect RASs and
DGPs (see "ATS125x local databus
and earth connection" on page 11 for
details).
9 / 56
