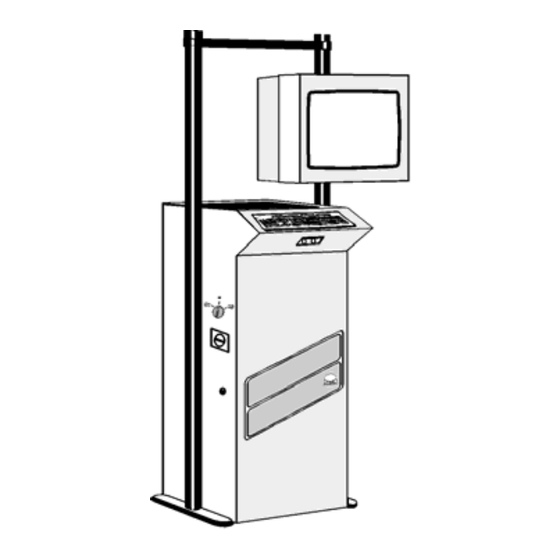

- Page 1 TPS I and III for Eurosystem Speedometer Tester for passenger cars, transporters and motorcycles Original Operating Instructions D1 1004BA1-GB03...
- Page 2 All rights reserved in cases of patent granting or registration of design. The contents of this version have been checked with great care. However, errors cannot be fully excluded. Please contact MAHA should you find errors of any kind. Subject to technical change without notice.
-
Page 3: Table Of Contents
3.2.4 Reviewing of Measurements ..................12 3.2.5 Prepare New Test ......................12 TPS I with Self-Contained Drive (optional) .................. 13 3.3.1 Equipment Overview ..................... 13 3.3.2 Manual Control Device ....................13 ... - Page 4 TPS I and III for Eurosystem D1 1004BA1-GB03...
-
Page 5: Safety
Injury to persons incurred due to non-compliance with these operating instructions are not covered by the product liability regulations. MAHA is not liable for damage to the test stand and/or vehicles incurred due to non-compliance with these operating instructions. A warning means that instructions that are not complied with or incompletely complied with can endanger persons. -
Page 6: Safety Regulations During Operation
Service work such as installation, maintenance or repair work on the test stand may only be done by MAHA service technicians or authorized service partner technicians. All work done on electrical parts of the equipment is to be carried out by trained, qualified electricians. -
Page 7: Description
Installation The test stand may only be installed and commissioned by the manufacturer's trained authorized personnel or other qualified technicians of MAHA dealers or representatives. MAHA instructions must be followed when installing or expanding the testing device. The manufacturers CE conformity declaration becomes invalid when the installation is done by qualified service technicians. -
Page 8: Equipment Overview
Description TPS I and III for Eurosystem Equipment Overview Technical Specifications 2.5.1 TPS I TPS I TPS I with self-contained drive Max. axle load Testing speed 30 to 150 km/h Weight 400 kg Tracking width 780 to 2200 mm Roller diameter... -
Page 9: Tps Iii (Motorcycle)
TPS I and III for Eurosystem Description 2.5.2 TPS III (Motorcycle) TPS III TPS III with self-contained drive Max. axle load Testing speed 30 to 150 km/h 30 to 150 km/h (*) Cable length of manual control device Roller length... - Page 10 Description TPS I and III for Eurosystem D1 1004BA1-GB03...
-
Page 11: Operations
The steps listed on the left provide the user with clear explanations of procedure. The third part provide information about the operation of a TPS I test stand with self-contained drive (Option). The fourth part describes the operation of the TPS III (motorcycle). -
Page 12: Speedometer Test
Operations TPS I and III for Eurosystem 3.2.1 Speedometer Test No vehicle with 4 wheel drive or automatic transmission may be tested on the speedometer tester. This can lead to damage on both the vehicle and the test lane. Should questions arise inquire at the responsible service representative. - Page 13 TPS I and III for Eurosystem Operations The measuring value can also be stored by pressing the <F5> key, in order to display the next target speed. If a remote control is not available, a second person is needed to store the value by using the keyboard.
-
Page 14: Travel Distance Test
Operations TPS I and III for Eurosystem 3.2.2 Travel Distance Test No vehicle with 4 wheel drive or automatic transmission may be tested on the speedometer tester. This can lead to damage on both the vehicle and the test lane. Should questions arise inquire at the responsible service representative. - Page 15 TPS I and III for Eurosystem Operations Conduct the test a. Enter the mileage of the vehicle via the number keys of the keyboard or remote control. b. Confirm with <RETURN>. c. Accelerate the vehicle to approx. 20 km/h Pay attention to the vehicle’s tachometer.
-
Page 16: Storage Of Test Values
Operations TPS I and III for Eurosystem 3.2.3 Storage of Test Values The storage of test values is described in the operating manual for the testing lane Eurosystem (Dok.-No. D1 E101BA1 D04): => Section 4.2.6 „Storage of Test Values“. 3.2.4... -
Page 17: Tps I With Self-Contained Drive (Optional)
TPS I and III for Eurosystem Operations TPS I with Self-Contained Drive (optional) 3.3.1 Equipment Overview Switch cabinet E ON-key Emergency-off button F Connection to manual control device Main switch G Manual control device OFF-key 3.3.2 Manual Control Device The manual control device is used to set the speed of the speedometer tester from 0 to 150 km/h. -
Page 18: Speedometer Test With Self-Contained Drive
Operations TPS I and III for Eurosystem 3.3.3 Speedometer Test with Self-Contained Drive No vehicle with 4 wheel drive or automatic transmission may be tested on the speedometer tester. This can lead to damage on both the vehicle and the test lane. Should questions arise inquire at the responsible service representative. -
Page 19: Tps Iii (Motorcycle)
TPS I and III for Eurosystem Operations TPS III (Motorcycle) 3.4.1 Speedometer Test with Self-Contained Drive The speedometer test can be conducted by using the keyboard or the remote control. If a remote control is not available, a second person will be needed to perform the test. -
Page 20: Speedometer Test With Separate Drive
Operations TPS I and III for Eurosystem 3.4.2 Speedometer Test with Separate Drive The speedometer test can be conducted by using the keyboard or the remote control. If a remote control is not available, a second person will be needed to perform the test. -
Page 21: Maintenance & Troubleshooting
TPS I and III for Eurosystem Maintenance & Troubleshooting Maintenance To ensure proper functioning and longevity of the speedometer tester regular servicing schedules should be followed. Maintenance schedule: Lubricate drive shaft once every 200 operating hours with universal-type lubricant. The anchoring of the roller sets as well as all fasteners and screws should be thoroughly inspected every 200 operating hours. -
Page 22: Troubleshooting
Maintenance & Troubleshooting TPS I and III for Eurosystem Troubleshooting All work done on electrical parts of the equipment is to be carried out by trained, qualified electricians or service technicians of the manufacturer or its dealers only. For any kind of service or repair work the main switch must be switched off and locked.
