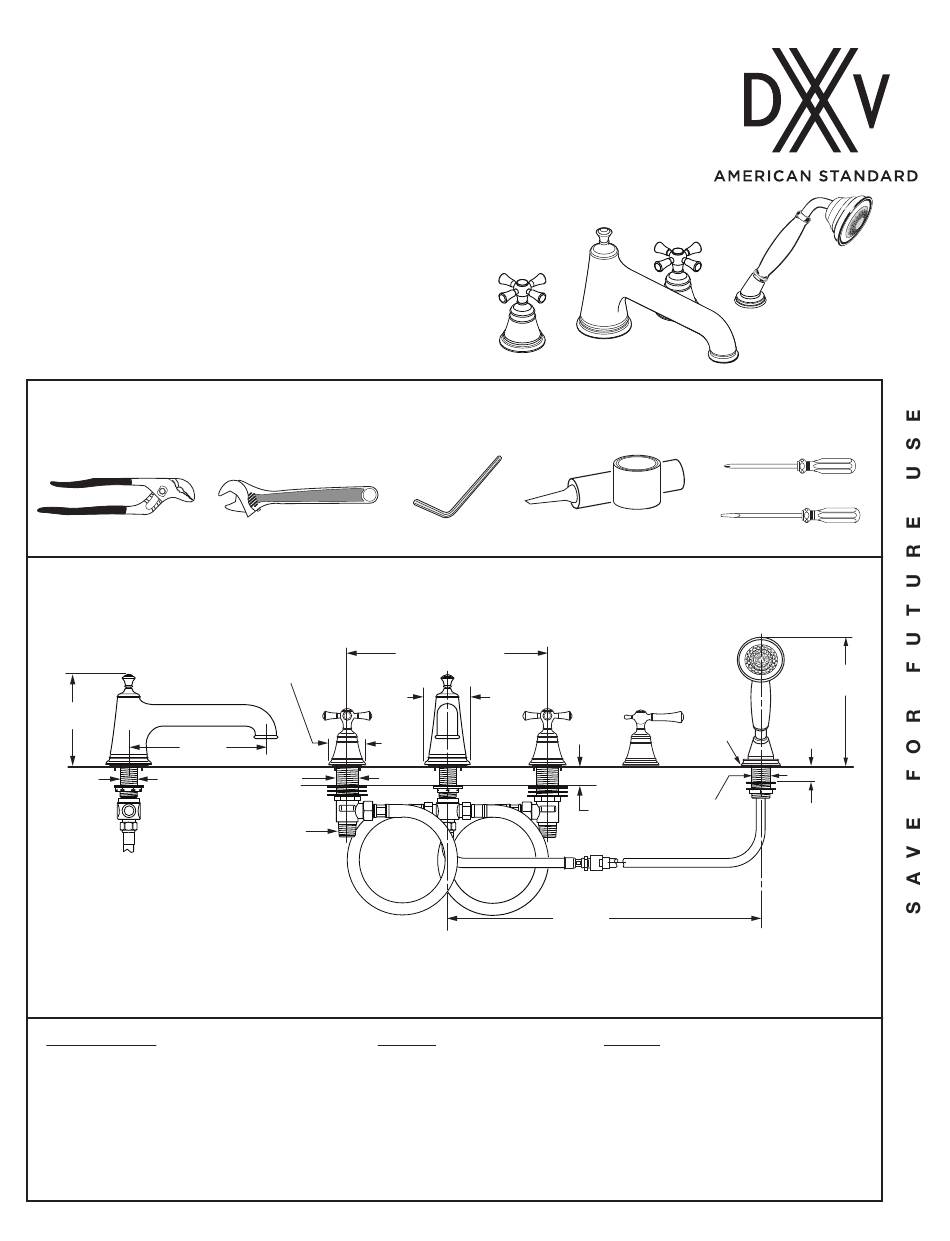

INSTALLATION INSTRUCTIONS
Randall
Roman Tub Fillers
™
with Hand Shower
Cross Handle
Model D35102.940
Lever Handle
Model D35102.900
Thank you for selecting DXV by American Standard.
To ensure that your installation proceeds smoothly,
please read these instructions carefully
before you begin.
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing,
supply stores. It is essential that the tools and materials be on hand before work is begun.
Channel Locks
ROUGHING-IN DIMENSIONS:
• For reference
5-1/2"
(140mm)
8-1/4"
(210mm)
3/4" D.
(19mm)
NOTE: MOUNTING HOLES
ARE 1-3/8" D. (35mm) for handles
1-1/4" D. (32mm) for spout
In the United States:
DXV by American Standard
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 227-2734
www.DXV.com
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2013
10 mm
Adjustable Wrench
Allen Key
8" TO 12" MAX.
(203mm TO 305mm)
2-1/4" D.
(57mm)
2-5/8" D.
(67mm)
1-3/8" D.
(35mm)
3/4"NPT
INLETS
(19mm)
In Canada:
DXV by American Standard
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax:
1-800-395-1498
www.DXV.ca
8
3
Plumbers' Putty or Caulking
CROSS HANDLE
LEVER HANDLE
1-1/2 " MAX.
(38mm)
12" MAX
(305mm)
In Mexico:
DXV by American Standard
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
- 1 -
Phillips Screwdriver
Regular Screwdriver
10-1/4"
(260mm)
Ø 2-3/8"
(60mm)
1-1/4" D.
1-1/2" MAX.
(32mm)
(38mm)
M 96 5 56 3 Rev. 1 .3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DXV Randall D35102.940
Summary of Contents for DXV Randall D35102.940
-
Page 1: Installation Instructions
Hand Shower Cross Handle Model D35102.940 Lever Handle Model D35102.900 Thank you for selecting DXV by American Standard. To ensure that your installation proceeds smoothly, please read these instructions carefully before you begin. RECOMMENDED TOOLS AND MATERIALS Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing, supply stores. - Page 2 SPOUT AND T-PIECE ASSEMBLY IMPORTANT NOTICE TO THE INSTALLER! Turn off hot and cold water CAUTION Please check with your local Code Authority for acceptable installation supplies before beginning. requirements for this Roman Tub set with hand shower. Some local codes may require a vacuum breaker and/or a pressure balanced mixing valve to be installed in conjunction with this product.
- Page 3 INSTALL VALVE BODIES • HANDLE ASSEMBLIES (1, 1A) are installed on VALVE BODIES (2) and must be removed to install VALVE BODIES (2) from under tub deck or mounting surface. • To remove HANDLE ASSEMBLY (1), unthread HANDLE BASE (3) with LEVER (4) from VALVE BODY (2).
- Page 4 Randall ™ Roman Tub Fillers with Hand Shower MODEL NUMBERS Cross Handle D35102.940 A860698.XXX DIVERTER KNOB Lever Handle D35102.900 M964543-YYY0A SET SCREW KIT Replace the "XXX" or "YYY" with appropriate nish code POLISHED CHROME BRUSHED NICKEL PLATINUM NICKEL M964539-0070A ROSETTE H961530.XXX AERATOR ASSEMBLY...
