- Page 1 TrafficView Flarm and Traffic collision avoidance display Version 1.0 LXNAV d.o.o. • Kidričeva 24, 3000 Celje, Slovenia • tel +386 592 33 400 fax +386 599 33 522 info@lxnav.com • www.lxnav.com...
-
Page 2: Table Of Contents
TrafficView Version 1.00 August 2019 Important Notices Limited Warranty Packing Lists Basics LXNAV TrafficView at a Glance 3.1.1 Features 3.1.2 Interfaces 3.1.3 Technical Data System Description Push buttons Rotary encoder with push button Micro SD card reader ALS sensor User Input 4.5.1... - Page 3 TrafficView Version 1.00 August 2019 5.4.1.2 LXNAV TrafficView wiring Flarmnet Update Firmware Update Updating LXNAV TrafficView Revision History Page 3 of 22...
-
Page 4: Important Notices
TrafficView Version 1.00 August 2019 Important Notices The LXNAV TrafficView system is designed for VFR use only as an aid to prudent navigation. All information is presented for reference only. Traffic data and Collision warnings are provided only as an aid to situation awareness. -
Page 5: Packing Lists
TrafficView Version 1.00 August 2019 Packing Lists LXNAV TrafficView/TrafficView57 • • TrafficView cable Page 5 of 22... -
Page 6: Basics

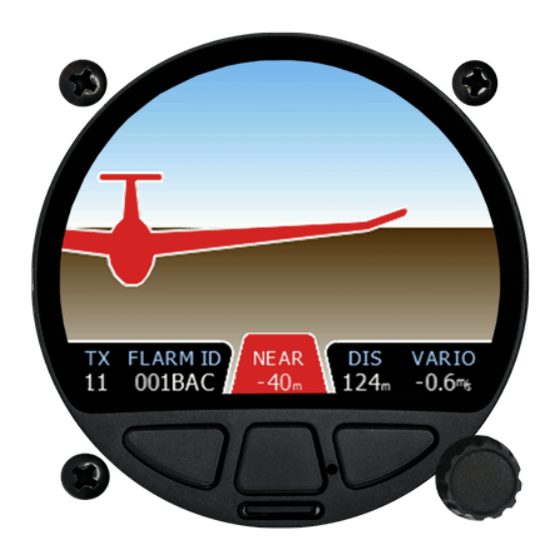

FlarmNet database. The 3,5’’ QVGA sunlight readable display has 320*240 RGB pixels resolution. For simple and quick manipulation one rotary push button and three push buttons are used. TrafficView monitors vertical speed and altitude of each object on the screen. 3.1.1 Features •... -
Page 7: System Description
Left and Right push buttons are used to choose between targets and to adjust TrafficView settings. In some cases, long press has some additional function. In some menus outer buttons are used to shift cursor. Centre button is used for switching between modes. -
Page 8: Text Edit Control
TrafficView Version 1.00 August 2019 4.5.1 Text Edit Control The Text Editor is used to input an alphanumeric string; the picture below shows typical options when editing text. Use rotary knob to change the value at the current cursor position. -
Page 9: Slider Selector
4.6 Operating Modes LXNAV TrafficView has four operating pages and two optional. Main radar screen with different zoom levels, Flarm traffic list ,Setting Page and GPS info page. The fourth page (Flarm watch) is displayed automatically if Flarm detects a potential collision situation and issues a warning. -
Page 10: Main Screen
GPS info page • Flarm Watch shows the direction of any threat. • 4.7 Main screen Description of LXNAV TrafficView Main Screen is shown on the following picture. Undirected warning Distance circles from AC mode Relative Alt to Selected object... -
Page 11: Flarm Symbols
Target could be selected using left and right push buttons. If target disappears when it's selected, TrafficView will still indicate some information about its last known location. Information about distance, altitude and vario will disappear. If target will appear back, it will be traced again. -
Page 12: Traffic List Mode
Flarm ID code. 4.10 Settings Mode In the setup menu users can configure the LXNAV TrafficView. Use rotary knob to select the desired setup item and push the rotary knob to enter. A dialogue or sub-menu will open. -
Page 13: Display
TrafficView Version 1.00 August 2019 4.10.1 Display The display menu is used to adjust screen brightness parameters Brightness setting is to adjust brightness of the screen. If automatic brightness is enabled, this screen will indicate us brightness at the moment, which depends on ALS sensor readings. -
Page 14: Airspace
If Target label text is selected, near glider will display chosen value. Lock on nearest automatically selects nearest target and displays its data. In case, that you want to select another target, it’s possible. After 10 seconds, TrafficView will automatically switch back to nearest target. -
Page 15: Warnings
Volume The sounds slider changes the alarm volume. • Beep on traffic TrafficView will notify with short beep a presence of a new Flarm • object. Beep on low alarm TrafficView will beep on low level alarms triggered by Flarm. -
Page 16: Nmea Test
TrafficView Version 1.00 August 2019 4.10.5.3.3 Flight recorder If Flarm has flight recorder, TrafficView can send to Flarm all information about pilot and aircraft. This data will be included in the header of IGC file from Flarm. 4.10.5.3.4 PF IGC readout Pressing to this menu, TrafficView will send command to PowerFlarm, to copy IGC file to USB stick that is plugged in PowerFlarm. -
Page 17: Files
30000 Will delete Flarmnet user file on TrafficView • 4.10.9 About In the about screen there is information about the firmware version of the TrafficView and the its serial number. 4.10.10 Exit setup When pressing this item, we will exit from this setup menu to one level higher. Same can be done with pressing the middle push button. -
Page 18: Installation
TrafficView Version 1.00 August 2019 Installation 5.1 Installing the TrafficView The TrafficView is installed in one standard 80mm (3,15’’) cut-out. If there is none, prepare it according to the picture below. 4,5mm 6,3mm The length of the M4 screws is limited to 4mm!!!! 5.2 Installing the TrafficView57... -
Page 19: Installation Of Options
TrafficView Version 1.00 August 2019 5.4 Installation of options Optionally more TrafficView devices can be connected through Flarm Splitter. 5.4.1 Ports and Wiring 5.4.1.1 LXNAV TrafficView port (RJ11) 1 2 3 4 5 6 1 2 3 4 5 6... -
Page 20: Flarmnet Update
TrafficView Version 1.00 August 2019 Flarmnet Update Flarm net database can be updated very easily. Please visit http://www.flarmnet.org • Download file for LXNAV • • FLN type file will be downloaded. Copy file to SD card and check it in Setup-Files-Flarmnet menu •... -
Page 21: Firmware Update
TrafficView Version 1.00 August 2019 Firmware Update Firmware updates of the LXNAV TrafficView can be easily carried out using the SD card. Please visit our webpage www.lxnav.com and check for the updates. You can also subscribe to a newsletter to receive news about the LXNAV TrafficView updates automatically. -
Page 22: Revision History
TrafficView Version 1.00 August 2019 Revision History August 2019 Initial release of the manual Page 22 of 22...
