Avalue Technology LPC-1231 Quick Reference Manual

12.1"/15" intel celeron soc n3000 family processor fanless rugged touch panel pc
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

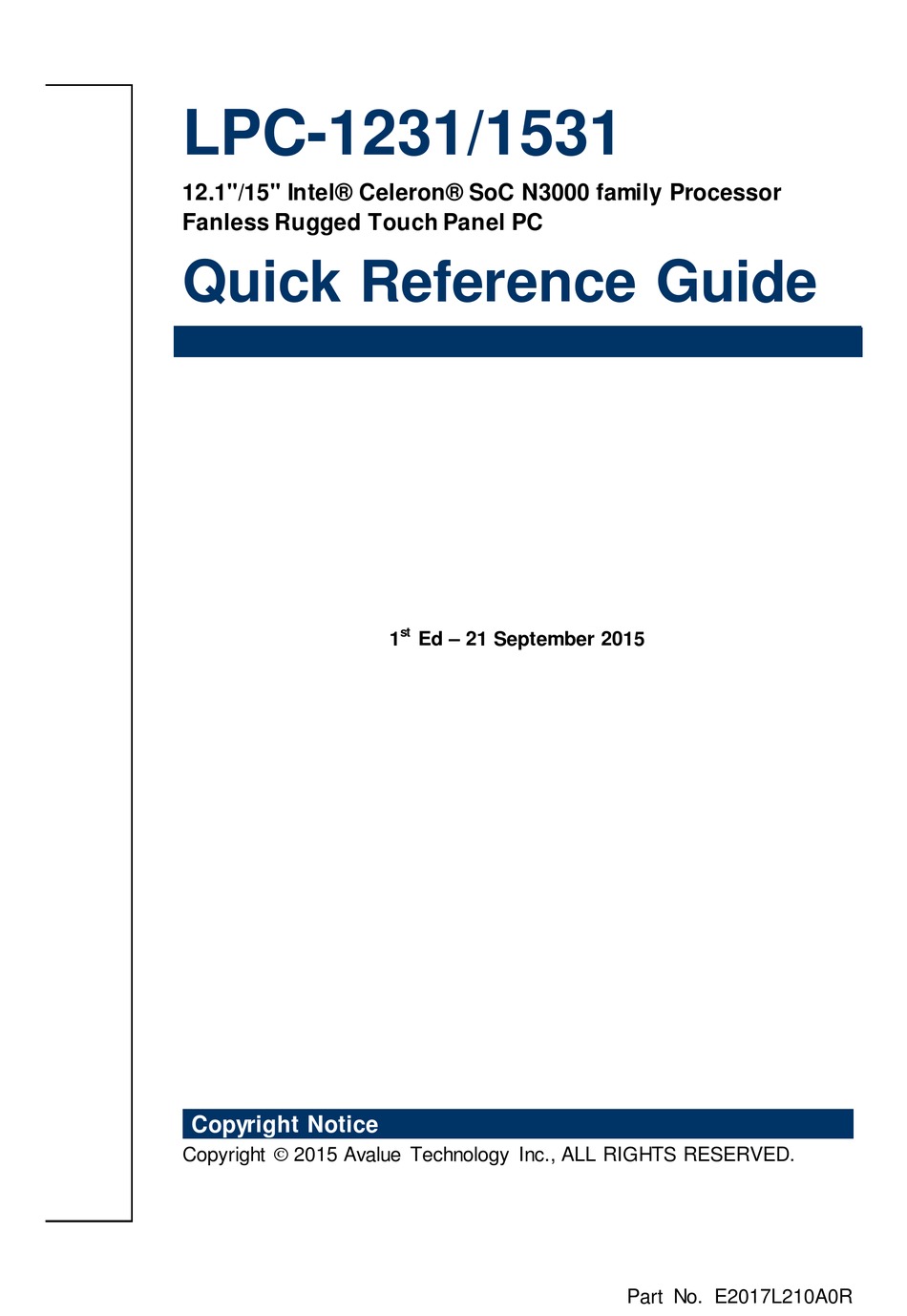

LPC-1231/1531
12.1"/15" Intel® Celeron® SoC N3000 family Processor
Fanless Rugged Touch Panel PC
Quick Reference Guide
st
Ed – 21 September 2015
1
Copyright Notice
Copyright  2015 Avalue Technology Inc., ALL RIGHTS RESERVED.
Part No. E2017L210A0R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LPC-1231 and is the answer not in the manual?

Questions and answers

Related Manuals for Avalue Technology LPC-1231

Summary of Contents for Avalue Technology LPC-1231

  • Page 1 LPC-1231/1531 12.1"/15" Intel® Celeron® SoC N3000 family Processor Fanless Rugged Touch Panel PC Quick Reference Guide Ed – 21 September 2015 Copyright Notice Copyright  2015 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017L210A0R...
  • Page 2 Disclaimer Avalue Technology Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Avalue Technology assumes no responsibility or liability for the...
  • Page 3 Applications that are described in this manual are for illustration purposes only. Avalue Technology Inc. makes no representation or warranty that such application will be suitable for the specified use without further testing or modification.

  • Page 4: Table Of Contents

    Hardware Configuration ................. 12 2.1 LPC-1231/1531 connector mapping ..............13 2.1.1 Serial port 1/2 connector (COM1/2) ................13 2.2 Installing Hard Disk & Memory (For LPC-1231) ........... 14 2.3 Installing Hard Disk & Memory (For LPC-1531) ........... 16 4 LPC-1231/1531 Quick Reference Guide...

  • Page 5: Getting Started

    Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x LPC-1231/1531 Panel PC  1 x DVD-ROM contains the followings: ...

  • Page 6: System Specifications

    4 x USB 3.0 SATA 1 x SATA III COM Port 2 x RS-232/422/485 (Factory Optional) 1 x HDMI Other 1 x Knockouts for Antenna Mounting Display Intel® Braswell SoC integrated Graphics Chipset Supports dual display 6 LPC-1231/1531 Quick Reference Guide...
  • Page 7 Wall / Stand / VESA 75mm x 75mm Shock Test With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine, 11ms Certifications Certification Information FCC Class B Software Support Win 7, 8.1, 10 OS Information Linux Note: Specifications are subject to change without notice. LPC-1231/1531 Quick Reference Guide...

  • Page 8: System Overview

    Connectors Label Function Note POWER Power on button COM1/2 Serial port 1/2 connector DB-9 male connector LINE OUT Line-out audio jack 4 x USB 3.0 connector Dock USB LAN1/2 RJ-45 Ethernet connector 1/2 HDD indicator 8 LPC-1231/1531 Quick Reference Guide...
  • Page 9 Quick Reference Guide System power indicator HDMI HDMI connector RESET Reset button DC IN DC Power-in connector LPC-1231/1531 Quick Reference Guide...

  • Page 10: System Dimensions

    LPC-1231/1531 1.5 System Dimensions 1.5.1 LPC-1231 Front and Rear side (Unit: mm) 10 LPC-1231/1531 Quick Reference Guide...

  • Page 11: Lpc-1531 Front And Rear Side

    Quick Reference Guide 1.5.2 LPC-1531 Front and Rear side (Unit: mm) LPC-1231/1531 Quick Reference Guide 11...

  • Page 12: Hardware Configuration

    LPC-1231/1531 2. Hardware Configuration For advanced information, please refer to: 1- EBM-BSW User’s Manual Note: If you need more information, please visit our website: http://www.avalue.com.tw 12 LPC-1231/1531 Quick Reference Guide...

  • Page 13: Lpc-1231/1531 Connector Mapping

    2.1 LPC-1231/1531 connector mapping 2.1.1 Serial port 1/2 connector (COM1/2) RS-232 Signal PIN PIN Signal DCD# DSR# RTS# CTS# DTR# RS-422 Signal PIN PIN Signal 422_Tx- 422_Rx+ 422_Tx+ 422_Rx- RS-485 Signal PIN PIN Signal 485_Tx- 485_Tx+ LPC-1231/1531 Quick Reference Guide 13...

  • Page 14: Installing Hard Disk & Memory (For Lpc-1231)

    LPC-1231/1531 2.2 Installing Hard Disk & Memory (For LPC-1231) Step 1. Unfasten 6 screws from the case. Then take off the top chassis. Step 2. Memory Installation: Insert the SODIMM into the memory socket. Step 3-1. SATA HDD Installation: By default, the SATA cables had been inserted to the...
  • Page 15 Step 3-2. Insert the HDD into the Drive Bay. Remember to place the HDD down to the bottom exactly in order to screw the device tightly. Step 4. Place back the chassis with 6 screws locked. LPC-1231/1531 Quick Reference Guide 15...

  • Page 16: Installing Hard Disk & Memory (For Lpc-1531)

    Step 1. Unfasten 6 screws from the case. Then take off the top chassis. Step 2. Memory Installation: Insert the SODIMM into the memory socket. Step 3-1. HDD Installation: Unfasten 2 screws of the HDD bracket and take it off. 16 LPC-1231/1531 Quick Reference Guide...
  • Page 17 Step 3-2. Insert the HDD into the bracket and fasten 4 screws. Step 3-3. SATA HDD Installation: By default, the SATA cables had been inserted to the according connectors. Just connect to SATA HDD with the two cables. SATA connector 1 LPC-1231/1531 Quick Reference Guide 17...
  • Page 18 Step 3-4. Insert the HDD into the Drive Bay. Remember to place the HDD down to the bottom exactly in order to screw the device tightly. Step 4. Place back the chassis with 6 screws locked. 18 LPC-1231/1531 Quick Reference Guide...
