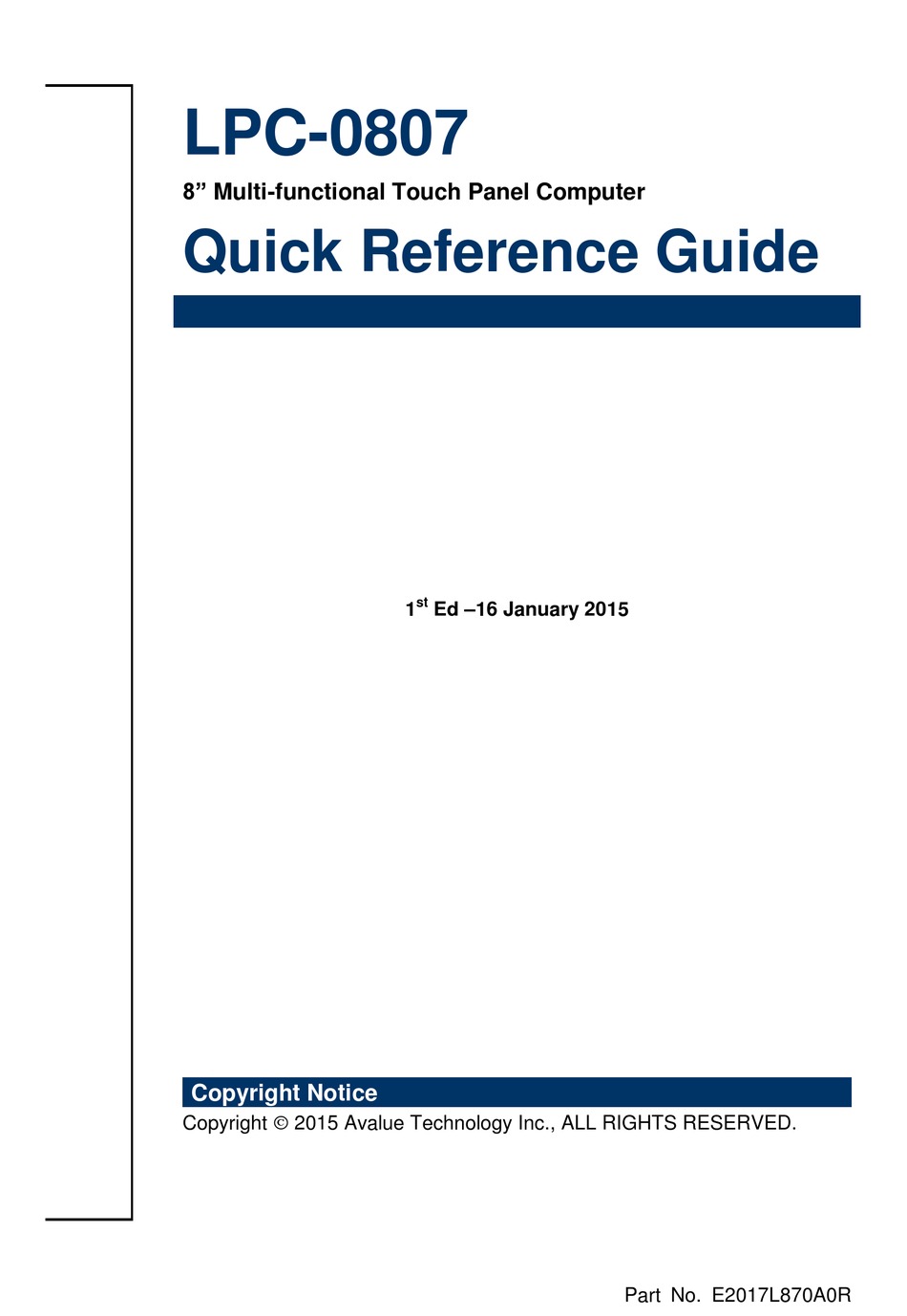

- Page 1 LPC-0807 8” Multi-functional Touch Panel Computer Quick Reference Guide Ed –16 January 2015 Copyright Notice Copyright 2015 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017L870A0R...
- Page 2 These answers are normally a lot more detailed than the ones we can give over the phone. So please consult the user’s manual first. To receive the latest version of the user’s manual; please visit our Web site at: http://www.avalue.com.tw/ 2 LPC-0807 Quick Reference Guide...
-
Page 3: Table Of Contents
1.4.1 Right View ..........................7 1.4.2 Bottom View ..........................7 1.5 System Dimensions ....................8 Hardware Configuration ..................9 2.1 LPC-0807 connector mapping ................10 2.1.1 VGA connector (VGA) ......................10 2.1.2 Serial port 1 connector (COM1) ..................... 10 2.1.3 Serial port 2 connector (COM2) ..................... -
Page 4: Getting Started
Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x LPC-0807 Panel PC 1 x Driver/Utility DVD-ROM ... -
Page 5: System Specifications
Optional USB WiFi 802.11 b/g 1 x DB-15 HDMI 1 x HDMI Audio Line out (Realtek ALC892) 3 x USB 2.0 Mechanical & Environment Color Front panel Silver Mounting Rear panel Black System Power +12 V ~ +26 V Requirement LPC-0807 Quick Reference Guide... - Page 6 -20°C to 60°C Relative 10% to 95% @ 40°C, non-condensing Humidity Mounting Wall/Stand/VESA 75 mm X 75 mm Dimensions 202.5 x 159.5 x 46.5 mm Weight 1.5 Kgs Note: Specifications are subject to change without notice. 6 LPC-0807 Quick Reference Guide...
-
Page 7: System Overview
BIOS setting and needs to change cable. LINE OUT Line-out audio jack USB 2.0 connector x 3 RJ-45 Ethernet connector x 2 HDMI connector HDMI HDD indicator System power indicator VGA connector DC-IN DC Power-in connector LPC-0807 Quick Reference Guide... -
Page 8: System Dimensions
LPC-0807 1.5 System Dimensions WiFi antenna (Unit: mm) 8 LPC-0807 Quick Reference Guide... -
Page 9: Hardware Configuration
Quick Reference Guide 2. Hardware Configuration For advanced information, please refer to: 1- ECM-CDV User’s Manual Note: If you need more information, please visit our website: http://www.avalue.com.tw LPC-0807 Quick Reference Guide... -
Page 10: Lpc-0807 Connector Mapping
2.1 LPC-0807 connector mapping 2.1.1 VGA connector (VGA) PIN Signal PIN Signal PIN Signal DATA HSYNC VSYNC 2.1.2 Serial port 1 connector (COM1) Signal PIN PIN Signal NDCD# NDSR# NRXD NRTS# NTXD NCTS# NDTR# NRI# 10 LPC-0807 Quick Reference Guide... -
Page 11: Serial Port 2 Connector (Com2)
Quick Reference Guide 2.1.3 Serial port 2 connector (COM2) RS-232 Signal PIN PIN Signal RS-422 Signal PIN PIN Signal TxD- RxD+ TxD+ RxD- RS-485 Signal PIN PIN Signal DATA- DATA+ LPC-0807 Quick Reference Guide 11... -
Page 12: Installing Memory
Step 1. Unfasten 6 screws to remove the back cover. Step 2. Unlock 4 coppers from the rear I/O of VGA & COM ports. Step 3. Release 4 screws to take off the board, and install the RAM module into the memory slot. 12 LPC-0807 Quick Reference Guide... - Page 13 Quick Reference Guide Step 4. Assemble the board and back cover back as step 3 to step 1. LPC-0807 Quick Reference Guide 13...
-
Page 14: Installing Cf Card
LPC-0807 2.3 Installing CF Card Step 1. Unlock 2 screws from the rear side of the panel PC as above. Step 2. Put the CF card into the socket and fasten 2 screws back. 14 LPC-0807 Quick Reference Guide...
