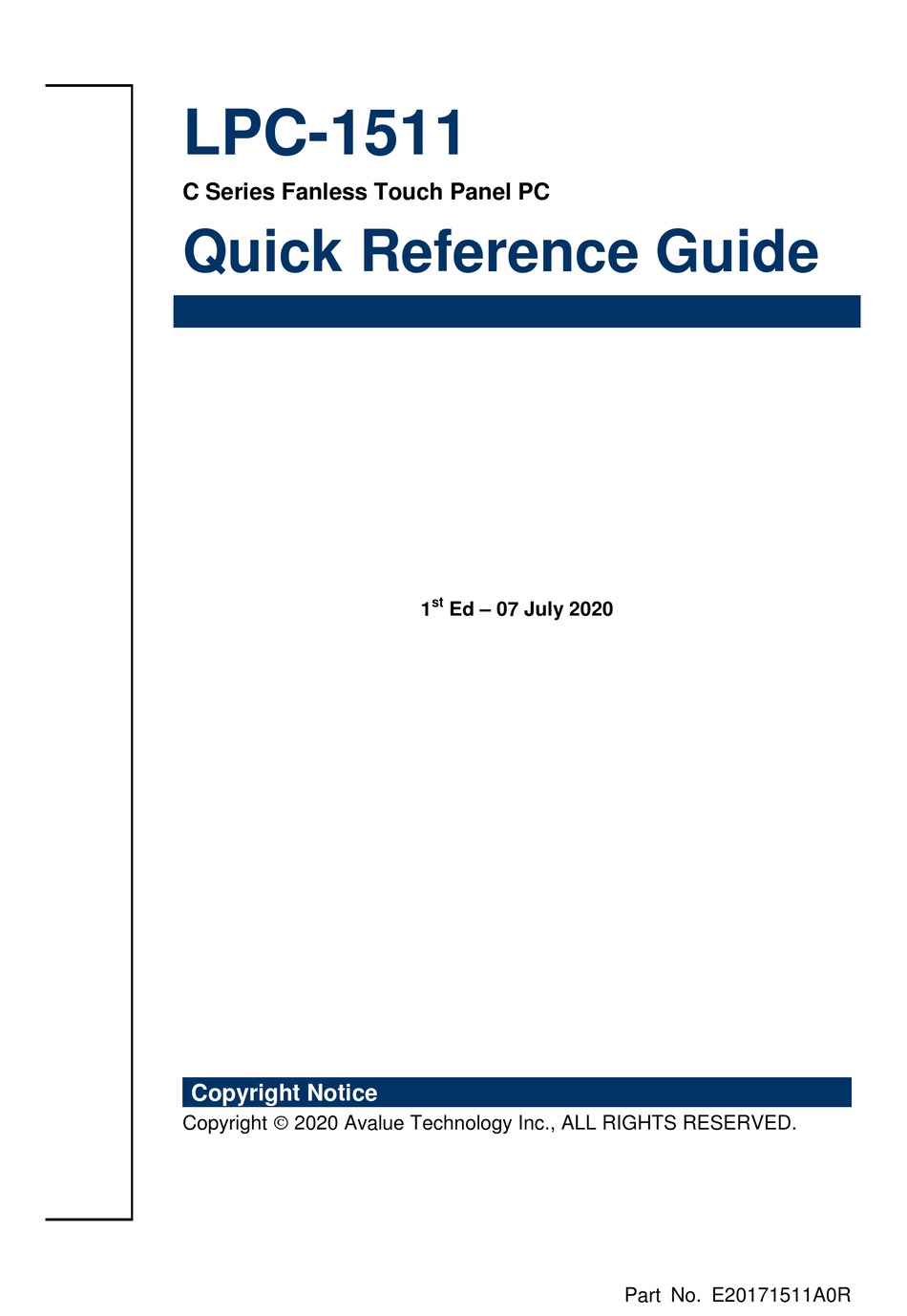

- Page 1 LPC-1511 C Series Fanless Touch Panel PC Quick Reference Guide Ed – 07 July 2020 Copyright Notice Copyright 2020 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E20171511A0R...
- Page 2 Disclaimer Avalue Technology Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Avalue Technology assumes no responsibility or liability for the...
- Page 3 Applications that are described in this manual are for illustration purposes only. Avalue Technology Inc. makes no representation or warranty that such application will be suitable for the specified use without further testing or modification.
-
Page 4: Table Of Contents
LPC-1511 Content Getting Started ......................7 1.1 Safety Precautions ....................7 1.2 Packing List ....................... 7 1.3 System Specifications ....................8 1.4 System Overview ....................11 1.4.1 Top View ..........................11 1.4.2 Bottom View ........................... 11 1.5 System Dimensions ....................12 1.5.1 Front and Rear side ....................... - Page 5 Quick Reference Guide 2.7.17 EC Debug (JEC_PG1) ......................29 2.7.18 LVDS connector (LVDS1) ..................... 30 2.7.19 SPI connector (JSPI1) ......................31 2.7.20 Sony/Philips Digital Interface (SPDIF1) ................31 2.7.21 Miscellaneous setting connector 1 (FPT1) ................32 2.7.22 Miscellaneous setting connector 2 (FPT2) ................32 2.7.23 LED indicator connector 1 (LED1) ..................
- Page 6 LPC-1511 3.6.2.8.6 Serial Port 6 Configuration ....................51 3.6.3 Chipset ........................... 52 3.6.3.1 North Bridge ........................52 3.6.3.1.1 Video Configuration ......................53 3.6.3.1.2 PCIE Configuration ......................54 3.6.3.2 South Bridge ........................55 3.6.3.2.1 USB Configuration ......................55 3.6.3.2.2 HDAC Configuration ......................56 3.6.4 Boot ............................
-
Page 7: Getting Started
Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x LPC-1511 C Series Fanless Touch Panel PC 1 x Adapter ... -
Page 8: System Specifications
LPC-1511 1.3 System Specifications Component Mother Board Mini ITX Motherboard EMX-VX11P ZX-C Series Processor with VX11PH Memory One x 204-pin DDR3 1333MHz SO-DIMM supports up to 8GB Adapter 84W Adapter (DC in 12V@7A) 2 x 2w8Ω Speaker Wireless LAN Optional expansion module... - Page 9 Quick Reference Guide 2 System condition : operation mode 3 Test frequency : 5~500 Hz 4 Test axis : X,Y and Z axis 5 Test time : 30 minutes per each axis 6 IEC60068-2-64 Test Fh 7 Storage : mSATA Sine Vibration test (Non-operation) 1 Test Acceleration : 2G 2 Test frequency : 5~500 Hz...
- Page 10 LPC-1511 Storage Temperature -10°C~60°C Note: Specifications are subject to change without notice. 10 LPC-1511 Quick Reference Guide...
-
Page 11: System Overview
Quick Reference Guide 1.4 System Overview 1.4.1 Top View 1.4.2 Bottom View Connectors Label Function Note Power on button HDMI HDMI connector Serial port 1~6 connector DB-9 male connector COM1~6 LINE OUT Line-out audio jack Mic-in audio jack MIC IN 1 x USB 2.0 connector Dock USB 3 x USB 3.0 connector... -
Page 12: System Dimensions
LPC-1511 1.5 System Dimensions 1.5.1 Front and Rear side (Unit: mm) 12 LPC-1511 Quick Reference Guide... -
Page 13: Hardware Configuration
Quick Reference Guide 2. Hardware Configuration For advanced information, please refer to: 1- EMX-VX11P User’s Manual Note: If you need more information, please visit our website: http://www.avalue.com.tw LPC-1511 Quick Reference Guide 13... -
Page 14: Lpc-1511 Connector Mapping
LPC-1511 2.1 LPC-1511 connector mapping 2.1.1 Serial port 1~6 connector (COM1~6) Signal PIN PIN Signal DCD# DSR# RTS# CTS# DTR# 2.1.2 VGA connector (VGA) Signal PIN Signal PIN Signal GREEN DDCDAT BLUE HSYNC VSYNS DDCCLK 14 LPC-1511 Quick Reference Guide... -
Page 15: Installing Hard Disk & Memory (For Lpc-1511)
Quick Reference Guide 2.3 Installing Hard Disk & Memory (For LPC-1511) Step 1. Unfasten 6 screws from the case to take off the top chassis Step 2. Secure HDD by means of 8 screws. Step 3. Insert HDD bracket into designated locations and fasten with 4 screws to complete HDD installation. LPC-1511 Quick Reference Guide 15... -
Page 16: Installing Vesa Mount (For Lpc-1511)
LPC-1511 2.4 Installing VESA Mount (For LPC-1511) Step 1. Position VESA Mount on both sides, matching the holes on the system. Step 2. Insert and fasten screws on the system to secure Mounting bracket. 16 LPC-1511 Quick Reference Guide... -
Page 17: Emx-Vx11P Overview
Quick Reference Guide 2.5 EMX-VX11P Overview LPC-1511 Quick Reference Guide 17... - Page 18 LPC-1511 18 LPC-1511 Quick Reference Guide...
-
Page 19: Emx-Vx11P Jumper And Connector List
Quick Reference Guide 2.6 EMX-VX11P Jumper and Connector List Jumpers Label Function Note JRI1/2 Serial port 1/2 pin9 signal select 3 x 2 header, pitch 2.00mm LVDS Back Light power selection 3 x 1 header, pitch 2.00mm JSBKL1 JSATX1 AT/ATX Power Mode Select 3 x 1 header, pitch 2.54mm 3 x 1 header, pitch 2.00mm JCMOS1... - Page 20 LPC-1511 JUSB USB connector 5 x 2 header, pitch 2.54mm Serial Port 1/2 RS485/422 Mode JRS485_1/2 3 x 2 header, pitch 2.00mm connector 5 x 2 header, pitch 2.00mm JLPC1 LPC connector IET Module connector (default no IET-CB1 function) JSMB1 SMBus connector 5 x 1 header, pitch 2.00mm 4 x 2 header, pitch 2.00mm...
-
Page 21: Emx-Vx11P Jumper And Connector Settings
Quick Reference Guide 2.7 EMX-VX11P Jumper and Connector settings 2.7.1 Serial port 1/2 pin9 signal select (JRI1/JRI2) JRI1 JRI2 Ring* +12V * Default 2.7.2 LVDS Back Light power selection (JSBKL1) PWM Mode* DC Mode * Default LPC-1511 Quick Reference Guide 21... -
Page 22: At/Atx Power Mode Select (Jsatx1)
LPC-1511 2.7.3 AT/ATX Power Mode Select (JSATX1) ATX* * Default 2.7.4 Clear CMOS (JCMOS1) Protect* Clear CMOS * Default 22 LPC-1511 Quick Reference Guide... -
Page 23: Lcd Inverter Connector (Jbkl1)
Quick Reference Guide 2.7.5 LCD Inverter connector (JBKL1) Signal +12V LVDS1_BKLT_EN LVDS1_BKLTCTL 2.7.6 General purpose I/O connector (DIO1) Signal PIN PIN Signal SMB_CLK_VCC SMB_DATA_VCC LPC-1511 Quick Reference Guide 23... -
Page 24: Serial Port 1 Connector (Com1)
LPC-1511 2.7.7 Serial port 1 connector (COM1) Signal PIN PIN Signal COM_DCD#_1 COM_RXD_1 COM_TXD_1 COM_DTR#_1 COM_DSR#_1 COM_RTS#_1 COM_CTS#_1 COM_RI# 2.7.8 Serial port 2 connector (COM2) Signal PIN PIN Signal COM_DCD#_2 COM_RXD_2 COM_TXD_2 COM_DTR#_2 COM_DSR#_2 COM_RTS#_2 COM_CTS#_2 COM_RI# 24 LPC-1511 Quick Reference Guide... -
Page 25: Power Connector (Pwr1)
Quick Reference Guide 2.7.9 Power connector (PWR1) Signal Signal +VIN_26V +VIN_26V 2.7.10 SATA Power connector 1 (SPWR1) Signal +V12S_SATA +V5S_SATA LPC-1511 Quick Reference Guide 25... -
Page 26: Serial Port 1/2 Rs485/422 Mode Connector (Jrs485_1)
LPC-1511 2.7.11 Serial Port 1/2 RS485/422 Mode connector (JRS485_1) Signal PIN PIN Signal 485_422TX1- 422RX1- 485_422TX1+ 422RX1+ 2.7.12 Serial Port 1/2 RS485/422 Mode connector (JRS485_2) Signal PIN PIN Signal 485_422TX2- 422RX2- 485_422TX2+ 422RX2+ 26 LPC-1511 Quick Reference Guide... -
Page 27: Serial Port 3/4/5/6 Connector (Com3/4/5/6)
Quick Reference Guide 2.7.13 Serial port 3/4/5/6 connector (COM3/4/5/6) Signal PIN PIN Signal COM_DCD#_3 COM_RXD_3 COM_TXD_3 COM_DTR#_3 COM_DSR#_3 COM_RTS#_3 COM_CTS#_3 COM_RI#_3 COM_DCD#_4 COM_RXD_4 COM_TXD_4 COM_DTR#_4 COM_DSR#_4 COM_RTS#_4 COM_CTS#_4 COM_RI#_4 COM_DCD#_5 COM_RXD_5 COM_TXD_5 COM_DTR#_5 COM_DSR#_5 COM_RTS#_5 COM_CTS#_5 COM_RI#_5 COM_DCD#_6 COM_RXD_6 COM_TXD_6 COM_DTR#_6 COM_DSR#_6 COM_RTS#_6... -
Page 28: Usb Connector 1 (Jusb1)
LPC-1511 2.7.14 USB connector 1 (JUSB1) Signal Signal +5VUSB34 +5VUSB34 USB_DN3 USB_DN4 USB_DP3 USB_DP4 2.7.15 LPC connector (JLPC1) Signal PIN PIN Signal SERIRQ LPC_DEBUG_CLK LPCAD3 -LPCFRAME LPCAD2 -LPCRST LPCAD1 +3.3V LPCAD0 28 LPC-1511 Quick Reference Guide... -
Page 29: Audio Connector (Faud1)
Quick Reference Guide 2.7.16 Audio connector (FAUD1) Signal PIN PIN Signal LINE2_JD LINE2_L SENSE_B MIC2_JD LINE2_R AUD_FRONT_DET MIC2_R MIC2_L 2.7.17 EC Debug (JEC_PG1) Signal EC_SMCLK EC_SMDAT LPC-1511 Quick Reference Guide 29... -
Page 30: Lvds Connector (Lvds1)
LPC-1511 2.7.18 LVDS connector (LVDS1) Signal PIN PIN Signal +V5S_LVDS2 +V3.3S_LVDS2 +3.3V LVDS1_DATA0_P 10 LVDS1_DATA1_P LVDS1_DATA0_N 12 LVDS1_DATA1_N LVDS1_DATA2_P 16 LVDS1_DATA3_P LVDS1_DATA2_N 18 LVDS1_DATA3_N LVDS1_DATA4_P 22 LVDS1_DATA5_P LVDS1_DATA4_N 24 LVDS1_DATA5_N LVDS1_DATA6_P 28 LVDS1_DATA7_P LVDS1_DATA6_N 30 LVDS1_DATA7_N LVDS1_CLK1_P LVDS1_CLK2_P LVDS1_ CLK1_N LVDS1_ CLK2_N +V12S_LVDS2 +V12S_LVDS2... -
Page 31: Spi Connector (Jspi1)
Quick Reference Guide 2.7.19 SPI connector (JSPI1) Signal PIN PIN Signal SSPI_HOLD#0 SSPI_SI_R SSPI_SO_R SSPI_SCLK_R SSPI_CS0#_R SPIVCC 2.7.20 Sony/Philips Digital Interface (SPDIF1) Signal SPDIF_OUT LPC-1511 Quick Reference Guide 31... -
Page 32: Miscellaneous Setting Connector 1 (Fpt1)
LPC-1511 2.7.21 Miscellaneous setting connector 1 (FPT1) Signal PIN PIN Signal HDD_LED+ PWR_LED+ HD_LED- PWE_LED- -RST_SW FP_PWR_BTN_EC# 2.7.22 Miscellaneous setting connector 2 (FPT2) Signal PIN PIN Signal SPKR+ BLK_VR_MOD BLK_BRI_UP# BLK_BRI_DN# SPKR- 32 LPC-1511 Quick Reference Guide... -
Page 33: Led Indicator Connector 1 (Led1)
Quick Reference Guide 2.7.23 LED indicator connector 1 (LED1) Signal LAN1_1000#_LED LAN1_100#_LED LAN1_ACT_N LAN1_ACT_P 2.7.24 LED indicator connector 2 (LED2) Signal LAN2_1000#_LED LAN2_100#_LED LAN2_ACT_N LAN2_ACT_P LPC-1511 Quick Reference Guide 33... -
Page 34: Speaker Connector (Spk1)
LPC-1511 2.7.25 Speaker connector (SPK1) Signal RSPK- RSPK+ LSPK- LSPK+ 2.7.26 JSMB connector (JSMB1) Signal +3.3V -SMBALRT_M2_+3.3V SMBCK_+3.3V SMBDT_+3.3V 34 LPC-1511 Quick Reference Guide... -
Page 35: Ps2 Keyboard/Mouse Connector (Jkbms)
Quick Reference Guide 2.7.27 PS2 keyboard/mouse connector (JKBMS) Signal PIN PIN Signal KB_DT KB_CK +V5A_KBMS MS_DT MS_CK 2.7.28 Connector reserved for CH7511 FW flash jig (JROM) Signal LVDS1_DOC_DATA LVDS1_DOC_CLK LPC-1511 Quick Reference Guide 35... -
Page 36: Fan Connector (Fan1)
LPC-1511 2.7.29 FAN connector (FAN1) Signal +3.3V +3.3V 2.7.30 Battery connector (JBAT1) Signal 36 LPC-1511 Quick Reference Guide... -
Page 37: Bios Setup
Quick Reference Guide 3.BIOS Setup LPC-1511 Quick Reference Guide 37... -
Page 38: Introduction
LPC-1511 3.1 Introduction The BIOS setup program allows users to modify the basic system configuration. In this following chapter will describe how to access the BIOS setup program and the configuration options that may be changed. 3.2 Starting Setup The AMI BIOS™ is immediately activated when you first power on the computer. The BIOS reads the system information contained in the NVRAM and begins the process of checking out the system and configuring it. -
Page 39: Using Setup
Quick Reference Guide 3.3 Using Setup In general, you use the arrow keys to highlight items, press <Enter> to select, use the PageUp and PageDown keys to change entries, press <F1> for help and press <Esc> to quit. The following table provides more detail about how to navigate in the Setup program using the keyboard. -
Page 40: Getting Help
LPC-1511 3.4 Getting Help Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window press <Esc> or <Enter> key. 3.5 In Case of Problems If, after making and saving system changes with Setup, you discover that your computer no longer is able to boot, the AMI BIOS supports an override to the NVRAM settings which resets your system to its defaults. -
Page 41: Bios Setup
Quick Reference Guide 3.6 BIOS setup Once you enter the Aptio Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from several setup functions and exit choices. Use the arrow keys to select among the items and press <Enter> to accept and enter the sub-menu. 3.6.1 Main Menu This section allows you to record some basic hardware configurations in your computer and set the system clock. -
Page 42: Advanced Menu
LPC-1511 3.6.2 Advanced Menu This section allows you to configure your CPU and other system devices for basic operation through the following sub-menus. 3.6.2.1 ACPI Settings Item Options Description Disabled[Default], Enables or Disables BIOS ACPI Auto Enable ACPI Auto Configuration Enabled Configuration. -
Page 43: S5 Rtc Wake Settings
Quick Reference Guide Select the highest ACPI sleep state the Suspend Disabled, ACPI Sleep State system will enter when the SUSPEDN S3 (Suspend to RAM)[Default] button is pressed. Disabled[Default] Enable or Disable Lock of Legacy Lock Legacy Resources Enabled, Resources Disabled[Default] S3 Video Repost Enable or Disable S3 Video Repost... -
Page 44: Trusted Computing
LPC-1511 Item Options Description Enables or Disables System wake on alarm event. Disable[Default] Wake system with Fixed Time When enabled, System will wake on the hr::min::sec Enable specified 3.6.2.3 Trusted Computing Item Options Description Enables or Disables BIOS support for security Disable[Default] Security Device Support devices. -
Page 45: Sata Configuration
Quick Reference Guide Item Options Description Disabled Execute Disable bit NoExecute memory protection Enabled[Default], Disabled[Default] Processor C State Main switch for enable Processor C State State support Enabled, 3.6.2.5 SATA Configuration Item Options Description SATA Mode SATA Configure AHCI [Default] Normal[Default] Support AHCI HIPM Shortest... -
Page 46: Usb Configuration
LPC-1511 3.6.2.6 USB Configuration Item Options Description Enables Legacy USB Support. AUTO option disables Enabled[Default], Legacy Support if no USB devices are connected. Legacy USB Support Disabled DISABLE option will keep USB devices available only Auto for EFI applications. Enabled[Default], USB3.0 Support Enable/Disable USB3.0 (XHCI) Controller support. -
Page 47: H/W Monitor
Quick Reference Guide are emulated as ‘CDROM’, drives with no media will be Forced FDD Hard Disk emulated according to a drive type. CD-ROM 3.6.2.7 H/W Monitor Item Options Description Disabled Smart Fan Function Enable or Disable Smart Fan Enabled[Default], 3.6.2.7.1 Smart Fan Mode Configuration LPC-1511 Quick Reference Guide 47... -
Page 48: It8528 Super Io Configuration
LPC-1511 Item Option Description Manual Mode[Default]/Mode 01/Mode 02/Mode 03/Mode 04/Mode 05/Mode 06/Mode 07/Mode 08/Mode 09/Mode CPU Smart Fan Mode CPU Smart Fan Mode Select 10/Mode 11/Mode 12/Mode 13/Mode 14/Mode 15/Mode 16/Mode 17/Mode 18/Mode 19/Mode 20 Fan PWM 0-255 Fan PWM duty 3.6.2.8 IT8528 Super IO Configuration You can use this item to set up or change the IT8528 Super IO configuration for serial ports. -
Page 49: Serial Port 1 Configuration
Quick Reference Guide 3.6.2.8.1 Serial Port 1 Configuration Item Option Description UART 232[Default], UART 232 422 485 UART 422, Change the Serial Port as RS232/422/485. UART 485 3.6.2.8.2 Serial Port 2 Configuration Item Option Description UART 232[Default], UART 232 422 485 UART 422, Change the Serial Port as RS232/422/485. -
Page 50: Serial Port 3 Configuration
LPC-1511 3.6.2.8.3 Serial Port 3 Configuration 3.6.2.8.4 Serial Port 4 Configuration 50 LPC-1511 Quick Reference Guide... -
Page 51: Serial Port 5 Configuration
Quick Reference Guide 3.6.2.8.5 Serial Port 5 Configuration 3.6.2.8.6 Serial Port 6 Configuration LPC-1511 Quick Reference Guide 51... -
Page 52: Chipset
LPC-1511 3.6.3 Chipset 3.6.3.1 North Bridge 52 LPC-1511 Quick Reference Guide... -
Page 53: Video Configuration
Quick Reference Guide 3.6.3.1.1 Video Configuration Item Option Description PCIE & PCI -> UMA[Default] Primary Graphics Adapter Select Primary Graphics Adapter. UMA I -> PCIE & PCI Auto[Default] Select Display Device Control Select Display Device Control MANUAL Enabled[Default], Active Internal Active LVDS(DP-Ch7511) Disabled LVDS(eDP->Ch7511-to-LVDS) -
Page 54: Pcie Configuration
LPC-1511 3.6.3.1.2 PCIE Configuration Item Option Description Auto[Default] PCIE Target Link Speed PCIE Target Link Speed Force Gen 1 Disabled PCIE Root Port PCIE Root Port Enabled[Default], Disabled PCIE PEG Control PCIE PEG Control Enabled[Default], Disabled PCIE PE0 Control(mPCIe) PCIE PE0 Control(mPCIe) Enabled[Default], Disabled PCIE PE1 Control(LAN1) -
Page 55: South Bridge
Quick Reference Guide 3.6.3.2 South Bridge 3.6.3.2.1 USB Configuration Item Option Description USB Mode Select Mode 1:EHCI only mode Mode 1 Mode 2:EHCI and xHCI mode Mode 3:xHCI Mode 2[Default] USB Mode Select only mode Mode 4:EHCI and xHCI mode Mode 3 (USB2.0 device on P1~P6 controlled by Mode 4... -
Page 56: Hdac Configuration
LPC-1511 3.6.3.2.2 HDAC Configuration Item Option Description Disabled OnChip HDAC Device HDAC Control Enabled[Default], 11db 14db AMP Gain Setting Select AMP Gain db 19db[Default], 25db 3.6.4 Boot 56 LPC-1511 Quick Reference Guide... -
Page 57: Csm16 Parameters
Quick Reference Guide Item Option Description Number of seconds to wait for setup activation Setup Prompt Timeout key. 65535(0xFFFF) means indefinite waiting. On[Default] Bootup NumLock State Select the Keyboard NumLock state Disabled[Default] Enables or disables Quiet Boot Option Qulet Boot Enabled Boot Option #1 Set the system boot order. -
Page 58: Csm Parameters
LPC-1511 3.6.4.2 CSM Parameters Item Option Description Disabled Launch CSM This option controls if CSM will be launched Enabled[Default] UEFI and Legacy[Default] This option controls what devices system can Boot option filter Legacy only boot to UEFI only Launch PXE OpROM Do not launch[Default] Controls the execution of UEFI and Legacy policy... -
Page 59: Security
Quick Reference Guide 3.6.5 Security Administrator Password Set setup Administrator Password User Password Set User Password 3.6.5.1 Secure Boot menu LPC-1511 Quick Reference Guide 59... -
Page 60: Save And Exit
LPC-1511 Item Option Description Secure Boot flow control. Secure Boot can be Disabled enabled only when 1.Platform Key(PK) is enrolled Secure Boot Control Enabled[Default], and Platform is operating in User mode and 2 CSM function is disabled in Setup Secure Boot mode selector. ‘Custom’ Mode Standard[Default] allows for more flexibility changing Image Secure Boot Mode... -
Page 61: Save Changes And Reset
Quick Reference Guide 3.6.6.1 Save Changes and Reset Reset the system after saving the changes. 3.6.6.2 Discard Changes and Reset Reset system setup without saving any changes. 3.6.6.3 Restore Defaults Restore/Load Default values for all the setup options. 3.6.6.4 Launch EFI Shell from filesystem device Attempts to Launch EFI Shell application (Shell.efi) from one of the available filesystem devices.
