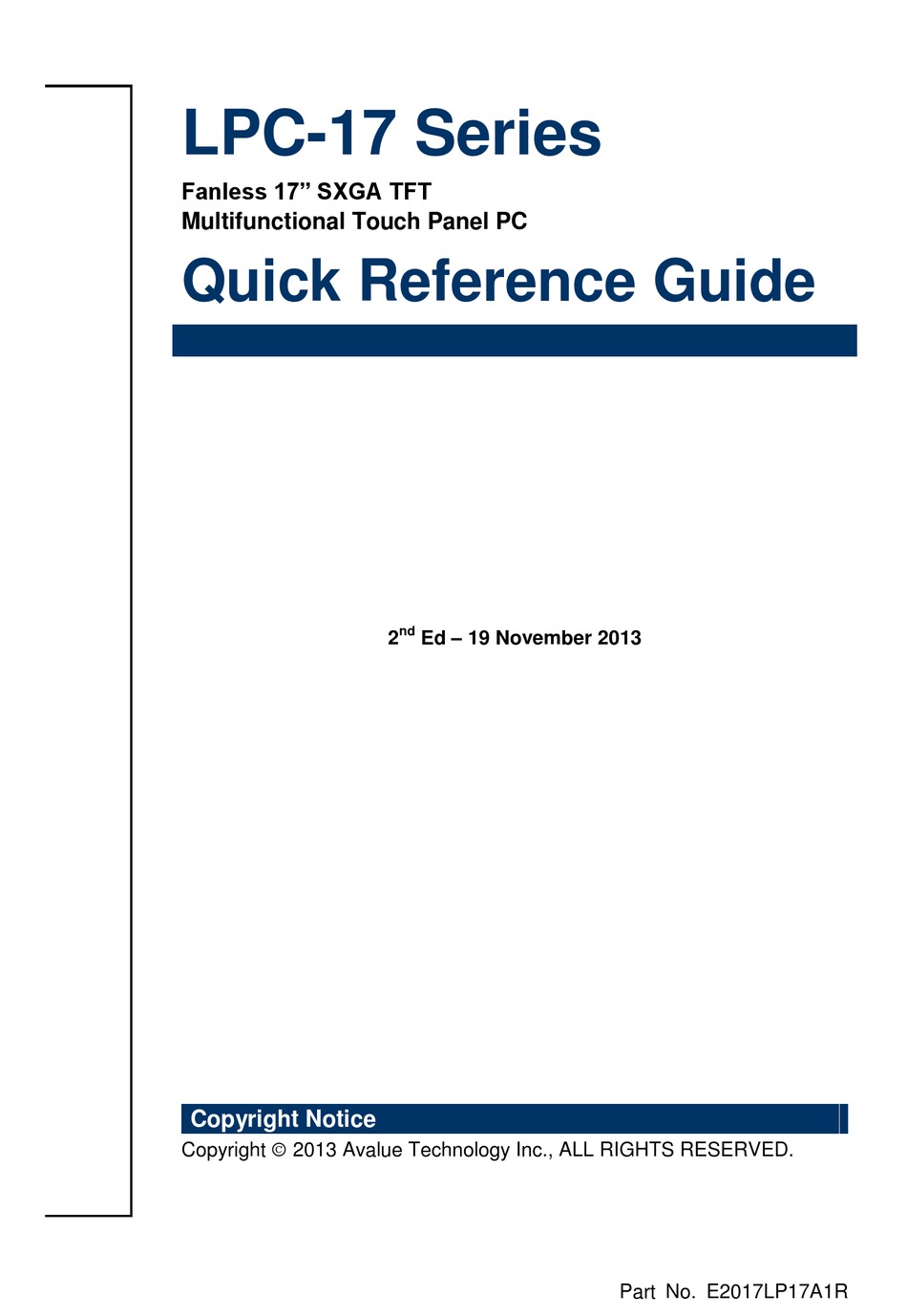

- Page 1 LPC-17 Series Fanless 17” SXGA TFT Multifunctional Touch Panel PC Quick Reference Guide Ed – 19 November 2013 Copyright Notice Copyright 2013 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017LP17A1R...
- Page 2 Disclaimer Avalue Technology Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Avalue Technology assumes no responsibility or liability for the...
- Page 3 Applications that are described in this manual are for illustration purposes only. Avalue Technology Inc. makes no representation or warranty that such application will be suitable for the specified use without further testing or modification.
-
Page 4: Table Of Contents
LPC-17A4 Front and Rear side ..................... 12 Hardware Configuration ..................13 2.1 LPC 17 Series connector mapping ................14 2.1.1 Serial Port 1 connector (COM1)....................14 2.2 Installing Hard Disk & Memory ................15 4 LPC-17 Series Quick Reference Guide... -
Page 5: Getting Started
— VGA drivers and utilities — Audio drivers and utilities — WiFi drivers and utilities — Touch controller drivers and utilities — Chipset drivers and utilities 1 x Power Adapter 4 x VESA mounting screws LPC-17 Series Quick Reference Guide... -
Page 6: System Specifications
Supports mSATA Supports mSATA Rear Panel I/O Serial Port 1xRS-232/422/485 (default RS-232, RS-422/485 setting by jumper) Optional 2nd COM Ethernet 1 x RJ-45 (Intel® 82574L 1 x RJ-45 (Intel® 82574L 2 x RJ-45 (Dual Realtek 6 LPC-17 Series Quick Reference Guide... - Page 7 0°C ~ 40°C (32°F ~ 104°F) Temperature Storage -10°C ~ 60°C (14°F ~ 140°F) Temperature Relative Humidity 5% ~ 90% Relative Humidity, Non-condensing Dimensions (W x D x 382mm x 320mm x 58.8mm Weight 5.2Kgs LPC-17 Series Quick Reference Guide...
-
Page 8: System Overview

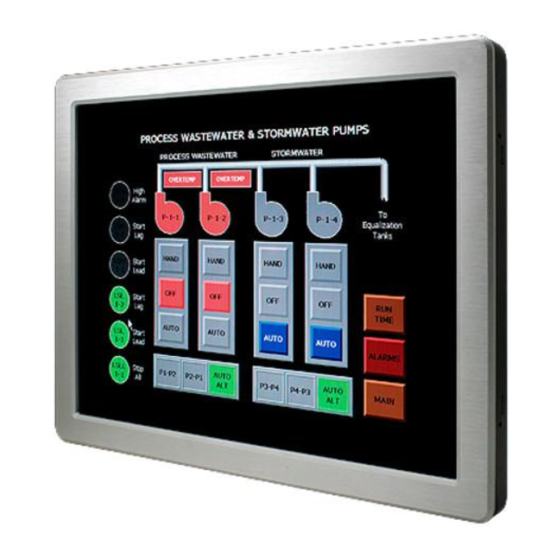

LPC-17 Series 1.4 System Overview 1.4.1 Front View 1.4.2 Rear View LPC-1705 POWER LPC-1707/LPC-17A4 POWER 8 LPC-17 Series Quick Reference Guide... - Page 9 2 x USB 2.0 connector Dock USB RJ-45 Ethernet connector 1 LAN1 KB/MS LPC-1705/1707 -- PS/2 connector (LAN2) LPC-17A4 -- LAN2 HDD indicator System power indicator VGA/HDMI CRT connector/HDMI connector RESET Reset button DC-IN DC Power-in connector LPC-17 Series Quick Reference Guide...
-
Page 10: System Dimensions
LPC-17 Series 1.5 System Dimensions 1.5.1 LPC-1705 Front and Rear side (Unit: mm) 10 LPC-17 Series Quick Reference Guide... -
Page 11: Lpc-1707 Front And Rear Side
Quick Reference Guide 1.5.2 LPC-1707 Front and Rear side (Unit: mm) LPC-17 Series Quick Reference Guide 11... -
Page 12: Lpc-17A4 Front And Rear Side
LPC-17 Series 1.5.3 LPC-17A4 Front and Rear side (Unit: mm) 12 LPC-17 Series Quick Reference Guide... -
Page 13: Hardware Configuration
Quick Reference Guide 2. Hardware Configuration Note: If you need more information, please visit our website: http://www.avalue.com.tw LPC-17 Series Quick Reference Guide 13... -
Page 14: Lpc 17 Series Connector Mapping
In RS-232 Mode Signal PIN PIN Signal DCD1 RxD1 TxD1 DTR1 DSR1 RTS1 CTS1 In RS-422 Mode Signal PIN PIN Signal TxD1- RxD1+ TxD1+ RxD1- In RS-485 Mode Signal PIN PIN Signal DATA1- DATA1+ 14 LPC-17 Series Quick Reference Guide... -
Page 15: Installing Hard Disk & Memory
Quick Reference Guide 2.2 Installing Hard Disk & Memory Step 1. Unfasten 6 screws from the case. Then take off the top chassis. Step 2. Insert the SODIMM into the memory socket. LPC-17 Series Quick Reference Guide 15... - Page 16 LPC-17 Series Step 3. Insert the HDD into the Drive Bay. Remember to place the HDD down to the bottom exactly in order to screw the device tightly. 16 LPC-17 Series Quick Reference Guide...
