Avalue Technology LPC-1206 Quick Reference Manual

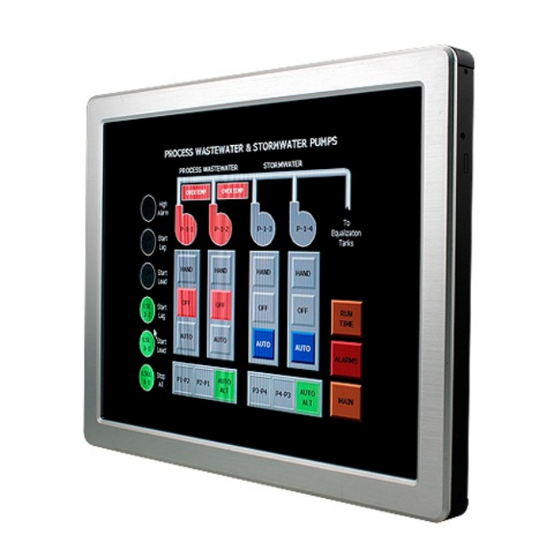

12.1"/15" 2nd gen intel core processor i7/i5/i3 fanless rugged touch panel pc
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

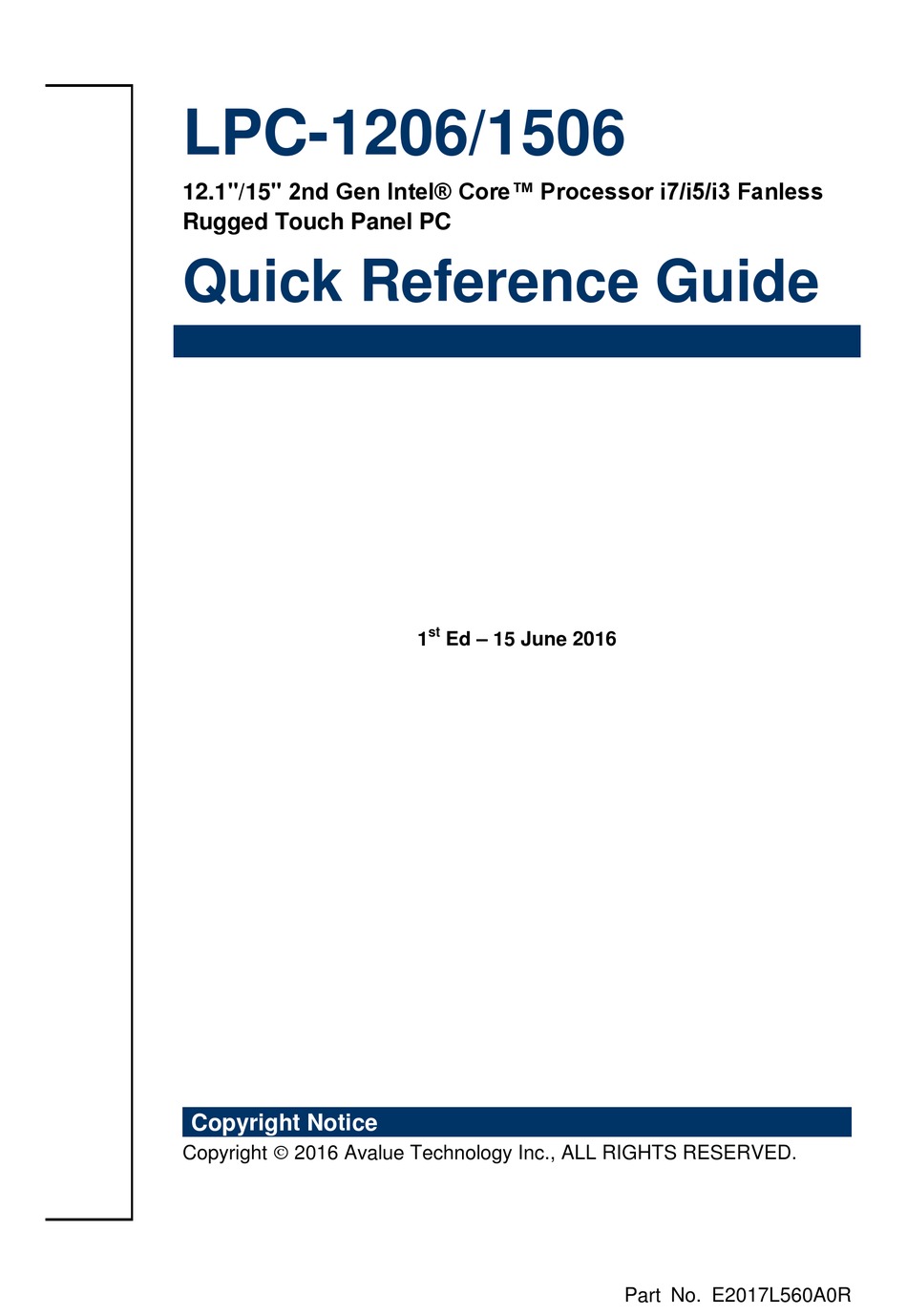

LPC-1206/1506
12.1"/15" 2nd Gen Intel® Core™ Processor i7/i5/i3 Fanless
Rugged Touch Panel PC
Quick Reference Guide
st
Ed – 15 June 2016
1
Copyright Notice
Copyright  2016 Avalue Technology Inc., ALL RIGHTS RESERVED.
Part No. E2017L560A0R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LPC-1206 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avalue Technology LPC-1206

Summary of Contents for Avalue Technology LPC-1206

  • Page 1 LPC-1206/1506 12.1"/15" 2nd Gen Intel® Core™ Processor i7/i5/i3 Fanless Rugged Touch Panel PC Quick Reference Guide Ed – 15 June 2016 Copyright Notice Copyright  2016 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017L560A0R...
  • Page 2 Disclaimer Avalue Technology Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Avalue Technology assumes no responsibility or liability for the...
  • Page 3 Applications that are described in this manual are for illustration purposes only. Avalue Technology Inc. makes no representation or warranty that such application will be suitable for the specified use without further testing or modification.

  • Page 4: Table Of Contents

    2.1 LPC-1206/1506 connector mapping ................ 13 2.1.1 Serial port 1 connector (COM1) ..................... 13 2.1.2 Serial port 2 connector (COM2) ..................... 14 2.1.3 DVI connector (DVI) ......................14 2.2 Installing Hard Disk & Memory (For LPC-1206/1506) ..........15 4 LPC-1206/1506 Quick Reference Guide...

  • Page 5: Getting Started

    Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x LPC-1206/1506 Panel PC  1 x DVD-ROM contains the followings: ...

  • Page 6: System Specifications

    1 x Mini PCIe Support mSATA Storage Storage 1 x 2.5" Drive Bay 4 x USB 2.0 SATA 2 x SATA III 1 x RS232 COM Port 1 x RS232/422/485 1 x HDMI Other 1 x DVI Display 6 LPC-1206/1506 Quick Reference Guide...
  • Page 7 With SSD/mSATA : 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis Mounting Wall / Stand / VESA 75mm x 75mm, 100mm x 100mm Shock Test With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine, 11ms Certifications Certification Information FCC Class B Software Support OS Information Win7/Win8/Linux LPC-1206/1506 Quick Reference Guide...
  • Page 8 LPC-1206/1506 Note: Specifications are subject to change without notice. 8 LPC-1206/1506 Quick Reference Guide...

  • Page 9: System Overview

    COM2 Serial port 2 connector Line-out audio jack LINE OUT 4 x USB 2.0 connector Dock USB RJ-45 Ethernet connector 1/2 LAN1/2 HDD indicator System power indicator HDMI HDMI connector DVI connector DC-IN DC Power-in connector LPC-1206/1506 Quick Reference Guide...

  • Page 10: System Dimensions

    LPC-1206/1506 1.5 System Dimensions 1.5.1 LPC-1206 Front and Rear side (Unit: mm) 10 LPC-1206/1506 Quick Reference Guide...

  • Page 11: Lpc-1506 Front And Rear Side

    Quick Reference Guide 1.5.2 LPC-1506 Front and Rear side (Unit: mm) LPC-1206/1506 Quick Reference Guide 11...

  • Page 12: Hardware Configuration

    LPC-1206/1506 2. Hardware Configuration For advanced information, please refer to: 1- EPI-QM67 User’s Manual Note: If you need more information, please visit our website: http://www.avalue.com.tw 12 LPC-1206/1506 Quick Reference Guide...

  • Page 13: Lpc-1206/1506 Connector Mapping

    Quick Reference Guide 2.1 LPC-1206/1506 connector mapping 2.1.1 Serial port 1 connector (COM1) RS-232 Signal PIN PIN Signal RS-422 Signal PIN PIN Signal TxD- RxD- TxD+ RxD+ RS-485 Signal PIN PIN Signal DATA- DATA+ LPC-1206/1506 Quick Reference Guide 13...

  • Page 14: Serial Port 2 Connector (Com2)

    Serial port 2 connector (COM2) Signal PIN PIN Signal 2.1.3 DVI connector (DVI) Signal Signal Signal TMDS2- TMDS1- TMDS0- TMDS2+ TMDS1+ TMDS0+ TMDS_2/4_Shield 11 TMDS_1/3_Shield 19 TMDS_0/5_Shield DDC_CLK 22 TMDSCLK_Shield DDC_DATA TMDSCLK+ VSYNC 16 HOTPLUG_DETECT 24 TMDSCLK- 14 LPC-1206/1506 Quick Reference Guide...

  • Page 15: Installing Hard Disk & Memory (For Lpc-1206/1506)

    Quick Reference Guide 2.2 Installing Hard Disk & Memory (For LPC-1206/1506) Step 1. Unfasten 6 screws from the case to take off the top chassis. Step 2-1. Memory Installation: Unfasten 6 screws of the board and take it off. Step 2-2. Insert the SODIMM into the memory socket.
  • Page 16 Unfasten 2 screws of the HDD bracket and take it off. Step 3-2. Insert the HDD into the bracket and fasten 4 screws. Step 3-3. Insert the HDD back and fasten 2 screws. Step 4. Place back the chassis with 6 screws locked. 16 LPC-1206/1506 Quick Reference Guide...
