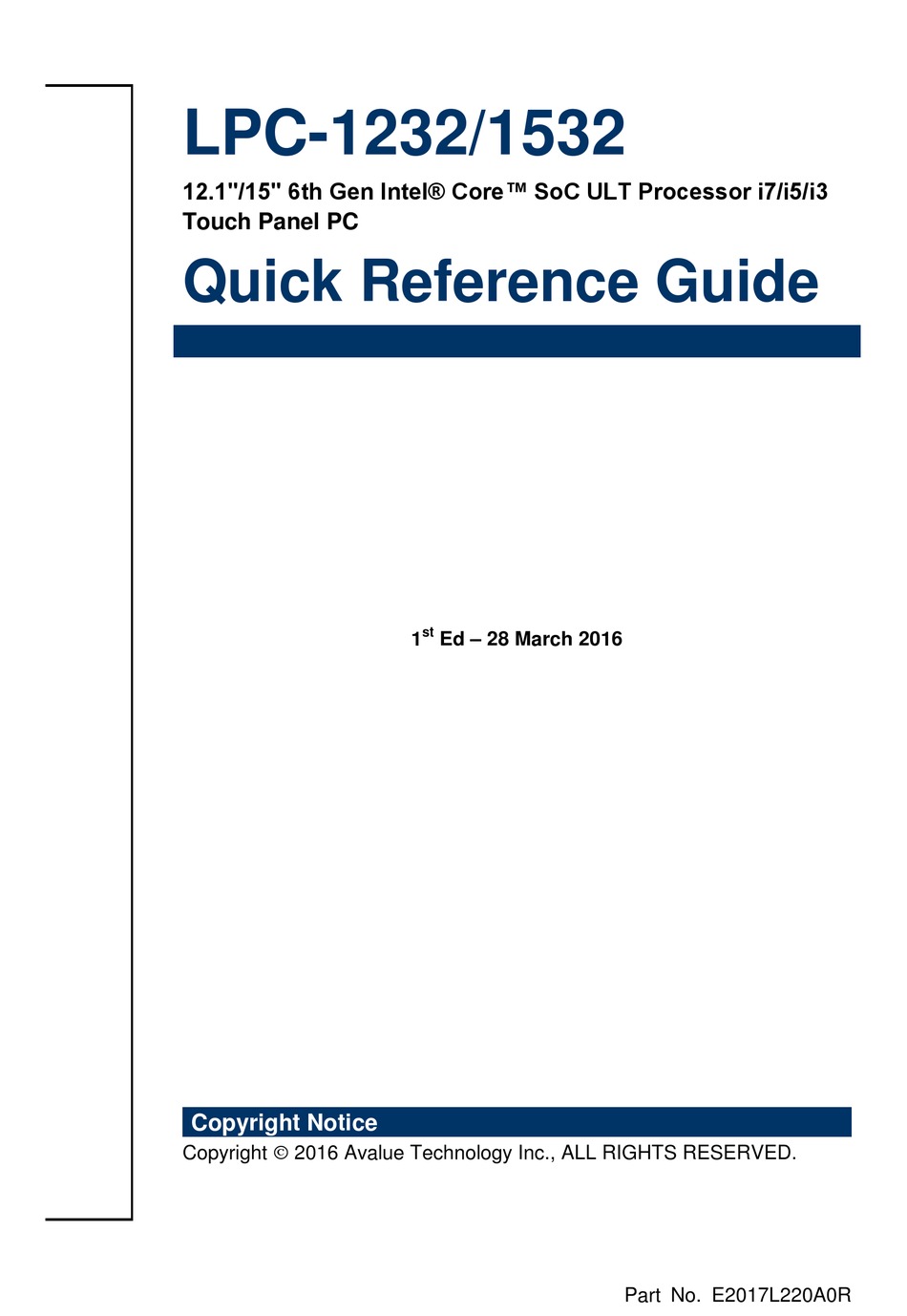

- Page 1 LPC-1232/1532 12.1"/15" 6th Gen Intel® Core™ SoC ULT Processor i7/i5/i3 Touch Panel PC Quick Reference Guide Ed – 28 March 2016 Copyright Notice Copyright 2016 Avalue Technology Inc., ALL RIGHTS RESERVED. Part No. E2017L220A0R...
- Page 2 Disclaimer Avalue Technology Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Avalue Technology assumes no responsibility or liability for the...
- Page 3 Applications that are described in this manual are for illustration purposes only. Avalue Technology Inc. makes no representation or warranty that such application will be suitable for the specified use without further testing or modification.
-
Page 4: Table Of Contents
Hardware Configuration ..................12 2.1 LPC-1232/1532 connector mapping ................ 13 2.1.1 Serial port 1/2 connector (COM1/2)..................13 2.2 Installing Hard Disk & Memory (For LPC-1232) ............14 2.3 Installing Hard Disk & Memory (For LPC-1532) ............16 4 LPC-1232/1532 Quick Reference Guide... -
Page 5: Getting Started
Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. 1.2 Packing List 1 x LPC-1232/1532 Panel PC 1 x DVD-ROM contains the followings: ... -
Page 6: System Specifications
Power Type AT/ATX Power Connector DC in Type Dimension 283 x 222 x 45 mm 351.5 x 272 x 52 mm Weight 2.84 Kgs 4.2 Kgs Color Front Silver & Rear panel Black Fanless Reliability 6 LPC-1232/1532 Quick Reference Guide... - Page 7 Mechanical Shock Bump Test: IEC 60068-2-29 Test Drop Test IEC-60068-2-32 Operating -10 to 50°C Temperature Operating Humidity 5% ~ 90% relative humidity, non-condensing Storage Temperature -20 to 60°C Note: Specifications are subject to change without notice. LPC-1232/1532 Quick Reference Guide...
-
Page 8: System Overview
Connectors Label Function Note Power on button POWER COM1/2 Serial port 1/2 connector DB-9 male connector Line-out audio jack LINE OUT Dock USB 4 x USB 3.0 connector RJ-45 Ethernet connector 1/2 LAN1/2 HDD indicator 8 LPC-1232/1532 Quick Reference Guide... - Page 9 Quick Reference Guide System power indicator HDMI connector HDMI RESET Reset button DC IN DC Power-in connector LPC-1232/1532 Quick Reference Guide...
-
Page 10: System Dimensions
LPC-1232/1532 1.5 System Dimensions 1.5.1 LPC-1232 Front and Rear side (Unit: mm) 10 LPC-1232/1532 Quick Reference Guide... -
Page 11: Lpc-1532 Front And Rear Side
Quick Reference Guide 1.5.2 LPC-1532 Front and Rear side (Unit: mm) LPC-1232/1532 Quick Reference Guide 11... -
Page 12: Hardware Configuration
LPC-1232/1532 2. Hardware Configuration For advanced information, please refer to: 1- EBM-SKLU User’s Manual Note: If you need more information, please visit our website: http://www.avalue.com.tw 12 LPC-1232/1532 Quick Reference Guide... -
Page 13: Lpc-1232/1532 Connector Mapping
DSR# RTS# Note: CTS# RS-232 mode is default, RS-422 and RS-485 changed DTR# setting by Switch(SW1) and jumper(JCOM_SEL1, JCOM_SEL2). RS-422 Signal PIN PIN Signal 422_Tx- 422_Rx+ 422_Tx+ 422_Rx- RS-485 Signal PIN PIN Signal 485_Tx- 485_Tx+ LPC-1232/1532 Quick Reference Guide 13... -
Page 14: Installing Hard Disk & Memory (For Lpc-1232)
LPC-1232/1532 2.2 Installing Hard Disk & Memory (For LPC-1232) Step 1. Unfasten 6 screws from the case. Then take off the top chassis. Step 2. Memory Installation: Insert the SODIMM into the memory socket. 14 LPC-1232/1532 Quick Reference Guide... - Page 15 Step 3-2. Insert the HDD into the Drive Bay. Remember to place the HDD down to the bottom exactly in order to screw the device tightly. Step 4. Place back the chassis with 6 screws locked. LPC-1232/1532 Quick Reference Guide 15...
-
Page 16: Installing Hard Disk & Memory (For Lpc-1532)
LPC-1232/1532 2.3 Installing Hard Disk & Memory (For LPC-1532) Step 1. Unfasten 6 screws from the case. Then take off the top chassis. Step 2. Memory Installation: Insert the SODIMM into the memory socket. 16 LPC-1232/1532 Quick Reference Guide... - Page 17 Step 3-2. Insert the HDD into the bracket and fasten 4 screws. Step 3-3. SATA HDD Installation: By default, the SATA cables had been inserted to the according connectors. Just connect to SATA HDD with the two cables. SATA connector 1 MPCIE connector LPC-1232/1532 Quick Reference Guide 17...
- Page 18 Step 3-4. Insert the HDD into the Drive Bay. Remember to place the HDD down to the bottom exactly in order to screw the device tightly. Step 4. Place back the chassis with 6 screws locked. 18 LPC-1232/1532 Quick Reference Guide...
