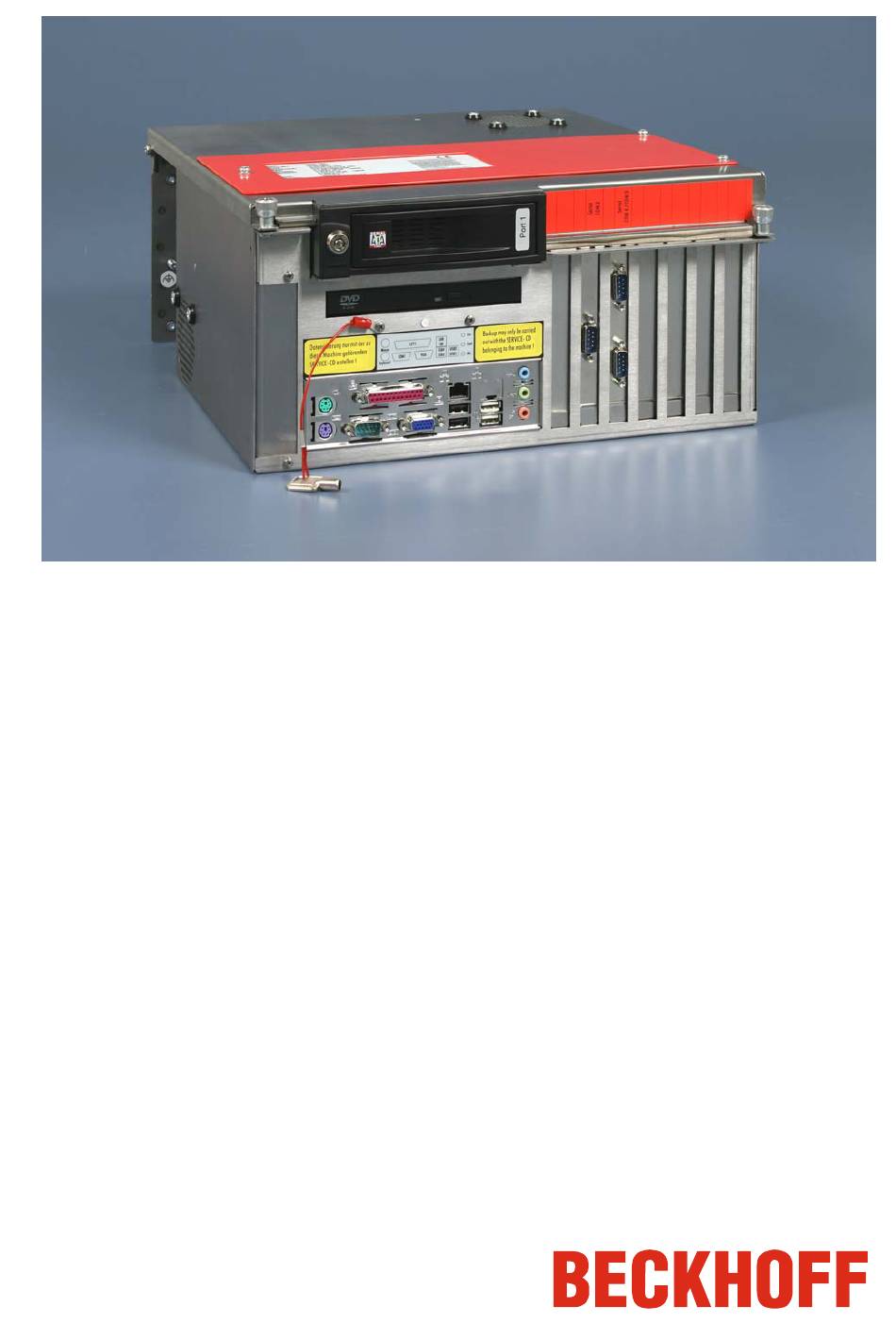

- Page 1 Installation and Operating instructions for Control Cabinet Industrial PC C6240-1007 Version: 1.0 Date: 2007-12-20...
-
Page 3: Table Of Contents
Switching the Industrial PC on and off First switching on and driver installation Servicing and Maintenance Cleaning the Industrial PC Replacing the battery on the motherboard Servicing Shutting down Disposal UPS Software Components (optional) Installation on the PC Help files C6240-1007... - Page 4 Table of contents Troubleshooting Fault correction Service and Support Beckhoff's branch offices and representatives Beckhoff headquarters Beckhoff Support Beckhoff Service Assembly dimensions Configuration with 100-240 V Power Supply Configuration with 24 V -Power Supply (optional) Appendix Technical data Approvals FCC: Federal Communications Commission...
-
Page 5: General Instructions
© This documentation is copyrighted. Any reproduction or third party use of this publication, whether in whole or in part, without the written permission of Beckhoff Automation GmbH, is forbidden. Description of safety symbols The following safety symbols are used in this operating manual. They are intended to alert the reader to the associated safety instructions. -
Page 6: Basic Safety Measures
If metal objects such as screws or tools fall onto operating circuit boards. • If connecting cables internal to the PC are removed or inserted during operation. • If plug-in cards are removed or inserted when the PC is switched C6240-1007... -
Page 7: Operator's Obligation To Exercise Diligence
Read the operating Every user of the Industrial PC must have read these operating instructions instructions. Software knowledge Every user must be familiar with any of the functions of the software installed on the PC that he can reach. C6240-1007... -
Page 8: Product Description
Product Description Product Description Appropriate Use The C6240-1007 Industrial PCs is designed for mounting in control cabinets for machine and plant engineering applications. Opening the Housing Front view of C6240-1007, configuration with 100-240 V power supply Front view of C6240-1007,... -
Page 9: Configuration With 100-240 V
The picture shows the optional configuration of the PC with a removable hard disk drawer (1) for one Serial-ATA-hard disk drive and a slimline CD/ DVD-ROM drive (2) instead of the standard CD/ DVD-ROM drive. The connections of the Industrial PC are located at the front of the housing. C6240-1007... -
Page 10: Configuration With 24 V Dc Power Supply (Optional)
Front view of the PC The picture shows the optional configuration of the PC with a multi DVD drive (1) instead of the standard CD/ DVD-ROM drive. The connections of the Industrial PC are located at the front of the housing. C6240-1007... -
Page 11: Interfaces
The Industrial PC has a on-board-interface with the following connectors: Line In jack (11), Line Out jack (12) and Microphone jack (13). Additional plug-in cards (optional) Type plate A type plate is located on top of the PC, providing information about the Industrial PC equipment as delivered. C6240-1007... -
Page 12: Installation Instructions
4. Please keep the associated paperwork. It contains important information for handling the unit. 5. Check the contents for visible shipping damage. 6. If you notice any shipping damage or inconsistencies between the contents and your order, you should notify Beckhoff Service. C6240-1007... -
Page 13: Installation Of The Pc In The Control Cabinet
Installation Instructions Installation of the PC in the control cabinet The C6240-1007 Industrial PC is designed for mounting in control cabinets for machine and plant engineering applications. The ambient conditions specified for operation must be observed (see chapter Technical data). -
Page 14: Power Supply Connection With 100-240
Listed, Detachable, maximum 4.5 m (14.76 ft.) long; rated minimum 250 V, 10 A, Type SJT or Type SVT; one end terminates in NEMA 6-15P/-20P grounding-type attachment plug, other end in appliance coupler. C6240-1007... -
Page 15: Electrical Data
The Industrial PC is switched on and off with an external power switch. Therefore the PC is equipped with a 3-pole male plug connector with CAGE CLAMP connection. Function Pin assignment for Power-Status connecting the power switch PC_ON Power Supply + Pole 1 2 3 C6240-1007... -
Page 16: Fitting The Power Supply Cable
4. Relieve the strain on the supply cable by fixing it in place with the cable clamp (part C) and fixing screws (part D). Applying the strain relief Fix the upper part (part B) of the strain relief housing by snapping it onto the lower part. C6240-1007... -
Page 17: Connecting 24V
0 V. This allows connecting an air gap switch for disconnecting the system from power supply. Wiring diagram Wiring according to the wiring diagram (the circuit of PC_ON and Power- Status is symbolical): Wiring diagram external switch and power supply C6240-1007... -
Page 18: Connecting Devices
Fitting the Power Supply Cable) into the Industrial PC's power supply socket. Then connect it to your external 24 V power supply. If a 24 V UPS is installed, the correct type of rechargeable battery must be used. Warning C6240-1007... -
Page 19: Operating Instructions
If the PC was ordered without operating system, you have to install the operating system and the driver software for any auxiliary hardware yourself. Please follow the instructions in the documentation for the operating system and the additional devices. C6240-1007... -
Page 20: Servicing And Maintenance
The device must be fully dismantled in order to dispose of it. The housing can be sent for metal recycling. Electronic parts such as disk drives and circuit boards must be disposed of Observe national electronics scrap in accordance with national electronics scrap regulations. regulations C6240-1007... -
Page 21: Ups Software Components (Optional)
The driver software comes with a detailed help function. System The help files can be called up either directly from the configuration register by clicking the Help button, or under via Start > Programs > Beckhoff > UPS software components. C6240-1007... -
Page 22: Troubleshooting
Nothing happens after the Industrial No power supply to the Industrial Check power supply cable. PC has been switched on Other cause. Call Beckhoff Service. The Industrial PC does not boot Floppy disk or CD in the drive. Remove floppy disk or CD fully and press any key. -
Page 23: Service And Support
Fax: +49(0)5246/963-198 e-mail: info@beckhoff.com Beckhoff Support Support offers you comprehensive technical assistance, helping you no only with the application of individual Beckhoff products, but also with other, wide-ranging services: • world-wide support • design, programming and commissioning of complex automation systems •... -
Page 24: Assembly Dimensions
Assembly dimensions Assembly dimensions The following pages show diagrams of the Industrial PC, with dimensions in mm. Configuration with 100-240 V Power Supply The assembly of the unit must take place with the orientation diagrammed here. Warning C6240-1007... -
Page 25: Configuration With 24 V Dc -Power Supply (Optional)
Assembly dimensions Configuration with 24 V -Power Supply (optional) The assembly of the unit must take place with the orientation diagrammed here. Warning C6240-1007... -
Page 26: Appendix
Appendix Appendix Technical data Industrial PC C6240-1007 Dimensions (W x H x D): see chapter Assembly dimensions Weight: 9,5 kg (basic configuration) Do not use the PC in areas The Industrial PC may not be used in areas of explosive hazard.
