Installation and Operating instructions for
Control Cabinet Industrial PC
C6240-1007 from -0060
Version: 2.0
Date:
2018-02-16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C6240-1007-0060 and is the answer not in the manual?

Questions and answers

Summary of Contents for Beckhoff C6240-1007-0060

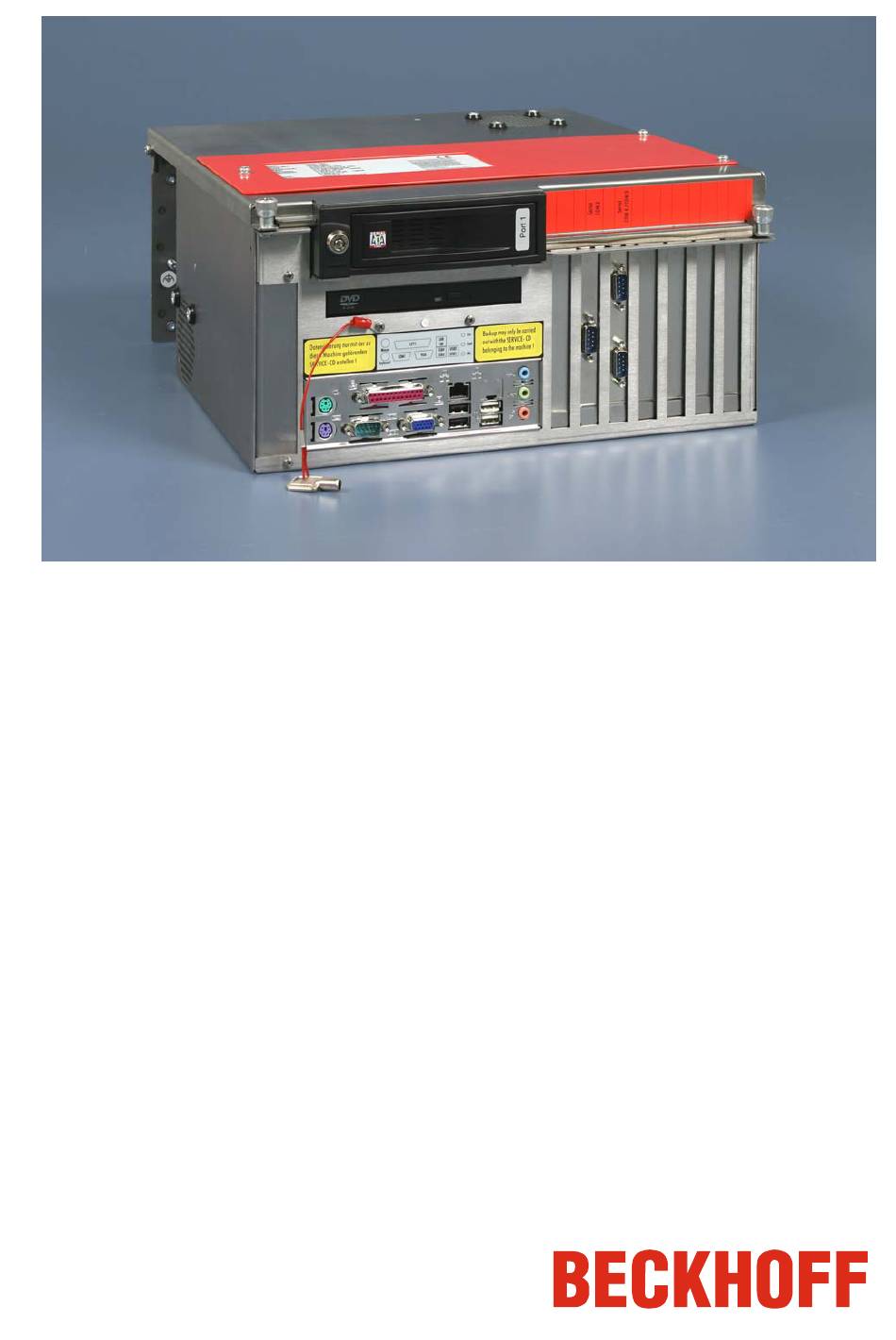

  • Page 1 Installation and Operating instructions for Control Cabinet Industrial PC C6240-1007 from -0060 Version: 2.0 Date: 2018-02-16...
  • Page 3: Table Of Contents

    Operator requirements Product Description Appropriate Use Opening the Housing Configuration with 100-240 V Full Range Power Supply Configuration with 24 V Power Supply (optional) Interfaces from C6240-1007-0060 PS/2 connections Serial interfaces USB interfaces Network connection Sound-On-Board DVI-D (Digital Visual Interface) DisplayPort...
  • Page 4 Disposal UPS Software Components (optional) Installation on the PC Help files Troubleshooting Fault correction Beckhoff Support and Service Beckhoff branches and partner companies Beckhoff company headquarters Beckhoff Support Beckhoff Service Assembly dimensions Configuration with 100-240 V Power Supply Configuration with 24 V...
  • Page 5: Foreword

    All the components are supplied in particular hardware and software configurations appropriate for the application. Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH & Co.KG. Delivery conditions In addition, the general delivery conditions of the company Beckhoff Automation GmbH &...
  • Page 6: Description Of Safety Symbols

    Foreword Description of safety symbols The following safety symbols are used in this operating manual. They are intended to alert the reader to the associated safety instructions. Acute risk of injury!! If you do not adhere the safety advise adjoining this symbol, there is DANGER immediate danger to life and health of individuals! Risk of injury!
  • Page 7: Basic Safety Measures

    Foreword Basic safety measures Only switch the PC off after Before the Industrial PC is switched off, software that is running must closing the software be properly closed. Otherwise it is possible that data on the hard disk is lost. Please read the section on Switching the Industrial PC on and off.
  • Page 8: Operator's Obligation To Exercise Diligence

    Foreword Operator's obligation to exercise diligence The operator must ensure that • the Industrial PC is only used for its intended use (see also Product Description). • the Industrial PC is in a sound condition and in working order during operation (see also chapter Servicing). •...
  • Page 9: Product Description

    Product Description Product Description Appropriate Use The C6240-1007 Industrial PCs is designed for mounting in control cabinets for machine and plant engineering applications. Opening the Housing Front view of C6240-1007, configuration with 100-240 V power supply Front view of C6240-1007, configuration with 24 V power supply...
  • Page 10: Ac Full Range Power Supply

    Product Description Configuration with 100-240 V Full Range Power Supply View of the open PC removable hard disk drawer for one Serial-ATA- hard disk (optional) card holders 100-240 V ½ “ hard disk full range power supply slimline CD/ DVD-ROM 7-slot-ATX motherboard drive (optional) interfaces...
  • Page 11: Dc Power Supply (Optional)

    Product Description Configuration with 24 V Power Supply (optional) View of the open PC multi DVD drive (optional) instead of CD/DVD-ROM drive card holders 24 V power supply fanless with UPS (optional) ½ “ hard disk 7-slot-ATX motherboard interfaces Under the housing cover is a 7 slot computer core with standard ATX motherboard for Intel®...
  • Page 12: Interfaces From C6240-1007-0060

    The four USB interfaces (X108 – X111) are used to connect peripheral devices with USB connections: ® Devices with Intel generation processors (C6240-1007-0060) are equipped with 2 USB2.0 (X110, X111) and 2 USB3.0 (X108, X109) interfaces ® Devices with Intel...
  • Page 13: Installation Instructions

    4. Please keep the associated paperwork. It contains important information for handling the unit. 5. Check the contents for visible shipping damage. 6. If you notice any shipping damage or inconsistencies between the contents and your order, you should notify Beckhoff Service. C6240-1007...
  • Page 14: Installation Of The Pc In The Control Cabinet

    Installation Instructions Installation of the PC in the control cabinet The C6240-1007 Industrial PC is designed for mounting in control cabinets for machine and plant engineering applications. The ambient conditions specified for operation must be observed (see chapter Technical data). Circulation of air When the unit is installed in an enclosure, adequate space for ventilation and for opening the PC must be provided.
  • Page 15: Power Supply Connection With 100-240 V

    Installation Instructions Power Supply Connection with 100-240 V power supply unit Supplied mains power unit The Industrial PC is serially fitted with a 100-240 V , 50-60 Hz full range power supply unit . Current carrying capacity of Output voltages from the 100- Current loading 240 V power supply unit maximum...
  • Page 16: Power Supply Connection With

    However, over time this reduces the service life of the battery. The new Beckhoff power supply technology approach addresses this problem and now offers the user the option of switching the PC off without the need for using the battery, thereby reducing the load on the battery.
  • Page 17: Electrical Data

    Installation Instructions signal lamp connection or via a contactor. With this solution the main switch generally only has to be switched off if the control cabinet has to be opened. The battery will only be used in the event of a power failure. In order to maintain a screen display for the Industrial PC in the event of a power failure, the power supply unit is equipped with a UPS output 27 V / 1.4 A for connecting a Control Panel with a display dimension up to 19...
  • Page 18: Fitting The Power Supply Cable

    Installation Instructions Fitting the Power Supply Cable Wiring in accordance with Fit the cables for the power supply of the Industrial PC, the connection of wiring diagram the battery pack as well as the connection of the power-switch in accordance with the wiring diagram, using the included material for assembling the connectors.
  • Page 19: Connecting 24V Dc Power Supply

    Installation Instructions Connecting 24V Power Supply The external wiring consists of the connection of the power supply, the battery pack (optional) and the connection of customized components for shutting down the PC. Cable Cross Sections Note cable cross sections, For the connection of the power supply, wiring with a cable-cross-section avoid voltage drop! of 1.5 mm must be used.
  • Page 20: Wiring Diagram

    Installation Instructions Wiring diagram Wiring according to the wiring diagram (the circuit of PC_ON and Power- Status is symbolical): Wiring diagram external switch and power supply Connection of the Battery Pack and UPS Output Connection of the Battery Pack and UPS Output only in combination with Note integrated UPS (order option).
  • Page 21: Connecting Devices

    Installation Instructions Connecting devices Power supply plug The power supply plug must be withdrawn! Attention Please read the documentation for the external devices prior to connecting them. During thunderstorms, plug connector must neither be inserted nor removed. When disconnecting a plug connector, always handle it at the plug. Do not pull the cable! Connecting cables The connections are located at the top of the Industrial PC and are...
  • Page 22: Operating Instructions

    Operating Instructions Operating Instructions Please also refer to chapter Foreword. Switching the Industrial PC on and off Switch on The Industrial PC does not have its own mains switch. The Industrial PC will start when the equipment is switched on, or when it is connected to the power supply.
  • Page 23: Servicing And Maintenance

    Operating Instructions Servicing and Maintenance Please also refer to chapter Foreword. Cleaning the Industrial PC Disconnect from power supply Switch off the Industrial PC and all connected devices, and disconnect the Industrial PC from the power supply. Attention The Industrial PC can be cleaned with a soft, damp cloth. Do not use any aggressive cleaning materials, thinners, scouring material or hard objects that could cause scratches.
  • Page 24: Ups Software Components (Optional)

    The driver software comes with a detailed help function. System The help files can be called up either directly from the configuration register by clicking the Help button, or under via Start > Programs > Beckhoff > UPS software components. C6240-1007...
  • Page 25: Troubleshooting

    Nothing happens after the Industrial No power supply to the Industrial Check power supply cable PC has been switched on Other cause Call Beckhoff Service The Industrial PC does not boot Floppy disk or CD in the drive Remove floppy disk or CD fully...
  • Page 26: Beckhoff Support And Service

    Please contact your Beckhoff branch office or partner company for local support and service on Beckhoff products! The contact addresses for your country can be found in the list of Beckhoff branches and partner companies: www.beckhoff.com You will also find further documentation for Beckhoff components there.
  • Page 27: Assembly Dimensions

    Assembly dimensions Assembly dimensions The following pages show diagrams of the Industrial PC, with dimensions in mm. Configuration with 100-240 V Power Supply Assembly orientation The assembly of the unit must take place with the orientation diagrammed Attention here. C6240-1007...
  • Page 28: Dc -Power Supply (Optional)

    Assembly dimensions Configuration with 24 V -Power Supply (optional) Assembly orientation The assembly of the unit must take place with the orientation diagrammed Attention here. C6240-1007...
  • Page 29: Appendix

    Appendix Appendix Technical data Industrial PC C6240-1007 Dimensions (W x H x D): see chapter Assembly dimensions Weight: 9.5 kg (basic configuration) Do not use the PC in areas The Industrial PC may not be used in areas of explosive hazard. of explosive hazard The following conditions must be observed during operation: Environmental conditions...
