Saab R5 SUPREME Installation Short Instruction

R5 SUPREME NAV System
Installation Short Instruction
This quick installation guide serves as a complement to
the standard manuals found on the documentation CD. It
is designed to give immediate access to essential
information when executing an installation and a
functionality test. Installation of the R5 SUPREME
Navigation System should always be carefully
planned and executed by skilled personnel.
Please visit our website for the latest news regarding this
and our other ship borne products. Our website contains
contact information to our dealers and service stations
worldwide and much more.
www.saabgroup.com/transpondertech
For the complete manual set please see the included
documentation CD.
RECOMMENDED PHYSICAL LOCATION
Please consult the complete system manual P/N: 7000
118-301 for physical location aspects of the navigation
sensor, Control and Display Unit (CDU) and GPS
antenna.
Important: The R5 SUPREME Navigation System is
offered in GPS and DGPS configuration. In addition, the
R5 CDU can be installed in many different
configurations. Mainly:
Navigation System – Standalone or networked
Combined AIS & Navigation System
AIS System
This short instruction covers standalone Navigation
System installations.
Physical

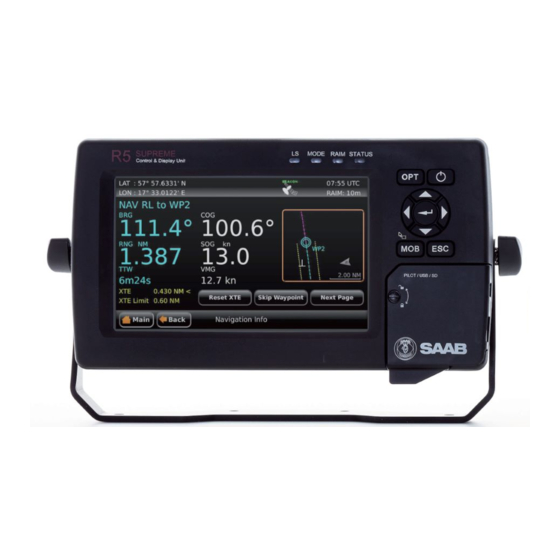

R5 SUPREME CDU
Size W x H x D: 255x140x85 (mm)
Gimbal Mount
Size W x H x D: 252x95x65 (mm)
R4 Navigation Sensor
Size W x H x D: 128x39x137 (mm) R4 Navigation
R5 Nav Junction box
Size W x H x D: 270x72x200 (mm)
Weight 0.75 kg
Power
R5 SUPREME CDU
Input 24 VDC (Max 30 VDC)
Power Consumption: 13W (0.54A @ 24VDC)
R4 Navigation Sensor
Input 24 VDC (10 to 32 VDC)
Power Consumption 2.0W (GPS), 2.7W (DGPS)
GPS Receiver
Receiver: 12 CH
Frequency: L1 (1575.42 MHz)
Update Rate: 5 Hz
Position accuracy:
Position <2.0 m 2 sigma (95%), DGPS
Position <5 m, 2 sigma (95%), GPS
Antenna feeding: 5 VDC
Electrical Interfaces
R5 SUPREME CDU
Signal connector RS422: 26 pin HD-SUB (M)
Ethernet connector: RJ45
Power connector: 4 pin ConXall (M)
RS 422 Port Default speed (bps)
Sensor Port 57600
User Port 3 38400
User Port 4 38400
R4 Navigation Sensor
Power and Signal Cable connector: 18 pin
ConXall (M)
GPS 50 ohm antenna connector TNC female
RS 422 Port Default speed (bps)
System Port 57600
User Port 1 38400
User Port 2 9600
Cables (recommended)
GPS RG214/U
Sensors e.g. Gyro RFE-HFI 2x2x0.75 mm
Ethernet Cable CAT-5
7000 118-368 A1
Environmental data
Protected environment (IEC 60945)
Operating temperature -15 °C to 55 °C
Compass safe distance
R5 SUPREME CDU
75 cm to standard magnetic compass
50 cm to steering magnetic compass
R4 Navigation Sensor
60 cm to standard magnetic compass
40 cm to steering magnetic compass
The R5 SUPREME Navigation System is compliant
with the following Standards
IMO Res MSC.112(73)
IMO Res MSC.114(73)
IMO Res A.694(17)
IMO Res MSC.191(79)
IEC 61108-1 Edition 2.0
IEC 61108-4 Edition 1.0
IEC 60945 Edition 4.0, incl Corr.1
IEC 61162-1 Edition 4.0
IEC 61108-1 Edition 2.0
IEC 62288 Edition 1.0
Specifications subject to change without notice
