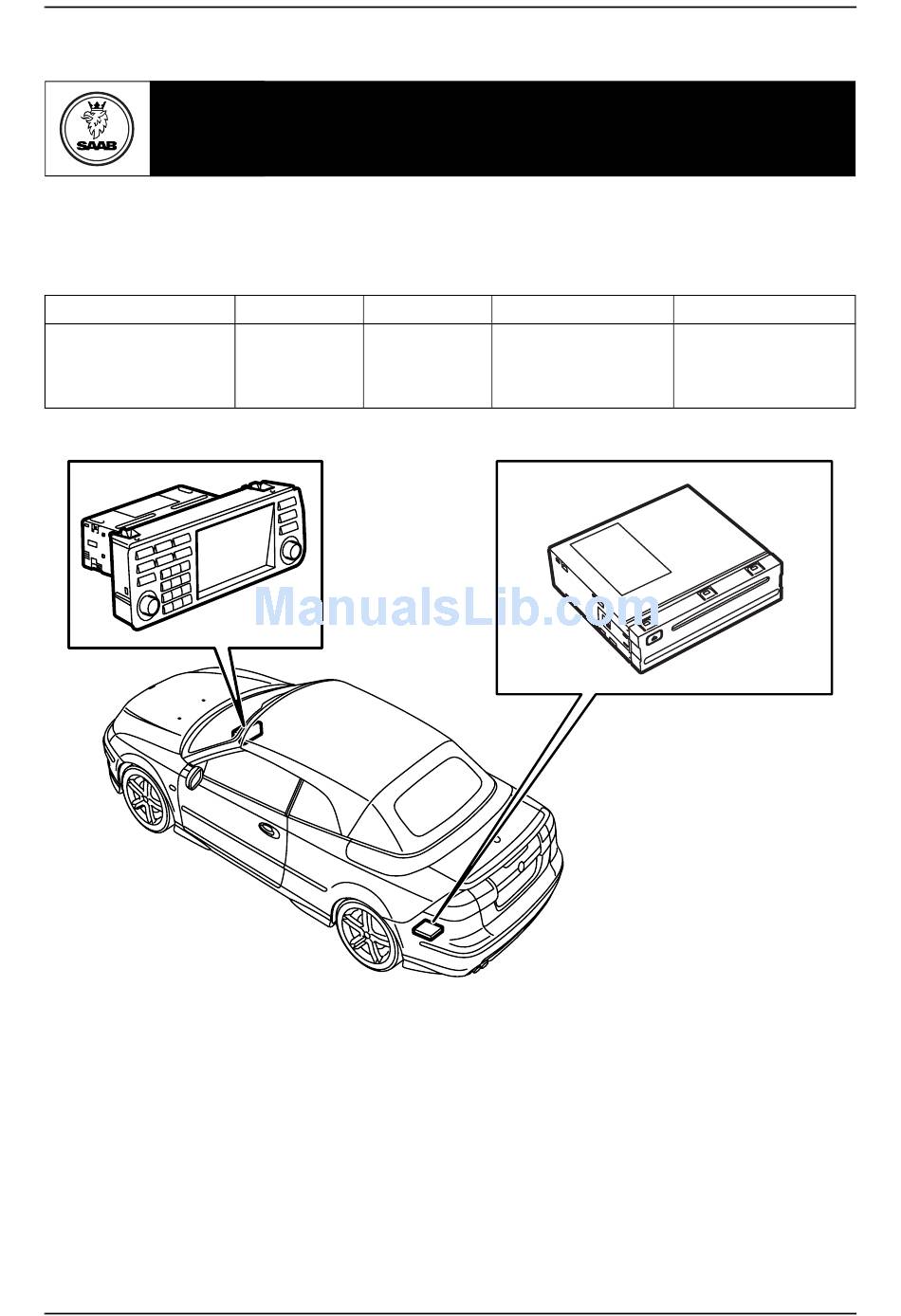

MONTERINGSANVISNING · INSTALLATION INSTRUCTIONS

MONTAGEANLEITUNG · INSTRUCTIONS DE MONTAGE

Group

9:51-03

SCdefault

Installation instructions

Date

Instruction Part No.

Aug 03

12 832 516

Saab 9-3 CV M04-

Replaces

12 832 516 Jun 03

F930A259

Need help?

Do you have a question about the 12 832 506 and is the answer not in the manual?

Questions and answers

Summary of Contents for Saab 12 832 506

Page 1 Installation instructions SCdefault MONTERINGSANVISNING · INSTALLATION INSTRUCTIONS MONTAGEANLEITUNG · INSTRUCTIONS DE MONTAGE SITdefault Saab 9-3 CV M04- Navigation system Accessories Part No. Group Date Instruction Part No. Replaces 12 832 506 12 832 507 12 832 520 12 832 522...
Page 2 (only in kit 12 832 520 and 12 832 522) 3 Fibre optic cable 12 Cable tie (x1 in kit 12 832 506 and 12 832 507, 455 mm (x1 in kit 12 832 506 and 12 832 507) long)
Page 3: Bus Communication
AMP1 is an amplifier behind the left-hand rear side trim AMP2 is an amplifier by the rear fuse box CDC is a CD changer by the rear fuse box DVD is a DVD player by the rear fuse box Saab 9-3 CV M04-...
Page 4 ON position. TIS 2000 may need to be used. When the control module is separated from the car the ignition key must be turned to the OFF position. Following which the control module can be removed. Saab 9-3 CV M04-...
Page 5 REC: Continue with step 10. There are two antenna cable connections, there is a telematics unit and there is a bracket by the REC: Continue with step 106. Saab 9-3 CV M04-...
Page 6 10 Fold down the soft top completely, but allow the soft top cover to remain open. 11 Open the rear side window on the left-hand side completely. Saab 9-3 CV M04-...
Page 7 18 Pull the back rest cushion lower section forwards and lift the back rest cushion upwards. 19 Press out the seat belt guide from the back rest cushion and move the seat belt out from the guide and the back rest cushion. Saab 9-3 CV M04-...
Page 8 There are two antenna cable connections but there is no telematics unit: Continue with step 39. There are two antenna cable connections, there is a telematics unit, but there is no bracket by the REC: Continue with step 84. Saab 9-3 CV M04-...
Page 9 28 Cars with an antenna cable that runs further than the centre of the torsion compartment: Continue with step 36. Cars with antenna cable that runs further forward in the car: Continue with step 29. Saab 9-3 CV M04-...
Page 10 Secure the antenna cable to the existing wiring harness using cable ties. 33 Cars with antenna cable that runs further forward in the car: Divide the two antenna cables up to the fastener. Saab 9-3 CV M04-...
Page 11 Connect the thick cable to the antenna cable that runs forward in the car and secure them with cable ties to the existing wiring harness. Continue with step 39. Saab 9-3 CV M04-...
Page 12 Note The boot lid must be closed and the soft top cover open in order to gain access to the whole antenna cable. Secure the antenna cable to the existing wiring harness using cable ties. Saab 9-3 CV M04-...
Page 13 41 Cars without telematics unit in the centre of the torsion compartment: Remove the left- hand scuff plate. 42 Cars without telematics unit in the centre of the torsion compartment: Remove the lower section of the A-pillar trim on the left-hand side. Saab 9-3 CV M04-...
Page 14 The cable should not lie against any sharp edges as this may cause increased signal Note reduction. The seat must be pushed to the rear position in order to access the whole route. Following which, push the seat back to the forward position. Saab 9-3 CV M04-...
Page 15 49 Cars without telematics unit in the centre of the torsion compartment: Fit the connection on the new fibre optic cable in the connector and fit the lock tab. Saab 9-3 CV M04-...
Page 16 REC: Locate the connec- tor for the DVD player by the REC. 53 Cars without telematics unit in the centre of torsion compartment without bracket fitted by the REC: Connect the kit's wiring harness to the connector. Saab 9-3 CV M04-...
Page 17 REC: Remove the protective cover from the fibre optic cable's connection (DVD player - torsion compartment) and fit the connec- tion in position 2 in the small connector inside the torsion compartment. Saab 9-3 CV M04-...
Page 18 62 Cars without telematics unit in the centre of the torsion compartment: Remove the fibre optic cable connected to position 1 by opening the lock in the connector and carefully lifting the hook. Saab 9-3 CV M04-...
Page 19 64 Cars without telematics unit in the centre of the torsion compartment and without bracket fitted by the REC: Fit the small connector into the large connector and connect the large connector the amplifier. 65 Proceed to step 75. Saab 9-3 CV M04-...
Page 20 70 Cars without telematics unit in the centre of the torsion compartment but where the bracket is fitted by the REC: Fit the kit's fibre optic cable (DVD player - torsion compartment) in position 1 in the kit's connector. Saab 9-3 CV M04-...
Page 21 REC: Remove the protective cover from the fibre optic cable's con- nection (DVD player - torsion compartment) and fit it in position 2 in the small connector inside the torsion compartment. Proceed to step 75. Saab 9-3 CV M04-...
Page 22 Red (RD) cable (+) in position 10 Black (BK) cable (-) in position 20 Fit the connector for the telematics unit in the large connector in the kit's wiring harness. Saab 9-3 CV M04-...
Page 23 Red (RD) cable (+) in position 1 Black (BK) cable (-) in position 2 81 Cars without telematics unit in the centre of the torsion compartment: Fit the lock, connect the connector and secure it at the wiring harness to the REC. Saab 9-3 CV M04-...
Page 24 Do not bend the cable in a radius smaller than 25 mm. • Keep the cable ends free from dirt and grime. • The cable should not lie against any sharp edges as this may cause increased signal reduction. Saab 9-3 CV M04-...
Page 25 The eyes can be damaged if the distance between the light source and the eyes is less than 20 mm. Saab 9-3 CV M04-...
Page 26 91 Cars with telematics unit in the centre of the torsion compartment but without bracket fitted by the REC: Fit the kit's fibre optic cables (DVD player - torsion compartment and DVD player - amplifier) forward along the existing wiring harness. Secure with cable ties. Saab 9-3 CV M04-...
Page 27 Do not bend the cable in a radius smaller than 25 mm. • Keep the cable ends free from dirt and grime. • The cable should not lie against any sharp edges as this may cause increased signal reduction. Saab 9-3 CV M04-...
Page 28 REC: Remove the fibre optic cable connected to position 1 in the connector that was removed by opening the lock in the connec- tor and carefully lifting the hook. Saab 9-3 CV M04-...
Page 29 99 Cars with telematics unit in the centre of the torsion compartment but without bracket fitted by the REC: Fit the small connector in the large connector and connect the connector to the amplifier. 100Proceed to step 117. Saab 9-3 CV M04-...
Page 30 1 in the connector that was removed by opening the lock in the connector and carefully lifting the hook. Carefully guide the fibre optic cable away so that it is not damaged. Saab 9-3 CV M04-...
Page 31 105Cars without telematics unit in the centre of the torsion compartment but where the bracket is fitted by the REC with amplifier and/or CD changer: Connect the connector for the amplifier and the CD changer. Proceed to step 117. Saab 9-3 CV M04-...
Page 32 The eyes can be damaged if the distance between the light source and the eyes is less than 20 mm. Saab 9-3 CV M04-...
Page 33 113 Cars with telematics unit in the centre of the torsion compartment and where the bracket is fitted by the REC with amplifier and/or CD changer: Fit the small connector in the DVD player's connector. Saab 9-3 CV M04-...
Page 34 116 Cars with telematics unit in the centre of the torsion compartment and where the bracket is fitted by the REC with amplifier and/or CD changer: Connect the connector for the ampli- fier and the CD changer. Proceed to step 117. Saab 9-3 CV M04-...
Page 35 118 Fit the bracket. Tighten the nut on the bracket's top side. 119 Secure the kit's wiring harness to the car's wiring harness. Saab 9-3 CV M04-...
Page 36 Fit the clips. 123Fit the side scuff plates if they were removed earlier. 124Fit the front section of the luggage compartment trim, the scuff plate and fit the carpet to the luggage compartment floor. Saab 9-3 CV M04-...
Page 37 127If the boot lid trim has been removed: Close the boot lid. 128Cars without telematics unit in the centre of the torsion compartment: Fit the A-pillar trim. 129Cars without telematics unit in the centre of the torsion compartment: Fit the scuff plate. Saab 9-3 CV M04-...
Page 38 The eyes can be damaged if the distance between the light source and the eyes is less than 20 mm. Saab 9-3 CV M04-...
Page 39 134Fit the control panel. 135Position and fit the air vent. 136Cars which did not have an antenna fitted on the boot lid: Fit the microphone in the A-pillar trim on the driver's side, see separate installa- tion instructions. Saab 9-3 CV M04-...
Page 40 142Cars where the left-hand rear side trim and rear seat have been removed: Fit the speaker grille and the bass speakers or the covers. Saab 9-3 CV M04-...
Page 41 Proceed to step 151. tion system makes contact with the satellites. 150Connect the battery negative cable if not done The map should display on the screen. already. 151Adjust the time and date. Saab 9-3 CV M04-...
