900
SITdefault

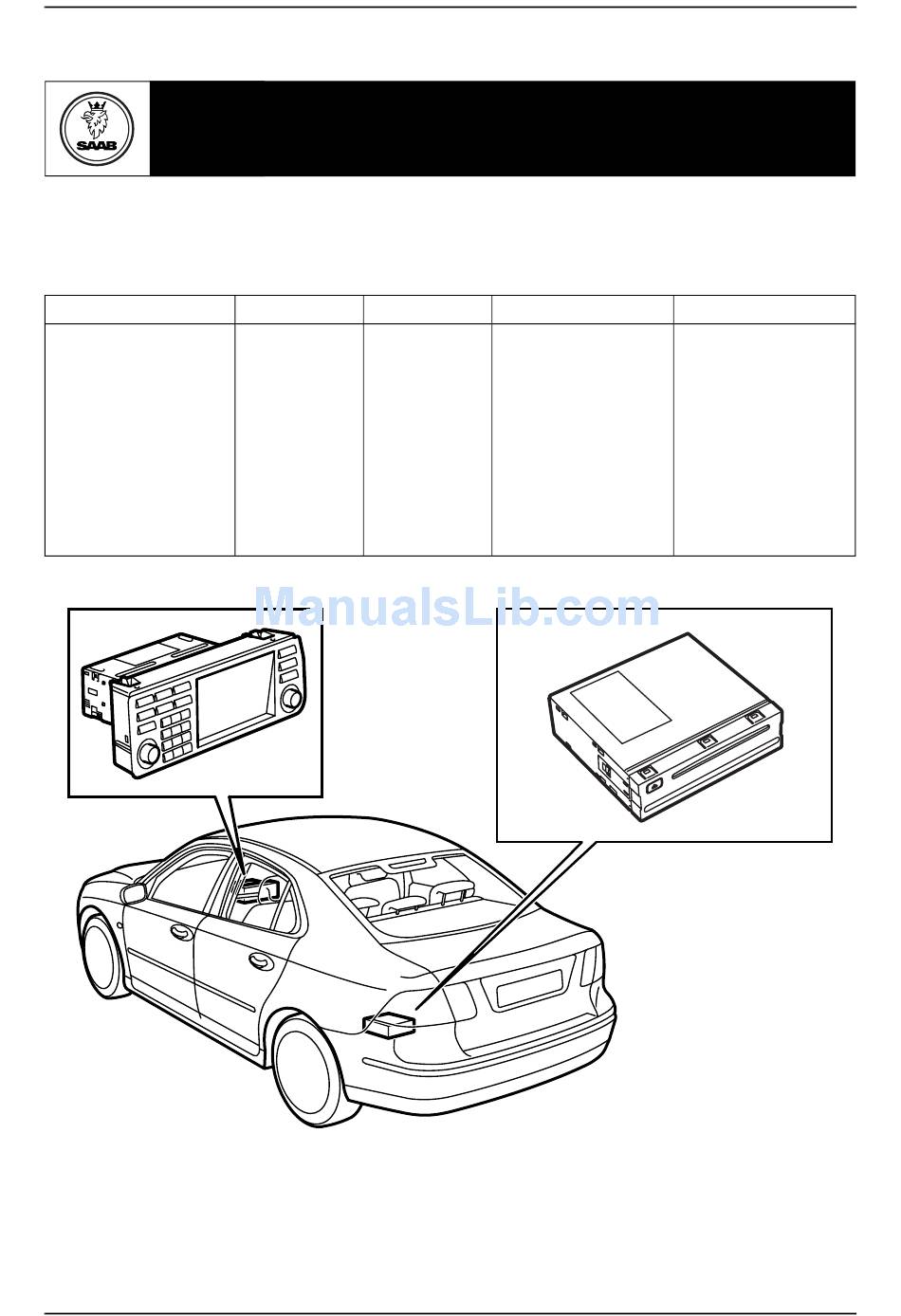

Saab 9-3 4D M03-
Navigation system
Accessories Part No.
12 787 151
12 788 472
12 801 752
12 801 753
12 804 985
12 804 986
12 804 987
12 804 988
32 000 001
32 000 002
32 000 003
32 000 004
MONTERINGSANVISNING · INSTALLATION INSTRUCTIONS
MONTAGEANLEITUNG · INSTRUCTIONS DE MONTAGE
Group
9:51-02
SCdefault
Installation instructions
Date
Instruction Part No.
Jan 04
12 801 443
Saab 9-3 4D M03-
Replaces
12 801 443 Jan 03
F930A120
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Saab 12 787 151
Summary of Contents for Saab 12 787 151
- Page 1 Installation instructions SCdefault MONTERINGSANVISNING · INSTALLATION INSTRUCTIONS MONTAGEANLEITUNG · INSTRUCTIONS DE MONTAGE SITdefault Saab 9-3 4D M03- Navigation system Accessories Part No. Group Date Instruction Part No. Replaces 12 787 151 12 788 472 12 801 752 12 801 753...
- Page 2 F930A353 1 DVD player 10 Bolt (x4) 2 Control panel (only in kit 12 787 151, 12 788 472, 12 804 987, 12 804 988, 32 000 001 and 32 000 002) 3 Fibre optic cable 11 Cable tie (x2 in kit 12 787 151, 12 788 472, 12 804 987,...
-
Page 3: Bus Communication
AMP1 is an amplifier below the left-hand front seat AMP2 is an amplifier by the REC CDC is a CD changer by the REC DVD is a DVD player by the REC Saab 9-3 4D M03-... - Page 4 OFF position. Following which the control module can be removed. 2 Open the hatchback. 3 Remove the battery's minus cable and take the key from the ignition. Saab 9-3 4D M03-...
- Page 5 M03: Lower the panel on the right-hand side. 6 Remove the clips for the left-hand side trim and move the trim aside. M03: Remove the clips for the right-hand side trim and move the trim aside. 7 Lower the rear seat backrest. Saab 9-3 4D M03-...
- Page 6 The violet antenna cable connection is con- nected to the telematics unit. Blue antenna cable connection present, but not connected: Continue with step 36. 11 Remove the cover plate from each respective C-pillar trim. Use 82 93 474 Removal tool. Saab 9-3 4D M03-...
- Page 7 18 Undo the ceiling trim from the weatherstrip by the rear doors. 19 Carefully lower the roof at the rear edge so that the antenna can be reached. The brake light connector may have to be removed. Saab 9-3 4D M03-...
- Page 8 Connect the kit's antenna cable to the antenna and fit the clips to the cable in the holes in the rear edge of the roof. Guide the antenna cable down along the C-pillar. Saab 9-3 4D M03-...
- Page 9 28 Fit the high-level brake light cover and press and fasten the headlining clip. Cars without telematics unit: Continue with step 29. Cars with telematics unit: Secure the antenna cables to the cable clamps on the parcel shelf. Continue with step 36. Saab 9-3 4D M03-...
- Page 10 REC. · The cable should not lie against any sharp edges as this may cause increased signal reduction. Saab 9-3 4D M03-...
- Page 11 Tightening torque 8 Nm (6 lbf ft) 35 Secure the wiring harness to the weld screws on the parcel shelf and secure the antenna cable in the wiring harness cable clamps. Saab 9-3 4D M03-...
- Page 12 38 Slide in the parcel shelf trim. Make sure the lugs fully engage the mountings in the parcel shelf plate. 39 Fit the clips to the parcel shelf trim. 40 Raise the backrest. Check that the backrest is locked. Saab 9-3 4D M03-...
- Page 13 Cars with telematics unit and where there is around the connector. no bracket at the REC: Continue with step 82. Cars with telematics unit and where a large bracket with space for several units is fitted at the REC: Continue with step 90. Saab 9-3 4D M03-...
- Page 14 48 Remove the two rear retaining screws from the seat. 49 Angle the seat forwards. 50 Draw the seat backwards so that the fitting hooks loosen from their positions. Fold the whole seat backwards. 51 Remove the amplifier. Saab 9-3 4D M03-...
- Page 15 · The cable should not lie against any sharp edges as this may cause increased signal reduction. 53 Remove the fibre optic cable connector (the small connector) from the amplifier connector. Saab 9-3 4D M03-...
- Page 16 · The cable should not lie against any sharp edges as this may cause increased signal reduction. 58 Fit the small connector to the large connector. Saab 9-3 4D M03-...
- Page 17 Do not bend the cable in a radius smaller than 25 mm. · Keep the cable ends free from dirt and grime. · The cable should not lie against any sharp edges as this may cause increased signal reduction. Saab 9-3 4D M03-...
- Page 18 Disconnect the battery's negative cable. 70 M03: Fit the scuff plate and continue with step 71. M04-: Fit the A-pillar trim and the scuff plate and continue with step 82. Saab 9-3 4D M03-...
- Page 19 79 Fit the A-pillar trim. 80 Fit the scuff plate. 81 Cars where there is no bracket at the REC: Continue with step 82. Cars where the bracket at the REC is fitted: Continue with step 90. Saab 9-3 4D M03-...
- Page 20 The visible red light is a class 1 laser. Do not look directly into the optical fibre or the control module connector at close range. A distance of less than 20 mm between your eyes and the light source may cause eye injury. Saab 9-3 4D M03-...
- Page 21 1 in the kit's connector where a fibre optic cable is already connected to position 2. Fit the lock. 89 Fit the small connector to the large connector. Continue with step 109. Saab 9-3 4D M03-...
- Page 22 22 12 801 443 91,92 F930A367 90 Remove the bracket and take it out to facilitate access. 91 Locate the connector for the DVD player at the REC. 92 Connect the kit's wiring harness to the connector. Saab 9-3 4D M03-...
- Page 23 25 mm. 95 Lift up the connector lock tab. · Keep the cable ends free from dirt and grime. · The cable should not lie against any sharp edges as this may cause increased signal reduction. Saab 9-3 4D M03-...
- Page 24 M03: Carefully guide the fibre optic cable away so that it is not damaged. M04-: Fit the fibre optic cable connection in position 2 in the kit's connector. Saab 9-3 4D M03-...
- Page 25 Fit the fibre optic cable's other connection in position 2 in the kit's connector where a fibre optic cable is already connected to position 1. Fit the lock. 108Amplifier and/or CD changer is fitted: Connect the amplifier or CD changer connector. Saab 9-3 4D M03-...
- Page 26 REC. 113 Fit the lock tab. 114 Secure the fibre optic cables on the REC using two cable ties where one of which is fitted to the fibre optic cable which runs from the parcel shelf. Saab 9-3 4D M03-...
- Page 27 116 Fit the bracket. Tighten the nut on the bracket's top side. 117 Secure the kit's wiring harness to the car's wiring harness. 118 M03: Fit the side trims. M04-: Fit the side trim. Saab 9-3 4D M03-...
- Page 28 A distance of less than 20 mm between your eyes and the light source may cause eye injury. M03: Continue with step 124. M04-: Continue with step 130. Saab 9-3 4D M03-...
- Page 29 128Fit the blue marked fibre optic cable (which was not connected) behind the control panel to posi- tion 2. Fit the lock. 129Fit the small connector to the large connector. Saab 9-3 4D M03-...
- Page 30 30 12 801 443 F930A375 130Connect the connector to the kit's control panel. 131Fit the control panel. 132Position and fit the air vent. Saab 9-3 4D M03-...
- Page 31 Locate the unmarked connector with two cables. Connect the connector to the microphone. Fit the microphone on the right-hand side (LHD) or the left-hand side (RHD). Remove the piece of tape covering the opening for the microphone. Saab 9-3 4D M03-...
- Page 32 An audible confirmation will sound when activa- tion is complete. 142Cars where the left-hand front seat is electri- cally adjustable: Reset the position of the seat if it has been changed. Saab 9-3 4D M03-...
