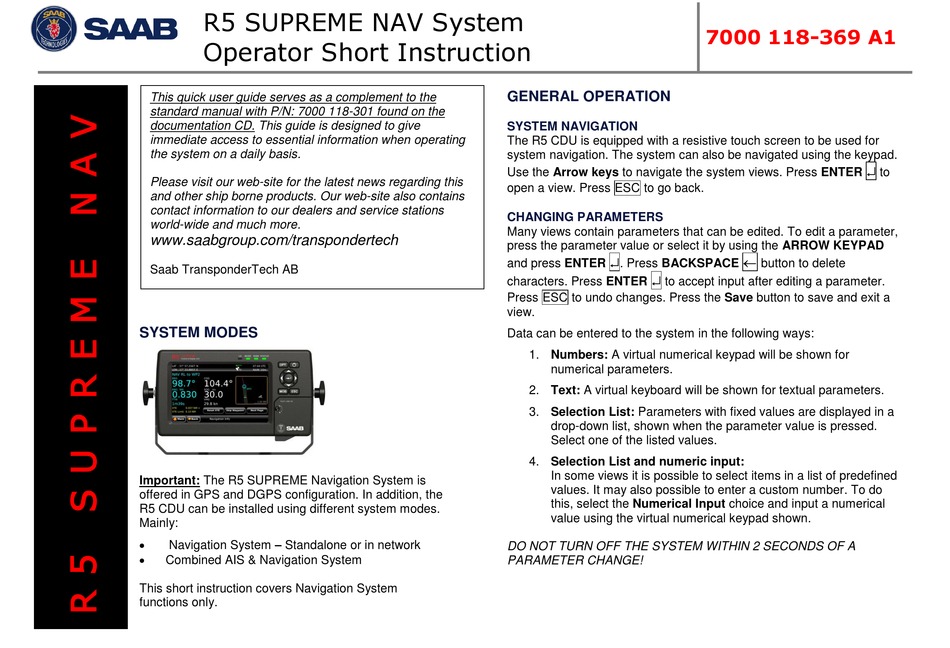

Saab R5 Operator Instructions

R5 SUPREME NAV System
Operator Short Instruction
This quick user guide serves as a complement to the
standard manual with P/N: 7000 118-301 found on the
documentation CD. This guide is designed to give
immediate access to essential information when operating
the system on a daily basis.
Please visit our web-site for the latest news regarding this
and other ship borne products. Our web-site also contains
contact information to our dealers and service stations
world-wide and much more.
www.saabgroup.com/transpondertech
Saab TransponderTech AB
SYSTEM MODES

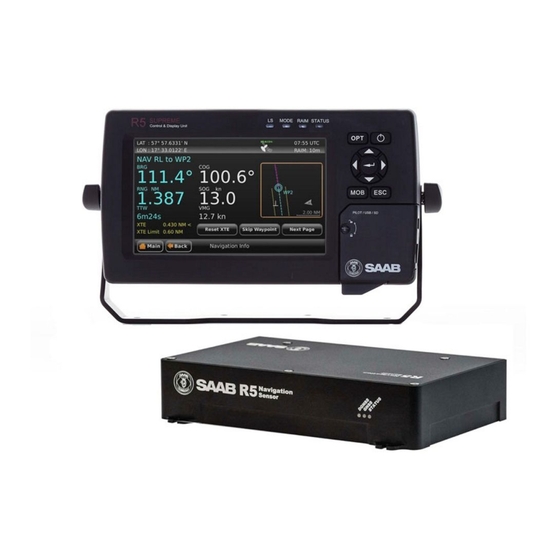

Important: The R5 SUPREME Navigation System is
offered in GPS and DGPS configuration. In addition, the
R5 CDU can be installed using different system modes.
Mainly:

Navigation System – Standalone or in network

Combined AIS & Navigation System
This short instruction covers Navigation System
functions only.
GENERAL OPERATION
SYSTEM NAVIGATION
The R5 CDU is equipped with a resistive touch screen to be used for
system navigation. The system can also be navigated using the keypad.
Use the Arrow keys to navigate the system views. Press ENTER
open a view. Press ESC to go back.
CHANGING PARAMETERS
Many views contain parameters that can be edited. To edit a parameter,
press the parameter value or select it by using the ARROW KEYPAD

and press ENTER . Press BACKSPACE

characters. Press ENTER to accept input after editing a parameter.
Press ESC to undo changes. Press the Save button to save and exit a
view.
Data can be entered to the system in the following ways:
1. Numbers: A virtual numerical keypad will be shown for
numerical parameters.
2. Text: A virtual keyboard will be shown for textual parameters.
3. Selection List: Parameters with fixed values are displayed in a
drop-down list, shown when the parameter value is pressed.
Select one of the listed values.
4. Selection List and numeric input:
In some views it is possible to select items in a list of predefined
values. It may also possible to enter a custom number. To do
this, select the Numerical Input choice and input a numerical
value using the virtual numerical keypad shown.
DO NOT TURN OFF THE SYSTEM WITHIN 2 SECONDS OF A
PARAMETER CHANGE!
7000 118-369 A1

to

button to delete
