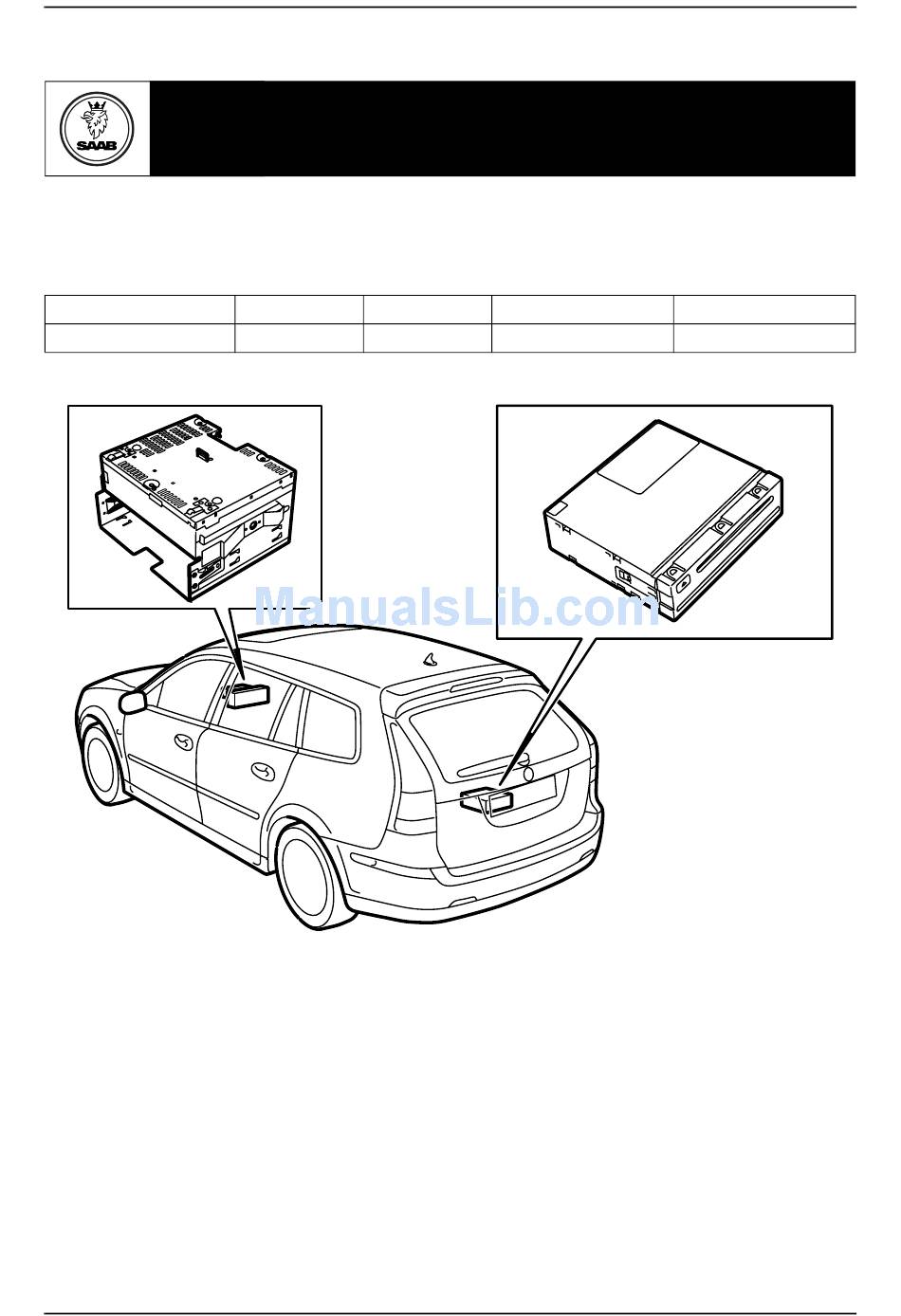

900
SITdefault
Saab 9-3 5D M06-
Navigation system
Accessories Part No.
32 025 681
MONTERINGSANVISNING · INSTALLATION INSTRUCTIONS
MONTAGEANLEITUNG · INSTRUCTIONS DE MONTAGE
Group
9:51-05
SCdefault
Installation instructions
Date
Instruction Part No.
Sep 05
32 025 682
Saab 9-3 5D M06-
Replaces
F930A446
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Saab 32 025 681
Summary of Contents for Saab 32 025 681
- Page 1 Installation instructions SCdefault MONTERINGSANVISNING · INSTALLATION INSTRUCTIONS MONTAGEANLEITUNG · INSTRUCTIONS DE MONTAGE SITdefault Saab 9-3 5D M06- Navigation system Accessories Part No. Group Date Instruction Part No. Replaces 32 025 681 9:51-05 Sep 05 32 025 682 F930A446 Saab 9-3 5D M06-...
- Page 2 Depending on the equipment level of the car the kit may need to be supplemented with: – Control panel (ICM3) – Telematics unit – Console, upper + lower section for telematics unit – Microphone which are ordered separately. Saab 9-3 5D M06-...
-
Page 3: Bus Communication
AMP2 is an amplifier by the right-hand rear wheel housing CU/PU is a telematics unit behind the backrest DVD is a DVD player behind the backrest Saab 9-3 5D M06-... - Page 4 Deposit the replaced control module in the returns packaging without touching its pin. – Remove the tape over the hole for the microphone. · Keep the new control module in its packaging as long as possible. Saab 9-3 5D M06-...
- Page 5 11 Steps 11-14 must be carried out on both sides. Remove the C-pillar trim. 12 Remove the side bolsters. 13 Remove the rear side trim and the covers over the storage compartments. 14 Remove the foam blocks. Saab 9-3 5D M06-...
- Page 6 Tightening torque 2 Nm (1.5 lbf ft) 20 Connect the kit's antenna cable to the antenna, blue connector to the blue connector from the antenna and violet connector to violet. Affix the kit's antenna cable up to the left-hand D-pillar. Saab 9-3 5D M06-...
- Page 7 Follow the car's wiring harness to the loca- tion for the telematics unit. 22 Tape any removed cable along the new one. Apply anti-rattle tape to the connector. 23 Fit the headlining. Cars with rear amplifier (AMP2): Go to step 49. Saab 9-3 5D M06-...
- Page 8 26 Remove the two rear retaining screws from the seat. 27 Angle the seat forwards. 28 Pull the seat back so that the fitting hooks loosen from their positions. Fold the whole seat backwards. 29 Remove the amplifier. Saab 9-3 5D M06-...
- Page 9 33 Remove the protective cover from the connec- tion on the green marked fibre optic cable. 34 Fit the protective cover onto the removed fibre optic cable connection and carefully move the fibre optic cable aside in order to prevent damage. Saab 9-3 5D M06-...
- Page 10 37 Fit the cover to the cable duct, draw back the carpet and guide out the connector and the cables through the hole in the carpet. 38 Connect and fit the amplifier. Cars with integrated phone: Go to step 49. Saab 9-3 5D M06-...
- Page 11 44 Fit the protective cover onto the removed fibre optic cable connection and carefully move the fibre optic cable aside in order to prevent dam- age, and position it behind the wiring harness. Saab 9-3 5D M06-...
- Page 12 Cars with telematics and AMP2: Go to step 114. 54 Cars with TEL1: Remove the existing console on the extra kit's telematics unit. Fit the telemat- ics unit with the extra kit's console behind the rear seat backrest on the left-hand side. Saab 9-3 5D M06-...
- Page 13 REC. 58 Plug the connector for the DVD unit into the smaller connector casing. Cars with TEL1 but without AMP2: Go to step 59. Cars with TEL1 and AMP2: Go to step 76 Saab 9-3 5D M06-...
- Page 14 1 in a fibre optic connector from the kit. 75 Plug the connector into the telematics unit. Go to step 131. Saab 9-3 5D M06-...
- Page 15 79 Fit the fibre optic cable in position 1 in a fibre optic connector from the kit. 80 Fit the locking clip. 81 Remove the protective cover from the connec- tion on the longer extra fibre optic cable. Saab 9-3 5D M06-...
- Page 16 DVD unit. 94 Remove the protective cover from the short extra fibre optic cable's connection and fit it in position 2 in a fibre optic connector from the kit. Saab 9-3 5D M06-...
- Page 17 103Remove the protective cover from the long extra fibre optic cable's connection and fit it in position 1 in a fibre optic connector from the kit. 104Fit the locking clip. Plug the connectors into each other. Lock with the lock tab. Saab 9-3 5D M06-...
- Page 18 118 Fit the fibre optic cable in position 1 in the fibre optic connector for AMP2. 119 Fit the locking clip. 120Plug the fibre optic connector into the large con- nector and plug it into the amplifier. Saab 9-3 5D M06-...
- Page 19 124Fit the locking clip. 125Plug the fibre optic connector into the DVD unit's connector casing and plug it into the DVD unit. 126Unplug the fibre optic cables' connector (the small connector) from the telematics unit's connector. Saab 9-3 5D M06-...
- Page 20 (ICM, EHU, PU, DVD) and select “Add”. Note The diagnostic tool will on some occasions need to retrieve a security code in TIS. Information on what to do will be displayed on the diagnostic tool display. Saab 9-3 5D M06-...
