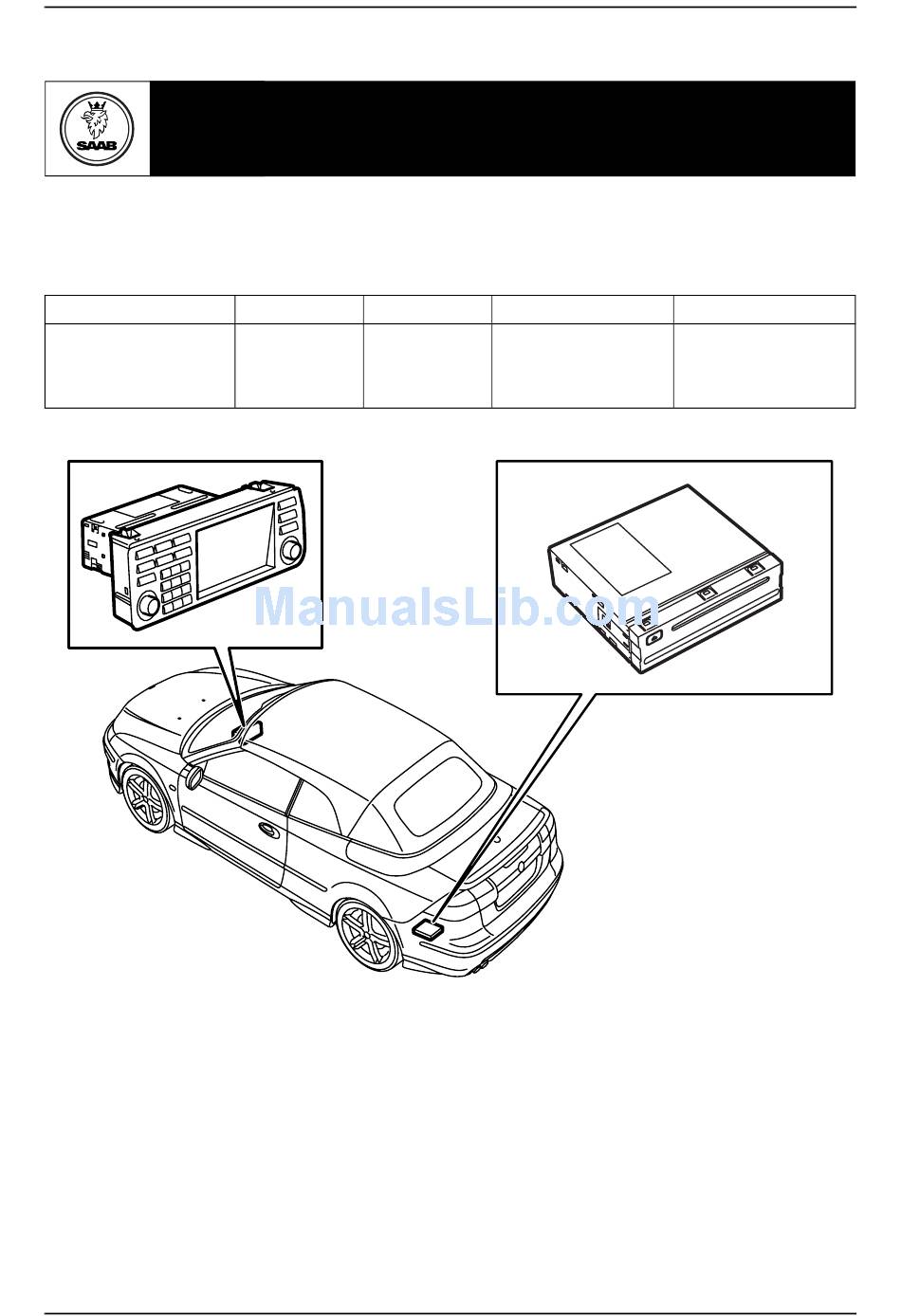

900

SITdefault

Saab 9-3 CV M04-

Navigation system

Accessories Part No.

12 832 506

12 832 507

12 832 520

12 832 522

MONTERINGSANVISNING · INSTALLATION INSTRUCTIONS

MONTAGEANLEITUNG · INSTRUCTIONS DE MONTAGE

Group

9:51-03

SCdefault

Installation instructions

Date

Instruction Part No.

Jan 04

12 832 516

Saab 9-3 CV M04-

Replaces

12 832 516 Aug 03

F930A259

Need help?

Do you have a question about the 12 832 506 and is the answer not in the manual?

Questions and answers

Summary of Contents for Saab 12 832 506

Page 1 Installation instructions SCdefault MONTERINGSANVISNING · INSTALLATION INSTRUCTIONS MONTAGEANLEITUNG · INSTRUCTIONS DE MONTAGE SITdefault Saab 9-3 CV M04- Navigation system Accessories Part No. Group Date Instruction Part No. Replaces 12 832 506 12 832 507 12 832 520 12 832 522...
Page 2 3 Fibre optic cable (x3) 12 Cable tie – Between the units in the luggage compart- (x1 in kit 12 832 506 and 12 832 507) ment console (455 mm long) (x17 in kit 12 832 520 and 12 832 522) –...
Page 3 AMP1 is an amplifier behind the left-hand rear side trim AMP2 is an amplifier by the REC CDC is a CD changer by the REC DVD is a DVD player by the REC Saab 9-3 CV M04-...
Page 4 ON position. TIS2000 may need to be used. When the control module is separated from the car the ignition key must be turned to the OFF position. Following which the control module can be removed. Saab 9-3 CV M04-...
Page 5 If there is a telematics unit fitted then it unit: Continue with step 10. must be removed without the connector being removed. Saab 9-3 CV M04-...
Page 6 Unhook the strap on the rear side of the side trim and remove the side trim. 10 Fold down the soft top completely, but allow the soft top cover to remain open. 11 Open the rear side window fully. Saab 9-3 CV M04-...
Page 7 18 Pull the back rest cushion lower section forwards and lift the back rest cushion upwards. 19 Press out the seat belt guide from the back rest cushion and move the seat belt out from the guide and the back rest cushion. Saab 9-3 CV M04-...
Page 8 If the car has treble speakers the connector must be separated so that the wiring harness between the treble speakers and the mid-range speakers is still connected to the speakers. Remove the bass speakers or the covers. Saab 9-3 CV M04-...
Page 9 There are two antenna cable connections inside the torsion compartment, there is a telematics unit but only the violet antenna cable is connected. There is no antenna cable connection at the right-hand seat belt lower mounting: Continue with step 40. Saab 9-3 CV M04-...
Page 10 28 Cars with an antenna cable that runs further than the centre of the torsion compartment: Continue with step 36. Cars with antenna cable that runs further forward in the car: Continue with step 29. Saab 9-3 CV M04-...
Page 11 These connectors must be pushed together completely so that the lock releases. Note The boot lid must be closed and the soft top cover open in order to gain access to the whole antenna cable. Saab 9-3 CV M04-...
Page 12 The boot lid must be closed and the soft top cover open in order to gain access to the whole antenna cable. 33 Secure the antenna cable to the body and to the existing wiring harness. Saab 9-3 CV M04-...
Page 13 Connect the thick cable to the antenna cable which runs forward in the car and secure them with cable ties to the existing wiring harness. Continue with step 39. Saab 9-3 CV M04-...
Page 14 Car with telematics unit: Remove the antenna cable from the telematics unit. Note The boot lid must be closed and the soft top cover open in order to gain access to the whole antenna cable. Saab 9-3 CV M04-...
Page 15 Note The boot lid must be closed and the soft top cover open in order to gain access to the whole antenna cable. Secure the antenna cable to the body and to the existing wiring harness. Saab 9-3 CV M04-...
Page 16 Cars with telematics unit in the centre of the torsion compartment but without bracket fitted by the REC: Continue with step 84. 41 Remove the left-hand scuff plate. 42 Remove the lower section of the A-pillar trim on the left-hand side. Saab 9-3 CV M04-...
Page 17 Such damage can cause an interruption to communication. · The cable should not lie against any sharp edges as this may cause increased signal reduction. Saab 9-3 CV M04-...
Page 18 Do not bend the cable in a radius smaller than 25 mm. · Keep the cable ends free from dirt and grime. · The cable should not lie against any sharp edges as this may cause increased signal reduction. Saab 9-3 CV M04-...
Page 19 The eyes can be damaged if the distance between the light source and the eyes is less than 20 mm. Saab 9-3 CV M04-...
Page 20 2 cables shall be secured. 59 Remove the protective cover from the fibre optic cable's connection (DVD player - torsion compartment) and fit the connection in position 2 in the small connector inside the torsion compartment. Saab 9-3 CV M04-...
Page 21 60 Remove the connector from the amplifier. 61 Remove the small connector from the large connector. 62 Remove the fibre optic cable connected to posi- tion 1 by opening the connector locking clip and carefully lifting the hook. Saab 9-3 CV M04-...
Page 22 65 Fit the small connector in the large connector and connect the large connector to the amplifier. Continue with step 75. Saab 9-3 CV M04-...
Page 23 20 mm. 70 Fit the kit's fibre optic cable (DVD player - torsion compartment) in position 1 in the kit's connector. Saab 9-3 CV M04-...
Page 24 74 Remove the protective cover from the fibre optic cable's connection (DVD player - torsion compartment) and fit it in position 2 in the small connector inside the torsion compartment. Continue with step 75. Saab 9-3 CV M04-...
Page 25 Red (RD) cable (+) in position 10 Black (BK) cable (-) in position 20 Fit the connector for the telematics unit in the large connector in the kit's wiring harness. Saab 9-3 CV M04-...
Page 26 Red (RD) cable (+) in position 1 Black (BK) cable (-) in position 2 81 Fit the lock, plug in the connector and secure it at the wiring harness to the REC. Saab 9-3 CV M04-...
Page 27 Do not bend the cable in a radius smaller than 25 mm. · Keep the cable ends free from dirt and grime. · The cable should not lie against any sharp edges as this may cause increased signal reduction. Saab 9-3 CV M04-...
Page 28 The eyes can be damaged if the distance between the light source and the eyes is less than 20 mm. Saab 9-3 CV M04-...
Page 29 90 Fit the small connector in the DVD player's connector. 91 Fit the kit's fibre optic cables (DVD player - torsion compartment and DVD player - amplifier) forward along the existing wiring harness. Secure with cable ties. Saab 9-3 CV M04-...
Page 30 Do not bend the cable in a radius smaller than 25 mm. · Keep the cable ends free from dirt and grime. · The cable should not lie against any sharp edges as this may cause increased signal reduction. Saab 9-3 CV M04-...
Page 31 97 Remove the fibre optic cable connected to posi- tion 1 in the connector that was removed by opening the lock in the connector and carefully lifting the hook. Saab 9-3 CV M04-...
Page 32 Secure the fibre optic cable up to the torsion compart- ment using cable ties. 99 Fit the small connector in the large connector and connect the connector to the amplifier. 100Continue with step 117. Saab 9-3 CV M04-...
Page 33 Remove the fibre optic cable connected to posi- tion 1 in the removed connector by opening the lock in the connector and carefully lifting the hook. Carefully move the fibre optic cable aside in order to prevent damage. Saab 9-3 CV M04-...
Page 34 104Cars with amplifier and/or CD changer fitted: Fit the small connector in the amplifier's and/or CD changer's connector. 105Cars with amplifier and/or CD changer fitted: Connect the amplifier's and/or CD changer's connector. Continue with step 117. Saab 9-3 CV M04-...
Page 35 The eyes can be damaged if the distance between the light source and the eyes is less than 20 mm. Saab 9-3 CV M04-...
Page 36 (between the units in the bracket) and fit the connection on the fibre optic cable in position 2 in the kit's connector. 113 Cars with amplifier and/or CD changer fitted: Fit the small connector into the DVD player's connector. Saab 9-3 CV M04-...
Page 37 115 Cars with amplifier and/or CD changer fitted: Fit the small connector in the amplifier's and/or CD changer's connector. 116 Cars with amplifier and/or CD changer fitted: Connect the amplifier's and/or CD changer's connector. Continue with step 117. Saab 9-3 CV M04-...
Page 38 118 Fit the bracket, an in addition, tighten the nut on the top side of the bracket, and secure the wiring harness cable tie in the hole in the bracket. 119 Secure the kit's wiring harness to the car's wiring harness. Saab 9-3 CV M04-...
Page 39 Fit the clips. 123Fit the side scuff plates if they were removed earlier. 124Fit the front section of the luggage compartment trim, the scuff plate and fit the carpet to the luggage compartment floor. Saab 9-3 CV M04-...
Page 40 128Cars where a telematics unit was not fitted in the centre of the torsion compartment: Fit the A-pillar trim. 129Cars where a telematics unit was not fitted in the centre of the torsion compartment: Fit the scuff plate. Saab 9-3 CV M04-...
Page 41 The eyes can be damaged if the distance between the light source and the eyes is less than 20 mm. Saab 9-3 CV M04-...
Page 42 42 12 832 516 F930A295 133Connect the connector to the kit's control panel. 134Fit the control panel. 135Position and fit the air vent. Saab 9-3 CV M04-...
Page 43 141Fit the speaker grille. 142Fit the bass speakers or the covers. Saab 9-3 CV M04-...
Page 44 An audible confirmation will sound when activa- tion is complete. 153Cars where the left-hand front seat is electri- cally adjustable: Reset the position of the seat if it has been changed. Saab 9-3 CV M04-...
