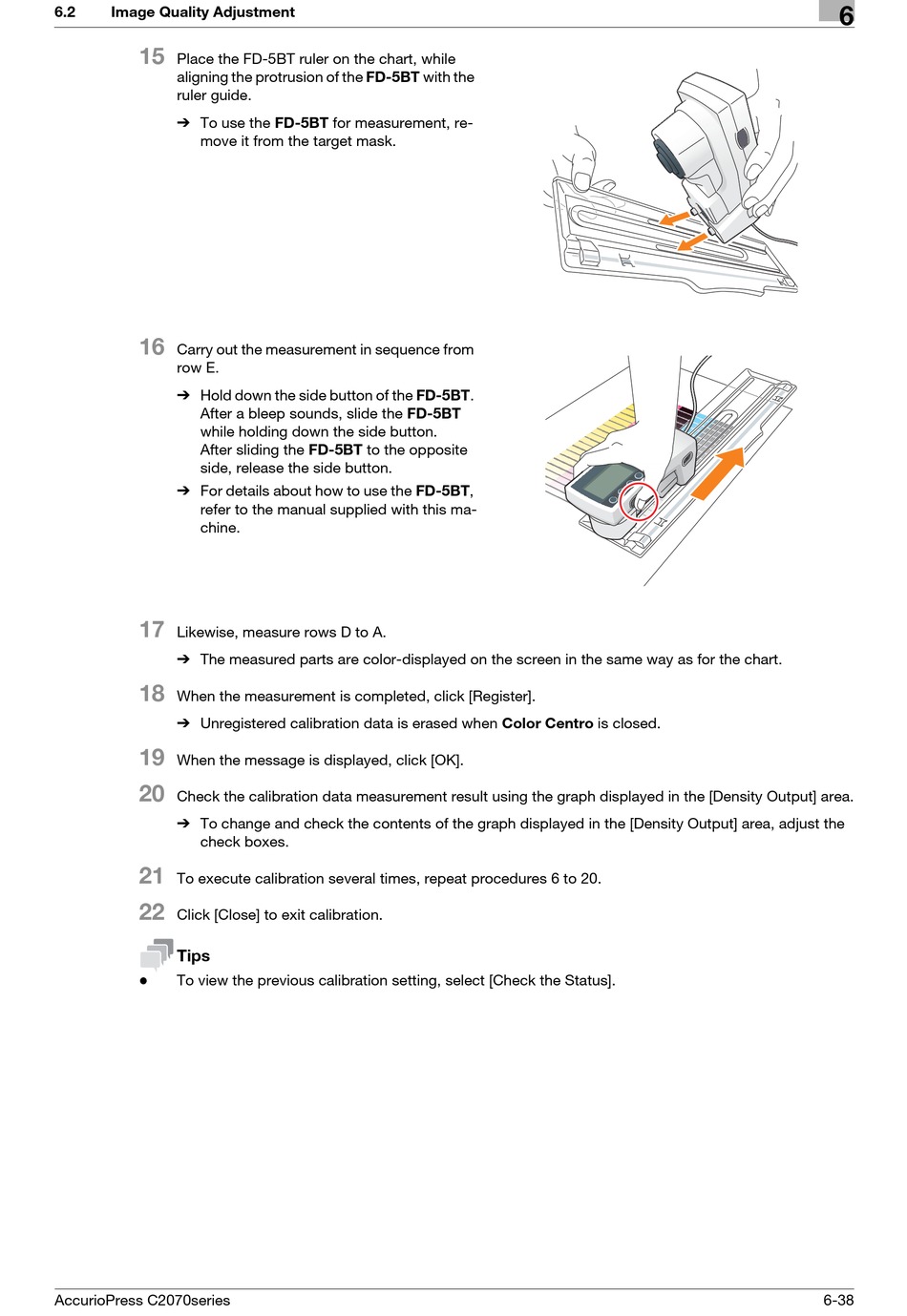

6.2 Image Quality Adjustment
15
Place the FD-5BT ruler on the chart, while
aligning the protrusion of the FD-5BT with the
ruler guide.
% To use the FD-5BT for measurement, re-
move it from the target mask.
16
Carry out the measurement in sequence from
row E.
% Hold down the side button of the FD-5BT.
After a bleep sounds, slide the FD-5BT
while holding down the side button.
After sliding the FD-5BT to the opposite
side, release the side button.
% For details about how to use the FD-5BT,
refer to the manual supplied with this ma-
chine.
17
Likewise, measure rows D to A.
% The measured parts are color-displayed on the screen in the same way as for the chart.
18
When the measurement is completed, click [Register].
% Unregistered calibration data is erased when Color Centro is closed.
19
When the message is displayed, click [OK].
20
Check the calibration data measurement result using the graph displayed in the [Density Output] area.
% To change and check the contents of the graph displayed in the [Density Output] area, adjust the
check boxes.
21
To execute calibration several times, repeat procedures 6 to 20.
22
Click [Close] to exit calibration.
Tips
- To view the previous calibration setting, select [Check the Status].
