Pro-Ox 5900e-AIR Installation & Start-Up Guide
Thank you for purchasing a Clean Water System!
With proper installation and a little routine maintenance
your system will be providing iron free water for many years.
Please review this start-up guide entirely before beginning
to install your system and follow the steps outlined for best results.
MEDIA CONTAINS DUST. USE PAPER MASK AND VENTILATE TO
AVOID BREATHING DUST.
2806-A Soquel Ave. Santa Cruz CA 95062
For assistance call: 1-831-462-8500
Email us:
office@cleanwaterstore.com
More information online:
Pro Ox 5900e-AIR Installation & Startup Guide
www.cleanwaterstore.com
Clean Water Made Easy
www.cleanwaterstore.com
Advertisement
Table of Contents
Related Manuals for Clean Water Systems Pro-Ox 5900e-AIR Series
Summary of Contents for Clean Water Systems Pro-Ox 5900e-AIR Series

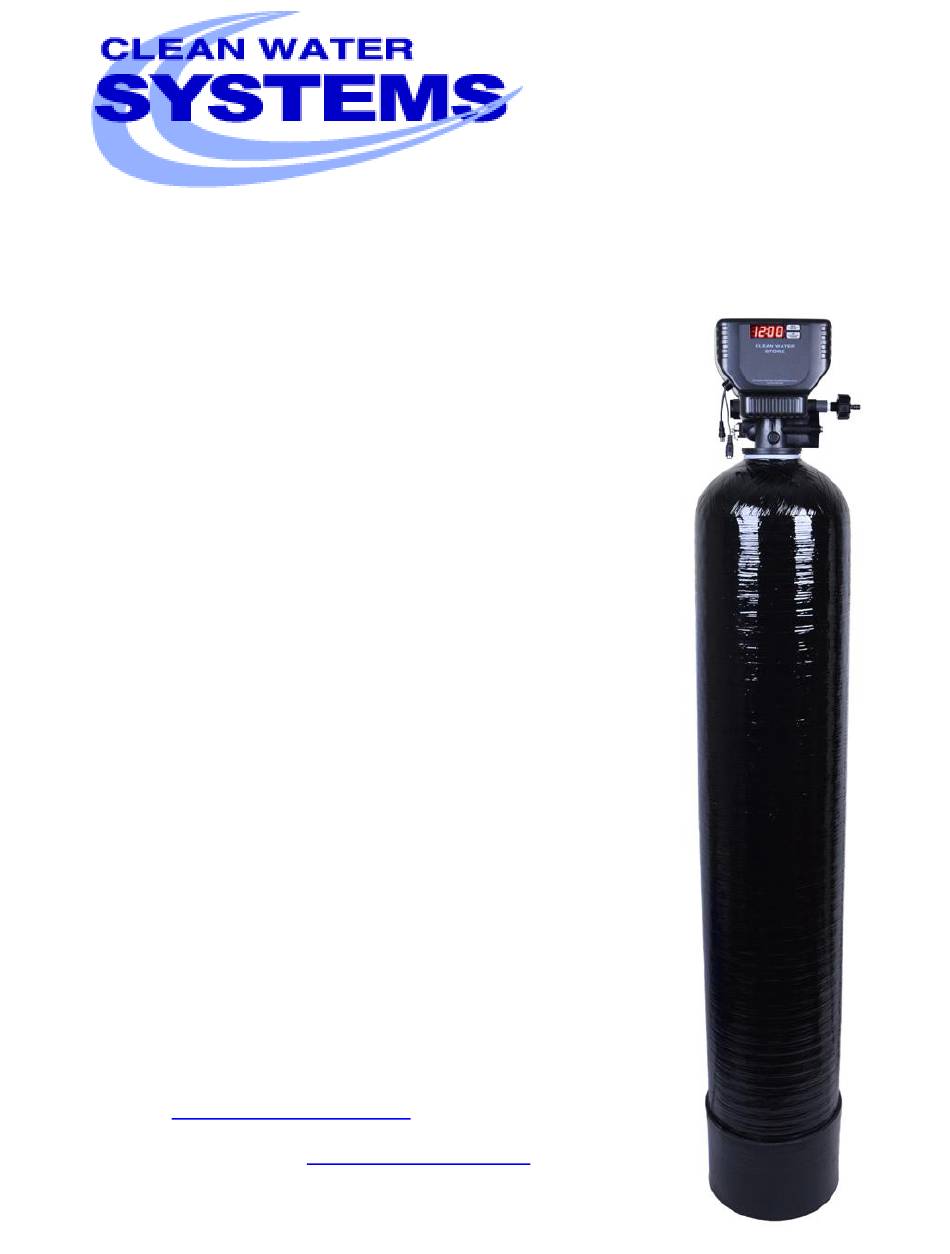

- Page 1 Pro Ox 5900e-AIR Installation & Startup Guide Clean Water Made Easy www.cleanwaterstore.com Pro-Ox 5900e-AIR Installation & Start-Up Guide Thank you for purchasing a Clean Water System! With proper installation and a little routine maintenance your system will be providing iron free water for many years. Please review this start-up guide entirely before beginning to install your system and follow the steps outlined for best results.
-
Page 2: Table Of Contents
Pro Ox 5900e-AIR Installation & Startup Guide Table of Contents Packing List ..............................3 Pro-Ox 5900e-AIR 948 ........................... 3 Pro-Ox 5900e-AIR 1054 ......................... 3 Pro-Ox 5900e-AIR 1254 ......................... 3 How Your Pro Ox 5900e-AIR Works ......................4 System Limitations ............................ 4 Pre-Installation .............................. -
Page 3: Packing List
Pro Ox 5900e-AIR Installation & Startup Guide Packing List Pro-Ox 5900e-AIR 948 Pro-Ox 5900e-AIR control valve w/ bypass assembly and pipe connector kit (1” or 3/4”) 9” x 48” standard filter tank with distributor tube Blue media funnel for adding Pro-OX media 69 lbs. -
Page 4: How Your Pro Ox 5900E-Air Works
Pro Ox 5900e-AIR Installation & Startup Guide How Your Pro Ox 5900e-AIR Works The Pro Ox 5900e-AIR, when properly applied, is an efficient and cost effective system for the removal of iron. The Pro Ox 5900e-AIR control valve maintains a compressed “air pocket” in the top of the tank while the system is in service. -
Page 5: Pre-Installation
Pro Ox 5900e-AIR Installation & Startup Guide Pre-Installation 1. Review your packing list and make sure you have received all the parts before beginning installation. 2. If you are going to be turning off the water to the house and you have an electric water heater, shut off the power to the water heater before beginning installation in case water heater is accidentally drained. -
Page 6: Installation Of Your System Into Copper Or Metal Piping Systems
Pro Ox 5900e-AIR Installation & Startup Guide 6. You do not need unions to install your Pro Ox 5900e-AIR control valve. If you need to remove it, the Pro Ox 5900e-AIR has quick-release couplings that make it easy to put the Pro Ox 5900e-AIR on by-pass and remove the filter system from the piping. -
Page 7: Fig 2 - Typical Pro Ox 5900-Air Piping Installation With Ball Valve And Hose Bib After The Filter
Pro Ox 5900e-AIR Installation & Startup Guide Fig 2 - Typical Pro Ox 5900-AIR piping installation with ball valve and hose bib after the filter Page 7 www.cleanwaterstore.com Rev 030116... -
Page 8: Npt In Noryl Plastic. Brass End-Connectors Are Also Available For Connecting To Copper Tubing
Pro Ox 5900e-AIR Installation & Startup Guide Fig 3: 5900 from the rear showing the inlet (left) and outlet (right) end- connector fittings 3/4” or 1” NPT in Noryl plastic. Brass end-connectors are also available for connecting to copper tubing. Fig 4 5900 Bypass/Service Mode Knob Positions Page 8 www.cleanwaterstore.com... -
Page 9: Assembly And Installation Instructions
Pro Ox 5900e-AIR Installation & Startup Guide Assembly and Installation Instructions 1. Wrap the top of distributor tube with black electrical tape or blue painter’s masking tape so that no gravel or Pro-OX media will go down the distributor tube when adding the media. Also, leaving a folded tab of tape that you will be able to grab onto to gently pull off the tape after filling the tank. -
Page 10: Fig 5: 5900E Bypass With Barrels Fig 6: Bypass With Steel Mounting Clips
Pro Ox 5900e-AIR Installation & Startup Guide Fig 5: 5900e Bypass with Barrels Fig 6: Bypass with steel mounting clips Assemble the bypass valve 7. When you remove the bypass valve from the box, the valves are in the open position. Holding the bypass so that you are reading the In and Out (so that the words are not upside down to you when holding the bypass), note the following: 8. - Page 11 Pro Ox 5900e-AIR Installation & Startup Guide c) If the valve you are attaching the bypass to does not have a flow sensor, then it has the same type of barrels that are on the opposite side of the bypass. Take out the barrels and apply silicone grease to all four o-rings and push in the barrels and attach the bypass.
- Page 12 Pro Ox 5900e-AIR Installation & Startup Guide Assemble The Drain Line Flow Control Hose Barb: 1.0 CF 7 GPM 1.5 CF 10 GPM 12GPM 12. Remove the clip and the Drain Line fitting (Upper left). Add Teflon tape and paste (Upper right). Install DLFC Button (Lower left).
-
Page 13: Programming Your Valve
Pro Ox 5900e-AIR Installation & Startup Guide Programming Your Valve *While scrolling through numbers, it only increases the value. To decrease the value, you will have to “go all the way around” to get back to a lower value. 1. To enter main menu press the Menu/Enter button (Time of day will flash) 2. -
Page 14: Master Programming Mode
Pro Ox 5900e-AIR Installation & Startup Guide Next you will need to set the Master Programming to be used as a Pro Ox 5900e-AIR filter, continue on to the Master Programming to finish the programming instructions. Master Programming Mode Entering Master Programming Mode -To enter Master Programming Mode press and hold both buttons for 5 seconds. -
Page 15: Initial Backwash
Pro Ox 5900e-AIR Installation & Startup Guide Note on Air-Draw Cycle (5): The longer the unit is set to remain in the air-draw cycle (5), the more air is drawn into the system. A default setting of 12 minutes draws air down to the level of a normal media bed height and then returns the unit to the home display. -
Page 16: Maintenance
Pro Ox 5900e-AIR Installation & Startup Guide backwash is critical to properly clean the Pro-Ox media and prevent it from becoming fouled and then allowing iron past the filter. 1.0 CF 7 GPM 1.5 CF 10 GPM 2.0 CF 12 GPM Once the water is mostly clear, press and hold the Set/Change button, and after 3 seconds the valve will start to advance to the “Rinse”... -
Page 17: How To Start An Extra Regeneration Cycle
Pro Ox 5900e-AIR Installation & Startup Guide -The battery back-up continues to count down gallons remaining during power failure (Metered Version) Note: During power failure to conserve battery power the display is turned off. However, to confirm that the battery is working you can press either button and the display will turn on for five seconds. -
Page 18: Error Codes
Pro Ox 5900e-AIR Installation & Startup Guide Error Codes There are five (5) error codes that could indicate a possible problem with the control valve: Error 2 - Homing slot expected. Valve will start looking for home. (Normal operation continues) Error 3 - Encoder is not sending a signal (Valve requires service to continue) Error 4 - Unable to find homing slot... - Page 19 Pro Ox 5900e-AIR Installation & Startup Guide 6) Open the Inlet valve just enough so you can hear the water passing thru the valve- you should notice a corresponding slow flow out of the drain line. After a minute, if there are no air bubbles present, open the valve about another quarter inch- again, you should see a corresponding increase in the flow…...
