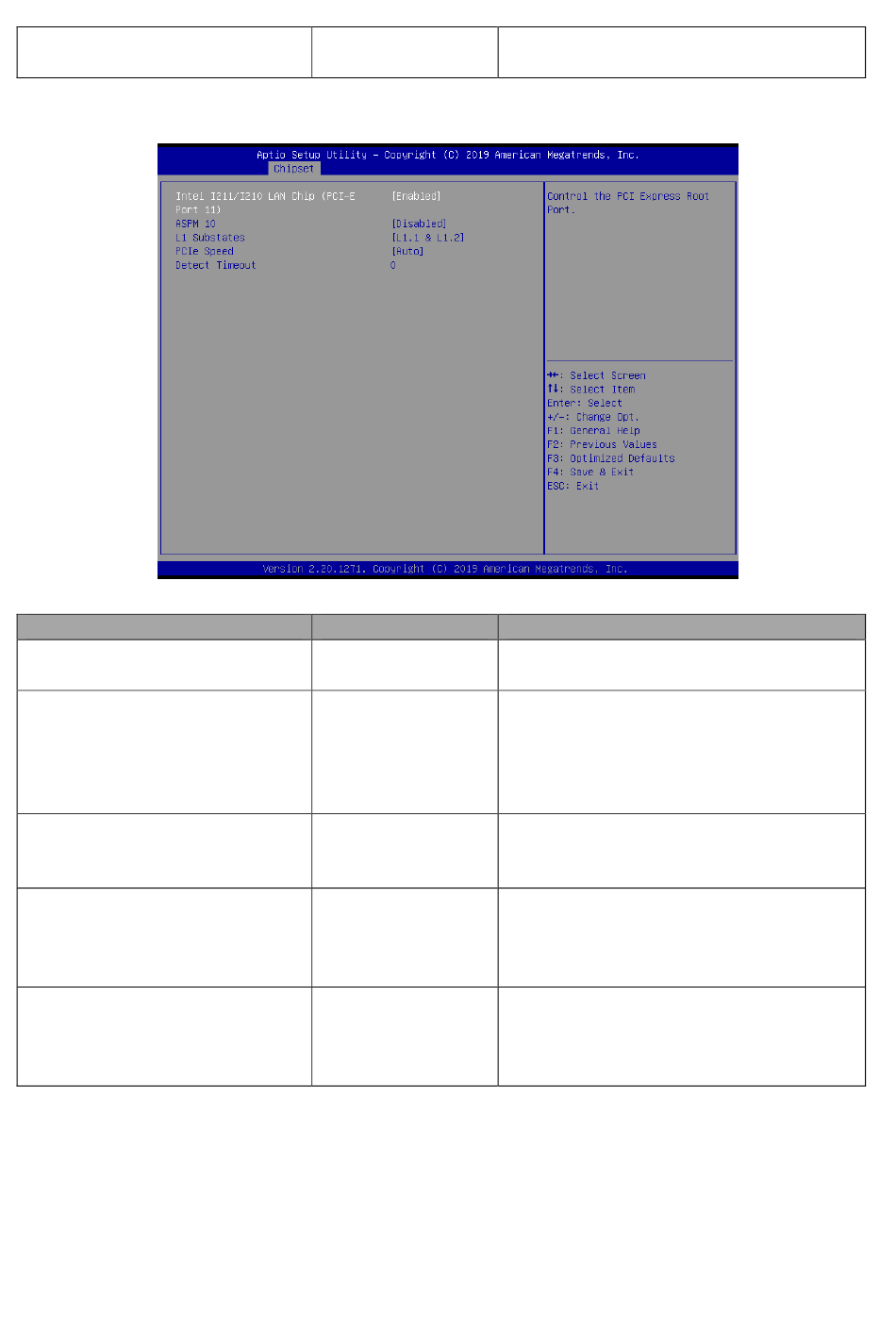

Intel I211/I210 LAN Chip (PCI-E Port 11)

Item
Intel I211/I210 LAN Chip (PCI-E
Port 11)
ASPM 10
L1 Substates
PCIe Speed
Detect Timeout
Option
Disabled
Enabled[Default],
Disabled[Default]
L0s
L1
L0sL1
Auto
Disabled
L1.1
L1.1 & L1.2[Default]
Auto[Default]
Gen1
Gen2
Gen3
0[Default],
device and potentially disabling the port.
Description
Control the PCI Express Root Port.
Set the ASPM Level: Force L0s – Force all
links to L0s State AUTO – BIOS auto
configure DISABLE – Disables ASPM.
PCI Express L1 Substates settings.
Configure PCIe Speed
The number of milliseconds reference code
will wait for link to exit Detect state for
enabled ports before assuming there is no
device and potentially disabling the port.
