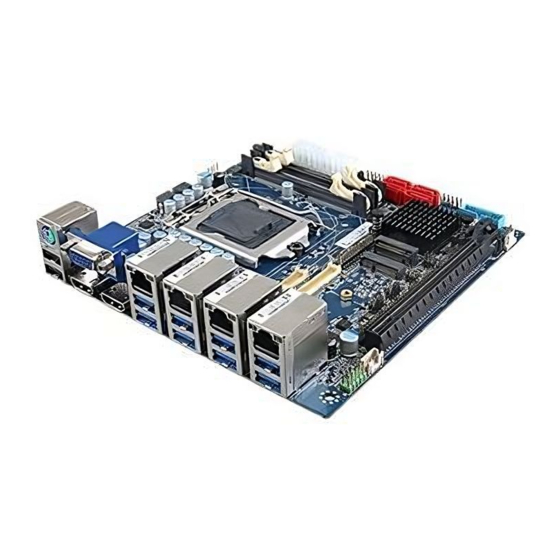

- Page 1 EMX-C246P-B1 Intel® 8/9th Generation Core™ Processor Mini ITX Motherboard With Intel® C246 Chipset User’s Manual Ed – 10 2022 January Part No. E2047M24600R...
- Page 2 Disclaimer Avalue Technology Inc. reserves the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. Avalue Technology assumes no responsibility or liability for the...
- Page 3 Applications that are described in this manual are for illustration purposes only. Avalue Technology Inc. makes no representation or warranty that such application will be suitable for the specified use without further testing or modification.
- Page 4 A product returned without proof of the purchase date is not eligible for warranty service. Write the RMA number visibly on the outside of the package and ship it prepaid to your dealer. 4 EMX-C246P-B1 User’s Manual...
-
Page 5: Table Of Contents
2.3.20 Serial port 1 connector (COM1)..................... 28 2.3.21 Serial port 2 connector (COM2)..................... 29 2.3.22 USB connector (JUSBH1) ......................29 2.3.23 USB connector (JUSBH2) ......................30 2.3.24 J1RS1 connector (J1RS1) ......................30 2.3.25 J1RS2 connector (J1RS2) ......................31 EMX-C246P-B1 User’s Manual... - Page 6 Serial Port Console Redirection .................... 52 3.6.2.8.1 Legacy Console Redirection Settings ................... 53 3.6.2.9 USB Configuration ......................... 54 3.6.2.10 Network Stack Configuration ....................55 3.6.2.11 NVMe Configuration ......................55 3.6.3 Chipset ............................56 3.6.3.1 System Agent (SA) Configuration ..................56 6 EMX-C246P-B1 User’s Manual...
- Page 7 Install Chipset Driver ....................75 Install VGA Driver ....................76 Install ME Driver ...................... 77 Install Audio Driver (For Realtek ALC888S HD Audio) ..........78 Install LAN Driver ....................79 Install RST Driver ....................81 5. Mechanical Drawing ....................83 EMX-C246P-B1 User’s Manual...
-
Page 8: Getting Started
1.2 Packing List Before you begin installing your single board, please make sure that the following materials have been shipped: 1 x EMX-C246P motherboard 2 x SATA cables 1 x I/O Shield 8 EMX-C246P-B1 User’s Manual... -
Page 9: Document Amendment History
User’s Manual 1.3 Document Amendment History Revision Date Comment January 2022 Avalue Initial Release EMX-C246P-B1 User’s Manual... -
Page 10: Manual Objectives
EMX-C246P-B1 User’s Manual 1.4 Manual Objectives This manual describes in details Avalue Technology EMX-C246P-B1 Single Board. We have tried to include as much information as possible but we have not duplicated information that is provided in the standard IBM Technical References, unless it proved to be necessary to aid in the understanding of this board. -
Page 11: System Specifications
AC97 Codec Realtek ALC888S co-lay ALC897 (Default: ALC888S) HD Audio Decoding Controller ALC105 4Ω/3W per channel Amplifier Audio Amp Ethernet Specification 1 x Intel® I219LM Gigabit Ethernet PHY LAN Chip 3 x Intel® I210AT PCI-e Gigabit Ethernet EMX-C246P-B1 User’s Manual 11... - Page 12 Onboard buzzer 1 x 1 x 3 pin pitch 2.00mm connector for AT/ATX jumper 1 x 2 x 10 pin ATX power connector 1 x 2 x 2 pin ATX 12V power connector Rear I/O Connectors 12 EMX-C246P-B1 User’s Manual...
- Page 13 1. Win10 64bit UEFI A. Intel® LGA1151 Socket Supports 8th Generation CPU (listed in accordance with Intel document) B. Intel® LGA1151 Socket Supports 9th Generation refresh CPU 2. Linux Note: Specifications are subject to change without notice. EMX-C246P-B1 User’s Manual 13...
-
Page 14: Architecture Overview-Block Diagram
EMX-C246P-B1 User’s Manual 1.6 Architecture Overview—Block Diagram The following block diagram shows the architecture and main components of EMX-C246P-B1. 14 EMX-C246P-B1 User’s Manual... -
Page 15: Hardware Configuration
User’s Manual 2. Hardware Configuration EMX-C246P-B1 User’s Manual 15... -
Page 16: Product Overview
EMX-C246P-B1 User’s Manual 2.1 Product Overview 16 EMX-C246P-B1 User’s Manual... -
Page 17: Jumper And Connector List
4 x 1 wafer, pitch 2.54mm CPUFAN1 CPU fan connector System fan connector 1 SYSFAN1 4 x 1 wafer, pitch 2.54mm (with smart fan function supported) SPI1 Miscellaneous setting connector 4 x 2 header, pitch 2.00mm EMX-C246P-B1 User’s Manual 17... - Page 18 2 x 1 wafer, pitch 1.25mm BAT1 ATX Power connector 12 x 2 wafer, pitch 4.20mm ATXPWR1 ATXPWR2 ATX Power connector 2 x 2 wafer, pitch 4.20mm JSATA1~4 Serial ATA connector 1~4 HDMI1/2 HDMI connector VGA1 VGA connector 18 EMX-C246P-B1 User’s Manual...
-
Page 19: Setting Jumpers & Connectors
User’s Manual 2.3 Setting Jumpers & Connectors 2.3.1 Serial port 2 pin9 signal select (JRI2) Ring* +12V * Default 2.3.2 Serial port 1 pin9 signal select (JRI1) Ring* +12V * Default EMX-C246P-B1 User’s Manual 19... -
Page 20: Bios Me Function Configuration (Jme1)
EMX-C246P-B1 User’s Manual 2.3.3 BIOS ME function configuration (JME1) Enable ME * Disable ME * Default 2.3.4 Clear CMOS (JCMOS1) Protect* Clear CMOS * Default 20 EMX-C246P-B1 User’s Manual... -
Page 21: Jpge Connector (Jpge1)
User’s Manual 2.3.5 JPGE connector (JPGE1) PCIE X16 * PCIE X8 * Default 2.3.6 AT/ATX Power Mode Select (JSATX1) ATX* * Default EMX-C246P-B1 User’s Manual 21... -
Page 22: General Purpose I/O Connector (Dio1)
EMX-C246P-B1 User’s Manual 2.3.7 General purpose I/O connector (DIO1) Signal PIN PIN Signal 5V_SMB_DATA 5V_SMB_CLK 2.3.8 ATX Power connector (ATXPWR1) Signal PIN PIN Signal +3.3V +3.3V -12V +3.3V ATX_PSON# 16 ATX20_PWROK +V5A_SB +12V 22 EMX-C246P-B1 User’s Manual... -
Page 23: Atx Power Connector (Atxpwr2)
User’s Manual 2.3.9 ATX Power connector (ATXPWR2) Signal Signal +VIN_12-24V +VIN_12-24V 2.3.10 USB connector (JUSB1) Signal PIN PIN Signal +V5A_P5USB +V5A_P5USB USB30_RX_N9 USB30_RX_N10 USB30_RX_P9 USB30_RX_P10 USB30_TXN9 USB30_TXN10 USB30_TXP9 USB30_TXP10 USB_N9 USB_N10 USB_P9 USB_P10 EMX-C246P-B1 User’s Manual 23... -
Page 24: Battery Connector (Bat1)
EMX-C246P-B1 User’s Manual 2.3.11 Battery connector (BAT1) Signal +3.3V 2.3.12 LPC connector (JLPC1) Signal PIN PIN Signal LPC_SERIRQ LPC_DEG_CLK LPC_AD3 LPC_FRAME# LPC_AD2 PLT_RST#_BUF LPC_AD1 +3.3V LPC_AD0 24 EMX-C246P-B1 User’s Manual... -
Page 25: Miscellaneous Setting Connector (Spi)
User’s Manual 2.3.13 Miscellaneous setting connector (SPI) Signal PIN PIN Signal +3.3V SPI_CS0# SPI_CLK SPI_MISO SPI_MOSI SPI_HOLD# 2.3.14 Speaker connector (SPK1) Signal LSPK+ LSPK- RSPK+ RSPK- EMX-C246P-B1 User’s Manual 25... -
Page 26: Lcd Inverter Connector (Jbkl1)
EMX-C246P-B1 User’s Manual 2.3.15 LCD Inverter connector (JBKL1) Signal +12V LVDS_BKLTEN LVDS_BKLADJ 2.3.16 Front Panel connector (JFP1) Signal PIN PIN Signal HDD_LED+ PWR_LED+ HDD_LED- PWR_LED- SYS_RST# PWRBTN# 26 EMX-C246P-B1 User’s Manual... -
Page 27: Cpu Fan Connector (Cpufan1)
User’s Manual 2.3.17 CPU fan connector (CPUFAN1) Signal +12V CPU_R_FANIN CPU_FANOUT 2.3.18 System fan connector (SYSFAN1) Signal SYS_FANOUT SYS_R_FANIN +12V EMX-C246P-B1 User’s Manual 27... -
Page 28: Auxiliary Panel Connector (Jauxp1)
EMX-C246P-B1 User’s Manual 2.3.19 Auxiliary Panel connector (JAUXP1) Signal PIN PIN Signal FRONT_LAN1_ACT FRONT_LAN2_ACT FRONT_LAN3_ACT FRONT_LAN4_ACT 2.3.20 Serial port 1 connector (COM1) Signal PIN PIN Signal NDCDA# NRXDA NTXDA NDTRA# NDSRA# NRTSA# NCTSA# NRIA# 28 EMX-C246P-B1 User’s Manual... -
Page 29: Serial Port 2 Connector (Com2)
User’s Manual 2.3.21 Serial port 2 connector (COM2) Signal PIN PIN Signal NDCDB# NRXDB NTXDB NDTRB# NDSRB# NRTSB# NCTSB# NRIB# 2.3.22 USB connector (JUSBH1) Signal PIN PIN Signal +V5A_USB_H123 +V5A_USB_H123 USB_HDN1 USB_HDN2 USB_HDP1 USB_HDP2 EMX-C246P-B1 User’s Manual 29... -
Page 30: Usb Connector (Jusbh2)
EMX-C246P-B1 User’s Manual 2.3.23 USB connector (JUSBH2) Signal +V5A_USB_H123 USB_HDN3 USB_HDP3 2.3.24 J1RS1 connector (J1RS1) Signal PIN PIN Signal A485TX- A422RX- A485TX+ A422RX+ 30 EMX-C246P-B1 User’s Manual... -
Page 31: J1Rs2 Connector (J1Rs2)
User’s Manual 2.3.25 J1RS2 connector (J1RS2) Signal PIN PIN Signal B485TX- B422RX- B485TX+ B422RX+ 2.3.26 Front Audio connector (FAUD1) Signal PIN PIN Signal MIC2_L MIC2_R AUD_FRONT_DET LINE2_R MIC2_JD SENSE_B LINE2_L LINE2_JD EMX-C246P-B1 User’s Manual 31... -
Page 32: Serial Port Connector (4Com1)
Signal PIN PIN Signal NRIF# NCTSF# NRTSF# NDSRF# NDTRF# NTXDF NRXDF NDCDF# NRIE# NCTSE# NRTSE# NDSRE# NDTRE# NTXDE NRXDE NDCDE# NRID# NCTSD# NRTSD# NDSRD# NDTRD# NTXDD NRXDD NDCDD# NRIC# NCTSC# NRTSC# NDSRC# NDTRC# NTXDC NRXDC NDCDC# 32 EMX-C246P-B1 User’s Manual... -
Page 33: Lvds Connector (Lvds1)
User’s Manual 2.3.28 LVDS connector (LVDS1) Signal PIN PIN Signal LVDS_VDD12V LVDS_VDD12V LVDS_CLK2N LVDS_CLK1N LVDS_CLK2P LVDS_CLK1P LVDS_DATAN7 LVDS_DATAN6 LVDS_DATAP7 LVDS_DATAP6 LVDS_DATAN5 LVDS_DATAN4 LVDS_DATAP5 LVDS_DATAP4 LVDS_DATAN3 LVDS_DATAN2 LVDS_DATAP3 LVDS_DATAP2 LVDS_DATAN1 LVDS_DATAN0 LVDS_DATAP1 LVDS_DATAP0 LVDS_VDD33V LVDS_VDD5 LVDS_VDD33V LVDS_VDD5 EMX-C246P-B1 User’s Manual 33... -
Page 34: Edp-Panel Connector (Edp 1)
EMX-C246P-B1 User’s Manual 2.3.29 eDP-Panel connector (EDP 1) Signal PIN PIN Signal EDP_VCC_PAL 19 20 EDP_VCC_PAL EDP_TXP2 EDP_C_HPD EDP_TXN2 EDP_AUXP EDP_TXP1 EDP_AUXN EDP_TXN1 EDP_TXP0 EDP_TXP3 EDP_TXN0 EDP_TXN3 34 EMX-C246P-B1 User’s Manual... -
Page 35: Bios Setup
User’s Manual 3.BIOS Setup EMX-C246P-B1 User’s Manual 35... -
Page 36: Introduction
If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to. Press F1 to Continue, DEL to enter SETUP 36 EMX-C246P-B1 User’s Manual... -
Page 37: Using Setup
Note: Some of the navigation keys differ from one screen to another. To Display a Sub Menu Use the arrow keys to move the cursor to the sub menu you want. Then press <Enter>. A “” pointer marks all sub menus. EMX-C246P-B1 User’s Manual 37... -
Page 38: Getting Help
BIOS Vendor and your systems manufacturer to provide the absolute maximum performance and reliability. Even a seemingly small change to the chipset setup has the potential for causing you to use the override. 38 EMX-C246P-B1 User’s Manual... -
Page 39: Bios Setup
<Enter> to accept and enter the sub-menu. 3.6.1 Main Menu This section allows you to record some basic hardware configurations in your computer and set the system clock. EMX-C246P-B1 User’s Manual 39... -
Page 40: System Language
Visit the Avalue website (www.avalue.com.tw) to download the latest product and BIOS information. 3.6.2 Advanced Menu This section allows you to configure your CPU and other system devices for basic operation through the following sub-menus. 40 EMX-C246P-B1 User’s Manual... -
Page 41: Cpu Configuration
Item Options Description When enabled, a VMM can utilize the Intel (VMX) Virtualization Disabled additional hardware capabilities provided by Technology Enabled[Default], Vanderpool Technology. All[Default], Number of cores to enable in each processor Active Processor Cores package. EMX-C246P-B1 User’s Manual 41... -
Page 42: Cpu - Power Management Control
Package C-State Demotion Enabled Disabled[Default], Package C-State Un-demotion Package C-State Un-demotion Enabled C0/C1 Maximum Package C State Limit Setting. Cpu Package C State Limit Default: Leaves to Factory default value.Auto: Initializes to deepest available Package C 42 EMX-C246P-B1 User’s Manual... -
Page 43: Pch-Fw Configuration
Options Description When disabled AMT BIOS Feature are no longer Disabled supported and user is no longer able to access MEBx AMT BIOS Features Enabled[Default], Setup. Note: This option does not disable Manageability Features in FW. EMX-C246P-B1 User’s Manual 43... -
Page 44: Oem Flags Settings
3.6.2.2.1 OEM Flags Settings Item Description OEMFlag Bit 15: Unconfigure ME with resetting MEBx password to Unconfigure ME default. 3.6.2.2.2 Firmware Update Configuration Item Option Description Disabled[Default], Me FW Image Re-Flash Enable/Disable Me FW Image Re-Flash function. Enabled 44 EMX-C246P-B1 User’s Manual... -
Page 45: Trusted Computing
3.6.2.4 ACPI Settings Item Options Description Enable ACPI Auto Disabled[Default], Enables or Disables BIOS ACPI Auto Configuration Enabled Configuration. Disabled Enables or Disables System ability to Hibernate Enable Hibernation Enabled[Default], (OS/S4 Sleep State). This option may be not EMX-C246P-B1 User’s Manual 45... -
Page 46: Super Io Configuration
Set Parameters of Serial Port 3 (COMC). Serial Port 4 Configuration Set Parameters of Serial Port 4 (COMD). Serial Port 5 Configuration Set Parameters of Serial Port 5 (COME). Serial Port 6 Configuration Set Parameters of Serial Port 6 (COMF). 46 EMX-C246P-B1 User’s Manual... -
Page 47: Serial Port 1 Configuration
3.6.2.5.1 Serial Port 1 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled[Default], RS232[Default], UART 232 422 485 RS422 Set COM Port as RS232, RS422 or RS485 mode. RS485 3.6.2.5.2 Serial Port 2 Configuration EMX-C246P-B1 User’s Manual 47... -
Page 48: Serial Port 3 Configuration
UART 232 422 485 RS422 Set COM Port as RS232, RS422 or RS485 mode. RS485 3.6.2.5.3 Serial Port 3 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled[Default], 3.6.2.5.4 Serial Port 4 Configuration 48 EMX-C246P-B1 User’s Manual... -
Page 49: Serial Port 5 Configuration
Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled[Default], 3.6.2.5.5 Serial Port 5 Configuration Item Option Description Disabled Serial Port Enable or Disable Serial Port (COM). Enabled[Default], 3.6.2.5.6 Serial Port 6 Configuration EMX-C246P-B1 User’s Manual 49... -
Page 50: Nct6106D H/W Monitor
3.6.2.6 NCT6106D H/W Monitor 3.6.2.6.1 Smart Fan Configuration Item Option Description Manual Mode Mode 01 Avalue Smart Fan Mode Select: Mode 01 to Mode CPU Fan Mode Mode 02 20 Or Manual (No Smart Fan) Mode 03 50 EMX-C246P-B1 User’s Manual... - Page 51 Avalue Smart Fan Mode Select: Mode 01 to Mode SYS Fan Mode Mode 10 20 Or Manual (No Smart Fan) Mode 11 Mode 12 Mode 13 Mode 14 Mode 15 Mode 16 Mode 17 Mode 18 Mode 19 Mode 20 EMX-C246P-B1 User’s Manual 51...
-
Page 52: S5 Rtc Wake Settings
Wake system from S5 Fixed Time specified. Select Dynamic Time, System will wake on Dynamic Time the current time + Increase minute(s). 3.6.2.8 Serial Port Console Redirection Item Options Description Disabled[Default], Console Redirection Console Redirection Enable or Disable. Enabled 52 EMX-C246P-B1 User’s Manual... -
Page 53: Legacy Console Redirection Settings
Console Redirection is disabled before booting Always Enable[Default] to legacy OS. When Always Enable is selected, Redirect After POST BootLoader then Legacy Console Redirection is enabled for legacy OS. Default setting for this option is set to Always Enable. EMX-C246P-B1 User’s Manual 53... -
Page 54: Usb Configuration
Maximum time the device will take before it properly reports itself to the Host Controller. ‘Auto’ Auto[Default] Device power-up delay Manual uses default value: for a Root port it is 100ms, for a Hub port the delay is taken form Hub descriptor. 54 EMX-C246P-B1 User’s Manual... -
Page 55: Network Stack Configuration
Item Options Description Disabled[Default], Network Stack Enable/Disable UEFI Network Stack. Enabled quad Note: Motherboard designed with Gigabit LAN consumes longer startup time when Network Stack setting at “Enable”, this is a normal phenomenon. 3.6.2.11 NVMe Configuration EMX-C246P-B1 User’s Manual 55... -
Page 56: Chipset
EMX-C246P-B1 User’s Manual 3.6.3 Chipset 3.6.3.1 System Agent (SA) Configuration Item Option Description Disabled VT-d VT-d capability. Enabled[Default] 56 EMX-C246P-B1 User’s Manual... -
Page 57: Memory Configuration
1.25 GB 1.5 GB Maximum Value of TOLUD. Dynamic assignment 1.75 GB Max TOLUD would adjust TOLUD automatically based on 2 GB largest MMIO length of installed graphic controller 2.25 GB 2.5 GB 2.75 GB 3 GB EMX-C246P-B1 User’s Manual 57... -
Page 58: Graphics Configuration
EMX-C246P-B1 User’s Manual 3.6.3.1.2 Graphics Configuration Item Option Description Auto[Default] Select which of IGFX/PEG/PCI Graphics Primary Display IGFX device should be Primary Display GTT Size Select the GTT Size 8MB[Default] 3.6.3.1.3 DMI/OPI Configuration 58 EMX-C246P-B1 User’s Manual... -
Page 59: Peg Port Configuration
PEG0 (PCIEX1) Max Payload size Auto(Default Device Capability) or force to 256 TLP 128/256 Bytes Enabled: PCIe ASPM will be Programmed Disabled[Default] Program PCIe ASPM after OpROM after OpROM. Disabled: PCIe ASPM will be Enabled Programmed before OpROM. EMX-C246P-B1 User’s Manual 59... -
Page 60: Peg Port Feature Configuration
EMX-C246P-B1 User’s Manual 3.6.3.1.4.1 PEG Port Feature Configuration Item Option Description Disabled[Default] Detect Non-Compliance PCI Express Device Detect Non-Compliance Device Enabled in PEG 3.6.3.2 PCH-IO Configuration Item Option Description Enabled[Default] PCH LAN Controller Enable/Disable onboard NIC. Disabled 60 EMX-C246P-B1 User’s Manual... -
Page 61: Pci Express Configuration
Control the PCI Express Root Port. (PCI-E Port 6) Enabled[Default], Disabled[Default] Set the ASPM Level: Force L0s – Force all links to L0s State AUTO – BIOS auto configure DISABLE – ASPM 5 L0sL1 Disables ASPM. Auto EMX-C246P-B1 User’s Manual 61... -
Page 62: Keye (Pci-E Port 7~8)
PCI Express L1 Substates settings. L1.1 & L1.2[Default] Auto[Default] Gen1 PCIe Speed Configure PCIe Speed Gen2 Gen3 The number of milliseconds reference code will wait for Detect Timeout link to exit Detect state for enabled ports before assuming 62 EMX-C246P-B1 User’s Manual... -
Page 63: Intel I211/I210 Lan Chip (Pci-E Port 11)
PCIe Speed Configure PCIe Speed Gen2 Gen3 The number of milliseconds reference code will wait for link to exit Detect state for enabled ports before Detect Timeout assuming there is no device and potentially disabling the port. EMX-C246P-B1 User’s Manual 63... -
Page 64: Intel I211/I210 Lan Chip (Pci-E Port 12)
PCIe Speed Configure PCIe Speed Gen2 Gen3 The number of milliseconds reference code will wait for link to exit Detect state for enabled ports before Detect Timeout assuming there is no device and potentially disabling the port. 64 EMX-C246P-B1 User’s Manual... -
Page 65: Keym (Pci-E Port 21~24)
PCIe Speed Configure PCIe Speed Gen2 Gen3 The number of milliseconds reference code will wait for link to exit Detect state for Detect Timeout enabled ports before assuming there is no device and potentially disabling the port. EMX-C246P-B1 User’s Manual 65... -
Page 66: Sata And Rst Configuration
Test Mode Enable/Disable (Loop Back). Disabled[Default], Disabled SATA Port Enable or Disable SATA Port Enabled[Default], Hard Disk Drive[Default], Identify the SATA port is connected to Solid SATA Device Type Solid State Drive State Drive or Hard Disk Drive. 66 EMX-C246P-B1 User’s Manual... -
Page 67: Hd Audio Configuration
Control Detection of the HD-Audio device. Disabled = Disabled HD Audio HAD will be unconditionally disabled Enabled = HAD will Enabled[Default], be unconditionally enabled. 3.6.3.3 Board Configuration Item Option Description Disabled Active Panel (eDP/LVDS) Active Internal LVDS(eDP->Ch7511-to-LVDS) Enabled[Default], EMX-C246P-B1 User’s Manual 67... - Page 68 2 min 10 min 30 min Disabled Wake Up by Ring Wake Up by Ring from S3/S4/S5 Enabled[Default], 11db 14db Amplifier Gain Amplifier Gain 19db[Default], 25db Disabled Enable/Disable USB Standby Power during USB Standby Power Enabled[Default], S3/S4/S5 68 EMX-C246P-B1 User’s Manual...
-
Page 69: Security
User’s Manual 3.6.4 Security Item Description Administrator Password Set Administrator Password User Password Set User Password 3.6.4.1 Secure Boot EMX-C246P-B1 User’s Manual 69... -
Page 70: Restore Factory Keys
The mode change requires platform reset Secure Boot mode options: Standard or Custom. In Standard Custom mode, Secure Boot Policy variables can be Secure Boot Mode Custom[Default], configured by a physically present user without full authentication 3.6.4.1.1 Restore Factory Keys 70 EMX-C246P-B1 User’s Manual... -
Page 71: Key Management
User’s Manual 3.6.4.1.2 Key Management 3.6.5 Boot Item Option Description Number of seconds to wait for setup Setup Prompt Timeout activation key. 65535(0xFFFF) means indefinite waiting. On[Default] Bootup NumLock State Select the keyboard NumLock state. EMX-C246P-B1 User’s Manual 71... -
Page 72: Save & Exit
EMX-C246P-B1 User’s Manual Disabled[Default] Quiet Boot Enable or disable Quiet Boot option. Enabled Boot Option #1 Sets the system boot order 3.6.6 Save & Exit 3.6.5.1 Save Changes and Reset Reset the system after saving the changes. 72 EMX-C246P-B1 User’s Manual... -
Page 73: Discard Changes And Reset
This option restores all BIOS settings to the factory default. This option is useful if the controller exhibits unpredictable behavior due to an incorrect or inappropriate BIOS setting. 3.6.5.4 Launch EFI Shell from filesystem device Attempts to Launch EFI Shell application (Shellx64.efi) from one of the available filesystem devices. EMX-C246P-B1 User’s Manual 73... -
Page 74: Drivers Installation
EMX-C246P-B1 User’s Manual 4. Drivers Installation Note: Installation procedures and screen shots in this section are for your reference and may not be exactly the same as shown on your screen. 74 EMX-C246P-B1 User’s Manual... -
Page 75: Install Chipset Driver
Windows 10 operation system. If the warning message appears while the installation process, click Continue to go on. Step 3. Click Install. Step1. Click Next. Step 4. Complete setup. Step 2. Click Accept. EMX-C246P-B1 User’s Manual 75... -
Page 76: Install Vga Driver
Step 1. Click Next to continue installation. Step 4. Click Next. Step 2. Click Yes. Step 5. Click Finish to complete setup. SUPPORTED PRODUCTS: The Intel® Graphics Driver contains support for the following Intel Chipsets/Processors with the following 76 EMX-C246P-B1 User’s Manual... -
Page 77: Install Me Driver
Windows 10 operation system. If the warning message appears while the installation process, click Continue to go on. Step 3. Click Next Step 4. Click Finish to complete the setup Step 1. Click Next to continue setup. Step 2. Click Next. EMX-C246P-B1 User’s Manual 77... -
Page 78: Install Audio Driver (For Realtek Alc888S Hd Audio)
Windows 10 operation system. If the warning message appears while the installation process, click Continue to go on. Step1. Click Next to Install. Step 2. Select Finish to complete Installation. 78 EMX-C246P-B1 User’s Manual... -
Page 79: Install Lan Driver
Continue to go on. Step 3. Click Next. Step 1. Click Install Drivers and Software Step 4. Click Next. Step 2. Click Next to continue installation. Step 5. Click Install. EMX-C246P-B1 User’s Manual 79... - Page 80 EMX-C246P-B1 User’s Manual Step 6. Click Finish to complete setup. 80 EMX-C246P-B1 User’s Manual...
-
Page 81: Install Rst Driver
Continue to go on. Step 3. Click Next. Step 1. Click Next to continue installation. Step 4. Click Next. Step 2. Click Next. Step 5. Click Finish to complete setup. EMX-C246P-B1 User’s Manual 81... - Page 82 EMX-C246P-B1 User’s Manual Step 6. Click Finish to complete setup. 82 EMX-C246P-B1 User’s Manual...
-
Page 83: Mechanical Drawing
User’s Manual 5. Mechanical Drawing EMX-C246P-B1 User’s Manual 83... - Page 84 EMX-C246P-B1 User’s Manual 84 EMX-C246P-B1 User’s Manual...
- Page 85 User’s Manual Unit: mm EMX-C246P-B1 User’s Manual 85...
