Machine configuration menu

ENTER
0
l
Display
099-005507-EW501
13.09.2018
+
+
A
A
A
A
A
Setting/selection
Lead resistance 1
Lead resistance for the first welding circuit 0 mΩ–60 mΩ (8 mΩ ex works).
Lead resistance 2
Lead resistance for the second welding circuit 0 mΩ–60 mΩ (8 mΩ ex works).
Only qualified service personnel may change the parameters!
Only qualified service personnel may change the parameters!
Time-based power-saving mode > see 5.11.2 chapter
Time to activation of the power-saving mode in case of inactivity.
=
Setting disabled or numerical value 5– 60 min. (ex works: 20).
Service menu
Modifications to the service menu may only be carried out by authorised maintenance
staff!
Design and function
EXIT
NAVIGATION
B
B
B
B
B

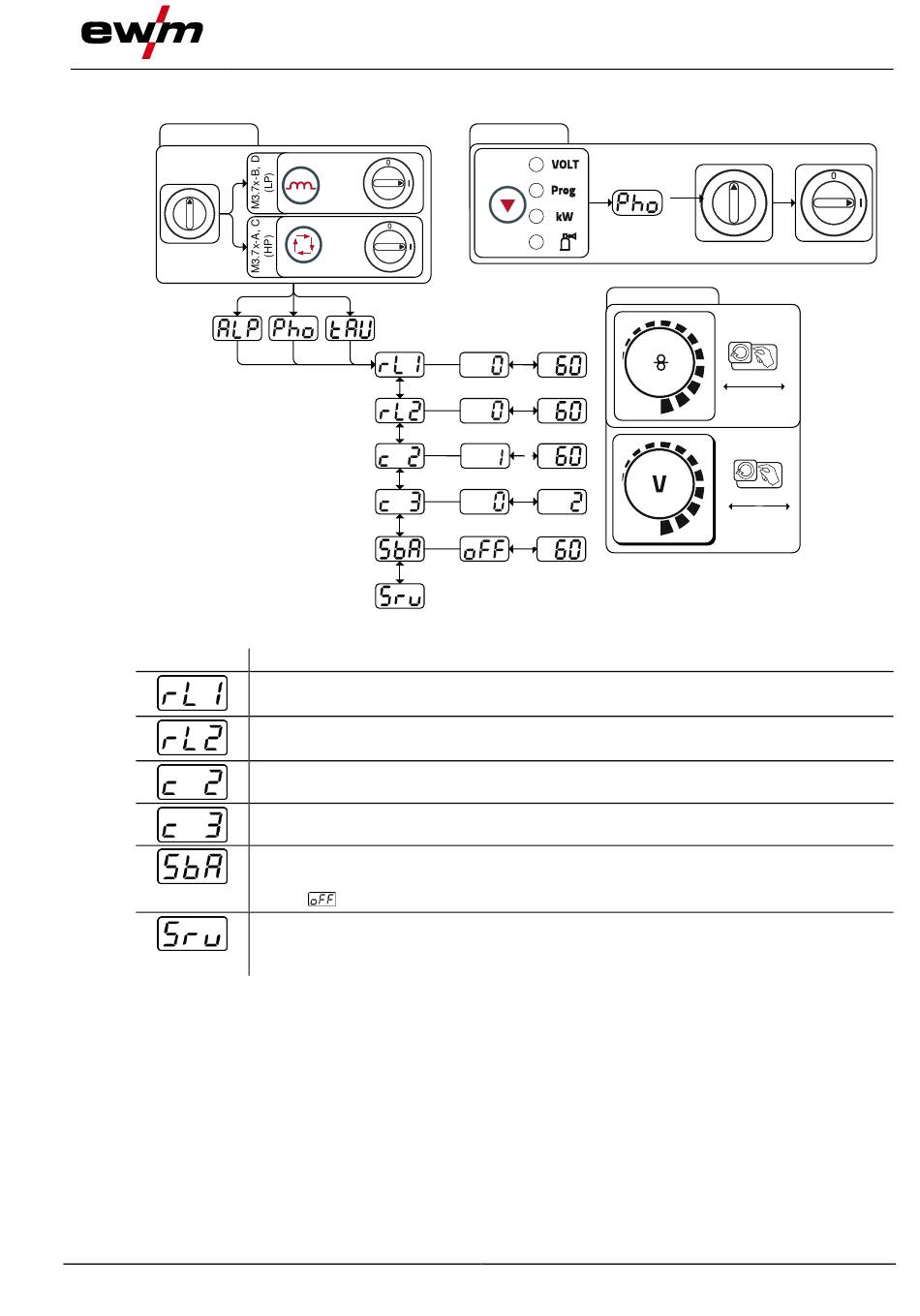

Figure 5-79
Machine configuration menu
0
l
A
B
87
