Machine description – quick overview

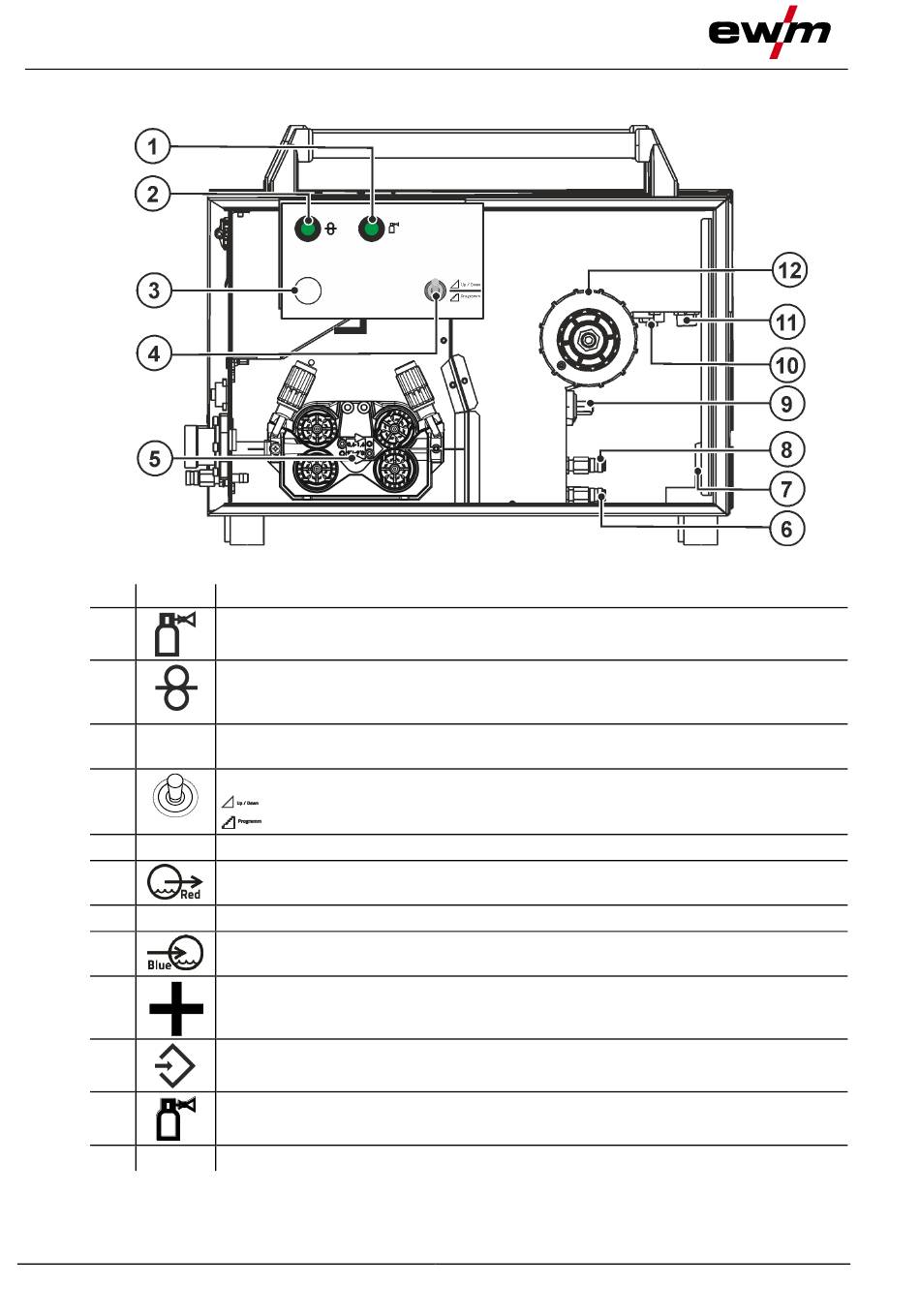

Inside view from the right

4.2 Inside view from the right
Item Symbol
1
2
3
4
5
6
7
8
9
10
11
12
14
Description 0
Push-button gas test / rinse hose package > see 5.1.7 chapter
Wire inching push-button
For potential- and gas-free inching of the wire electrode through the hose package to
the welding torch.
Lighting, inside
In power-saving mode and with MMA or TIG welding, the lighting is switched off.
Welding torch function changeover switch (special welding torch required)
---- Welding power infinitely adjustable
---- Change over programs or JOBs
Wire feed unit
Quick connect coupling (red)
Coolant return
Intermediate hose package strain relief > see 5.1.6 chapter
Quick connect coupling (blue)
Coolant feed
Connector plug, welding current "+"
Welding current connection on wire feed unit
7-pole connection socket (digital)
•
Control lead for wire feed unit
Connecting nipple G¼, shielding gas connection
Wire spool holder
Figure 4-2
