4.3

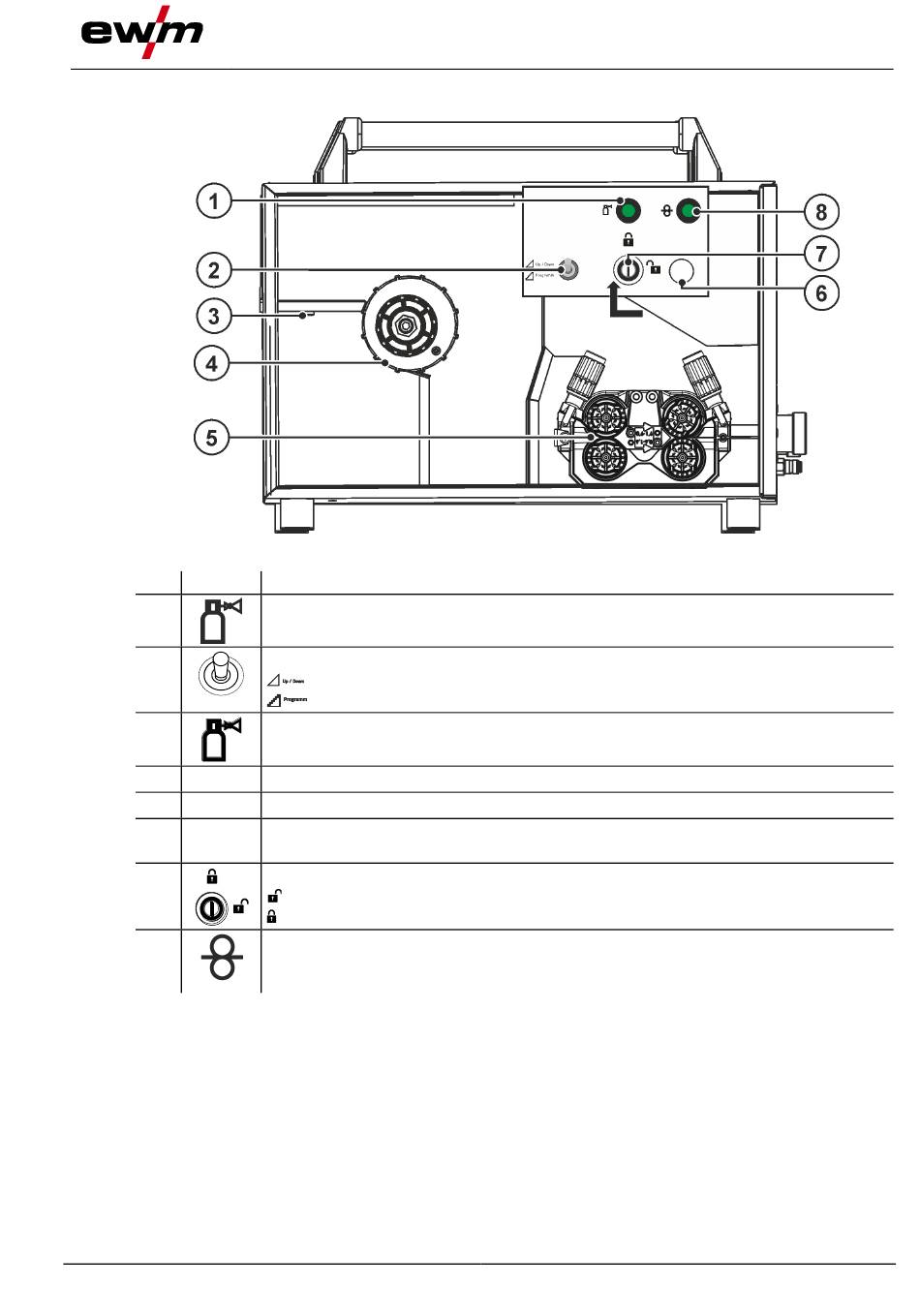

Inside view from the left

Item Symbol
1
2
3
4
5
6
7
8
099-005507-EW501
13.09.2018
Machine description – quick overview
Description 0
Push-button gas test / rinse hose package > see 5.1.7 chapter
Welding torch function changeover switch (special welding torch required)
----- Welding power infinitely adjustable
---- Change over programs or JOBs
Connecting nipple G¼, shielding gas connection
Wire spool holder
Wire feed unit
Lighting, inside
In power-saving mode and with MMA or TIG welding, the lighting is switched off.
Key switch for protection against unauthorised use > see 5.9 chapter
--------- changes possible,G front drive-4x-EX
---------- changes not possible.
Wire inching push-button
For potential- and gas-free inching of the wire electrode through the hose package to
the welding torch.
Figure 4-3
Inside view from the left
15
