Design and function
Transport and installation
Risk of falling!
If the double wire feed unit is not positioned correctly on the holder, it may fall, become
damaged and cause injury to persons as a result.
•
Always position the inner feet of the wire feed unit in the provided recesses!
•
Outer housing frames of the wire feed must lay flat on the holder!
(See figure, part "b")
•
Check that the wire feed is properly secured before any transport and every start-up
operation!
•
Observe the safety instructions on transport and positioning, as well as on lifting by crane,
in the operating instructions for the power source!
•
Do not apply tractive force to the torch tube package! If there is any possibility that tractive
force may be unavoidable, the wire feed must be removed from the support!
•
The press arbor bracket must not be used (even with a single wire feed)!
Item Symbol
1
2
3
4
5
•

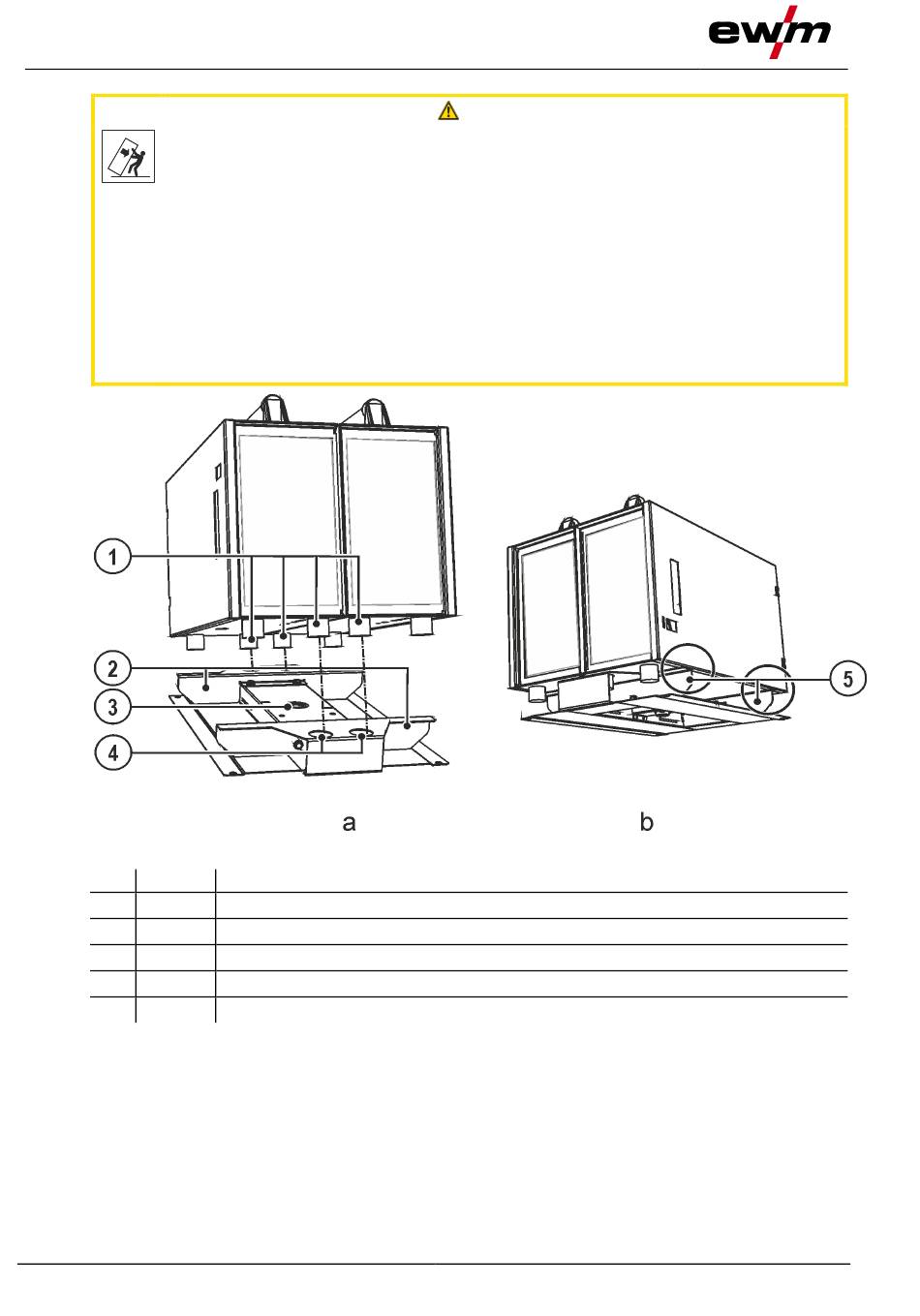

Set the double wire feed on the holder in such a way that the unit's inner feet are held securely in the
recesses provided for them.
20
Description 0
Internal unit feet
Holder for wire feed unit
Press arbor bracket
Recesses for unit feet
External casing frame
CAUTION
Figure 5-1
