Design and function
Special parameters (advanced settings)

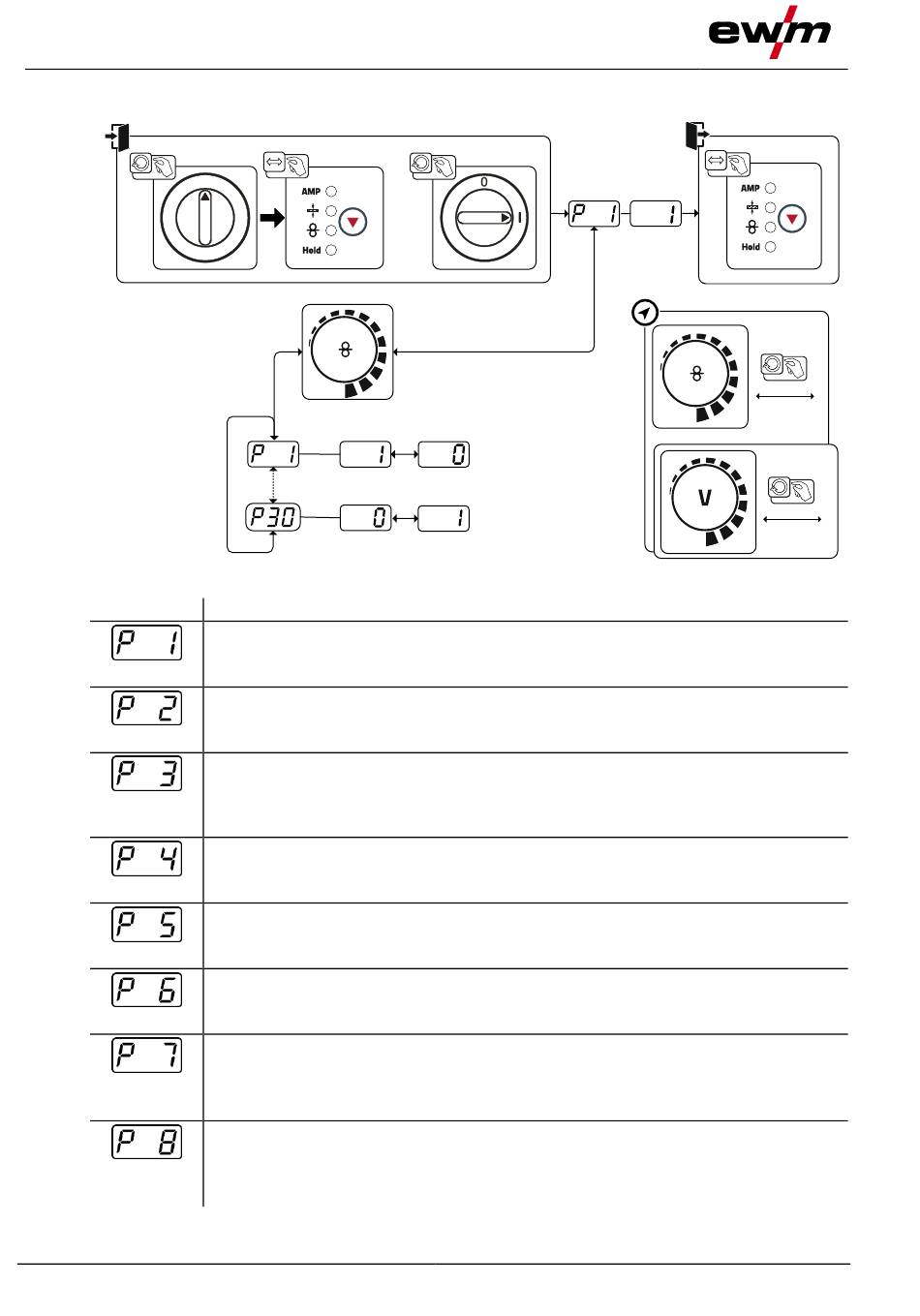

5.10.1 Selecting, changing and saving parameters

Display
76
0
l
A
A
Setting/selection
Wire inching / wire return ramp time
0 = ------- normal inching (10 s ramp time)
1 = ------- fast inching (3 s ramp time) (ex works)
Block program "0"
0 = ------- P0 enabled (Ex works)
1 = ------- P0 blocked
Display mode for Up/Down welding torch with one-digit 7-segment display (two
keys)
0 = ------- normal display (ex works) program number/welding power (0–9)
1 = ------- display toggles between program number/welding type
Program limitation
Programs 1 to max. 15
Ex works: 15
Special cycle in the special latched and non-latched operating modes
0 = ------- normal (previous) non-latched/latched (Ex works)
1 = ------- WF3 cycle for non-latched/latched
Enable special jobs SP1 to SP3
0 = ------- no enabling (Ex works)
1 = ------- enabling of Sp1-3
Correction operation, threshold value setting
0 = ------- correction operation switched off (Ex works)
1 = ------- correction operation on
"Main program (PA)" flashing
Program changeover with standard torch
0 = ------- no program changeover (Ex works)
1 = ------- special latched
2 = ------- specific latched special (n cycle active)
+
A
B
B
Figure 5-72
A
B
