Display
099-005507-EW501
13.09.2018

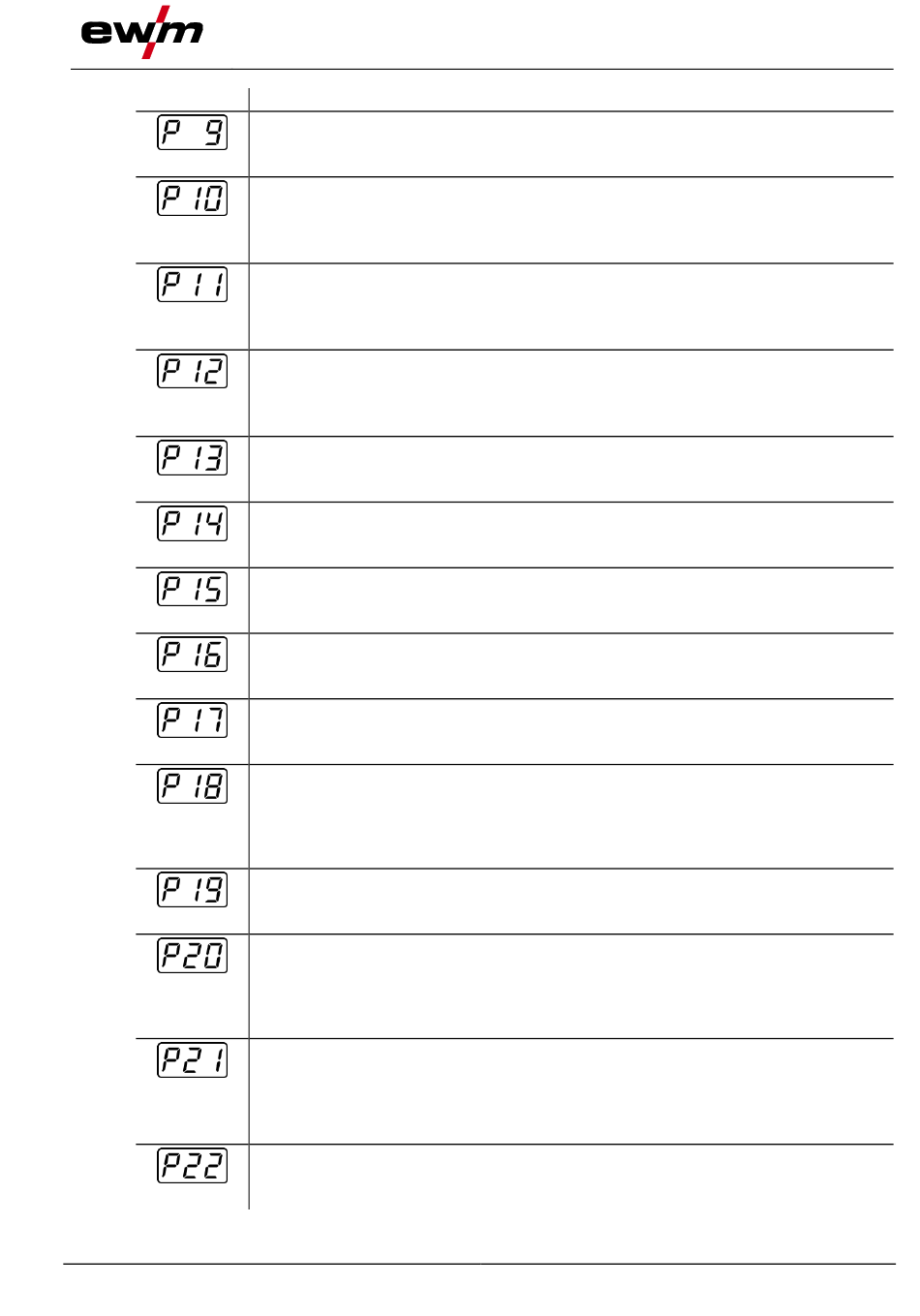

Setting/selection
Lat. and sp. lat. tapping start
0 = -------- no latched tapping start (Ex works)
1 = -------- latched tapping start possible
One or two-wire feed operation
0 = -------- single operation (Ex works)
1 = -------- dual operation, this unit is the "master"
2 = -------- dual operation, this unit is the "slave"
Special latched tapping time
0 = tapping function switched off
1 = 300ms (Ex works)
2 = 600ms
JOB list changeover
0 = -------- task-oriented JOB list
1 = -------- actual JOB list (Ex works)
2 = -------- actual JOB list, JOB changeover activated via accessories
Lower limit remote JOB switching
JOB range of the function torches (MT PC2, PM 2U/D, PM RD2)
Lower limit: 129 (ex works)
Upper limit remote JOB switching
JOB-Barea of the functional torch (MT PC2, PM 2U/D, PM RD2)
Upper limit: 169 (ex works)
HOLD function
0 = -------- HOLD values are not displayed
1 = -------- HOLD values are displayed (Ex works)
Block JOB mode
0 = -------- Block JOB mode not enabled (Ex works)
1 = -------- Block JOB mode enabled
Program selection with standard torch trigger
0 = -------- no program selection (Ex works)
1 = -------- program selection possible
Switching the operating mode and welding type using the wire feed control
0 = -------- Switching the operating mode and welding type using the wire feed control and
program 0 (factory setting).
1 = -------- Switching the operating mode and welding type using the wire feed control and
programs 0-15.
Mean value display for superPuls
0 = -------- Function switched off.
1 = -------- Function switched on (ex factory).
Predefined pulse arc welding process in the PA program
0 = -------- Predefined pulse arc welding process in the PA program is disabled.
1 = -------- If the superPuls and welding process switching functions are available and
activated, the pulse arc welding process is always executed in the main
program PA (ex factory).
Predefined absolute value for relative programs
Start program (P ), down-slope program (P
START
relative to the main program (P
0 = -------- Relative parameter setting (ex factory)
1 = -------- Absolute parameter setting
Electronic gas flow control, type
1 = -------- type A (ex works)
0 = -------- type B
Design and function
Special parameters (advanced settings)
) and end program (P
B
) or in an absolute manner, as desired.
A
) can be set
END
