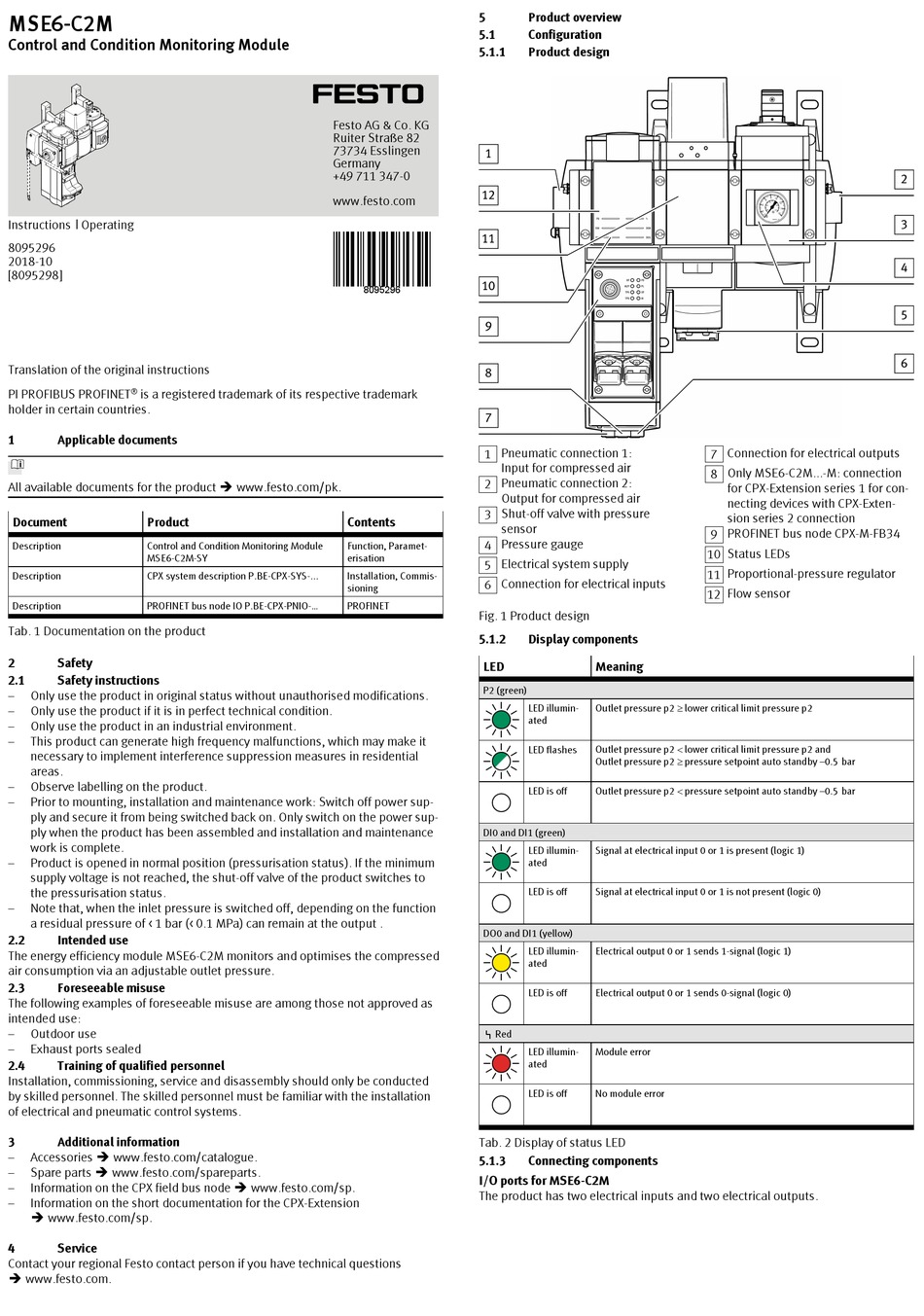

Festo MSE6-C2M Instructions & Operating

MSE6-C2M
Control and Condition Monitoring Module
Instructions | Operating
8095296
2018-10
[8095298]
Translation of the original instructions
PI PROFIBUS PROFINET ® is a registered trademark of its respective trademark
holder in certain countries.
1

Applicable documents

All available documents for the product è www.festo.com/pk.
Document Product
Description Control and Condition Monitoring Module
MSE6-C2M-SY
Description CPX system description P.BE-CPX-SYS-...
Description PROFINET bus node IO P.BE-CPX-PNIO-...
Tab. 1 Documentation on the product
2 Safety
2.1

Safety instructions

– Only use the product in original status without unauthorised modifications.
– Only use the product if it is in perfect technical condition.
– Only use the product in an industrial environment.
– This product can generate high frequency malfunctions, which may make it
necessary to implement interference suppression measures in residential
areas.
– Observe labelling on the product.
– Prior to mounting, installation and maintenance work: Switch off power sup-
ply and secure it from being switched back on. Only switch on the power sup-
ply when the product has been assembled and installation and maintenance
work is complete.
– Product is opened in normal position (pressurisation status). If the minimum
supply voltage is not reached, the shut-off valve of the product switches to
the pressurisation status.
– Note that, when the inlet pressure is switched off, depending on the function
a residual pressure of < 1 bar (< 0.1 MPa) can remain at the output .
2.2

Intended use

The energy efficiency module MSE6-C2M monitors and optimises the compressed
air consumption via an adjustable outlet pressure.
2.3

Foreseeable misuse

The following examples of foreseeable misuse are among those not approved as
intended use:
– Outdoor use
– Exhaust ports sealed
2.4

Training of qualified personnel

Installation, commissioning, service and disassembly should only be conducted
by skilled personnel. The skilled personnel must be familiar with the installation
of electrical and pneumatic control systems.
3

Additional information

– Accessories è www.festo.com/catalogue.
– Spare parts è www.festo.com/spareparts.
– Information on the CPX field bus node è www.festo.com/sp.
– Information on the short documentation for the CPX-Extension
è www.festo.com/sp.
4

Service

Contact your regional Festo contact person if you have technical questions
è www.festo.com.
5
5.1
5.1.1
Festo AG & Co. KG
Ruiter Straße 82
73734 Esslingen
Germany
+49 711 347-0
www.festo.com
8095296
1 Pneumatic connection 1:
Input for compressed air
2 Pneumatic connection 2:
Output for compressed air
3 Shut-off valve with pressure
Contents
sensor
4 Pressure gauge
Function, Paramet-
erisation
5 Electrical system supply
Installation, Commis-
6 Connection for electrical inputs
sioning
PROFINET
Fig. 1 Product design
5.1.2
LED
P2 (green)
DI0 and DI1 (green)
DO0 and DI1 (yellow)
P Red
Tab. 2 Display of status LED
5.1.3
I/O ports for MSE6-C2M
The product has two electrical inputs and two electrical outputs.

Product overview

Configuration

Product design

Display components

Meaning
LED illumin- Outlet pressure p2 ³ lower critical limit pressure p2
ated
LED flashes Outlet pressure p2 < lower critical limit pressure p2 and
Outlet pressure p2 ³ pressure setpoint auto standby –0.5 bar
Outlet pressure p2 < pressure setpoint auto standby –0.5 bar
LED is off
LED illumin- Signal at electrical input 0 or 1 is present (logic 1)
ated
LED is off Signal at electrical input 0 or 1 is not present (logic 0)
LED illumin- Electrical output 0 or 1 sends 1-signal (logic 1)
ated
LED is off Electrical output 0 or 1 sends 0-signal (logic 0)
LED illumin- Module error
ated
LED is off No module error

Connecting components

7 Connection for electrical outputs
8 Only MSE6-C2M...-M: connection
for CPX-Extension series 1 for con-
necting devices with CPX-Exten-
sion series 2 connection
9 PROFINET bus node CPX-M-FB34
10 Status LEDs
11 Proportional-pressure regulator
12 Flow sensor
