III. Positioning the Scan Material
A. Positioning Transparencies

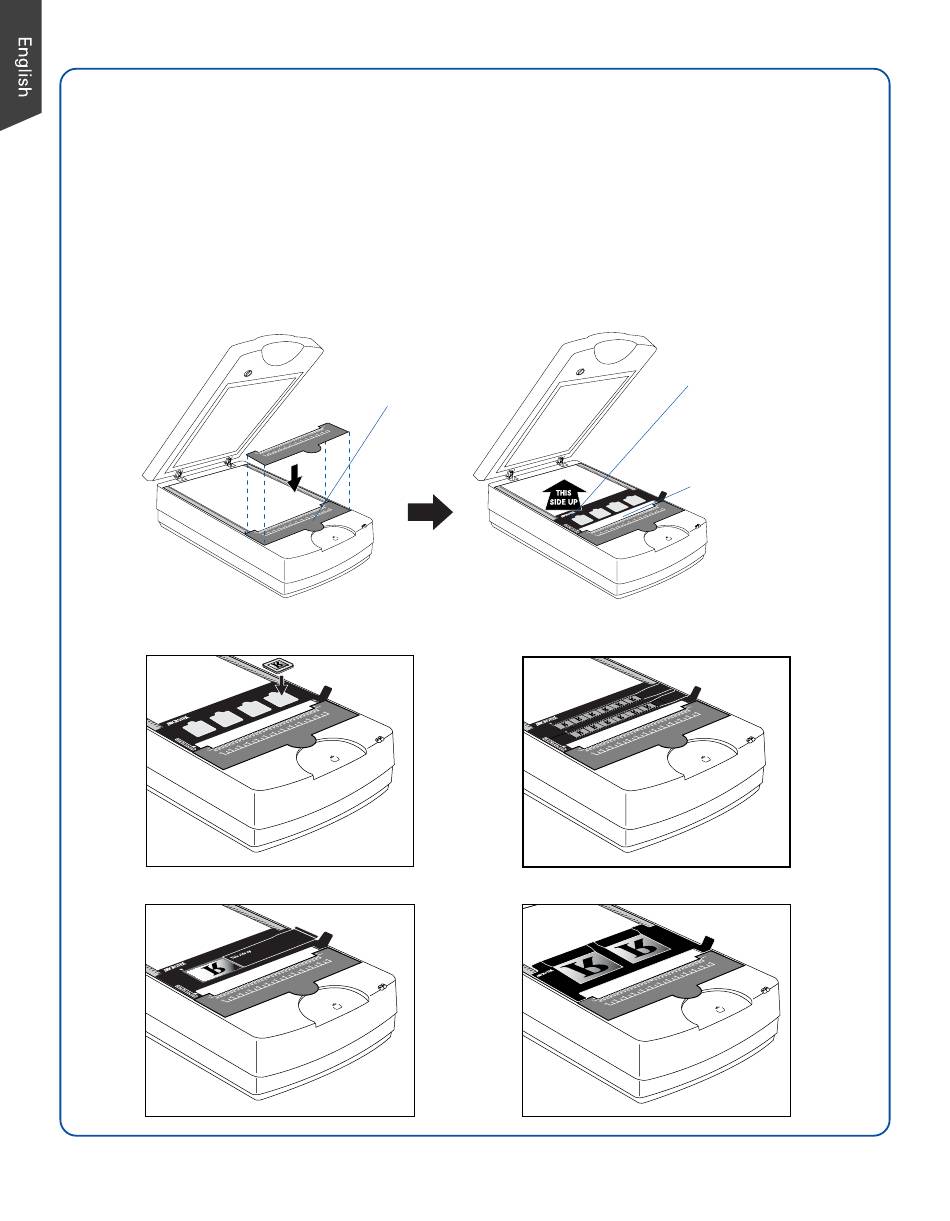

• To scan standard-size transparent film such as 35mm slides, 35mm filmstrips, 4"x5" film, or 120 film:
Use the individual film templates and the U-shaped Ruler (Calibration Ruler) included with the scanner
package.
1. To place the U-shaped Ruler, insert the tabs at the back of the ruler into the holes on the both sides
of the scanner's upper front surface, making sure that it has been oriented correctly.
2. Align the template's front corners firmly against the top corners (left and right) of the U-shaped
Ruler located at the front of the scanner.
Using the 35mm Slide Template
Using the 120 Film Template
U-shaped Ruler
(Calibration Ruler)
Using the 35mm Filmstrip Template
Using the 4" x 5" Film Template
4
Important:
When using the templates,
make sure you use the
correct side up. The
correct side up is the side
showing the "Microtek"
logo facing up.
Calibration strip
(Keep clear and unobstructed)
