OWNER'S MANUAL
Battery Backup Systems
DB20018T
A .C
.P O
W E
R
O N
P U
M P
R U
N A
A U
LA
R M
M IC
S IL
D IB
R O
E N
LE
PR
C E
A LA
O C
ES
R M
SO
R
LO
C O
W
N TR
B AT
TE
O LL
R Y
ED
C H
A LA
C H
A R
R M
G IN
A U
A R
G
D IB
G E
- Y
D
E LL
L E
-
O W
A L
G R
D IS
E E
A R
N
A B
M
L E
A L
A R
S O
M
F T
R E
R E
S E
S E
T
T
3466 0799 SR
S521 (Rev. 8/2/02)

Advertisement

loading
Need help?

Need help?

Do you have a question about the DB10018T and is the answer not in the manual?

Questions and answers

Related Manuals for STA-RITE DB10018T

Summary of Contents for STA-RITE DB10018T

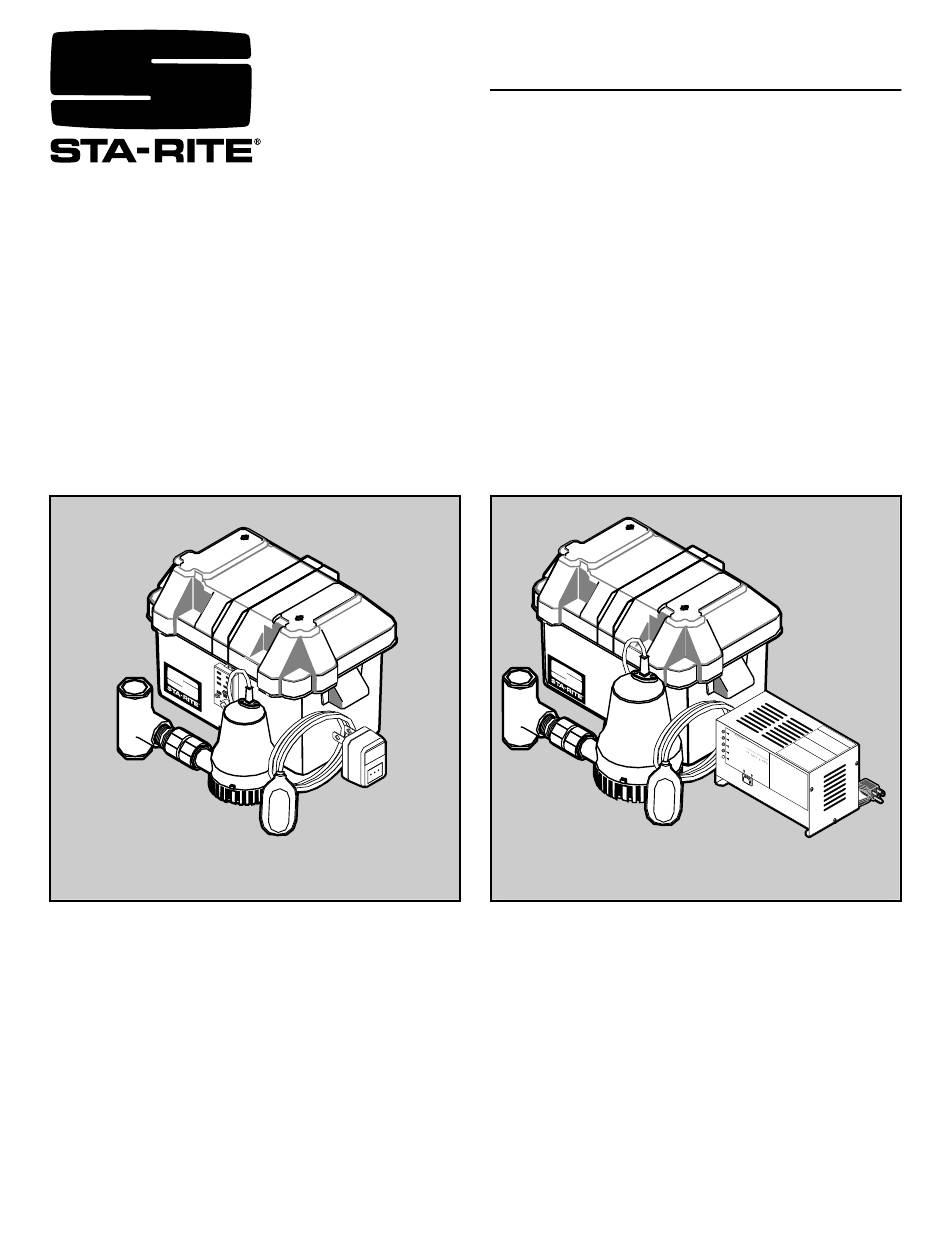

  • Page 1 O LL A LA G IN D IB E LL D IS 3467 0799 SR DB10018T DB20018T 3466 0799 SR Installation/Operation/Parts For further operating, installation, or maintenance assistance: Call 1-800-323-0620 © 2002, Sta-Rite, Industries, Inc. Printed in U.S.A. S521 (Rev. 8/2/02)

  • Page 2: General Safety

    9. Maximum vertical pumping distance is 16 feet pump. (4.9M) for Model DB10018T and 18 feet (5.5M) for Model DB20018T. Battery acid is corrosive. Do not spill on 10. Make sure sump is clear of debris. Debris can dam- skin, clothing, or battery charger.

  • Page 3: Table Of Contents

    LIMITED WARRANTY Sta-Rite Industries, Inc., warrants to the original consumer of the products listed below, that they will be free from defects in material and workmanship for the Warranty Period from the date of original installation or manufacture as noted.

  • Page 4: Installation

    Installation BATTERY BACKUP SYSTEM Electrical shock hazard. Shock can burn INSTALLATION AND OPERATION or kill. Do not use metal or any other electrical con- ducting material to raise the float. Do not make con- NOTICE: tact with the water in the sump pit. Failure to follow •...
  • Page 5 Installation 5. To separate the primary pump from the discharge pipe: Backup Pump Installation (Method A) 5A. For applications with hose couplings: remove the coupling clamps with a nut driver. Not to Scale First Cut: 5B. For applications without rubber couplings: cut Switches and Wiring omitted the PVC discharge pipe with a hacksaw above...
  • Page 6 Installation 1. Make the second cut in the discharge pipe at the Backup Sump Pump comes on. pencil mark as shown in Figure 1 on page 4, and in 11. Slip a reducer bushing (Key No. 3) onto the end of Figure 4, on Page 5.
  • Page 7 Installation 2. Wrap the threads of the close nipple (Key No. 4 on 2. Mark the discharge pipe where it should be cut. Be Page 12) counterclockwise with 2 turns of Teflon sure to leave a 1/4” air gap between the ends of the tape and set aside.
  • Page 8 Page 10. Positive lead from the pump Positive pump connection Negative lead from the pump Negative pump connection TABLE II - Charge Error Table for DB10018T Red LED is 1. A fault condition has occurred; indicates the CHARGER/BATTERY INSTALLATION on continuously...
  • Page 9 Installation Model Number DB20018T: 1. Connect charger as shown in Table III and in Figure 11. ÉTAT DU COURANT ALTERNATIF. A.C.POWER ESTADO DE LA CORRIENTE ALTERNA. STATUS ÉTAT DE FONCTIONNEMENT DE PUMP RUN LA POMPE. STATUS ESTADO DE FUNCIONAMIENTO DE LA BOMBA.

  • Page 10: Operation

    Model Number DB20018T: Recharge Time: NOTICE: The LED’s will only illuminate once the AC DB10018T: Approximately 100+ hours to fully recharge power has been applied. They will not light up if the a battery in a “dead battery condition”. charger is not plugged in.

  • Page 11: Troubleshooting

    • A built-in safety timer starts when the charger enters the Constant Current/Constant Voltage Charge stage Follow the battery manufacturer’s recommendations for (Yellow LED is continuously on). The DB10018T sys- maintenance and safe use of battery. tem has a 150 hour safety timer and the DB20018T system has a 25 hour safety timer.

  • Page 12: Repair Parts

    Small Cable Ties (2) Large Cable Tie Battery Case (Complete) PS17-100 PS17-100 Two Face Tape, 1” x 2” (†)(2) PS97-5 – Charger Kit (DB10018T) (includes wires, junction box) PS217-112 – Charger Kit (DB20018T) – PS217-119 Battery Lead (†††) PS117-114 –...
