Steelcase 4200 Woodcore Assembly Directions

Steel auxiliary tops onto 800 series lateral files or bullnose woodcore auxiliary top onto 800 or 900 series lateral files

Download this manual

Steelcase, Inc.

Grand Rapids, MI 49501

U.S.A.

1-888-783-3522

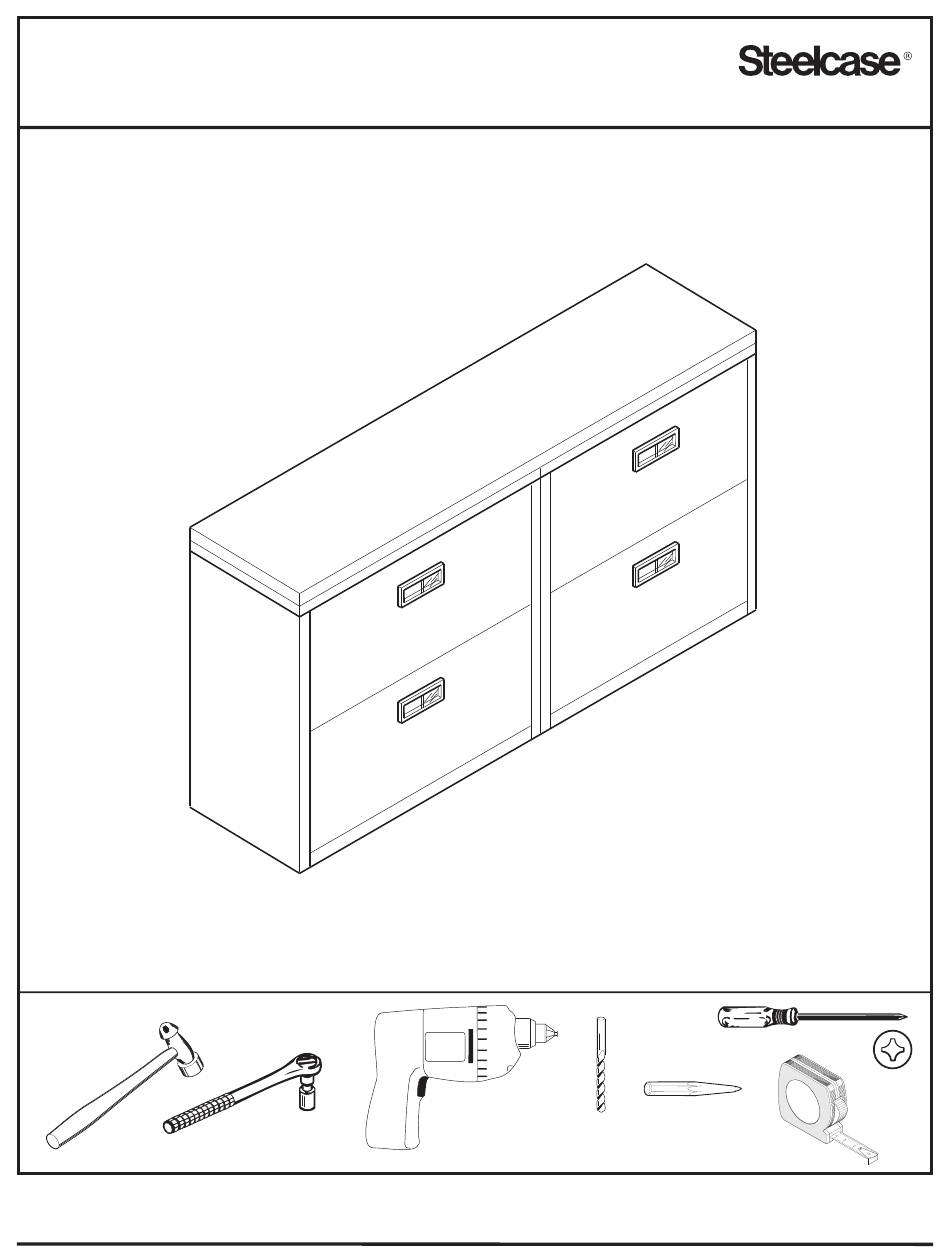

Mounting 3200 And 4200 Woodcore or Steel Auxiliary Tops Onto

800 Series Lateral Files Or Bullnose Woodcore Auxiliary Top Onto

NOTE: The following directions illustrate a 3200 or 4200 wood or steel top assembled onto 800 series lateral files and is

typical for "Bullnose Auxiliary Top" installation except screw size noted in Step 3.

Tools

Assembly Directions

800 Or 900 Series Lateral Files

7/32" SOCKET

1/4" DRILL BIT

REV

93-9500819 A

Page 1 of 4

Need help?

Do you have a question about the 4200 Woodcore and is the answer not in the manual?

Page 1 Grand Rapids, MI 49501 U.S.A. 1-888-783-3522 Mounting 3200 And 4200 Woodcore or Steel Auxiliary Tops Onto 800 Series Lateral Files Or Bullnose Woodcore Auxiliary Top Onto 800 Or 900 Series Lateral Files NOTE: The following directions illustrate a 3200 or 4200 wood or steel top assembled onto 800 series lateral files and is typical for “Bullnose Auxiliary Top”...
Page 2 NOTE; Prior to installation of Auxiliary Top, remove the top drawer(s) or door(s). If Auxiliary Top is to be installed onto a single file, Step 1 and proceed onto Step 2 of these directions. Attaching files together Locate and remove (2) knock-out slugs at the top of each KNOCK-OUT mating side of file.
Page 3 Marking hole locations on top(s) of files(s) Starting from the left side and front edge(s) measure and mark places to be drilled. Use hammer and center punch to locate holes. Drill 1/4” hole at required locations. Positioning and securing top onto lateral files(s) Center top onto file(s).
Page 4 Chart “A” OVERALL TOP SIZE NO. OF 1/4” DIA. HOLES REQ’D 30 1/8” x 18” 4 1/16” 26 1/16” 36 1/8” x 18” 4 1/16” 32 1/16” 42 1/8” x 18” 4 1/16” 38 1/16” 26 3/32” 34 3/32” 60 3/16” x 18” 4 3/16”...
