If you have a problem, question, or request, call
your local dealer, or Steelcase Line 1 at
888.STEELCASE (888.783.3522)
for immediate action by people who want to help you.
(Outside the U.S.A., Canada, Mexico, Puerto Rico,
and the U.S. Virgin Islands, call: 1.616.247.2500)
Or visit our website: www.steelcase.com
©
2013 Steelcase Inc.
Grand Rapids, MI 49501
U.S.A.
Printed in U.S.A.

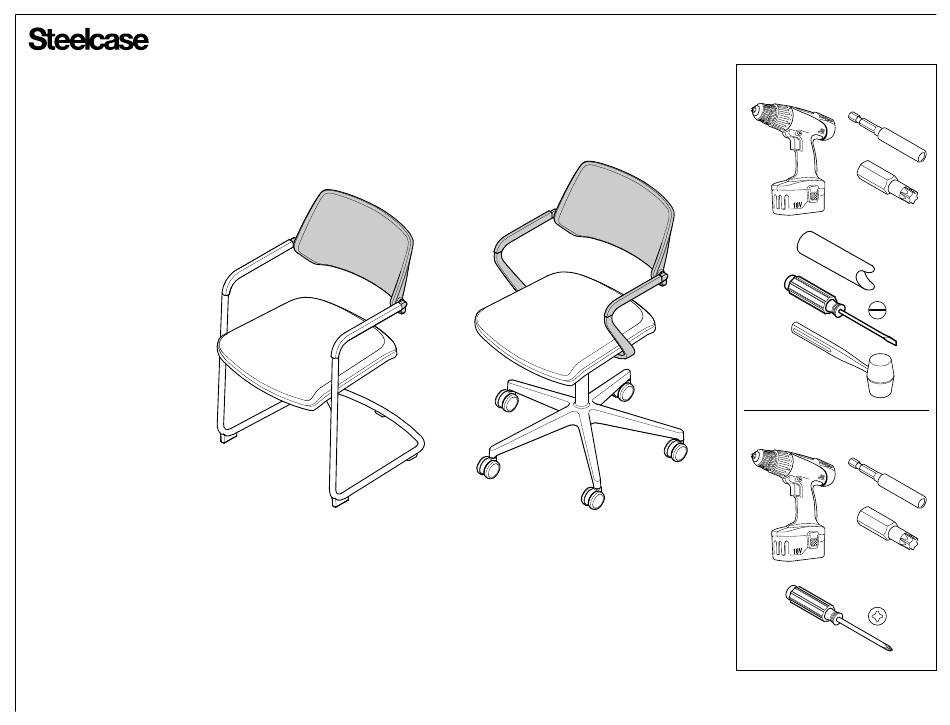

SLED BASE
428 QiVi
- Back Assembly Replacement
™
CONFERENCE
SLED BASE TOOLS
T20
CONFERENCE TOOLS
T40
Page 1 of 7
939542805 Rev B
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Steelcase 428 QiVi
Summary of Contents for Steelcase 428 QiVi
- Page 1 CONFERENCE TOOLS SLED BASE CONFERENCE If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. (Outside the U.S.A., Canada, Mexico, Puerto Rico, and the U.S.
- Page 2 ® Sled Base Lift up on the back of the arm cap (1a) and insert a flat-bladed screwdriver (1b) then pry off arm caps (1c). Remove flat head screw located under each arm cap with a T25 torx bit. Remove the back assembly with a rubber mallet.
- Page 3 ® Install the new back assembly with the installation tool (not provided) & a rubber mallet, moving to the right & left side of chair until the back assembly has been fully installed. NOTE: Installation tool can be ordered using part number 892342800.
- Page 4 ® Conference Raise the chair to its highest height. Insert a small phillips screwdriver into hole on bottom of chair. Push up with the screwdriver while pushing the front of the seat assembly, with your hand, to dislodge the seat assembly. Page 4 of 7 939542805 Rev B...
- Page 5 ® Remove the seat slides from the control housing and set aside for reinstallation. Remove four (4) screws with T30 torx bit and remove the back assembly. Page 5 of 7 939542805 Rev B...
- Page 6 ® Install the new back assembly with four (4) screws with T30 torx bit until fully seated. Install the seat slides, that were removed in step 3, onto the control housing. Page 6 of 7 939542805 Rev B...
- Page 7 ® Make sure the rubber spring assembly has been installed onto the control housing securely. Place seat back into slots on chair and slide forward to engage onto chair. Page 7 of 7 939542805 Rev B...
